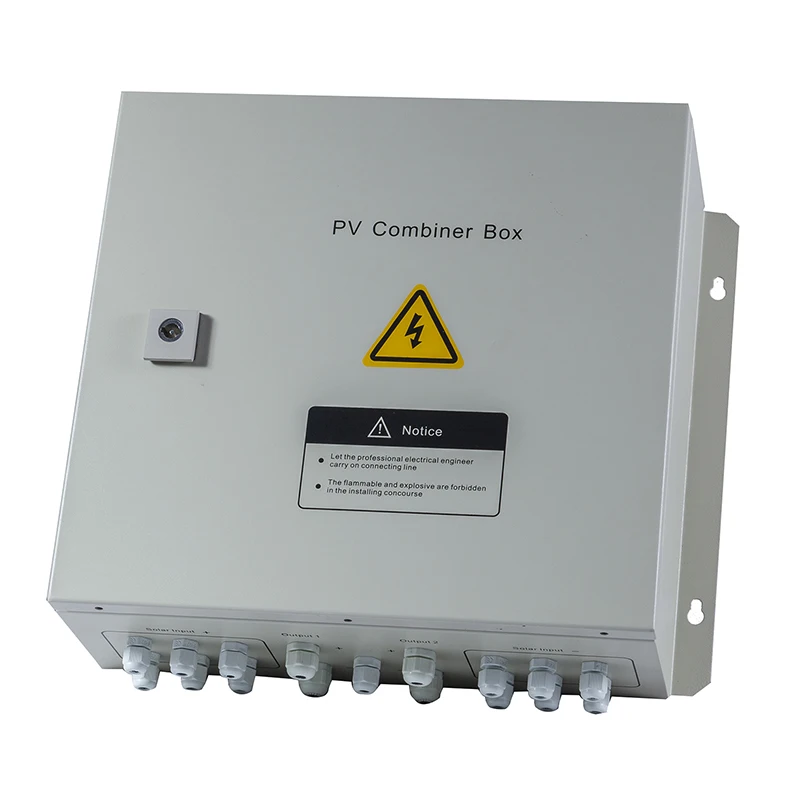

Model | H4T | H6T | H8T | H10T | ||||
Input data | Number of PV input arrays | 4 | 6 | 8 | 10 | |||
Maximum current of each PV input array | 15A | |||||||
Fuse for each PV input array | 15A | |||||||
With number of each PV input array | PG7 4MM² | |||||||
Output data | Number of output channel | 1 | 2 | |||||
Maximum output current | 40A | 60 A in all 30A/output channel | 80 A in all 40A /output channel | 100 A in all 50A /output channel | ||||
Mximum output voitage | 500VDC | |||||||
Wire number of each output channel | PG16, 8MM2 for each output channel | PG16, 10MM2 for each output channel | PG16, 10mm2 for each output channel | PG16, 12mm2 for each output channel | ||||
Dimensions (W*D*H mm) | 340*300*140 | 360*340*145 | 400*420*145 | |||||
