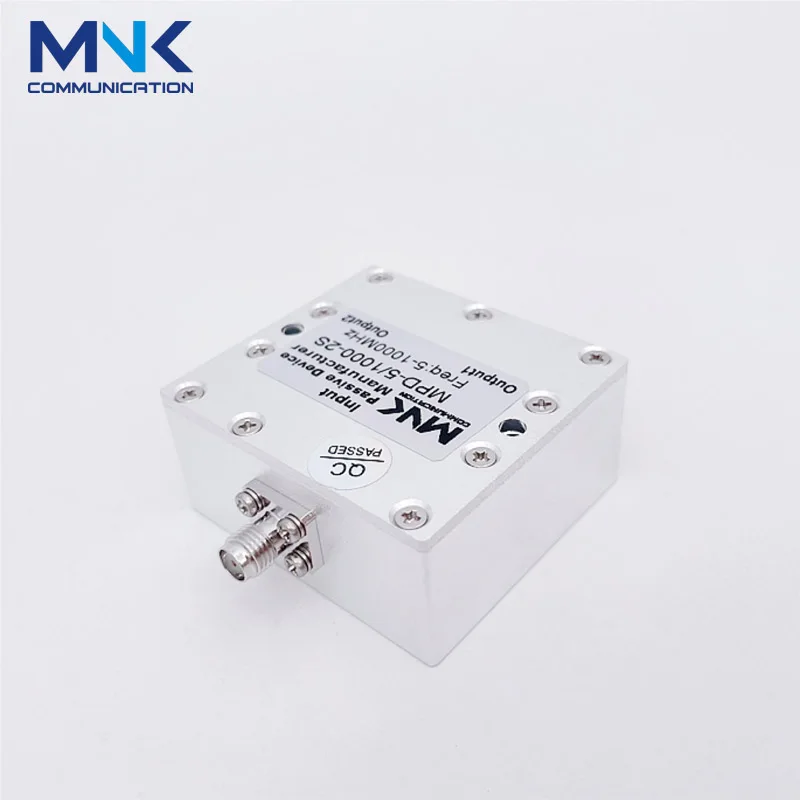

Small power low frequency 5 1000MHz 2 Way Wilkinson power divider fm antenna splitter
- Category: Telecom Parts >>>
- Supplier: Sichuan MNK Communication Technology Co. Ltd.
Share on (1600440375836):
Product Overview
Description
Product Description

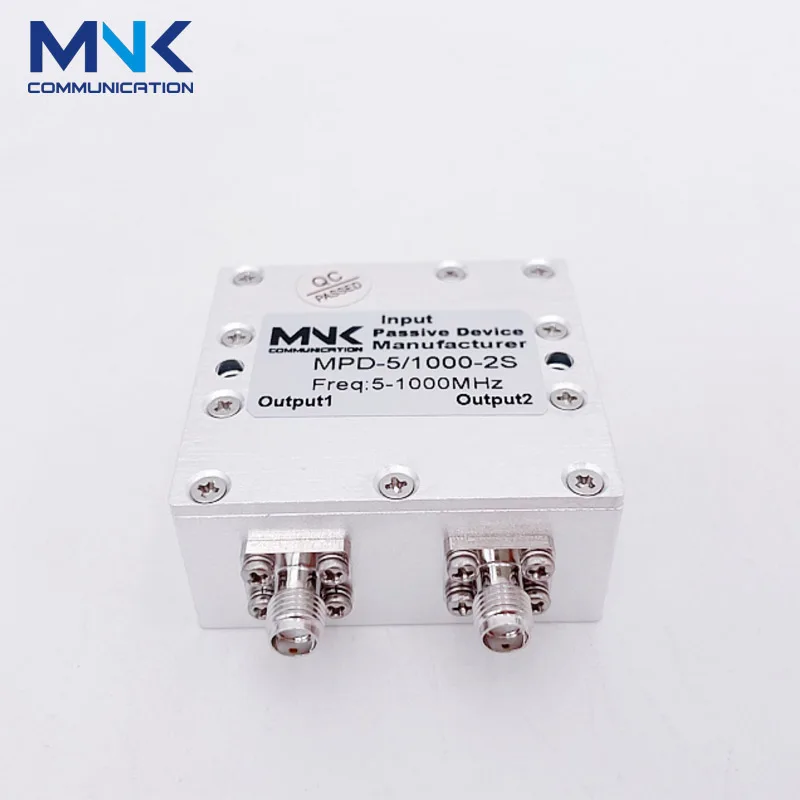

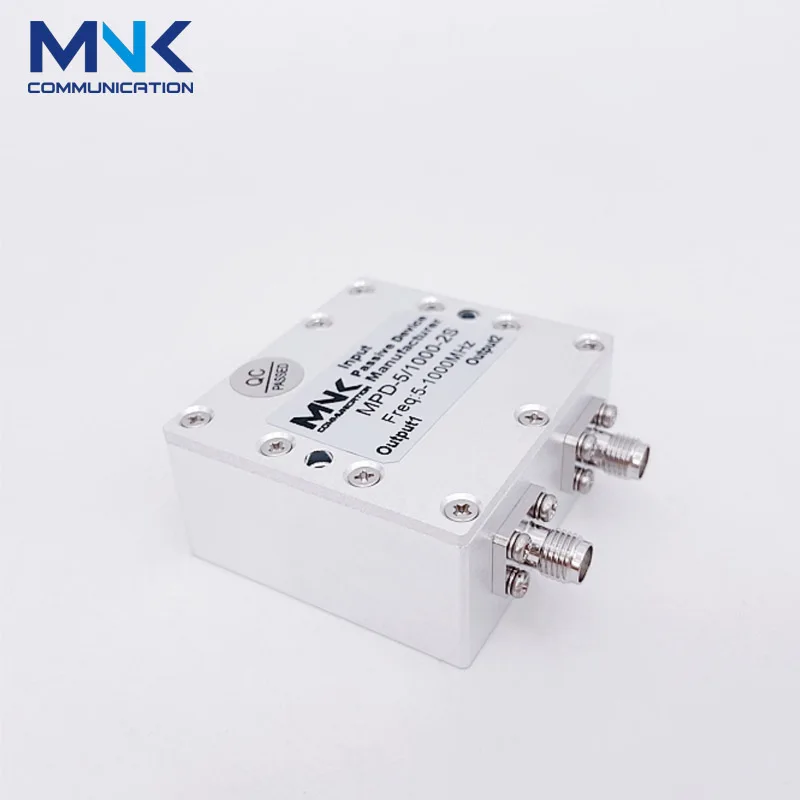

2-Way Power Divider
Microstrip Power divider, full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.

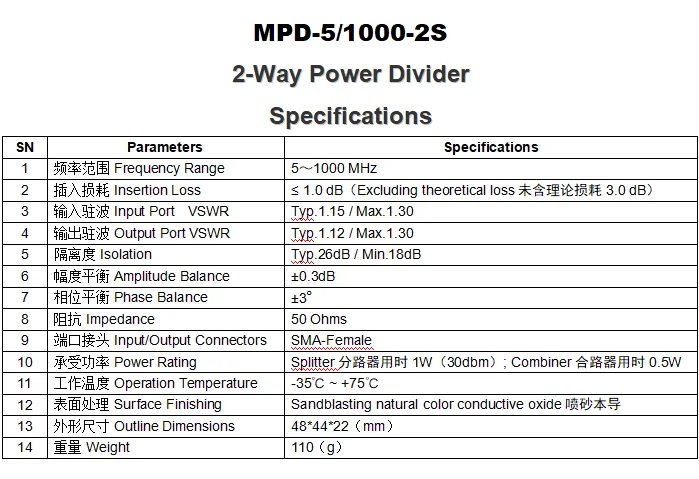

Specification
MPD-5/1000-2S | ||
Frequency Range | 5～1000 MHz | |
Insertion Loss | ≤ 1.0 dB（Excluding theoretical loss 3.0 dB） | |
Input Port VSWR | Typ.1.15 / Max.1.30 | |
Output Port VSWR | Typ.1.12 / Max.1.30 | |
Isolation | Typ.26dB / Min.18dB | |
Amplitude Balance | ±0.3dB | |
Phase Balance | ±3° | |
Impedance | 50 Ohms | |
Input/Output Connectors | SMA-Female | |
Power Rating | Splitter 1W（30dbm）; Combiner 0.5W | |
Operation Temperature | -35℃ ~ +75℃ | |
Surface Finishing | Sandblasting natural color conductive oxide | |

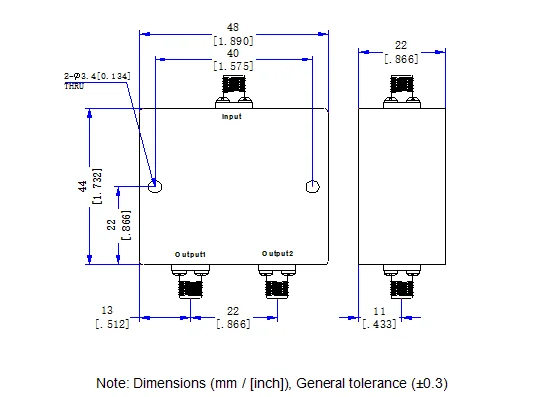

Outline Dimensions | 48*44*22（mm） | |
Weight | 110（g） | |
Packing & Delivery
Company Profile
Sichuan Minnich Communication Technology Co., Ltd. is a professional industry & trade company, integrated with R&D, production and sales of passive devices.
Our main products are passive power dividers, covering multi-band frequency and various connectors. We confirm that all products are being produced strictly following the requirements of the product specifications, the actual performance will not be lower than the written specifications, no false publicity will be made.
We have vector network analyzer of world famous brand, which ensures the accuracy of the testing data. All indexes have been tested before shipment, and only the qualified product will be shipped. The retest index book is included with the shipment!
Our advantage is not low price, but good product index and stable performance. I hope you can use better products instead of substitutes. We accept small batch customization, and we also accept OEM and ODM orders. We are a competitive and reliable supplier!
Our main products are passive power dividers, covering multi-band frequency and various connectors. We confirm that all products are being produced strictly following the requirements of the product specifications, the actual performance will not be lower than the written specifications, no false publicity will be made.
We have vector network analyzer of world famous brand, which ensures the accuracy of the testing data. All indexes have been tested before shipment, and only the qualified product will be shipped. The retest index book is included with the shipment!
Our advantage is not low price, but good product index and stable performance. I hope you can use better products instead of substitutes. We accept small batch customization, and we also accept OEM and ODM orders. We are a competitive and reliable supplier!
