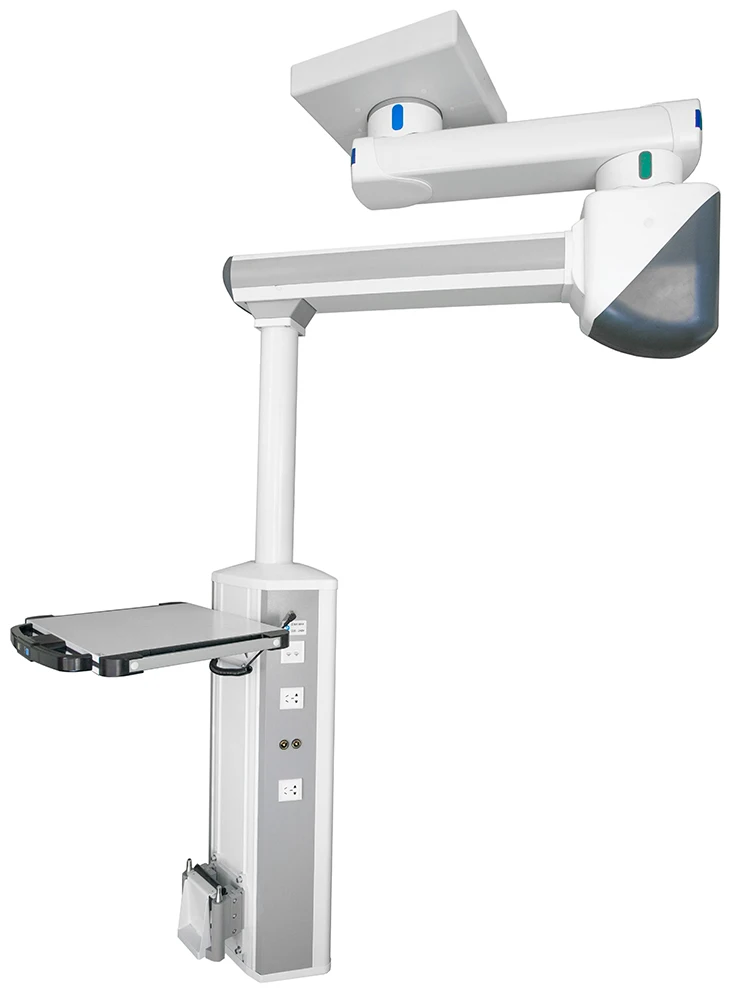

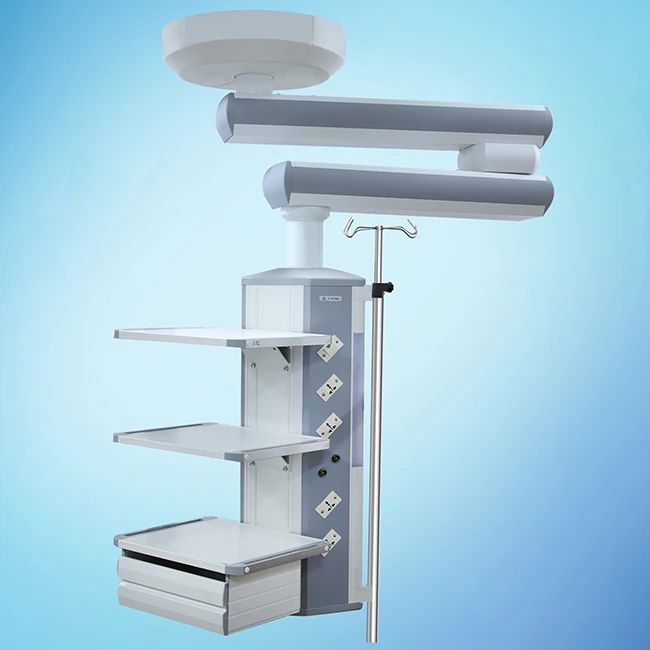

Fepdon Medical Surgery pendant (Single arm

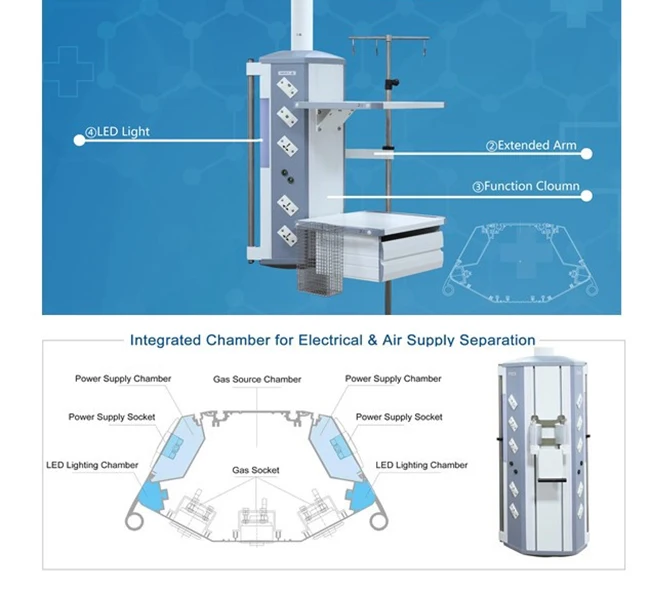

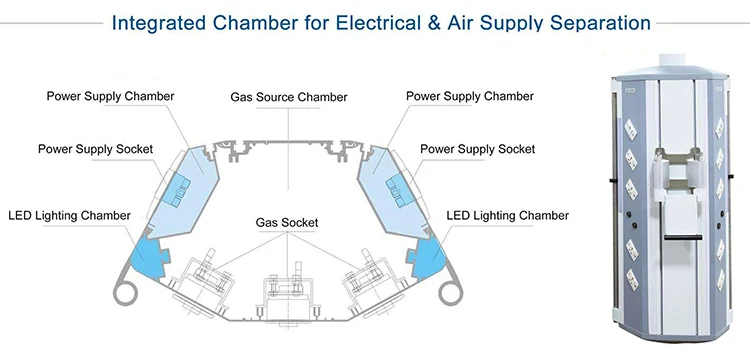

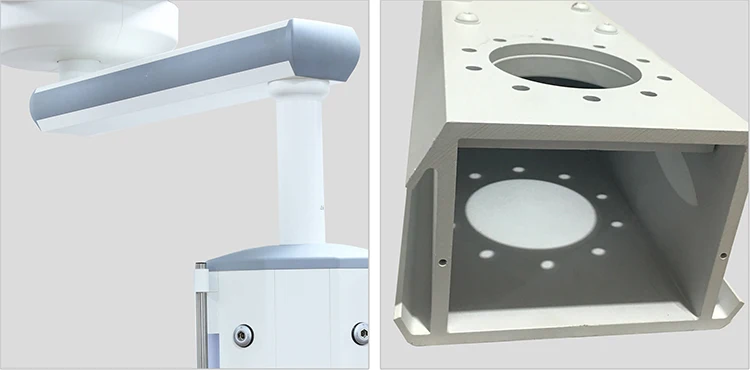

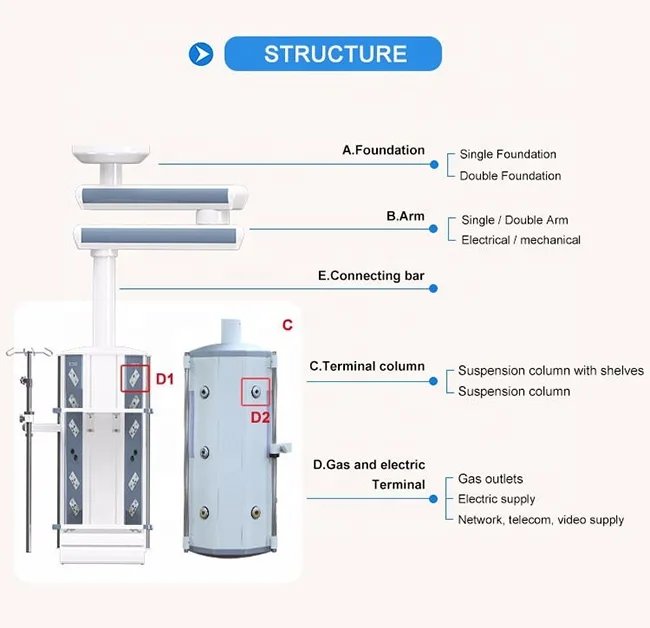

) is mainly used for platform to place the required general surgical monitors, electric knives, equipment, etc., and provide the necessary medical gas supply and power output terminal. This pedant is mainly made of hanging arm, rotating arms , the gas-electric box, instrument trays, drawers etc. Rotating arm and gas-electric box can be rotated and locked within the 340 °. the rotation is flexible, and mechanical locking device reliable, mobile and flexible. Equipped with a variety of quick self-styled connection gas terminal, easy to operate and reliable sealing to meet the need for surgery.
- Types: surgery pendant, anaesthesia pendant, endoscopy pendant
- The product is adopted by the ceiling suspending way with rotating angle 340°
- The pendant is adopted by the electromagnetic brakes, and handle is easy for reach.
- The tray height is adjustable, and gas terminals are optional (GB, DIN, US, BS), with optional power sockets ( GB Class Ⅲ,general)

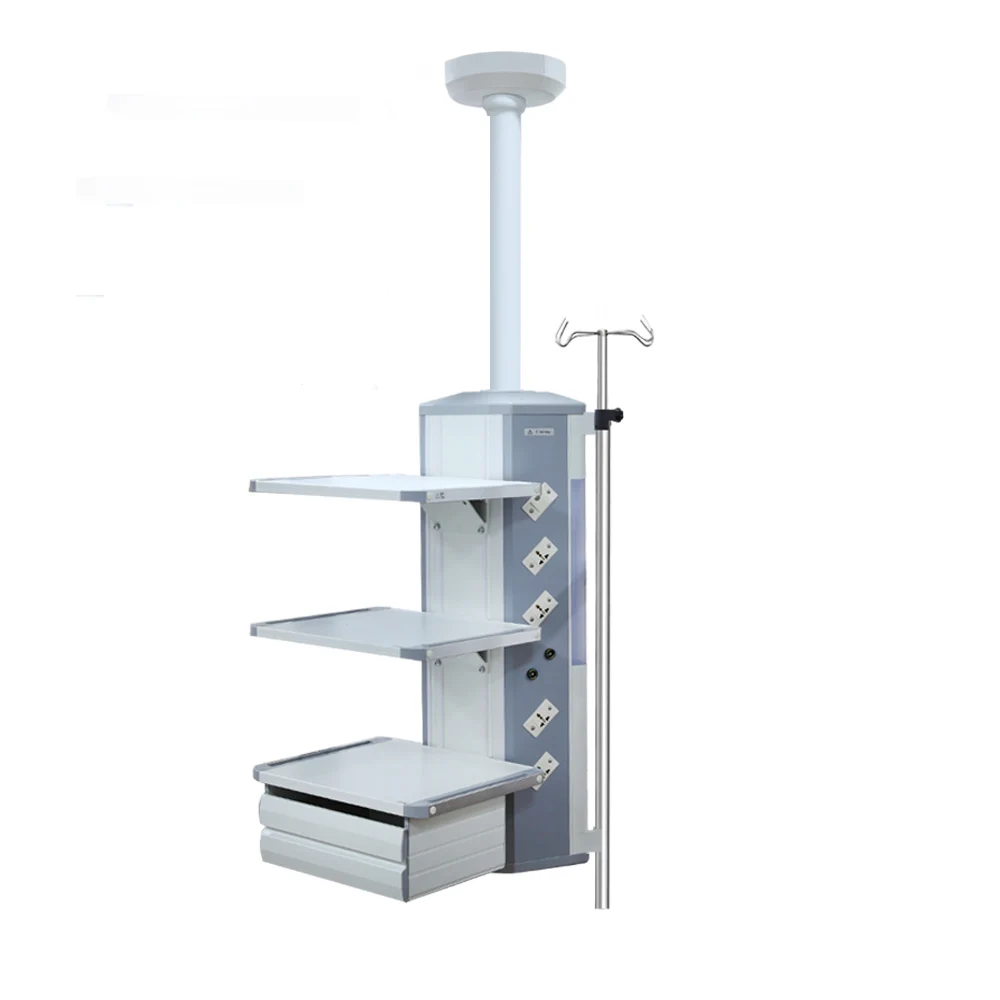

- Function column height is customized (Height: 600mm~1000mm)

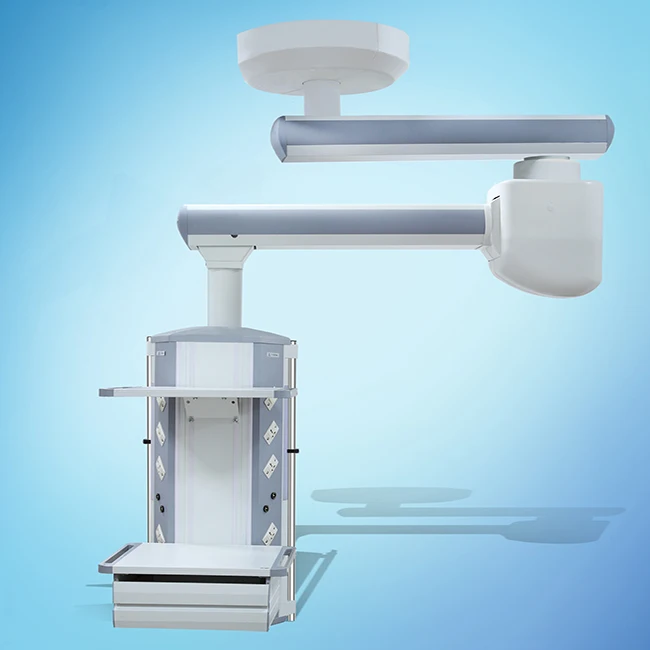

- Pendants cantilever: double arms 940mm+800mm (effective extended arm≥1300mm)--Revise according to actual dimension
