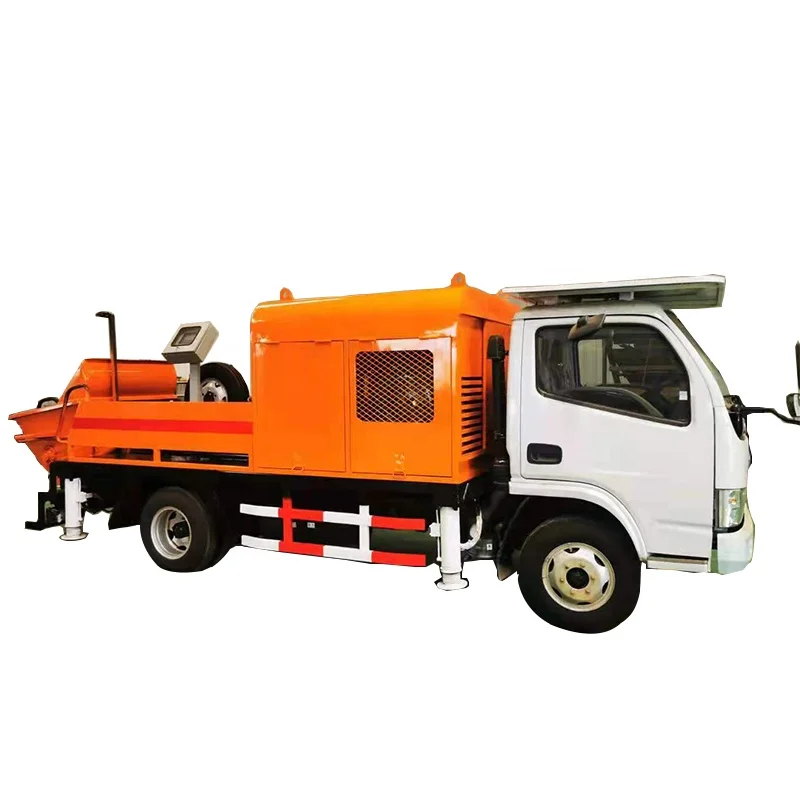

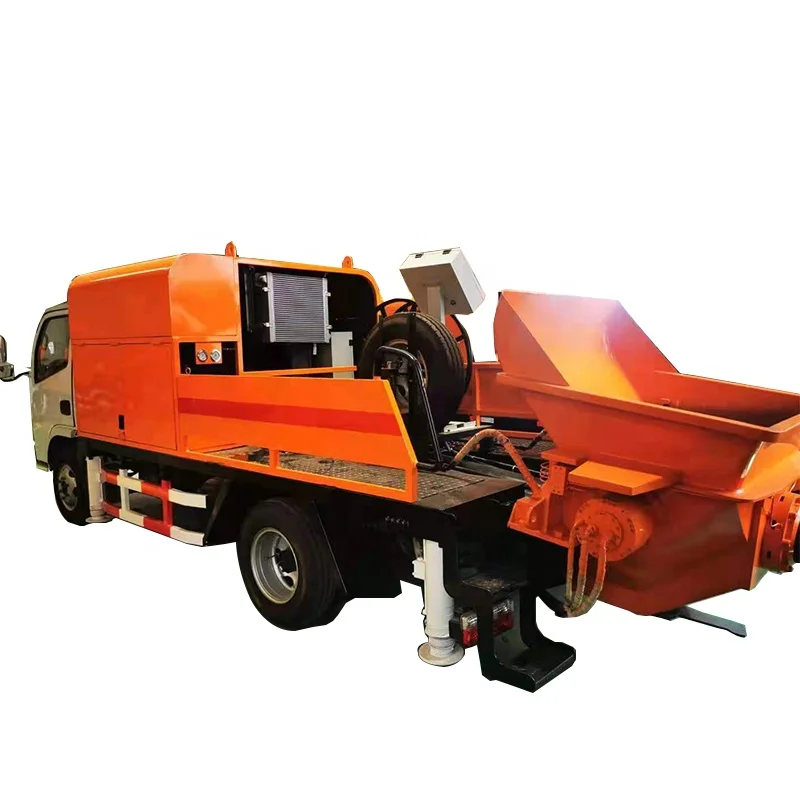

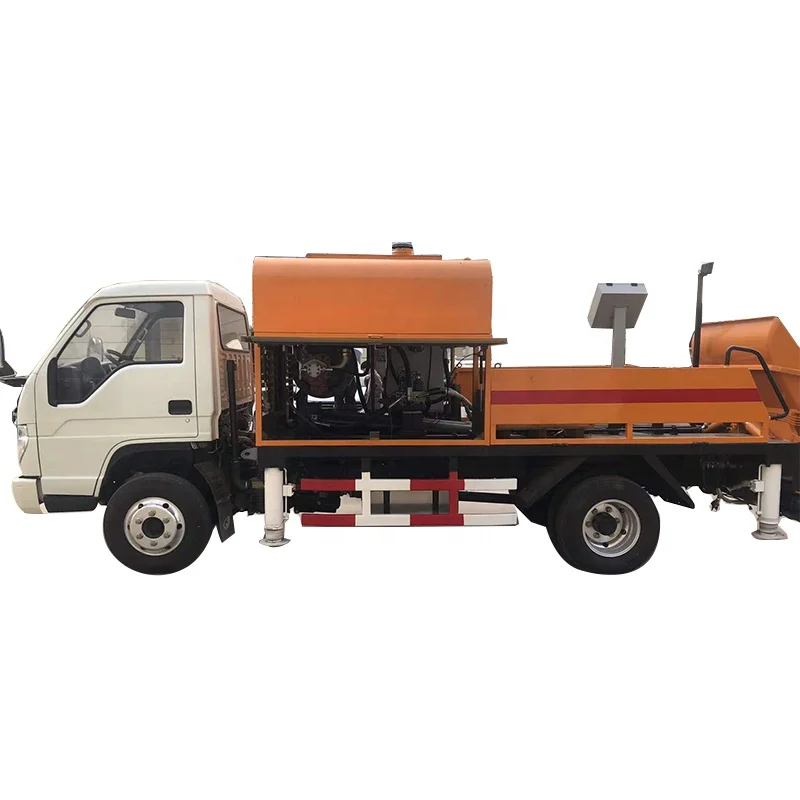

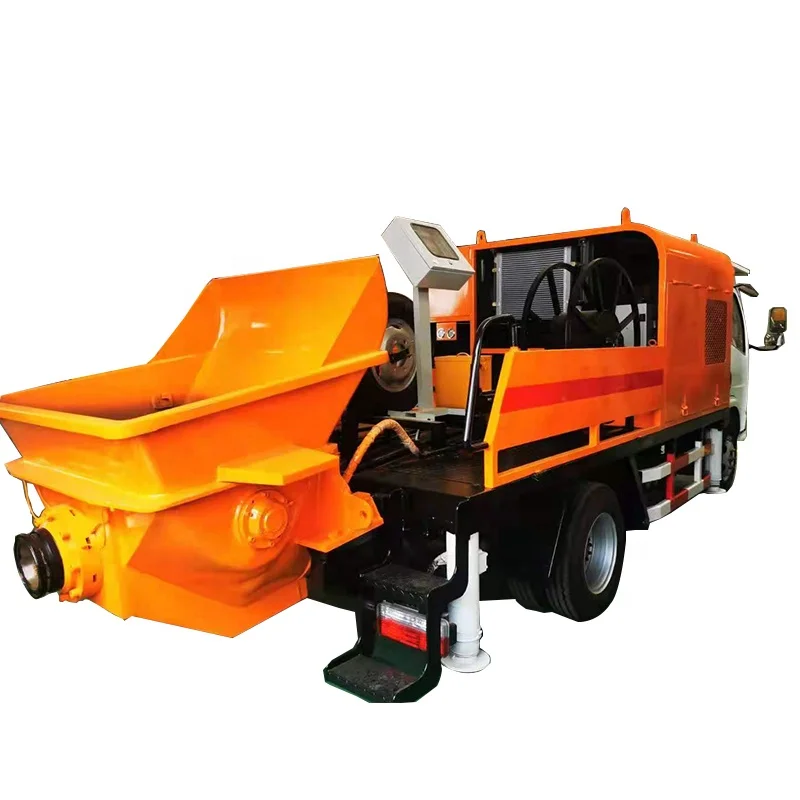

Chinese Manufacturers Concrete Pumps Equipment Concrete Delivery Machine With Pump
- Category: >>>
- Supplier: Fuzhou Tuowei Mechanical & Electrical Equipment Co. Ltd.
Share on (1600442425104):
Product Overview
Description
Product Overview
Uses of concrete pump: used in high-rise building mortar and fine stone concrete transportation, secondary structural column grouting, various pressure grouting in reservoirs, hydropower stations, ports, and wharves, foundation treatment, weak foundations, reinforcement grouting, Backfill grouting bolt support in tunnel, subway and mine construction. Relying on its powerful functions and wide range of uses.
Features of AIVYTER concrete pump
1.Simple structure and convenient maintenance (Classic Zhonglian Open System)
2.Good material suction and strong adaptability (material suction is comparable to ram pump)
3.Good portable, multi-hole slope modification with one machine (self-contained chassis, free walking, high efficiency, reducing damage caused by forklift towing)
4.The accessories are cheap and the consumables are less. (Including S valve pump wearing parts and lubricating oil)
Cost-effective reference
2.Good material suction and strong adaptability (material suction is comparable to ram pump)
3.Good portable, multi-hole slope modification with one machine (self-contained chassis, free walking, high efficiency, reducing damage caused by forklift towing)
4.The accessories are cheap and the consumables are less. (Including S valve pump wearing parts and lubricating oil)
Cost-effective reference
Aivyter concrete pump | SANY heavy ram pump | |
Displacement | 224m3/h | 190m3/h |
Hopper cylinder diameter | 230mm | 200mm |
Oil cylinder diameter | 125mm | 100mm |
Outlet pressure | 13Mpa | 8Mpa |
Lubrication loss point | 8 | 16 |
Outrigger | Full hydraulic outrigger | Ordinary outrigger |
The maximum speed | 80KM | 8KM |
Product Configuration

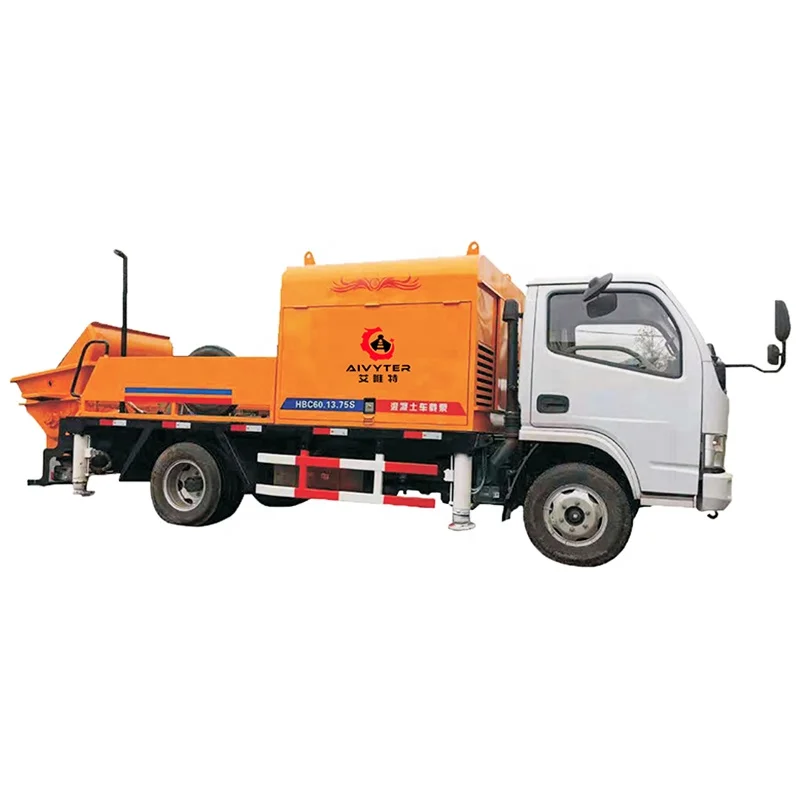

HBC60.13-75S The main technical parameters | ||||
Parameter name | HBC60.13-75S | Unit | ||
Maximum theoretical concrete delivery volume | 60 | m3/h | ||
Maximum pumping concrete pressure | 13 | Mpa | ||
Hydraulic system | Double pump double circuit open system | |||
Hydraulic system pressure | 32 | Mpa | ||
Motor Power | 75 | kW | ||
Distribution valve form | S valve | |||
Concrete conveying cylinder diameter piece stroke | Φ200/1800 | mm | ||
Hopper volume | 0.68 | m2 | ||
Loading height | 1450 | mm | ||
Maximum theoretical vertical conveying distance | 80 | m | ||
Maximum theoretical horizontal conveying distance | 300 | m | ||
Dimensions | 7100*2000*2400 | mm | ||
Total Weight | 8000 | kg | ||
No. | Name | Quantity | Country |
1 | Main pump | 1 | Kawasaki |
2 | Gear pump | 1 | Anhui Wanye |
3 | 25E Valve | 1 | America HEE |
4 | 16E Valve | 1 | America HEE |
5 | DB20 | 1 | America HEE |
6 | Manual reversing valve | 1 | America HEE |
7 | Cylinder | 2 | Changsha Three Doctors(125*80*1400) |
8 | Delivery cylinder | 2 | Changsha(230*1662) |
9 | Motor 75kw | 1 | Nanjing Laiyi |
10 | Cooling the motor | 1 | Henan Xinxiang |
11 | Accumulator | 1 | Zhejiang |
12 | Filter assembly | 1 | Zhejiang |
13 | Oil motor | 1 | Zhejiang |
14 | Proximity switch | 1 | Omron |
15 | Hose | 1 | Italy,Manuli |
16 | Cooler | 1 | Made in China |
17 | PLC | 1 | Siemens |
18 | Open | 1 | Made in China |
19 | Hydraulic oil | 1 | Great Wall 46# |
20 | Car base | 1 | Dongfeng/Futian |

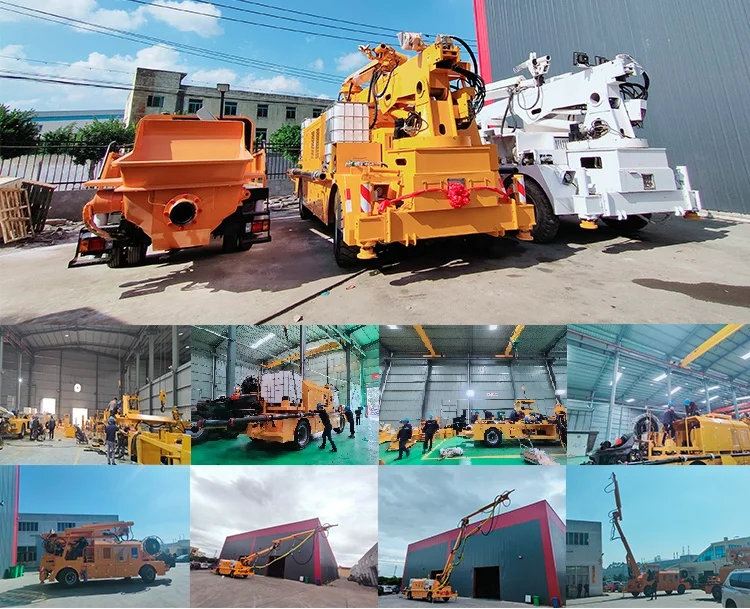

Company Profile
Fuzhou Tuowei Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Tuowei company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Tuowei company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
FAQ
Q1: What's the payment term?
A1: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q2: Can you accept OEM orders?
A2: Yes, OEM orders are warmly welcome.
Q3: How about your customer service and after-sales service?
A3: 24hrs on-line support.
Q4: Do you have spare parts in stock?
A4: Yes, we do.
A1: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q2: Can you accept OEM orders?
A2: Yes, OEM orders are warmly welcome.
Q3: How about your customer service and after-sales service?
A3: 24hrs on-line support.
Q4: Do you have spare parts in stock?
A4: Yes, we do.
