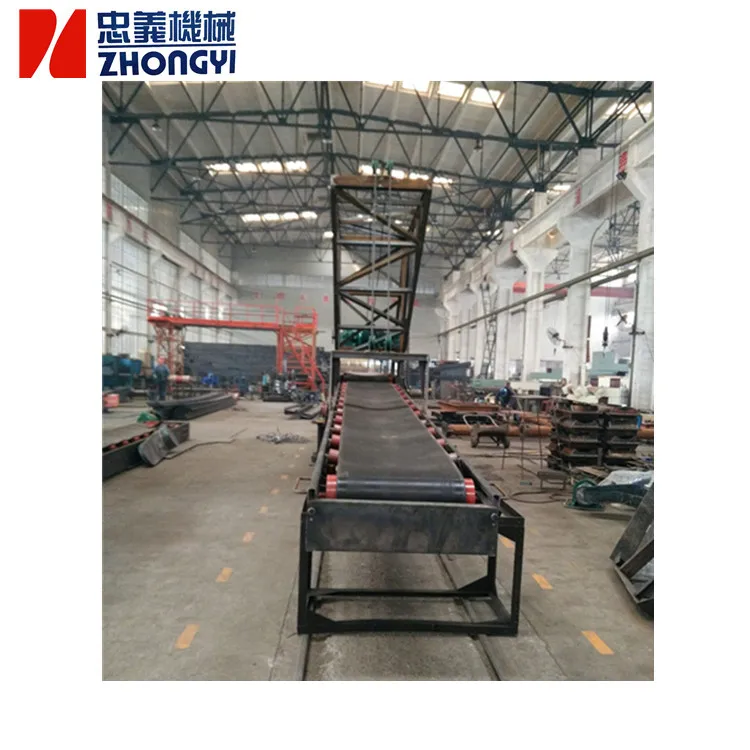

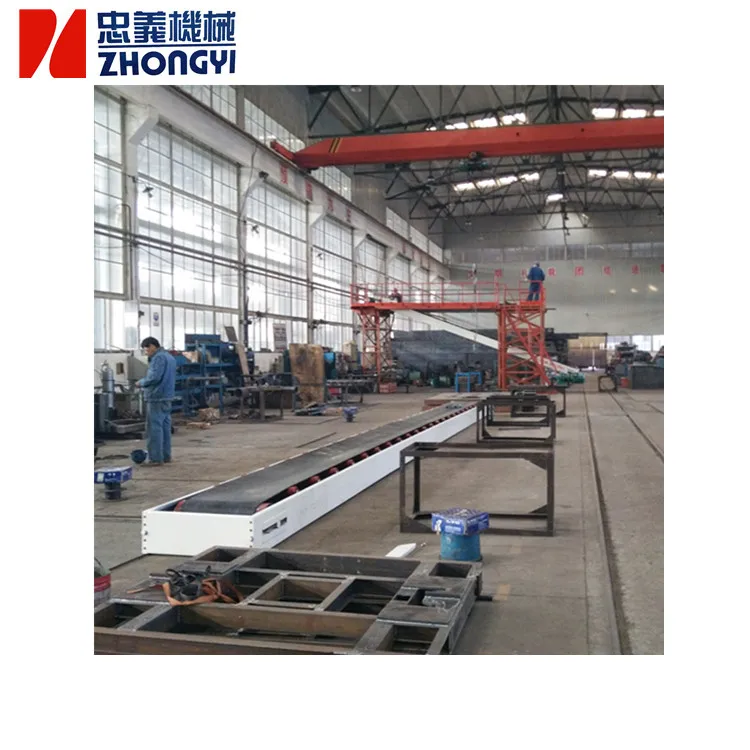

Tangshan Zhongyi Mobile 50kg cement bags loading truck machine

No

Name

Unit

Technical data

Mobile hydraulic truck loading machine for sacked cement

1

Type

ZQD120Y

2

Capacity

t/h

120

3

Stroke(Max)

m

11

4

Width(Max)

mm

1500

Feeding conveyor

1

Belt speed

m/s

1

2

Belt width

mm

650

3

Belt length

m

23

4

Drive power

kW

3

Discharging conveyor

1

Belt length

m

16.6

2

Belt width

mm

650

3

Belt speed

m/s

1

4

Pitching angle of conveyor

degree

8~27

Hydraulic system

1

System pressure

MPa

16

2

Maximum thrust

KN

80.43

3

Lifting speed

m/min

5-10

4

Oil pump motor

kW

4

Running mechanism

1

Distance between rail(inner)

mm

1250

2

Rail

P18

3

Max wheel pressure

KN

12

4

Running speed

m/min

11.84

5

Driving power

kW

1.5

6

Application material

50kg/bag

Sacked cement
