Alu Pvc Alu Alu Pack Blister Machine, Automatic Medical Tablet Pill Capsule DPP 140 Blister Packing Machine
- Category: Packaging Machine >>>
- Supplier: Wenzhou Youngstar Machinery Co. Ltd.
Share on (1600447616003):
Product Overview
Description
Product Description
This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or
paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or
paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Feature
1. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2. Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3. With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste
and syringe etc.
2. Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3. With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste
and syringe etc.
Main Technical Parameters
Cutting Frequency (Times/min) | 6-50 |
Production Capacity (pcs/h) | 20000-110000 |
Max. Forming Area and Depth (mm) | 130×130×14 (can specially design to be 25mm) |
Travel Range (mm) | 40-120 (Can be lengthened to 160mm according to user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
Total Power | 380V/220V 50Hz 3.6kw |
Main Motor Power (kw) | 0.75 |
PVC Hard Pieces (mm) | 0.15-0.5×140 |
PTP Aluminum Foil (mm) | 0.02-0.035×140 |
Dialysis Paper (mm) | 50-100g×140 |
Mould Cooling | Tap Water or Circulating Water |
Overall Dimensions (mm) | 2300×560×1410（L×W×H） |
Weight (kg) | 750 |

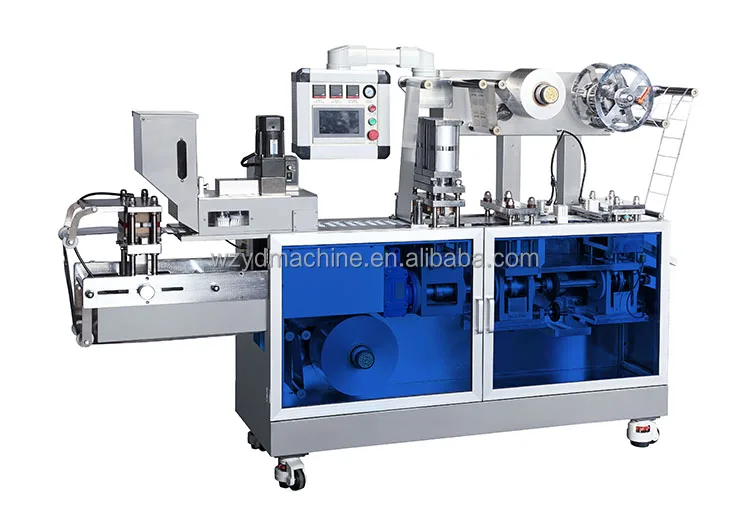

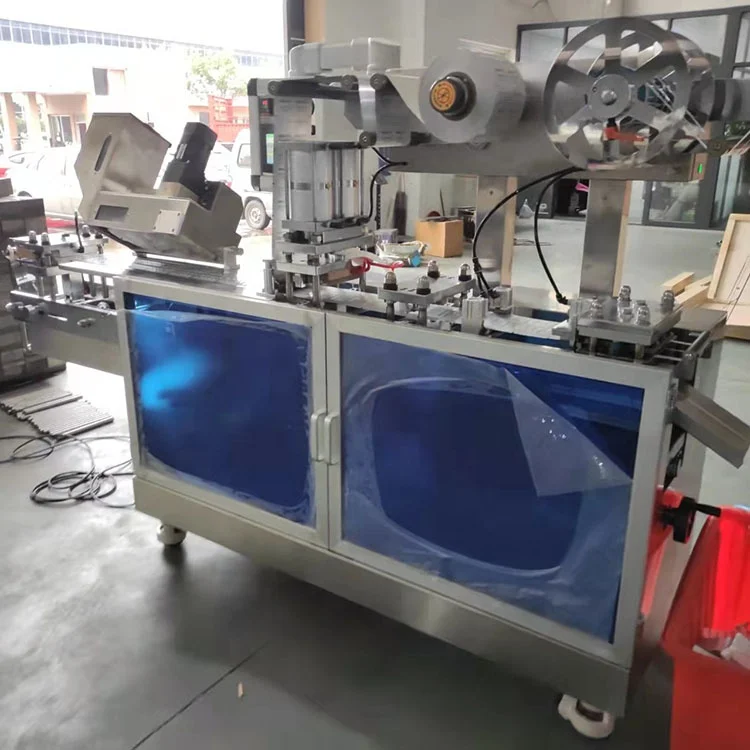

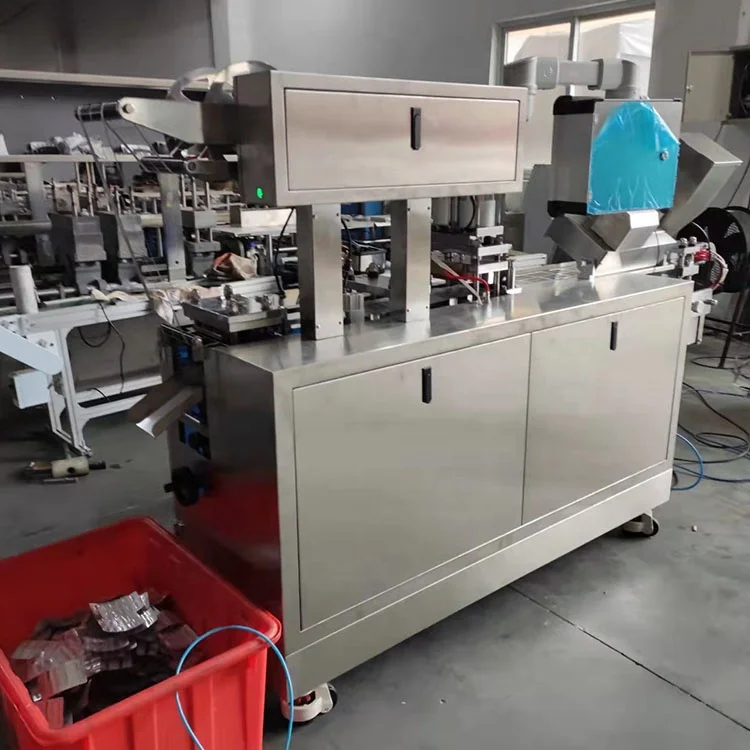

Machine Photos

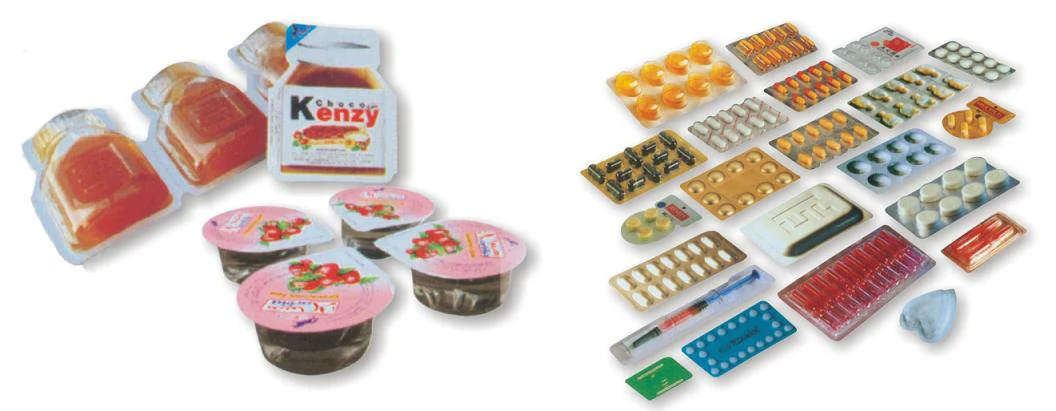

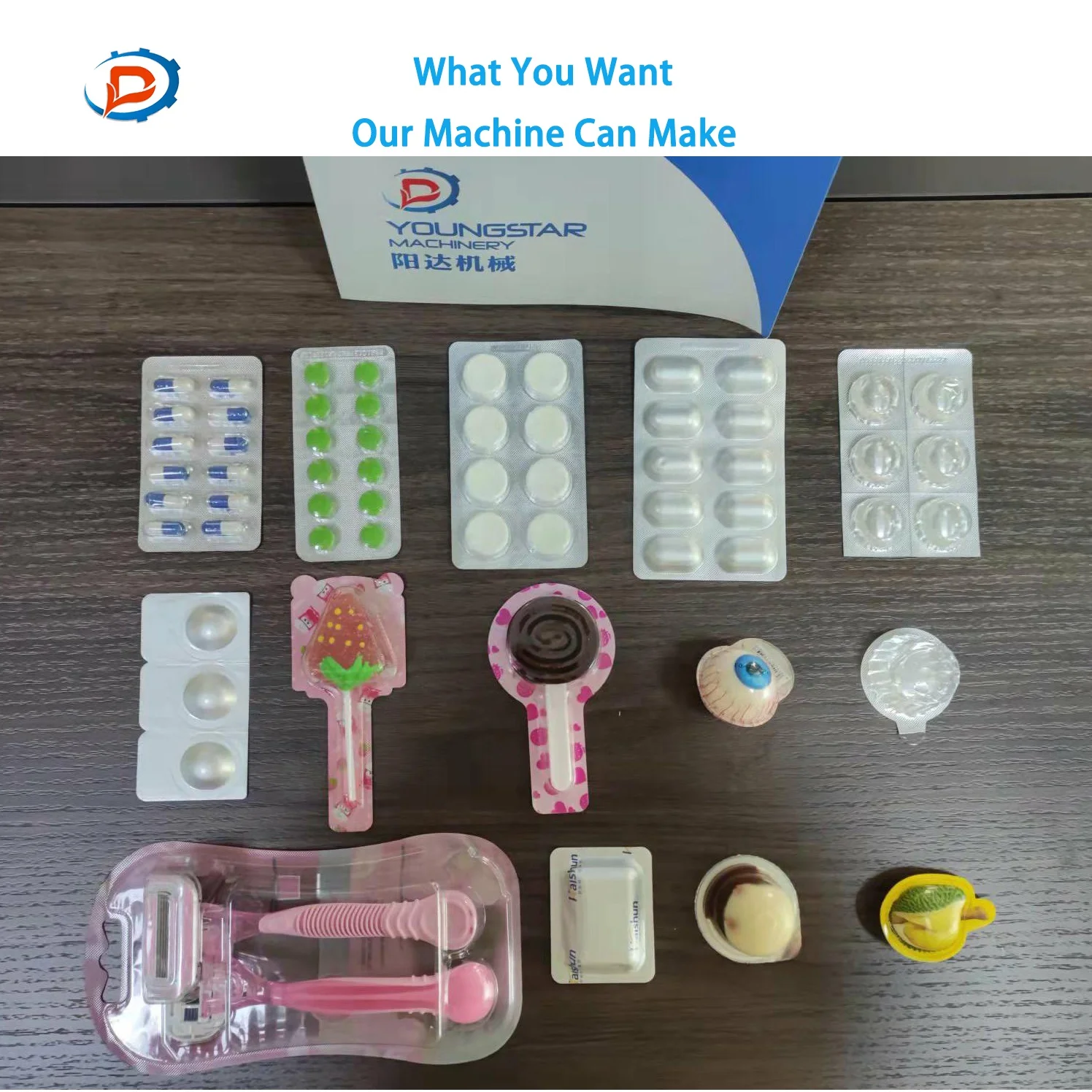

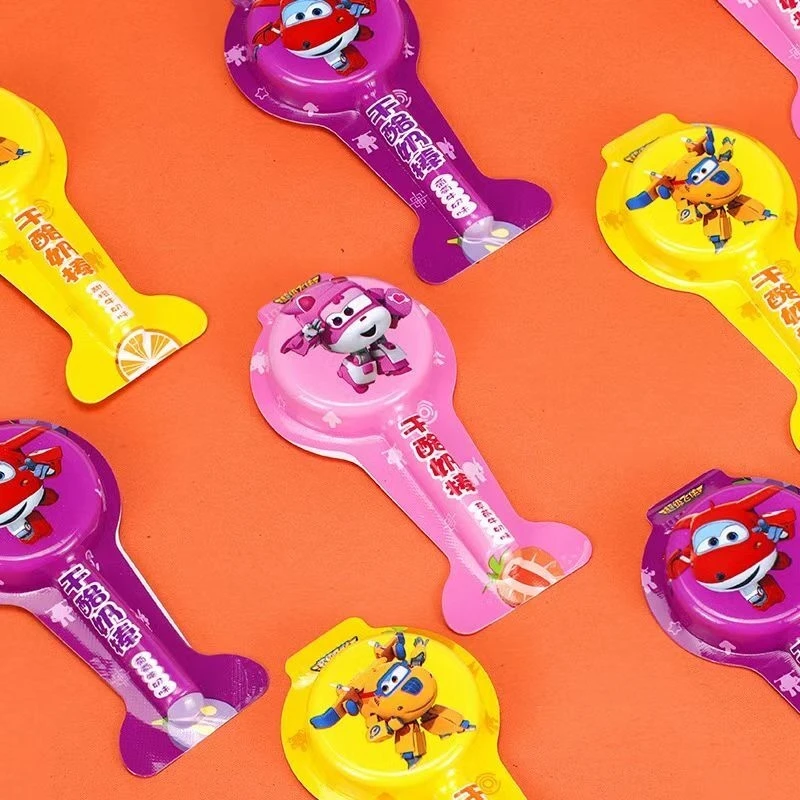

Application Samples

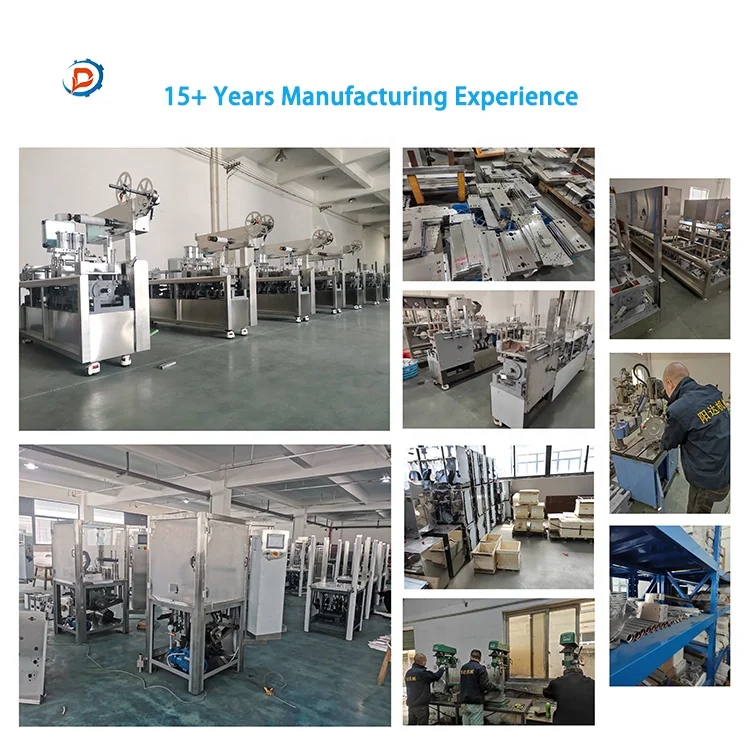

Company Profile
Wenzhou Youngstar Machinery co., LTD., located in "China packaging machinery city" - Wenzhou Ruian, is a scientific and
technological enterprise integrating pharmaceutical machinery, packaging machinery, food machinery and cosmetics machinery, as well as research and development, production, sales and related services. Our main products include all kinds of packaging equipment and medical equipment, such as: blister packing machine, filling and sealing machine, capsule filling machine, cartoning machine, automatic packaging production line, etc. We have long time experience in designing and manufacturing of packaging equipments, which enables us to provide unique and reliable solutions for customers. With the service concept of "Keep improving, customer first", we are dedicated to provide the best equipment to meet our customers’ requirements that come from pharmaceutical,food, cosmetic and chemical industries.
technological enterprise integrating pharmaceutical machinery, packaging machinery, food machinery and cosmetics machinery, as well as research and development, production, sales and related services. Our main products include all kinds of packaging equipment and medical equipment, such as: blister packing machine, filling and sealing machine, capsule filling machine, cartoning machine, automatic packaging production line, etc. We have long time experience in designing and manufacturing of packaging equipments, which enables us to provide unique and reliable solutions for customers. With the service concept of "Keep improving, customer first", we are dedicated to provide the best equipment to meet our customers’ requirements that come from pharmaceutical,food, cosmetic and chemical industries.

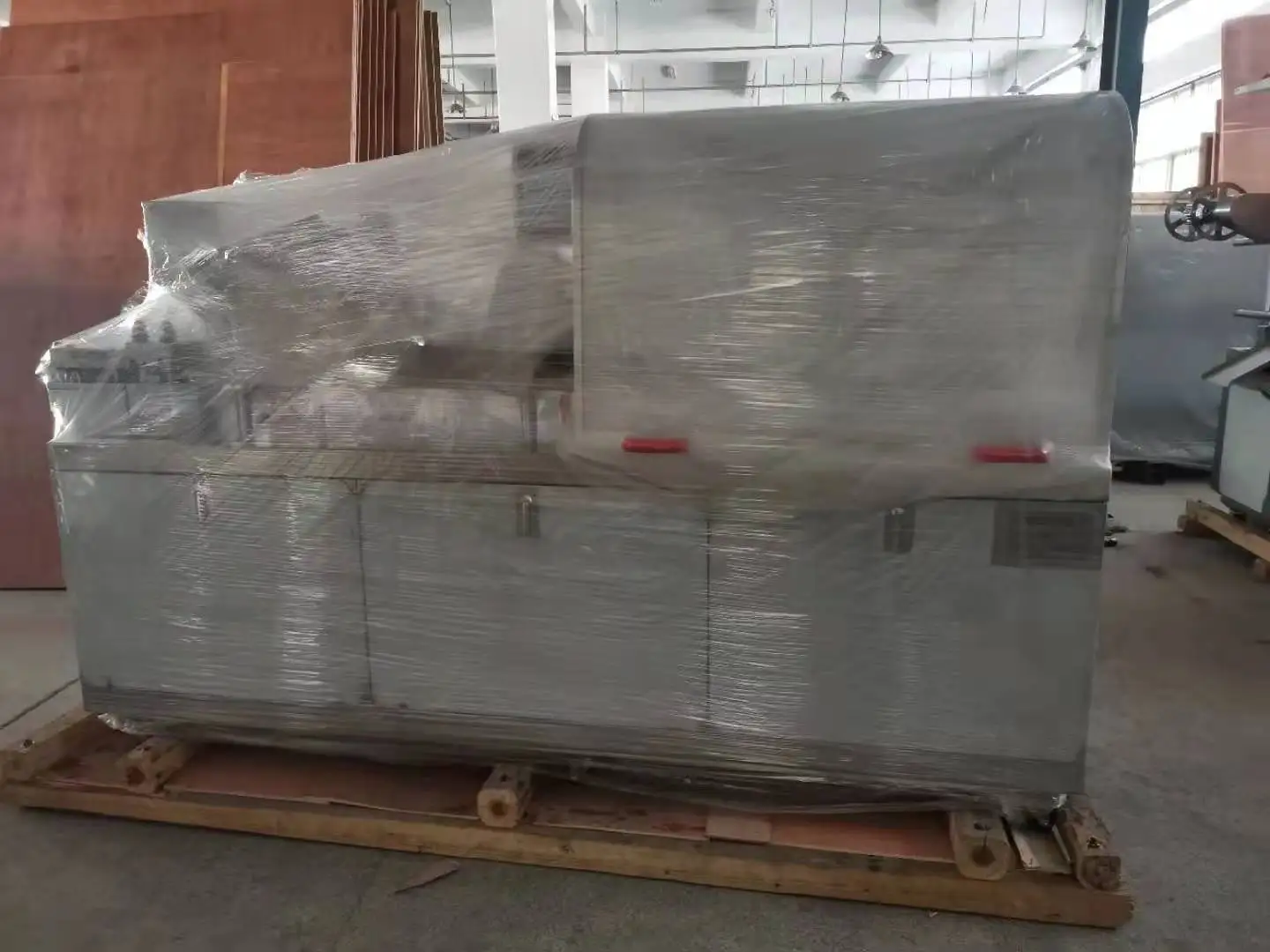

Packing & Delivery
Related Products

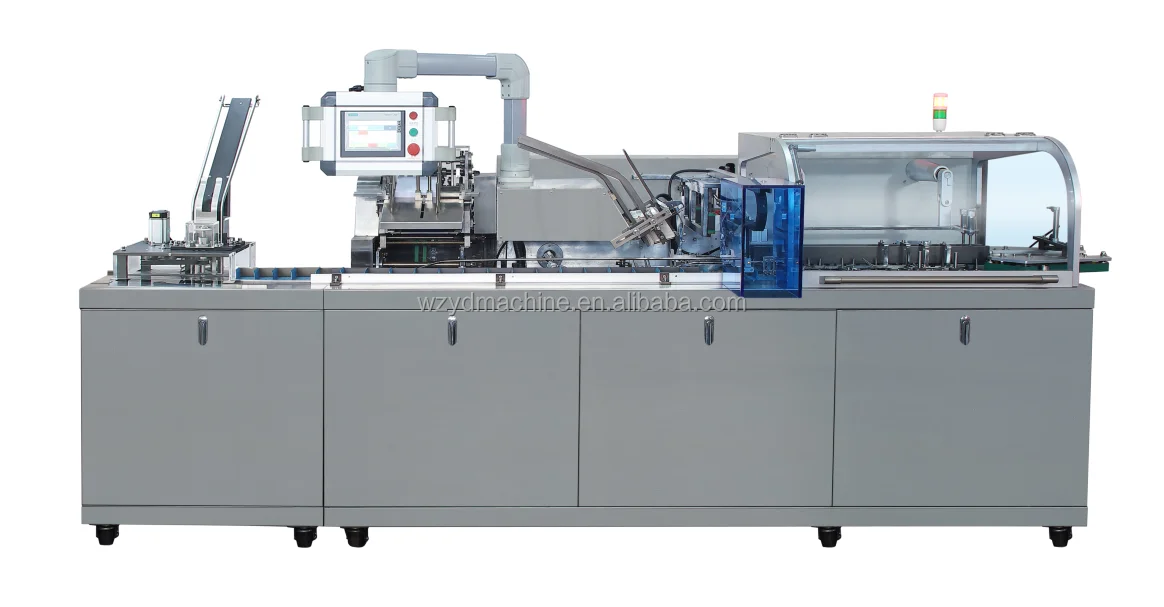

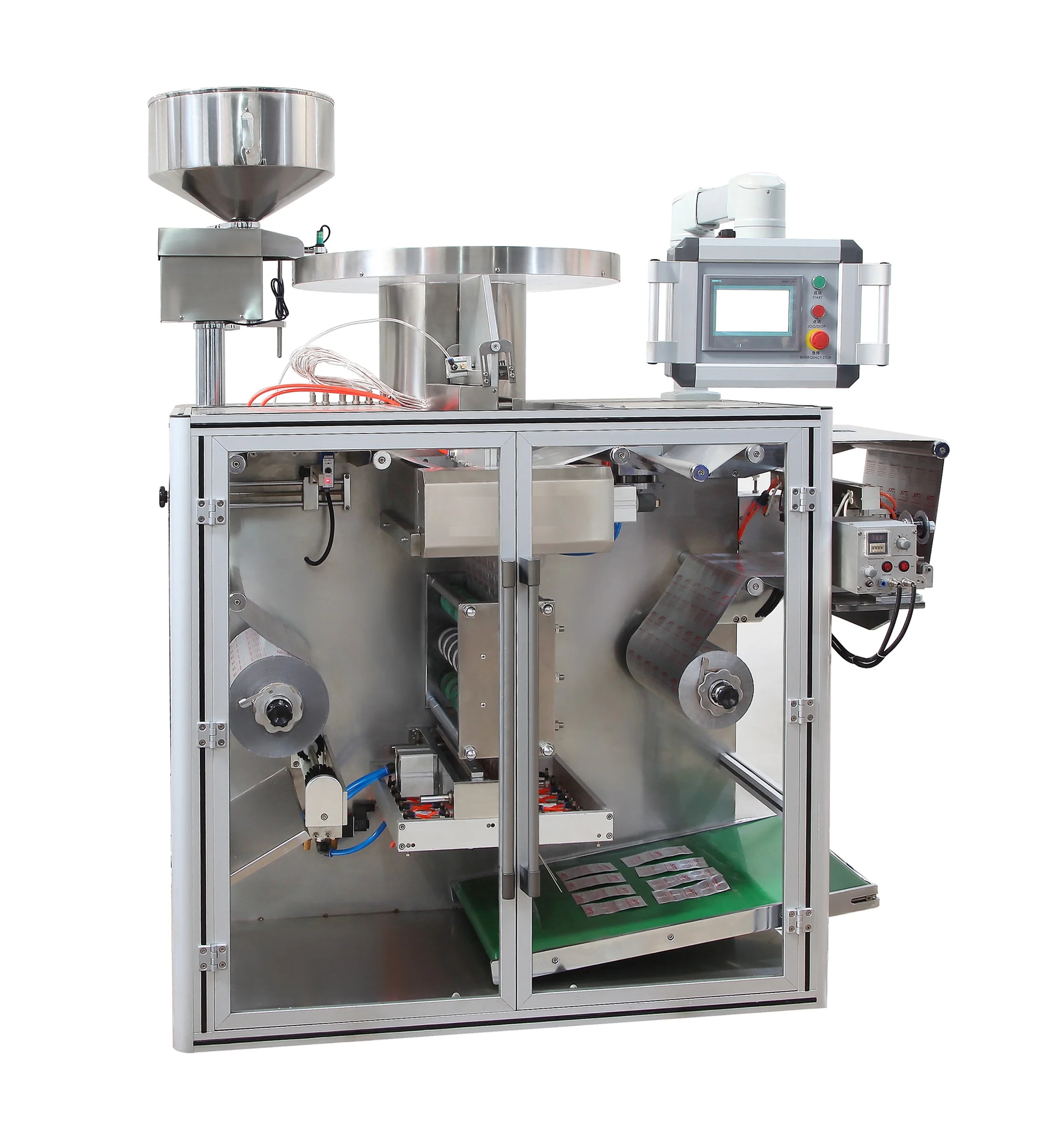

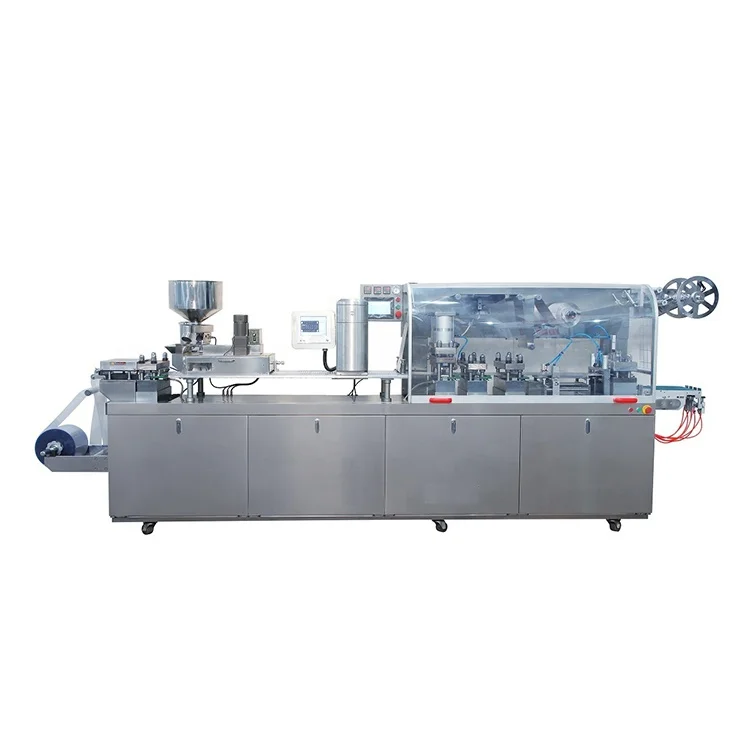

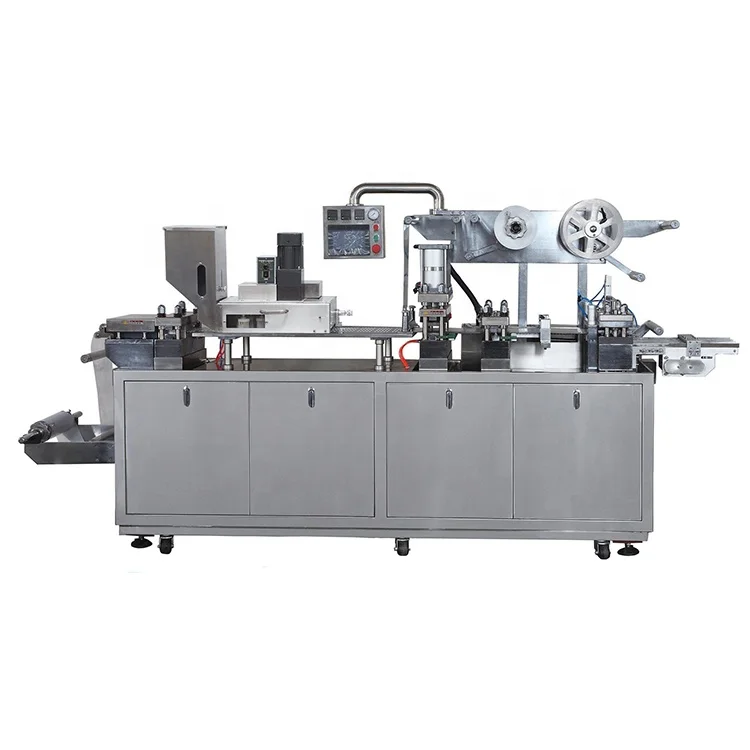

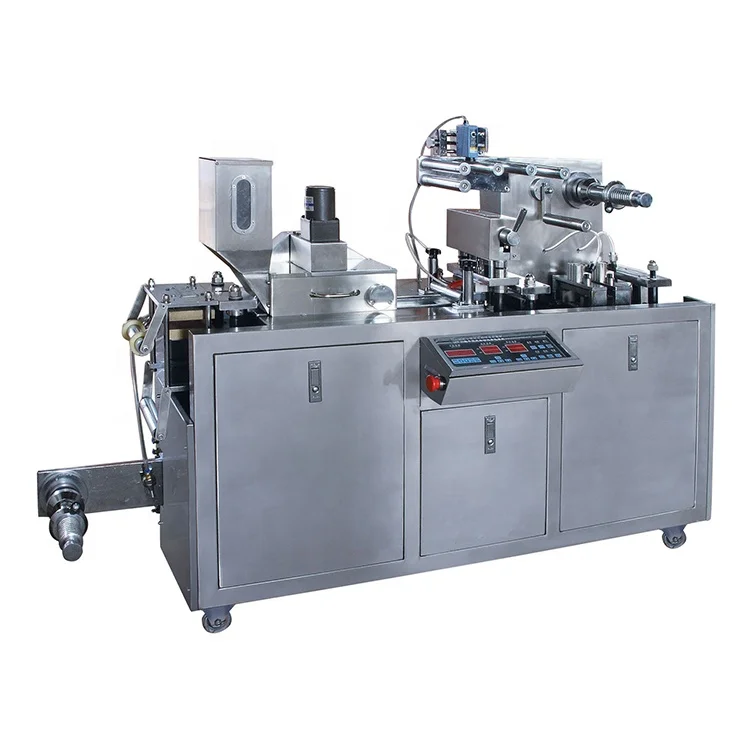

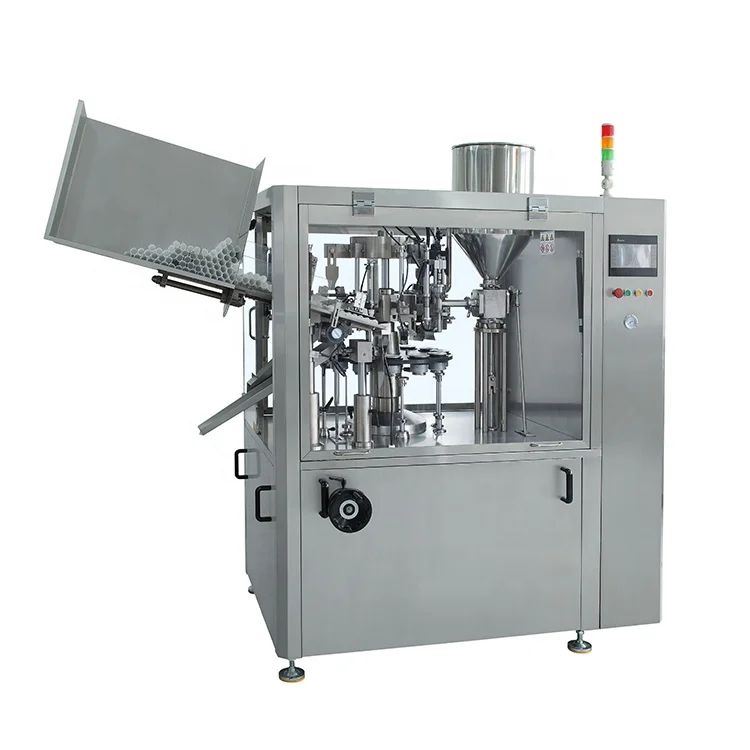

Blister Packing Mahicne Blister Packing Machine Blister Packing Machine Cartoning Machine

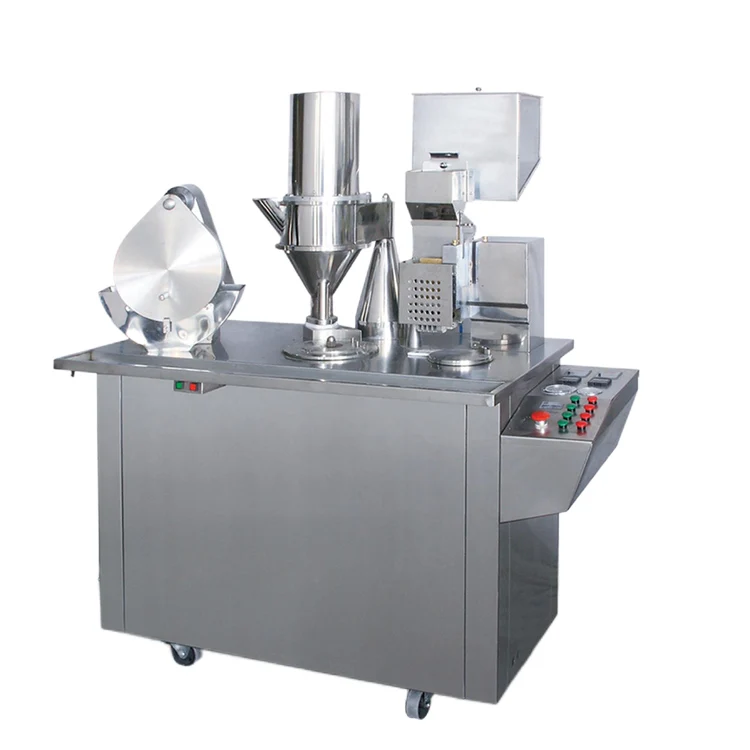

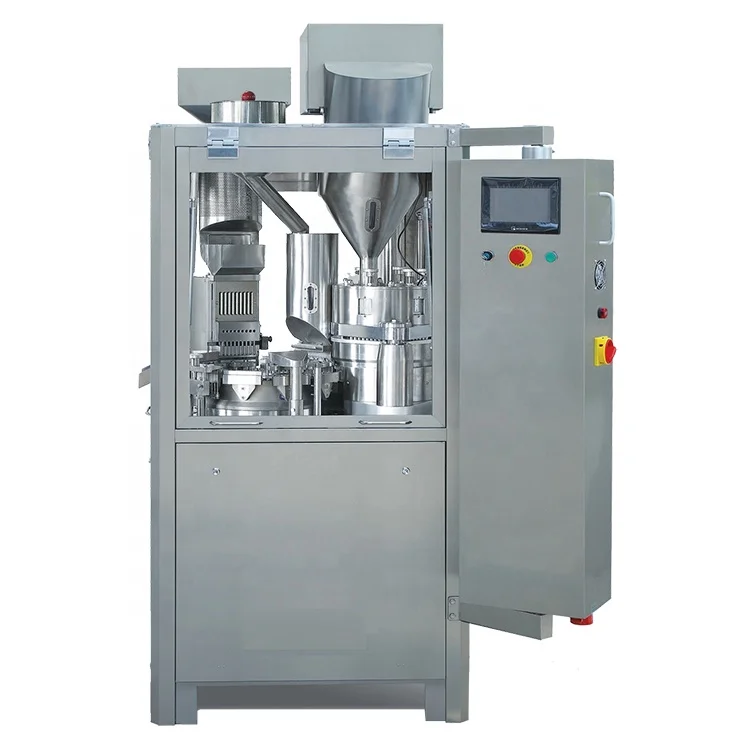

Capsule Filling Machine Strip Packing Machine Capsule Filling Machine Tube Filling&Sealing
FAQ
Q: Where is your factory?
A: Our factory is located in Ruian city, Zhejiang province, China. We warmly welcome you to visit us.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples. Or, let us know your detailed requirements by email.
Q: How can I trust you for the first-time business?
A: We can send you our business license and certificates. You can choose Alibaba Trade Assurance Service for transaction to protect your payment and assure our service for you.
Q: How about after-sale service and warranty period?
A: We offer 1 year warranty. Technical support is 24/7. Our professional technician can visit your factory.
Q: How to contact you?
A: Please leave message and click "send" to send us inquiries.
