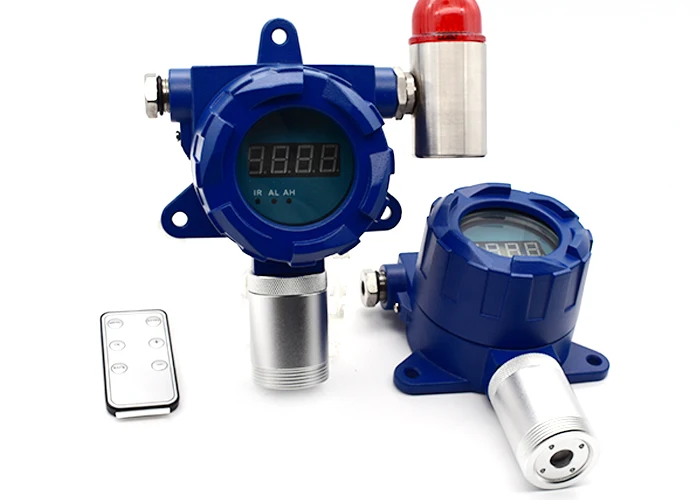

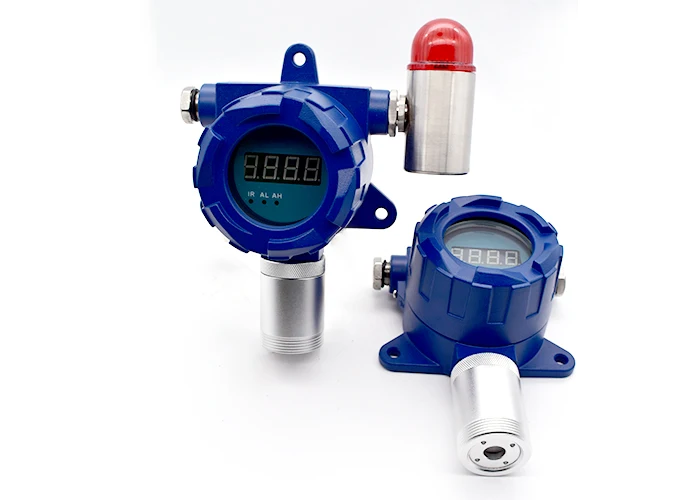

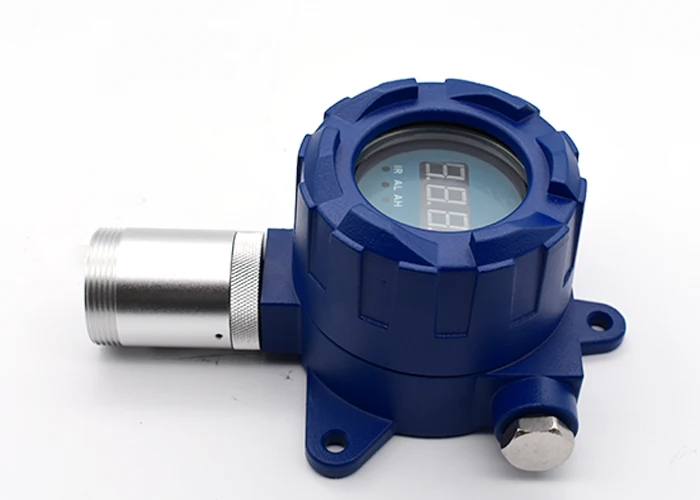

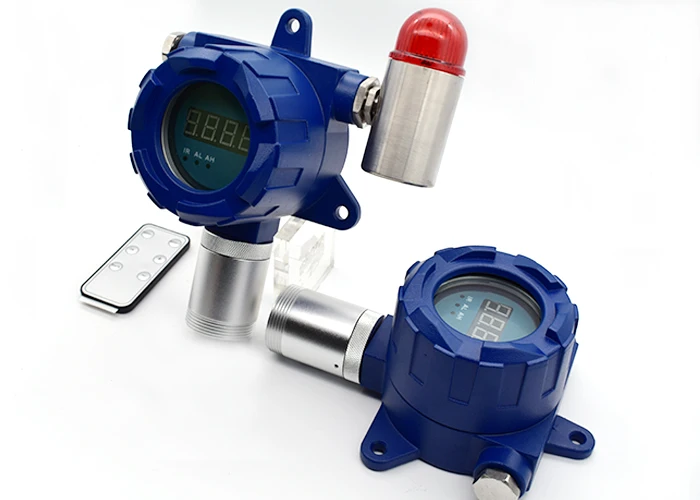

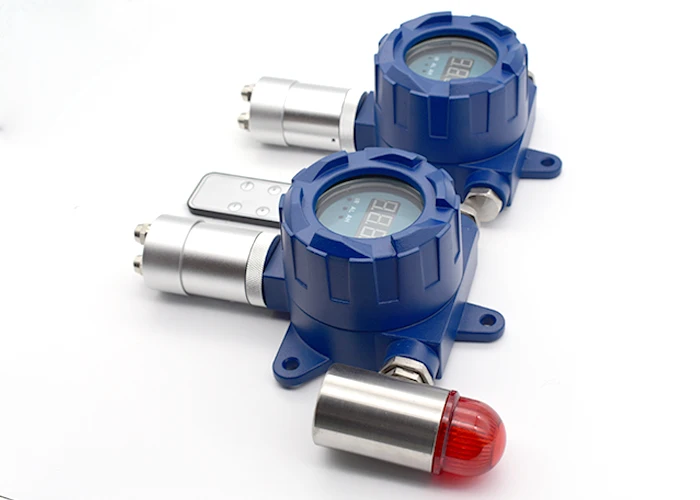

Wall mounted Diffusion Type HCN Toxic Gas Detector For Leak Monitoring
- Category: >>>
- Supplier: Shenzhen Yuante Technology Co. Ltd.
Share on (1600447802447):
Product Overview
Description
Product Overview
YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations
With alarm Without alarm
Features
- Monitor the specific gas concentration in environment or pipeline and alarm.
- With self-calibration and zero calibration function, makes the detection more accurate and reliable.
- With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
- Two-stage alarm with sound and light, alarm point is settable.
- Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
- Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
- Working Voltage:12-36V DC
- Case:die-cast aluminum + stainless steel (alarm light)
Product advantage
- 1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
- 2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
- 3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
- 4. Monitor the NH3 ammonia concentration in environment or pipeline and alarm.
- 5. Data display, can be connect to on/off valve.
- 6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
- 7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
Gas Detected | HCN | ||
Detection principle | Electrochemical | ||
Install Method | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
Measure Range | 0-10/50/100ppm | ||
Resolution | 0.01ppm | ||
Precision | ≤± 3% F.S. | ||
Signal Output | 4-20MA, 0-5V, RS485, RS232, relay, wireless digital(optional) | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | High light nixie tube display |
Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | %LELor %VOL |
Temperature | -20℃~50℃ | Humidity | 0-90%RH |
Explosion-Proof | Ex dⅡCT6 | Degree of protection | IP65 |
Power | 12-36V DC | Operating time | 24h |
Dimensions | 180*150*90mm | Weight | ≤1.6kg |
