Серводвигатель кВт 10 нм 130 st m10025

Product Overview

Description

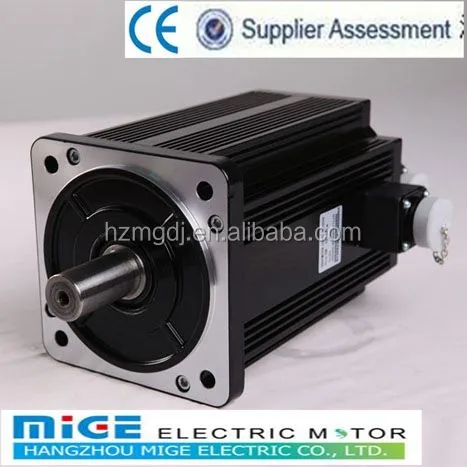

2.6kw SERVO MOTOR 10Nm OF 130ST-M10025

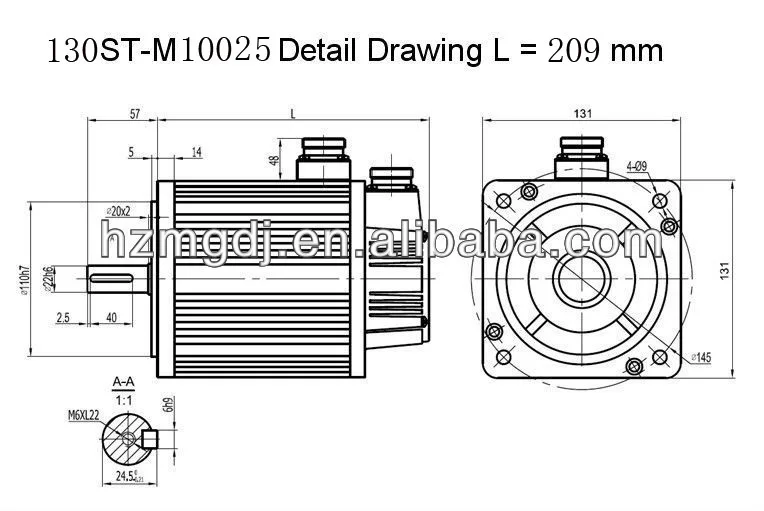

MOTOR MODEL	130ST-M10025
Rated power(w)	2600
Rated voltage(v)	220
Rated current(A)	10
Rated speed(rpm)	2500
Holding torque(N.m)	10
Peak torque(N.m)	25
Voltage constant(v/1000r/min)	70
Torque coefficient(N.m/A)	1.0
Rotor inertia(kg.m2)	1.94×10¯3
Line-Line Resistance(Ω)	0.73
Line-Line Inductance(mH)	2.45
Machanical time constant(MS)	3.36
Weight(kg)	9.8
Encoder line number(PPR)	2500
Insulation class	Class F
Safety class	IP65
The operating of environmental conditions	temperature: -20°c ~ +40°c    Humidity: Below 90%RH  No dewing



Other special requirements please contact the MIGE Technology to negotiate.
