gypsum board machine/gypsum board making machines
US $7500-$12000
High Productivity Easy Maintenance And Upkeep Gypsum Wall Ligne De Production De Plaques De Platre Plasterboard Production Line
- Category: >>>
- Supplier: Shijiazhuang Jiurui Machinery Co. Ltd.
Share on (1600447803229):
Product Overview
Description
Gypsum board production line | ||||||||||||
Annual production(m2) | Plant area(m2) | Drying method | Total installed capacity | Productin linespeed (m/min) | Requird workers | Electrical configuration | ||||||
1.5 million | 60m×26m | Thermal oil | 116kw | 3.0 | 8 | Siemens | ||||||
2million | 70m×26m | Thermal oil | 127kw | 4.2 | 10 | Siemens | ||||||
3million | 84m×30m | Thermal oil | 166kw | 6.25 | 11 | Siemens | ||||||
4million | 110m×30m | Thermaloil/Hot stove | 210kw | 8 | 11 | Siemens | ||||||
5million | 112m×30m | Thermaloil/Hot stove | 234kw | 10.5 | 11 | Siemens | ||||||
6million | 122m×30m | Thermaloil/Hot stove | 240kw | 12.5 | 11 | Siemens | ||||||
8million | 136m×30m | Thermaloil/Hot stove | 349kw | 16.5 | 11 | Siemens | ||||||
10million | 150m×30m | Thermaloil/Hot stove | 467kw | 20 | 12 | Siemens | ||||||
12million | 172m×30m | Thermaloil/Hot stove | 488kw | 24 | 13 | Siemens | ||||||
15million | 204m×36m | Thermaloil/Hot stove | 578kw | 31 | 15 | Siemens | ||||||
20million | 240m×40m | Thermaloil/Hot stove | 778kw | 40 | 15 | Siemens | ||||||
Product specifications: length 2400—3000mm width 1200—1220mm thickness 8—15mm | ||||||||||||
the production technology becomes more and more perfect and the scale of the production line also becomes larger and larger. Our company has many years of experience in producing gypsum board and gypsum powder production line, identified by the Commerce Department as Designated Equipment Manufacturer. According to our more than ten years experience and surveys from the customers., we always provide advanced technology content, high reliability lower operation and qualified gypsum board technology scheme.
Product Advantage
1) Full automatic raw matrerial feeding-metering-mixing system
2) PLC are SIMENS brand
3) CNC cutting machine, so as to cutting edges precisely.
5) Can produce both standard MGO board and Sanding board, we are the only factory mastering the technology of producing qualified
sanding Mgo board
6) After-sale service: engineers can install the MGO board production line, provide the formula, help to train workers.
2) PLC are SIMENS brand
3) CNC cutting machine, so as to cutting edges precisely.
5) Can produce both standard MGO board and Sanding board, we are the only factory mastering the technology of producing qualified
sanding Mgo board
6) After-sale service: engineers can install the MGO board production line, provide the formula, help to train workers.
Why Choose Us

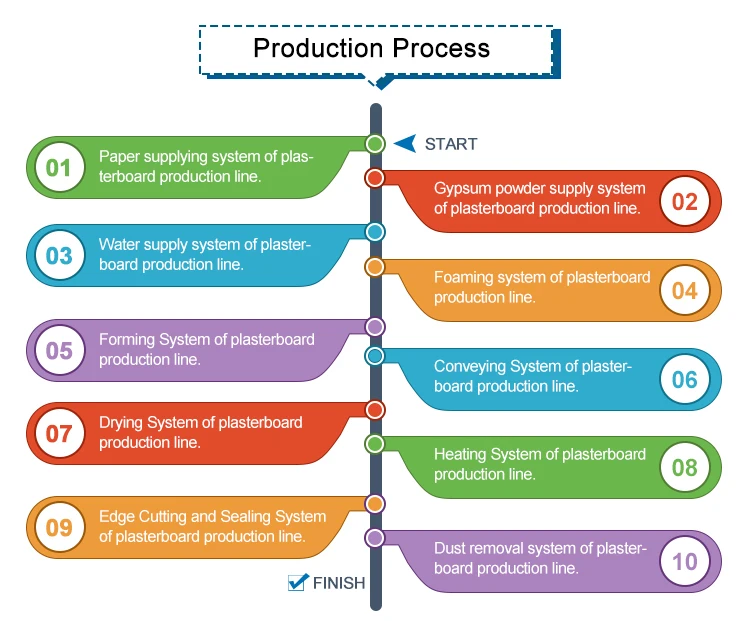

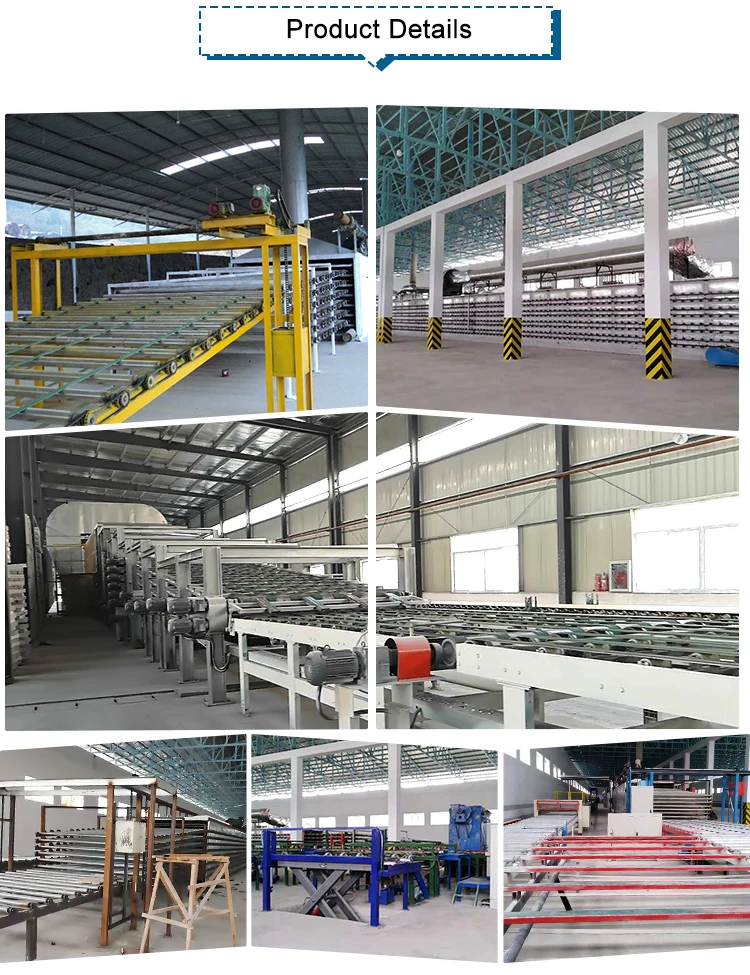

Process Production

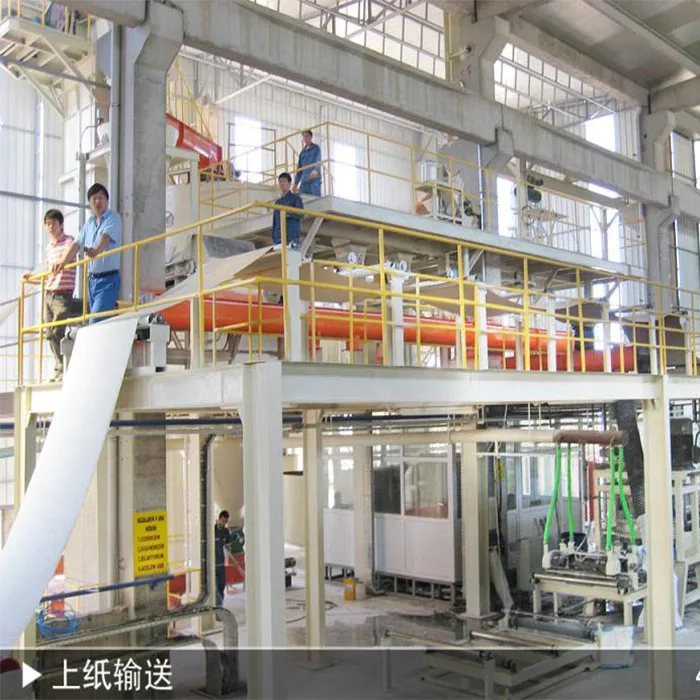

1.The paper feeding system supplied continuous face and back paper for paper faced gypsum board.
2. raw materials were stirred and mixed evenly during the conveying process through batching systems
3.After being measured by precise metering device, then they entered intomixer at the ratio
4.The gypsum slorry was shaken out from the outlet ofmixer tothe back paper
5.The face and back paper wrapped and pressed the slurry through forming machine
6.The wet gypsum board completed the solidification process on setting belt conveyor
7.The cutting machine cutthe wet board into single board with pre-fixed length

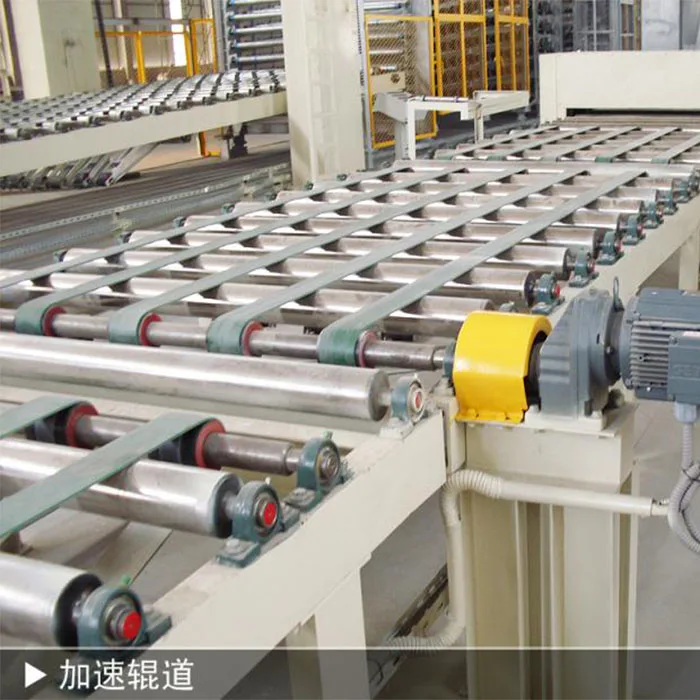

8.The gypsum board entered into 1#transverse board entry roller through acceleration roller
9.Then changed direction,through regrouping roller, the gypsum board entered into dryer in sequence by distributor
10.The dryer evaporated the free water in the gypsum board and dried the board
11.The dried board entered into 2# transverse conveying belt, accomplished direction changing and board pairing up together
12.Through edge cutting saw, the board has been changed into finished product

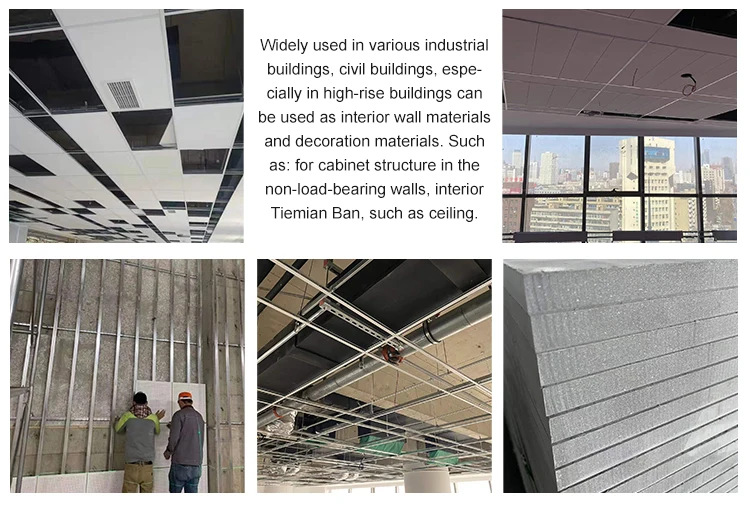

Applications

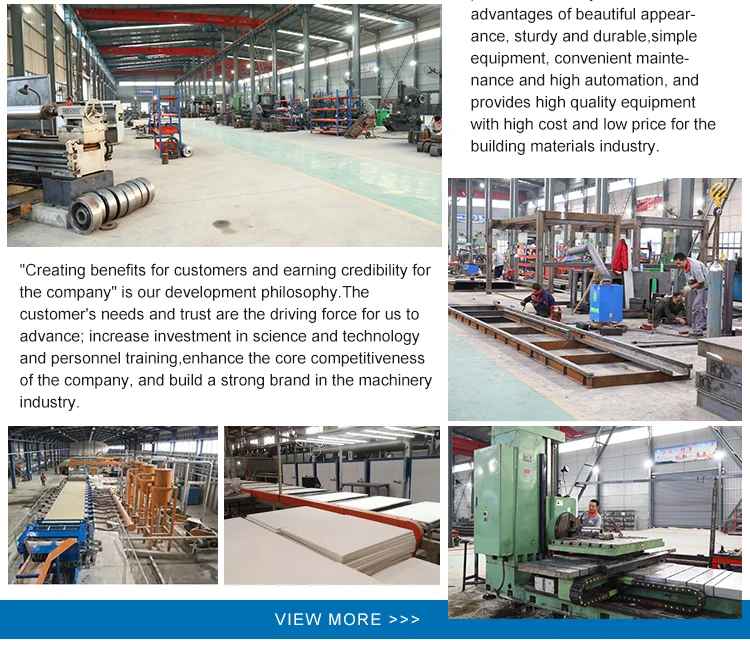

Company Profile
Customer Visit
Certifications
FAQ
Q1:Are you trading company or manufacturer ?
A1:We are a professional gypsum board producing line manufacturer for more than 12 years.
Q2:How long is the warranty of your equipment?
A2:1year
Q3:How long is your delivery time?
A3:Normally for 2 months to 3 months .
Q4:What is your terms of payment ?
A4:We can accept L/C or T/T.
Q5:Do you supply spare parts?
A5:Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q6:How will you provide installation&commissioning ?
A6:Arrange practised techicians installing and training oversea as soon as you receive the machines .
A6:Arrange practised techicians installing and training oversea as soon as you receive the machines .
