Product Overview
Description
Product Overview

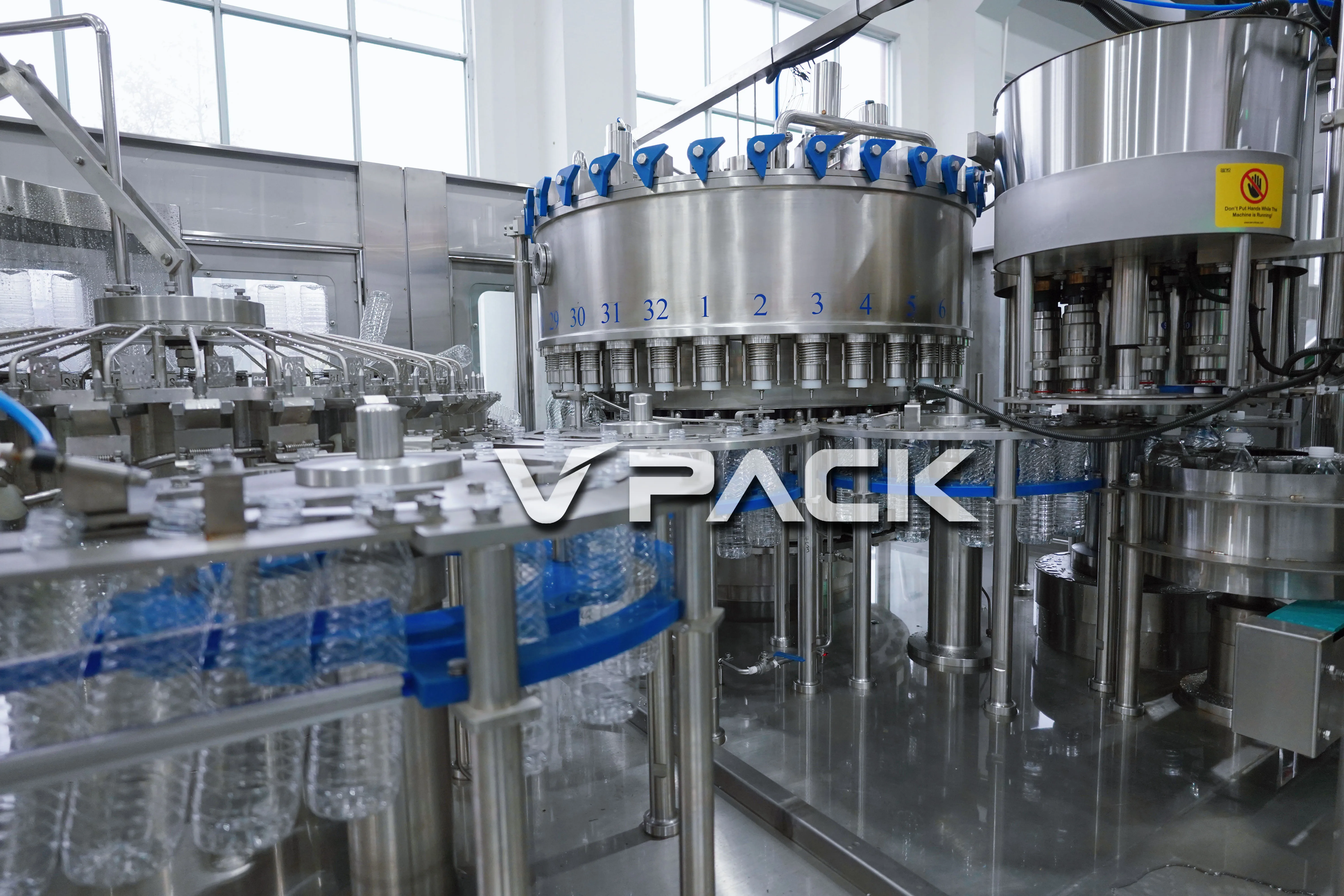

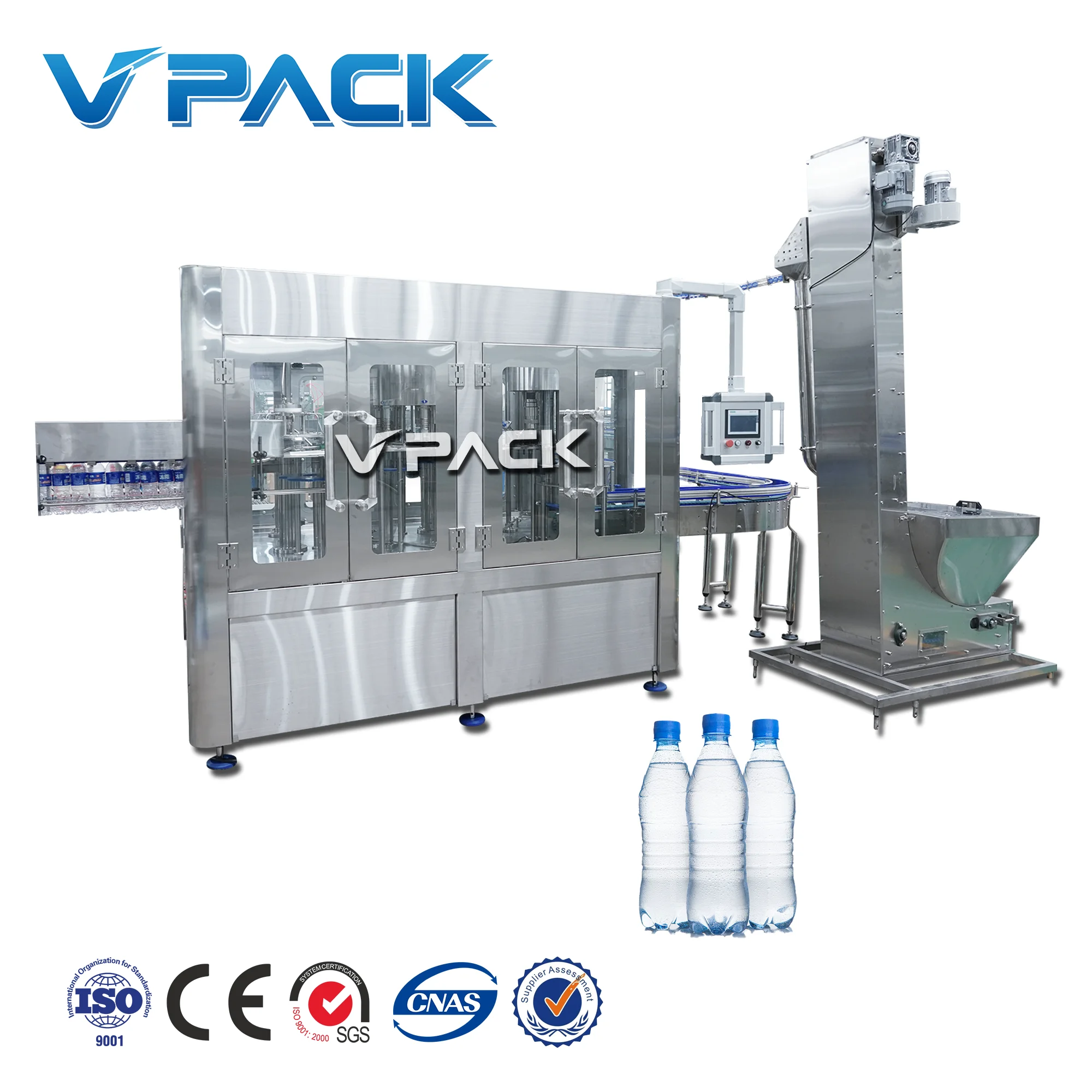

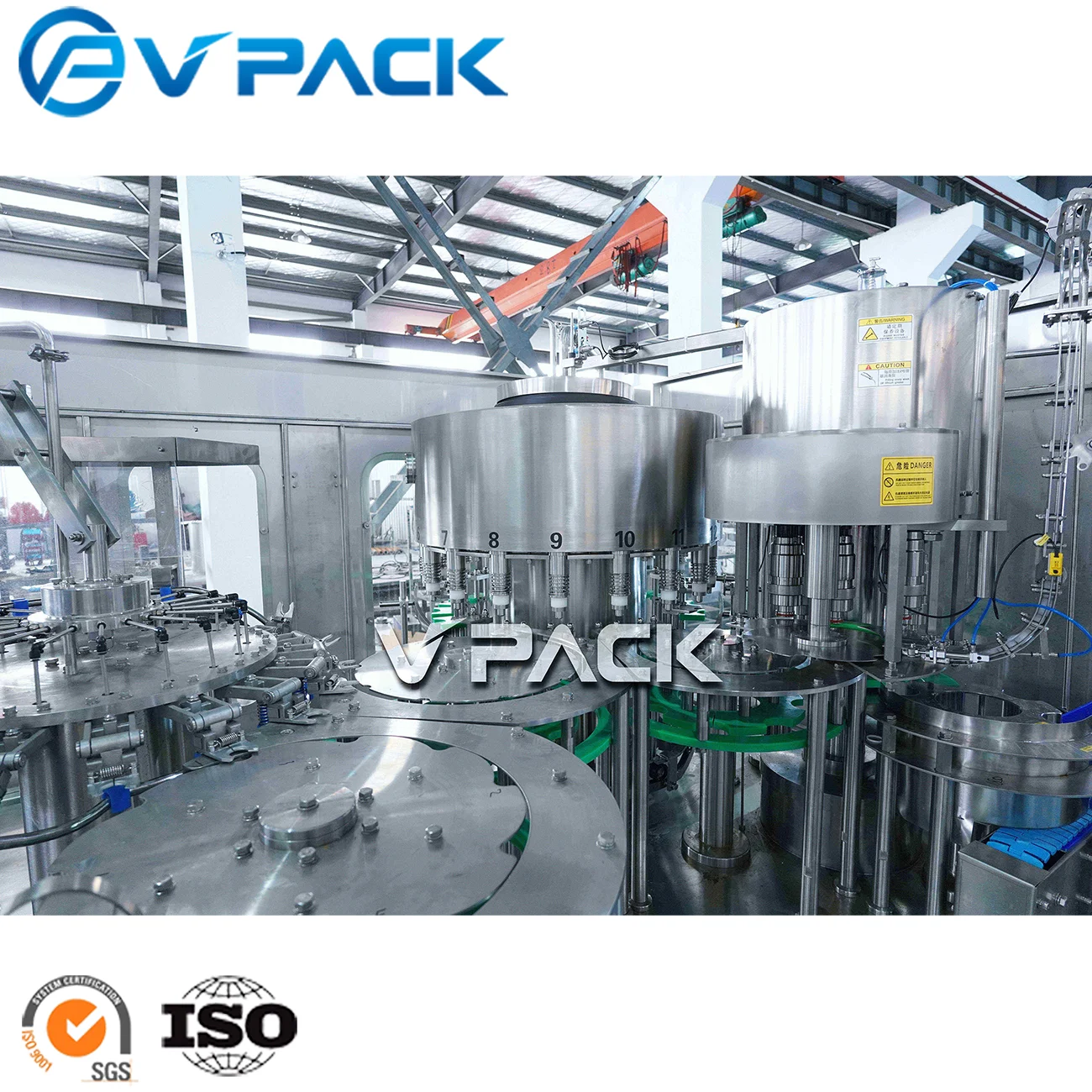

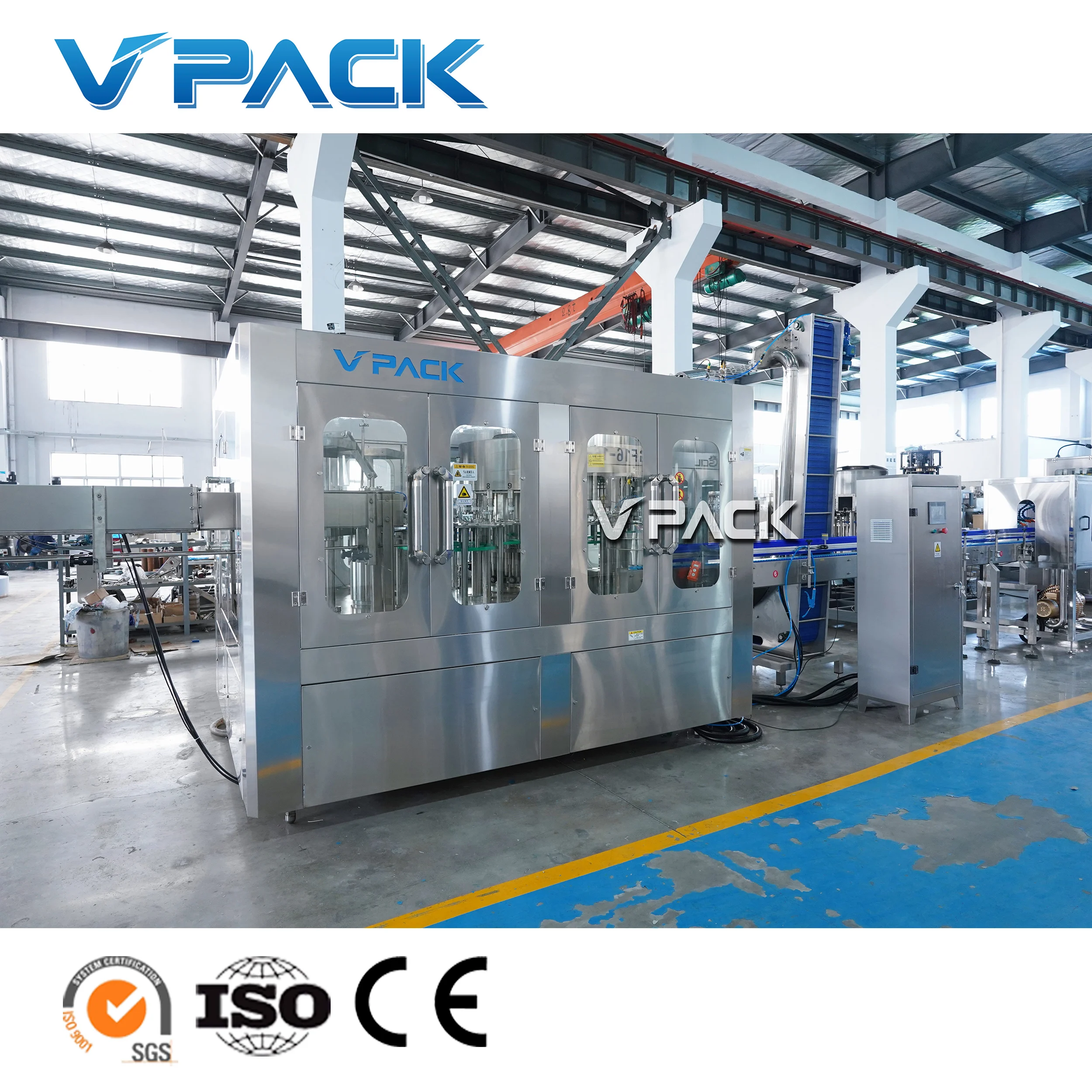

Drinking Water Washing Filling Capping 3 in 1
This Drink water bottle filling machine / equipment / production line used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Main Features
The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

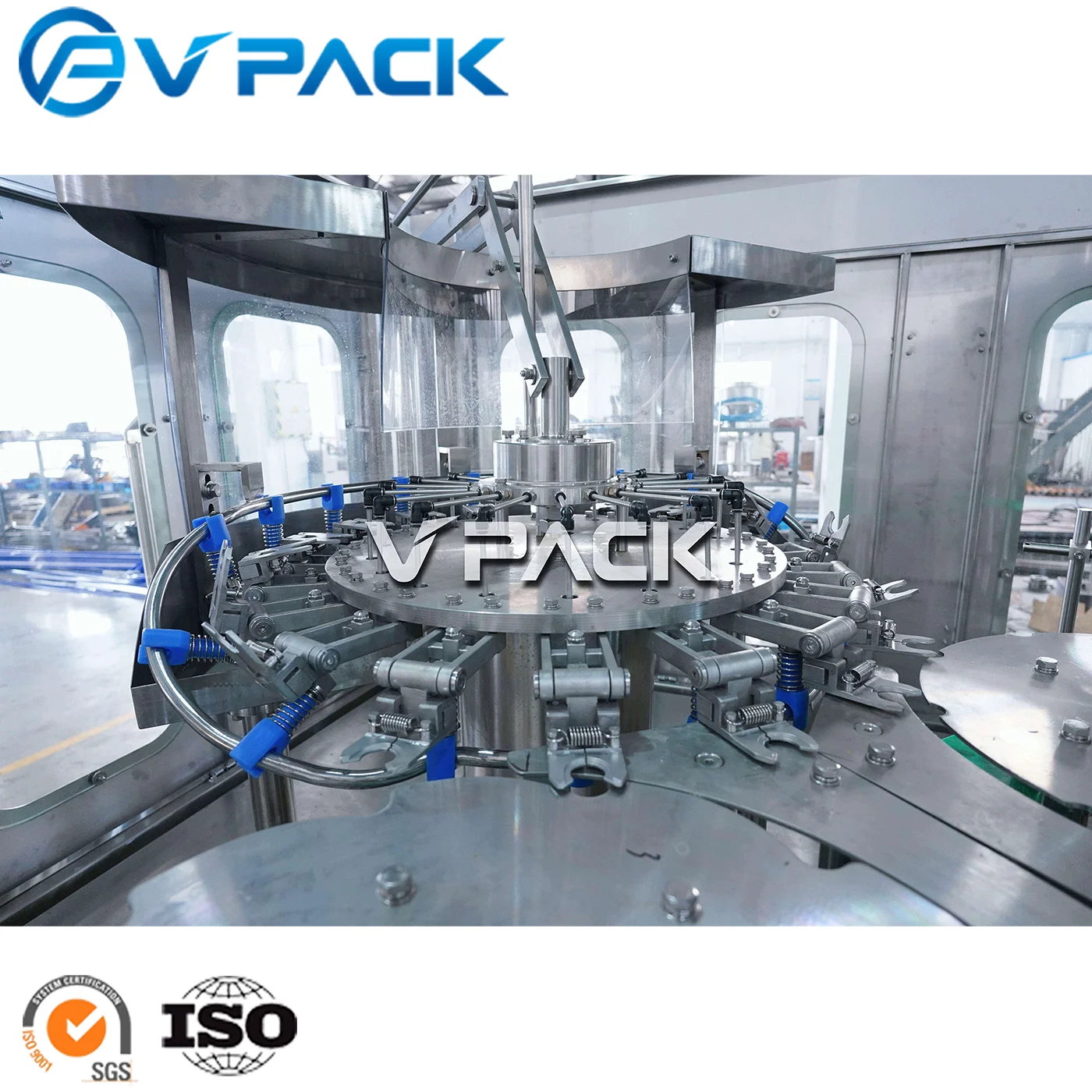

1 - Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
2 - Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.

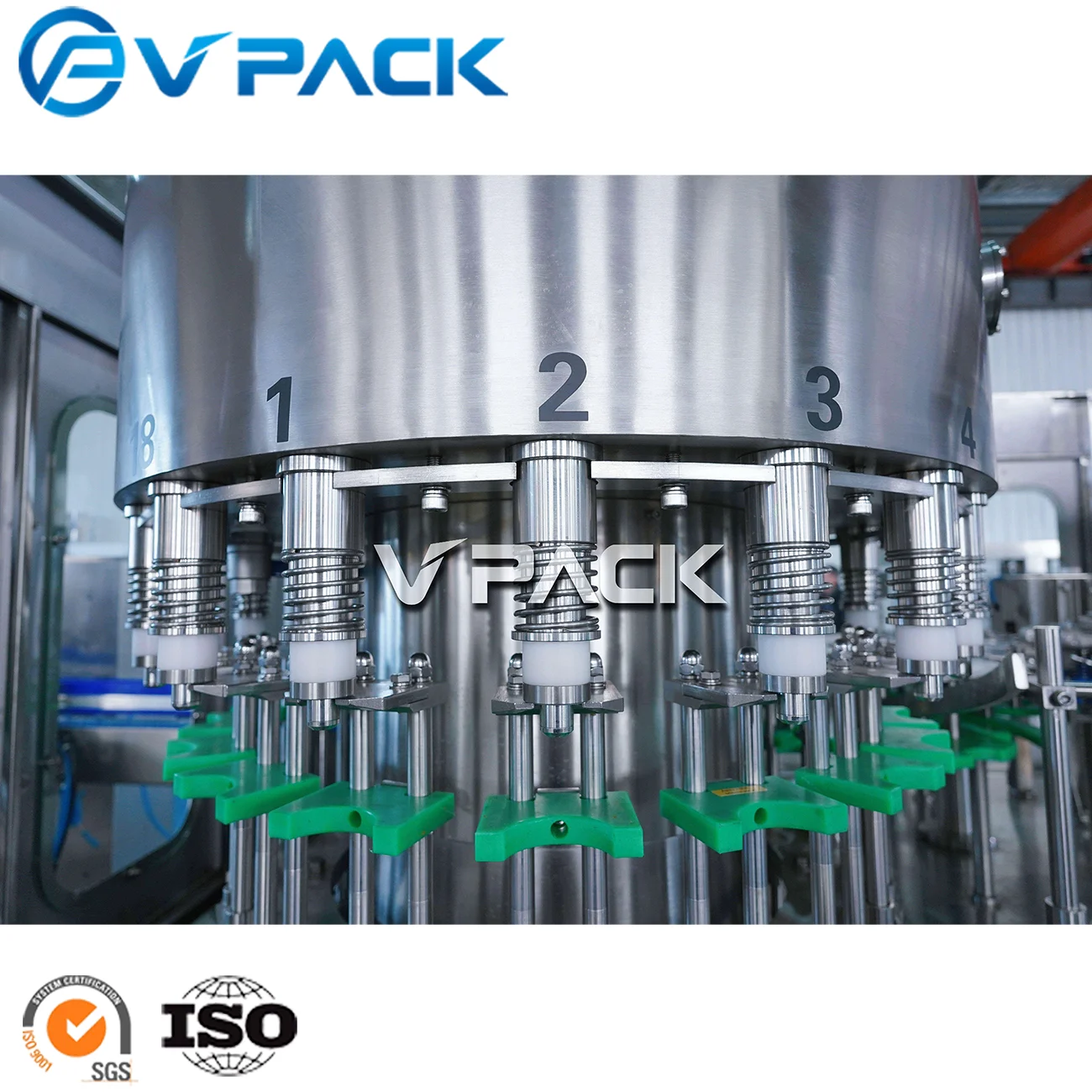

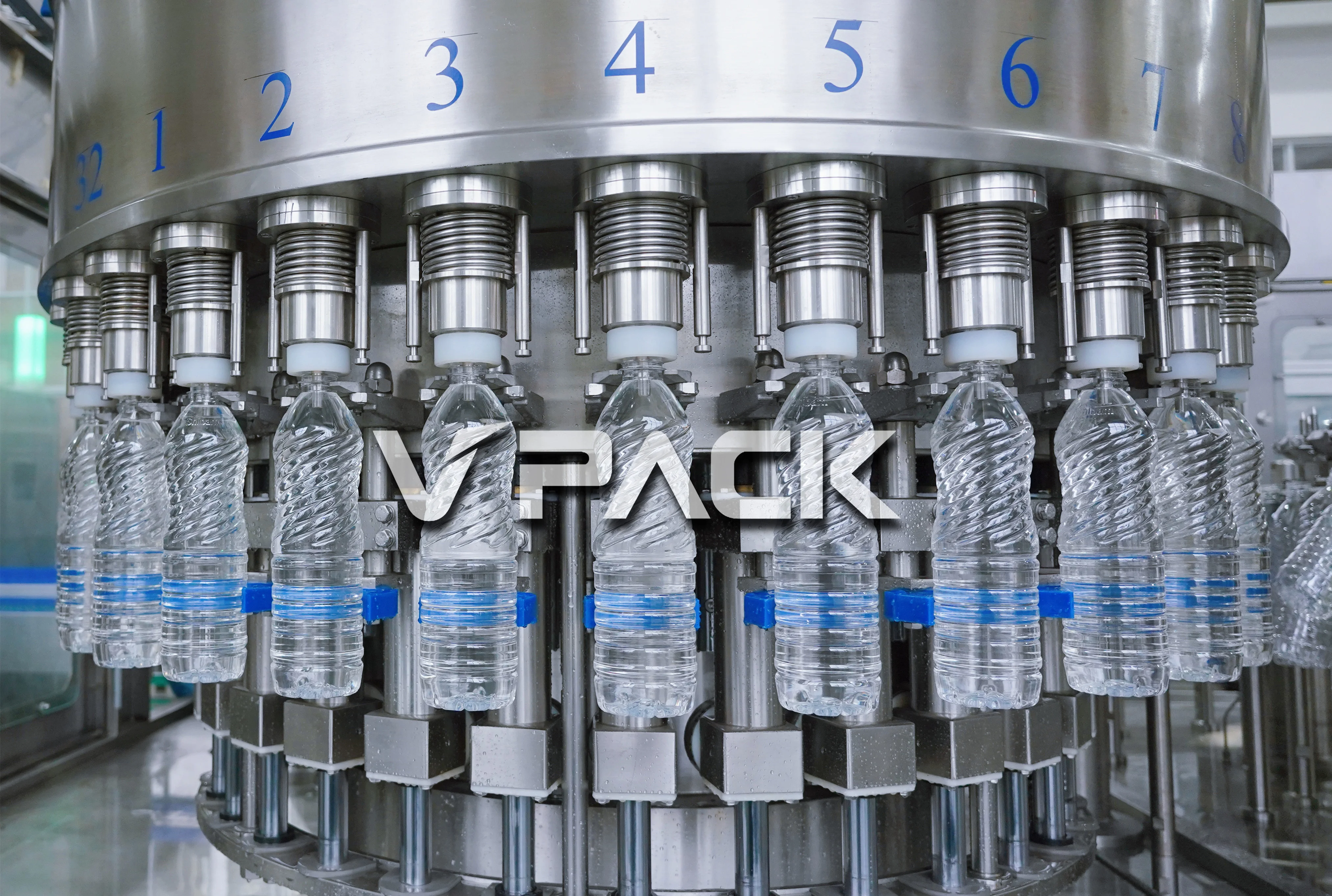

3 - Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

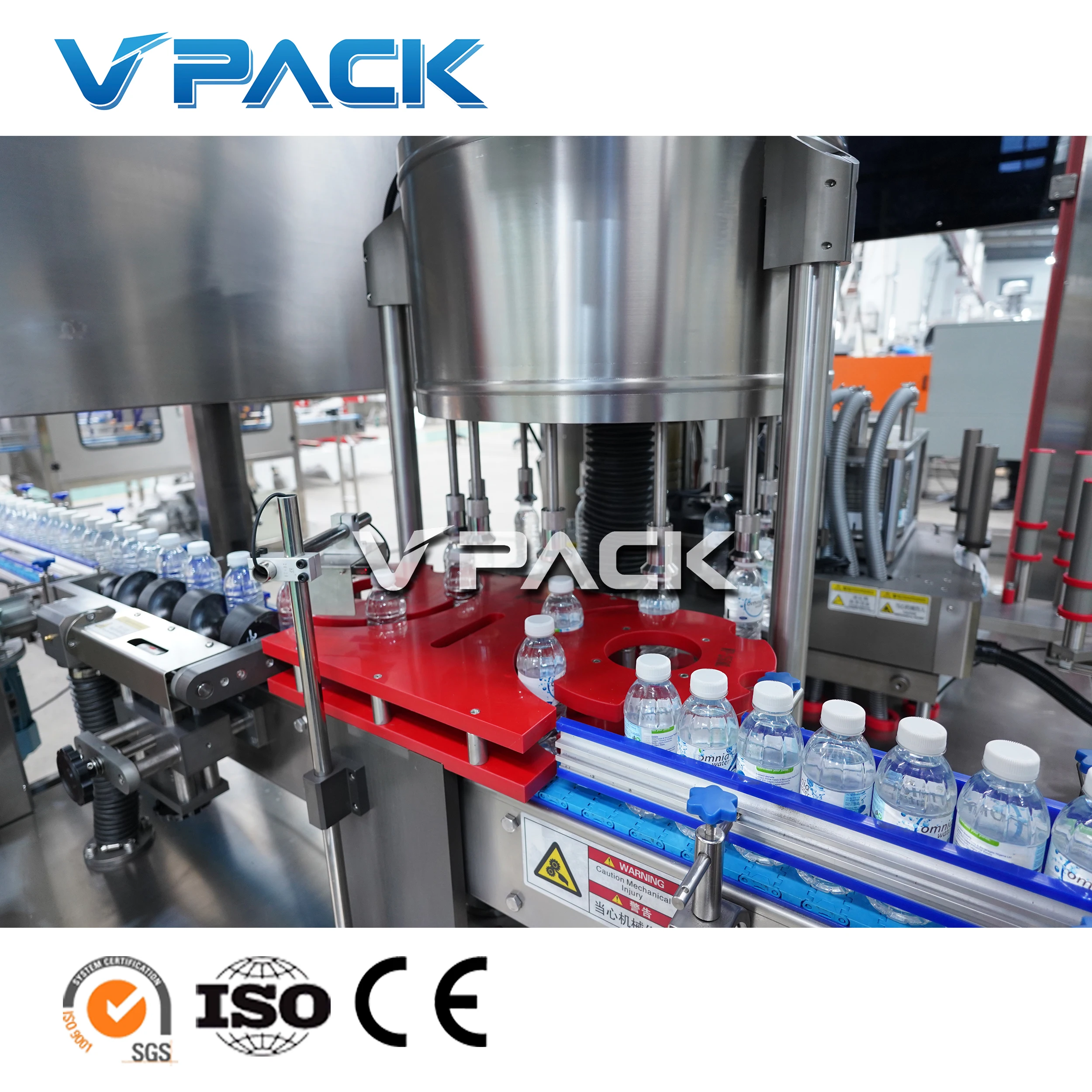

4 - Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
5 - Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Model | Capacity | Rinsing heads | Filling heads | Sealing heads | Overall dimensions |
CGF8-8-3 | 4000BPH | 8 | 8 | 3 | 2100*1900*2000mm |
CGF14-12-5 | 6000BPH | 14 | 12 | 5 | 2400*1900*2800mm |
CGF16-16-5 | 8000BPH | 16 | 16 | 5 | 2500*1900*2200mm |
CGF18-18-6 | 10000BPH | 18 | 18 | 6 | 2800*2050*2200mm |
CGF24-24-8 | 14000BPH | 24 | 24 | 8 | 3100*2450*2800mm |
CGF32-32-10 | 16000BPH | 32 | 32 | 10 | 3700*2750*2900mm |
CGF40-40-10 | 19000BPH | 40 | 40 | 10 | 4300*3300*2900mm |

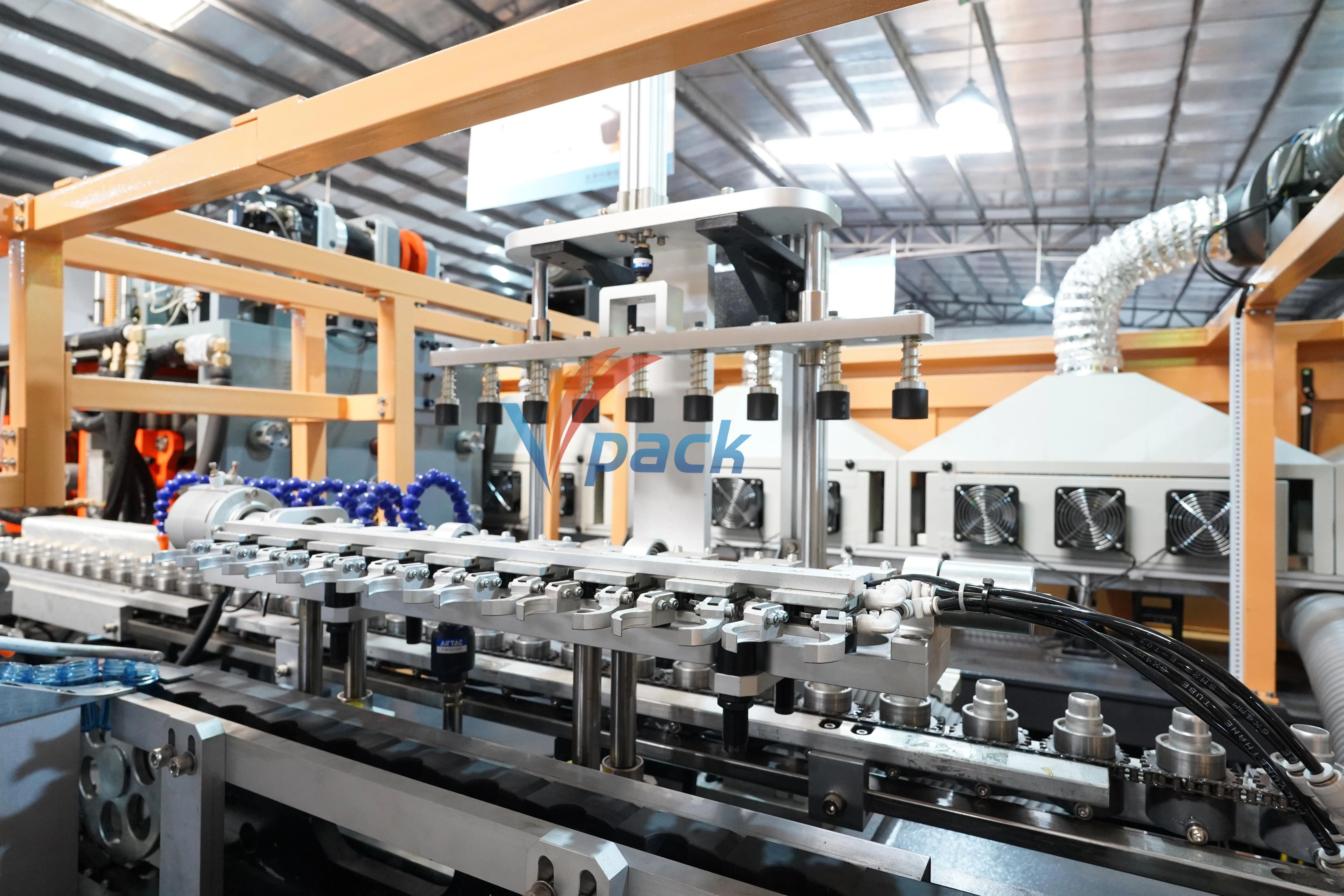

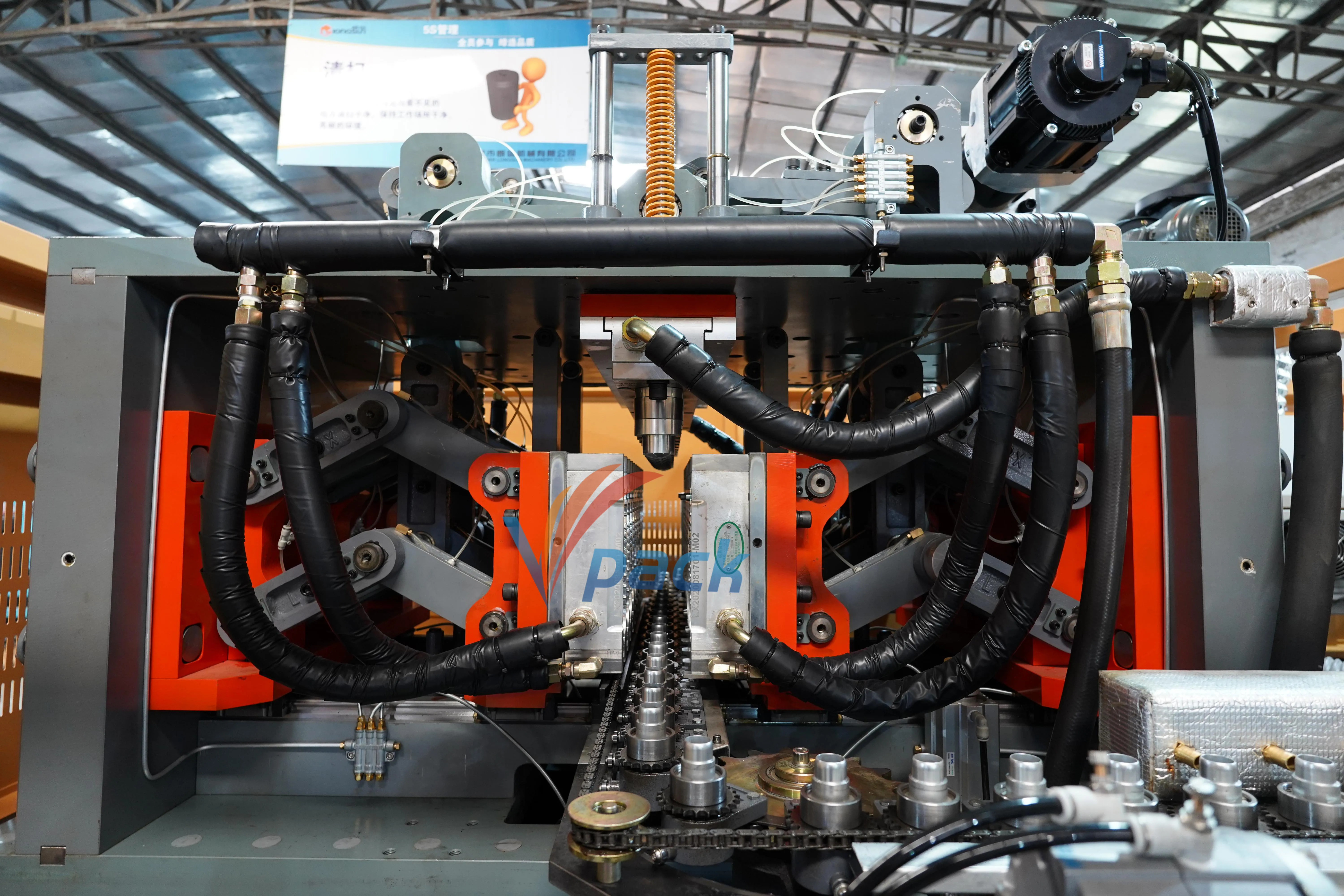

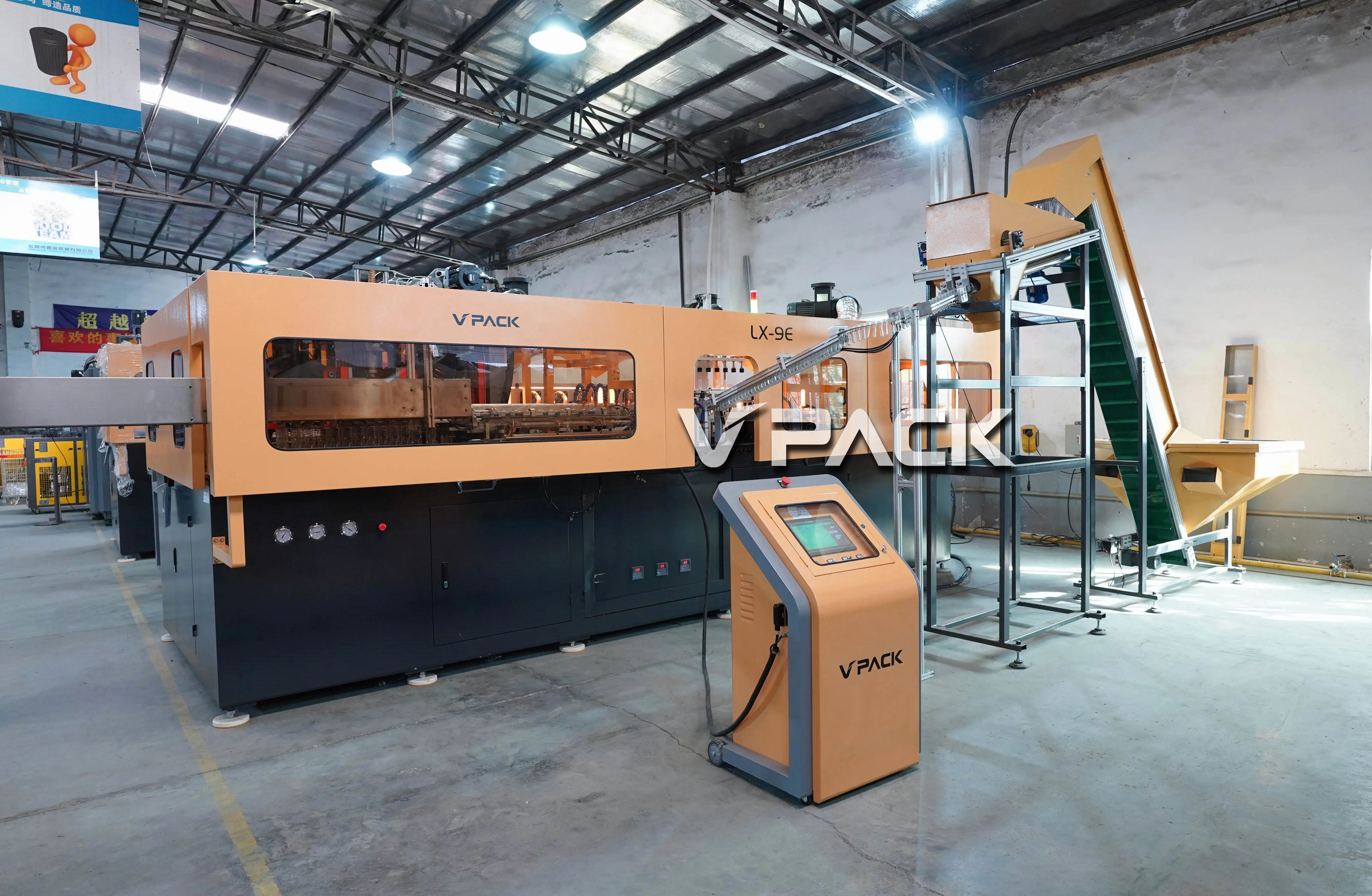

Automatic 12000B/H 9-Cavity Pet Bottle Blow Molding Machine
1.Use screw of servo driver moving system.
2.Automatic feeding heating and blowing.
3.Patented preform feeding system for easy and safe.
4.Heating system for each lamp adjustment and constant SCR voltage control system.
5.Touch screen human-machine interface for easy operation.
6.Modular component design for easy maintenance.
7.Compact design for effective usage of floor space.
8.Intelligent flow control with high pressure valve.
2.Automatic feeding heating and blowing.
3.Patented preform feeding system for easy and safe.
4.Heating system for each lamp adjustment and constant SCR voltage control system.
5.Touch screen human-machine interface for easy operation.
6.Modular component design for easy maintenance.
7.Compact design for effective usage of floor space.
8.Intelligent flow control with high pressure valve.

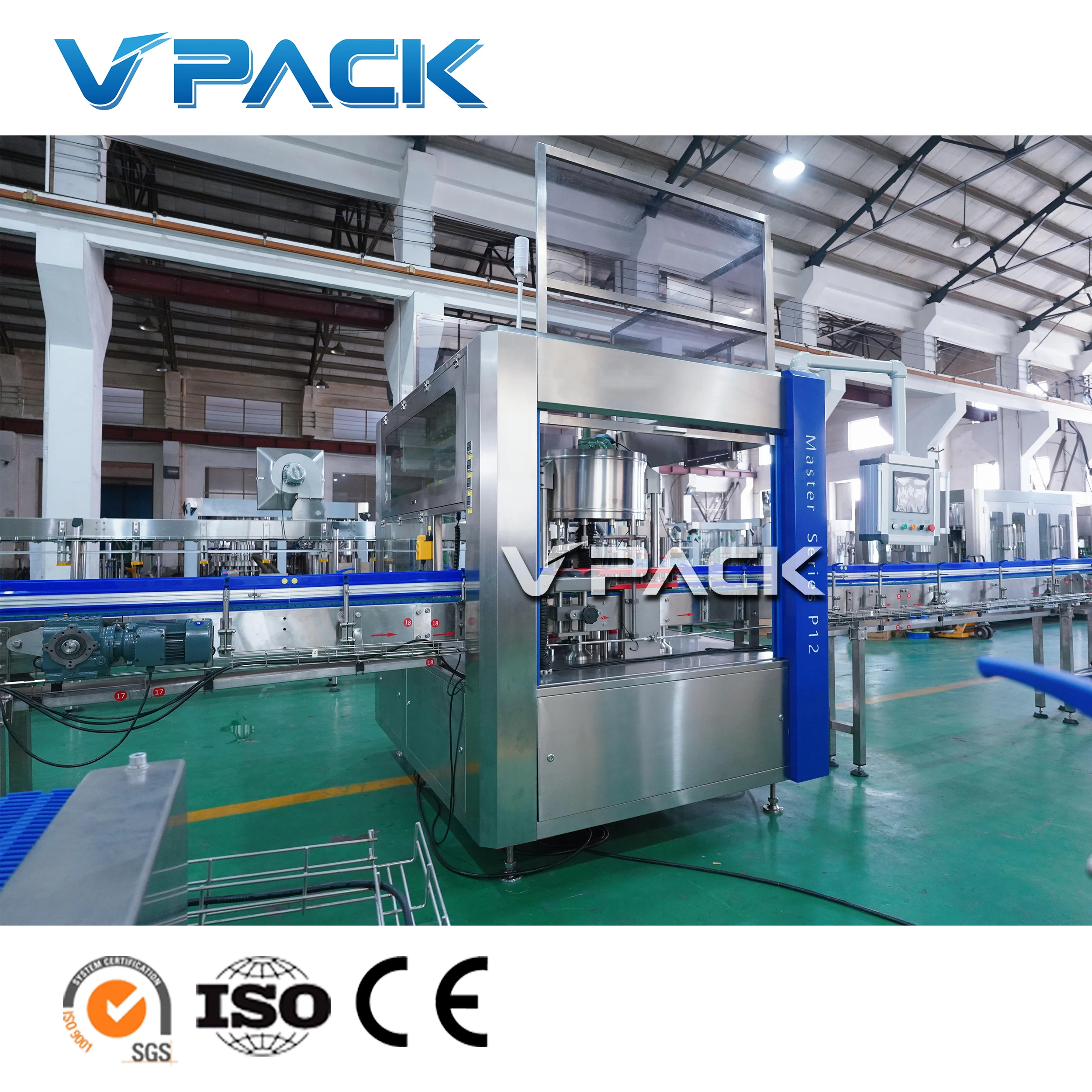

12000-15000BPH Rotary Hot Melt Labeling machine (OPP Label)
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and inter grated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
Process:Infeed bottle ----- pre-position ----- label cutting ----- gluing -----labeling -----label by press out ---- finish
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and inter grated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
Process:Infeed bottle ----- pre-position ----- label cutting ----- gluing -----labeling -----label by press out ---- finish

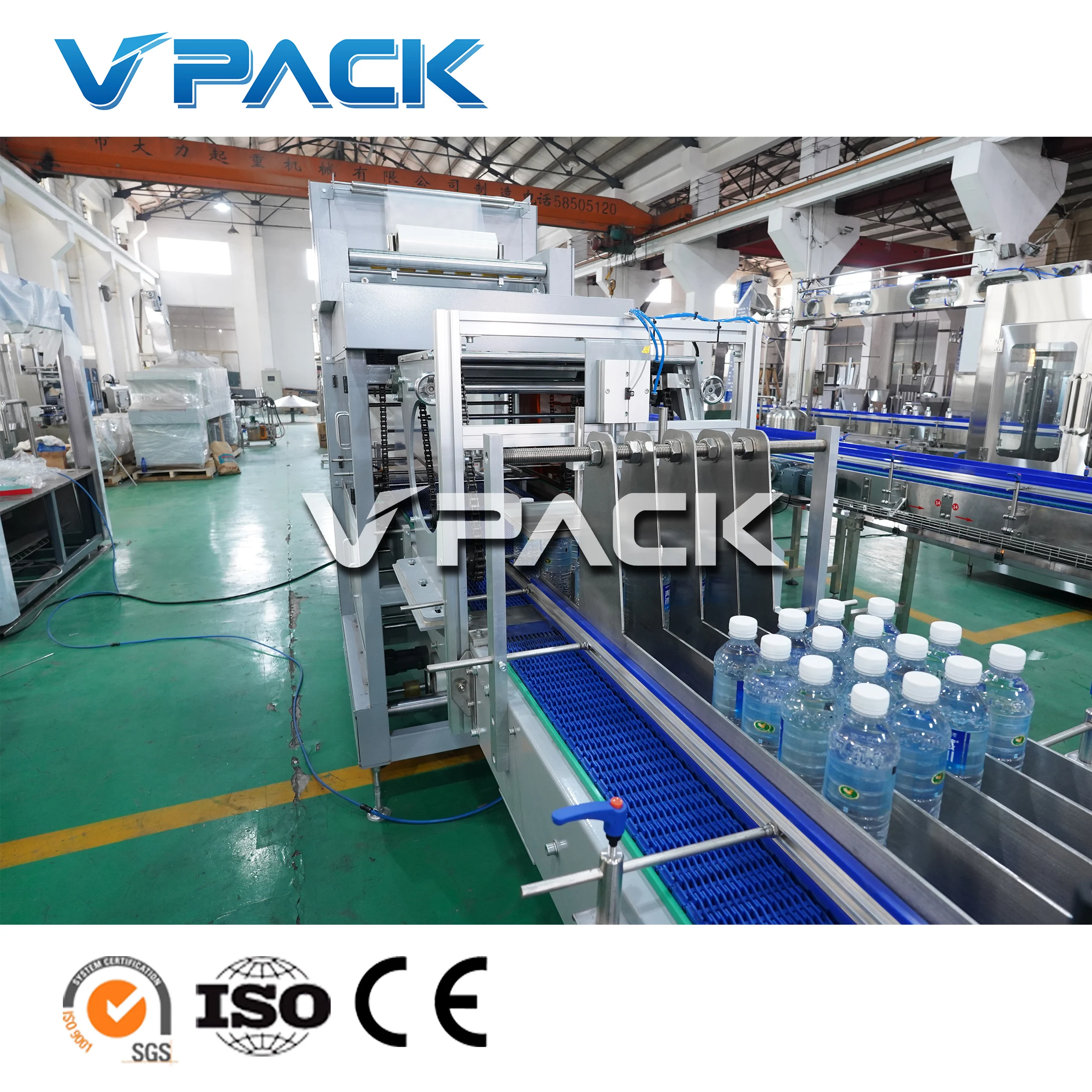

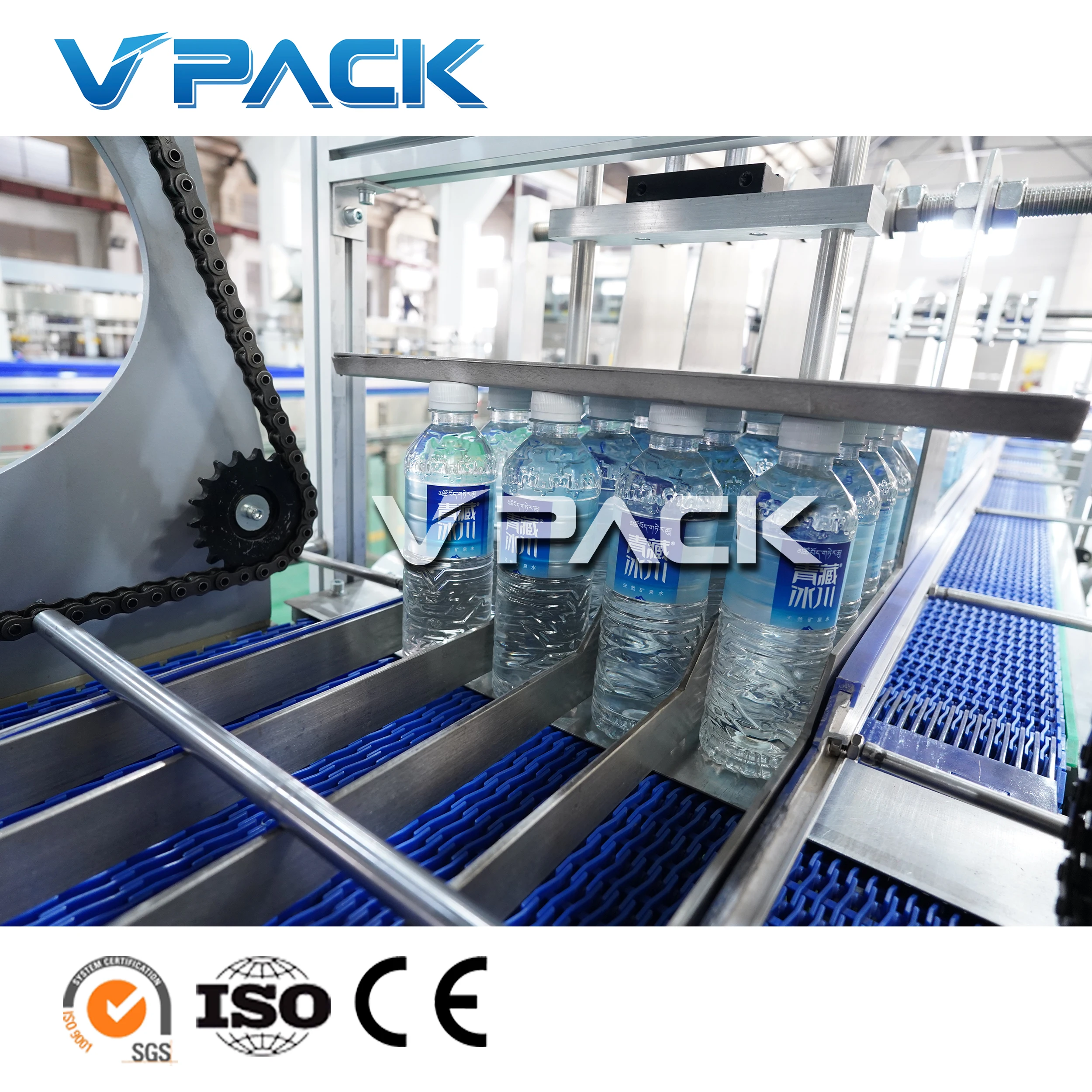

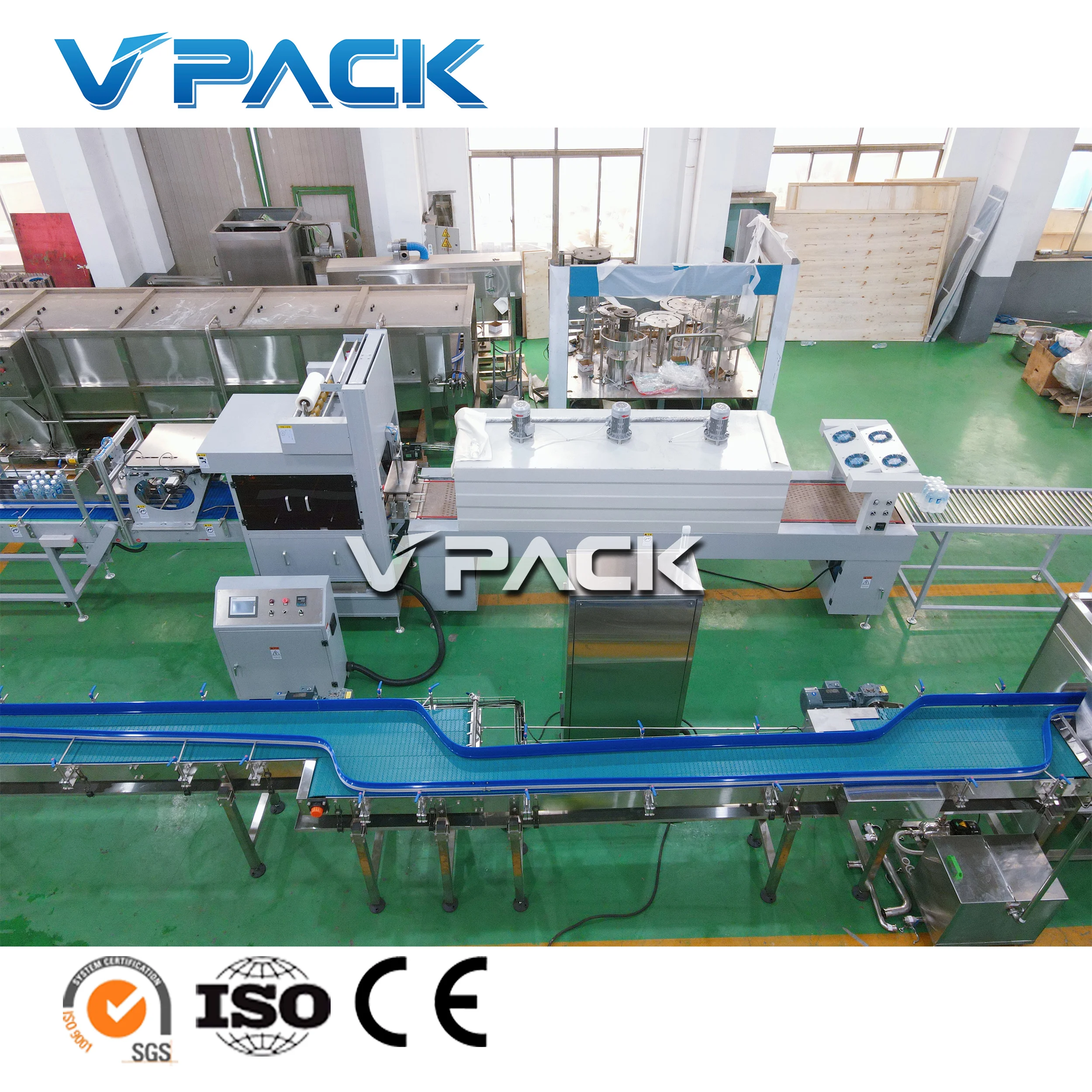

Automatic shrink film wrapping machine
This type of machine is suit for beverage, drinking water,beer wine and infusion bottle packaging，which can be packed with shrink film .Package will be a firm and beautiful appearance
Main Features
The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other
industries.The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.The film tension transportation,smooth,and precise control of the cutting film neat incision.
Serve control technology can maintain the mechanism of precise synchronization of advanced, reliable delivery.
The heating box, reasonable structure, heat insulation, high precision of temperature control.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world's most advanced control
System components, equipment, stable operation.Mechanical transmission components using after heat treatment of stainless steel or carbon steel and other materials; spraying the surface quality,The antirust performance.
Main Features
The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other
industries.The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.The film tension transportation,smooth,and precise control of the cutting film neat incision.
Serve control technology can maintain the mechanism of precise synchronization of advanced, reliable delivery.
The heating box, reasonable structure, heat insulation, high precision of temperature control.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world's most advanced control
System components, equipment, stable operation.Mechanical transmission components using after heat treatment of stainless steel or carbon steel and other materials; spraying the surface quality,The antirust performance.
Our Machine Video
12000BPH Automatic PET Blow
Molding Machine Video
13000BPH Hot Melt Labeling
Machine Video
2000BPH 5 Gallon Water
Filling Line Video ( Rotary )
1200BPH 5 Gallon Water
Filling Line Video ( Linear )
6000CPH 330ML Beer Pop-can
Filling Line Video
6000BPH 750ML Glass Bottle Water
Filling Line Video
2400BPH 1L Engine Oil Filling
Line Video ( Linear )
24000CPH 29/25 Cap Compression
Machine Video
3500CPH 5Gallon Cap Injection Machine Video
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.

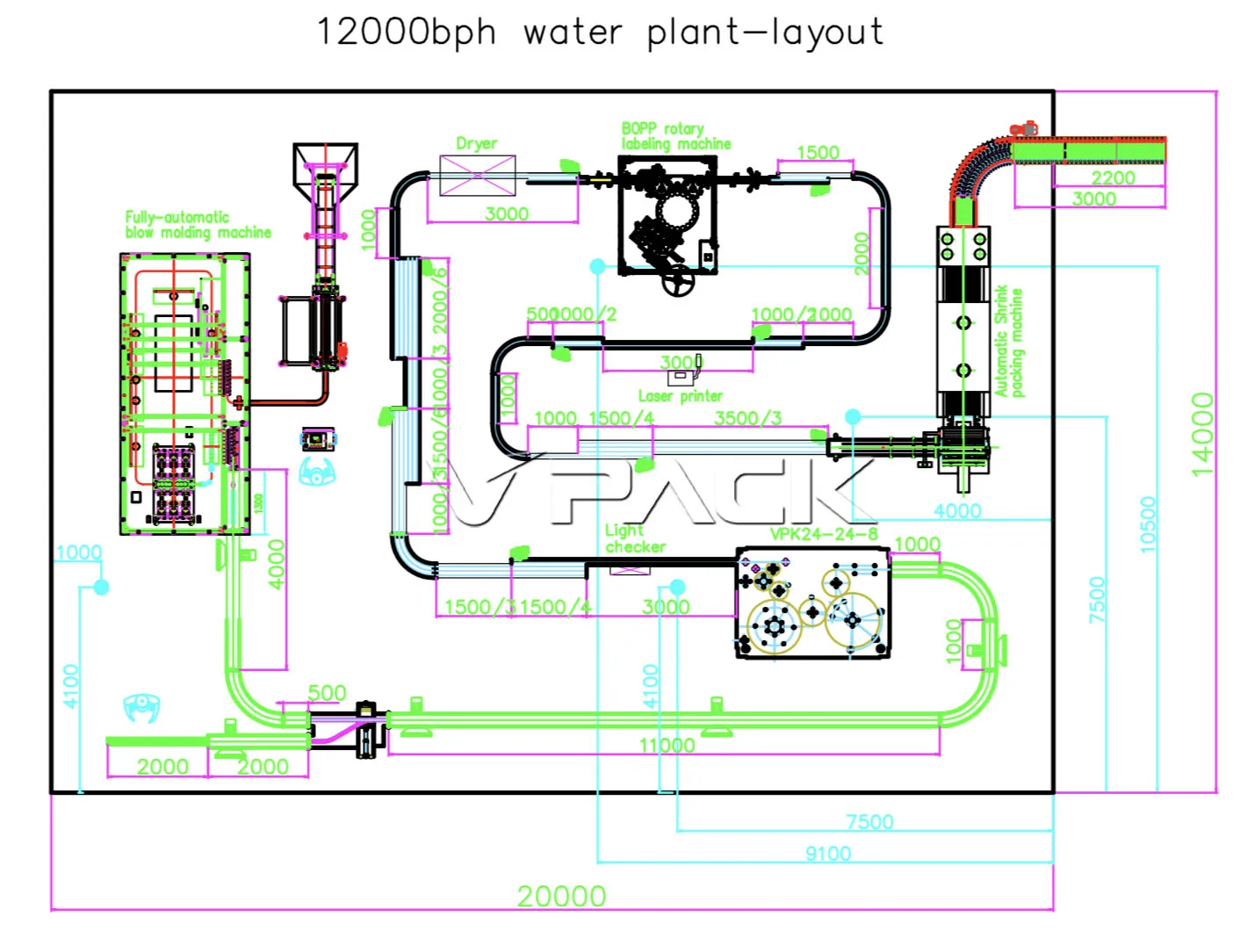

We Supply Your Factory Design Service
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

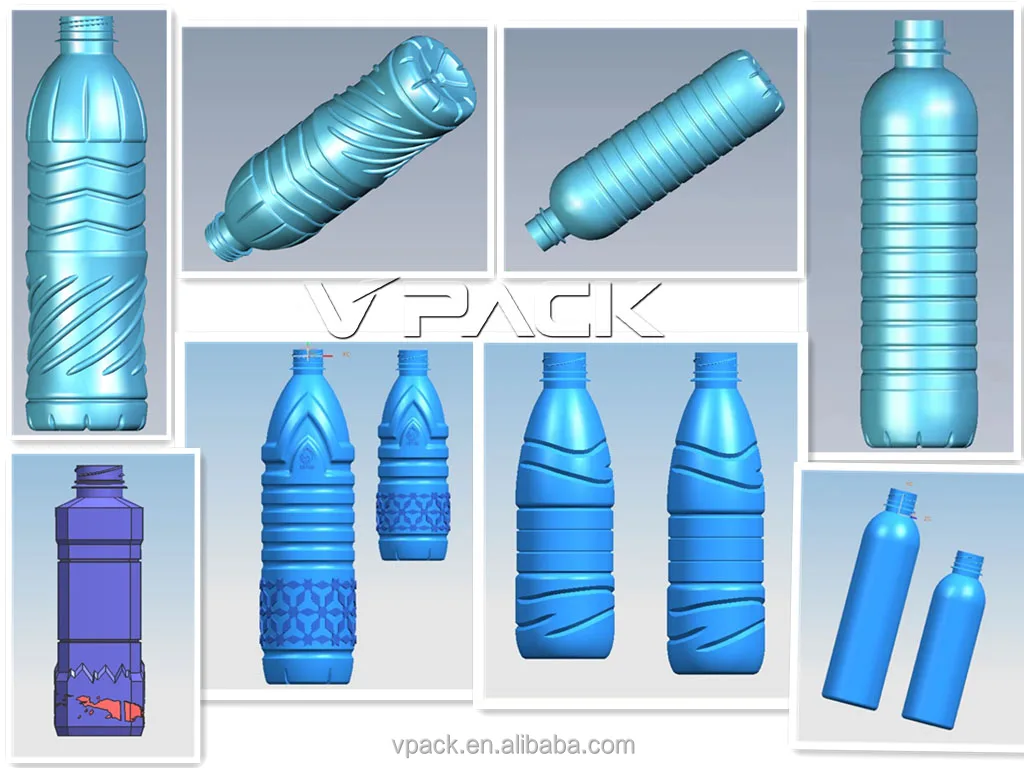

We Supply Your Bottle Design Service
Our Clients' Feedback
Our Company
Our Suppliers
Packing & Delivery
V pack Machine Services Online Supply
1 - Machine running video
2 - Watch our factory online
3 - Supply a running beverage line in your country , you can see machine runing directly.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrangeseasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and thesalary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller'sdemand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.
2 - Watch our factory online
3 - Supply a running beverage line in your country , you can see machine runing directly.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrangeseasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and thesalary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller'sdemand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.
