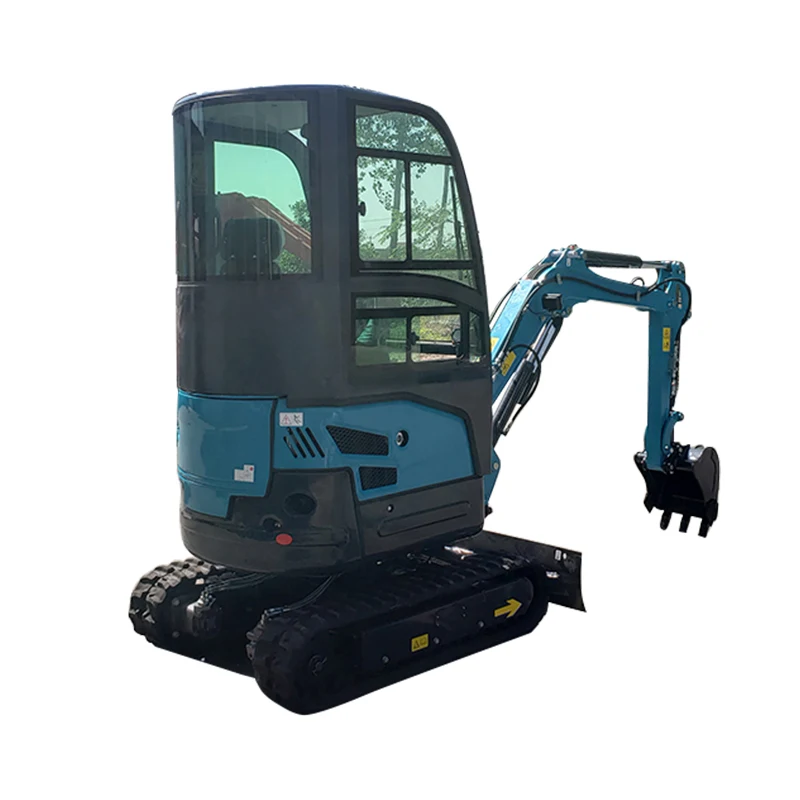

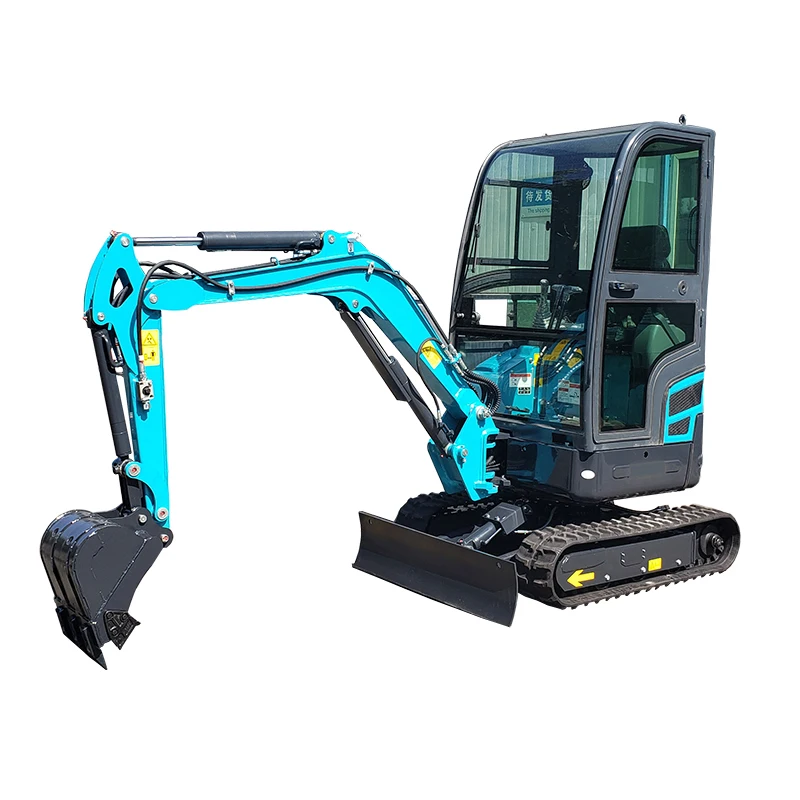

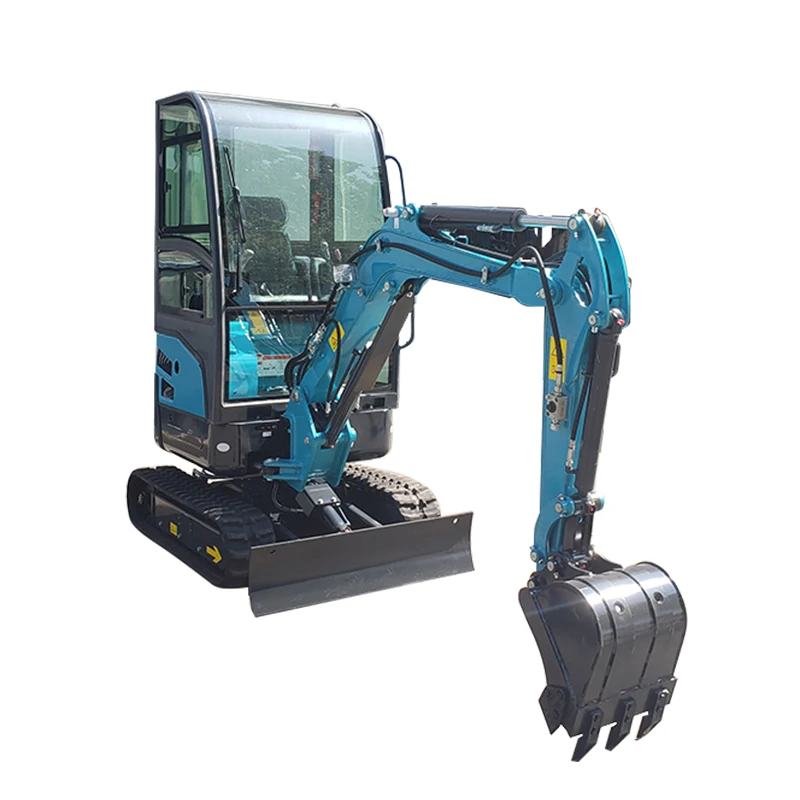

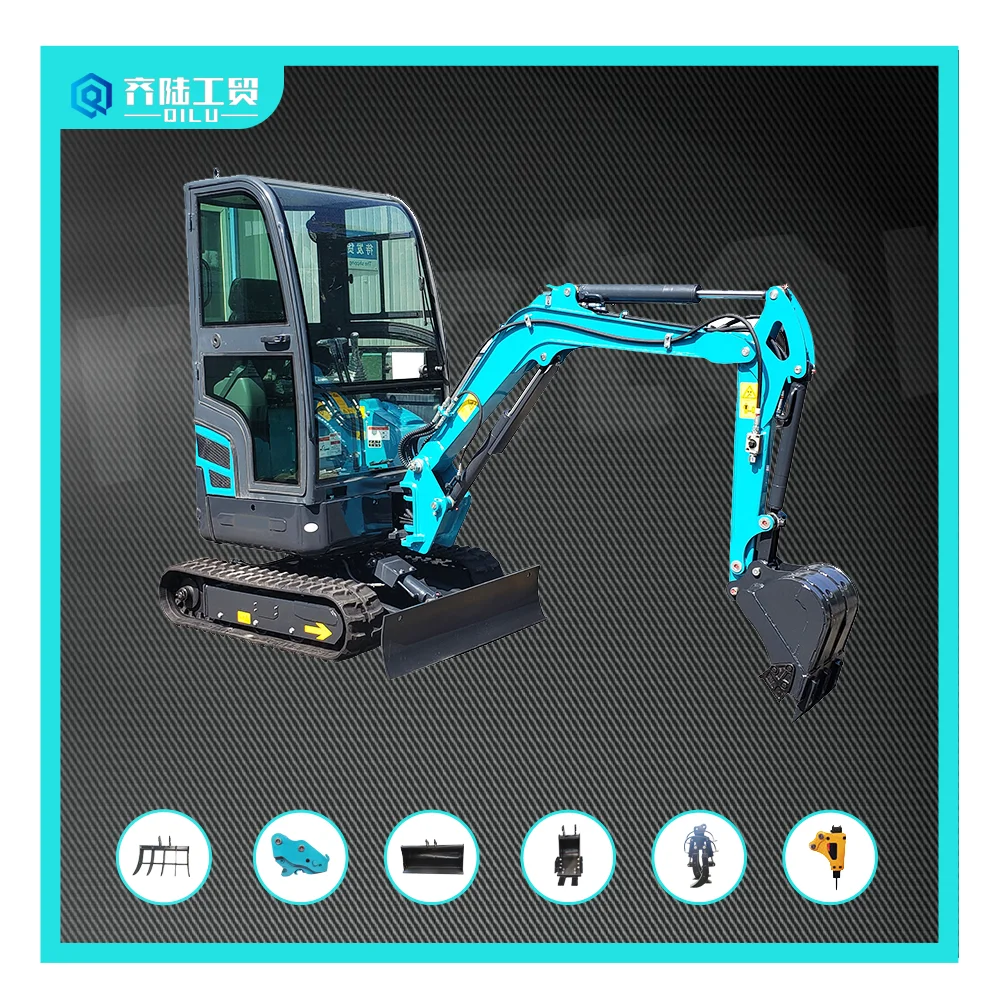

Hydraulic Small Mini Home Compact Crawler Agricultural Excavators Machine Farm Micro Digger Smallest Garden Mini Bagger Diesel
- Category: >>>
- Supplier: Shandong Qilu Industrial Co. Ltd.
Share on (1600449488159):
Product Overview
Description
Product Paramenters
NO. | Overall size | Unit | Standard |
A | Total Length | mm | 3300 |
B | Total Width | mm | 1110 |
C | Total Height | mm | 2360 |
D | Bulldozer blade Width | mm | 1110 |
Bulldozer blade Height | mm | 270 | |
E | Clawler center distance | mm | 883 |
F | Boom height | mm | 2635 |
G | Distance from the center of rotation to the tail of the crawler | mm | 745 |
Crawler width | mm | 230 | |
Standard bucket width (With/without edge tooth) | mm | 440(400) | |
Clawler length | mm | 1450 | |
Wheel spacing | mm | 1120 | |
H | Max. Digging Height | mm | 3310 |
I | Max. Dumping Height | mm | 2370 |
J | Max. Digging Depth | mm | 2120 |
K | Maximum depth of vertical arm excavation | mm | 1535 |
L | Max.Digging distance | mm | 3640 |
M | Mini. Turning radius of front end | mm | 1660 |
N | Minimum gyration radius of rear end | mm | 715 |
O | Max.Digging distance on the ground | mm | 3570 |
P | Max.Bulldozing height | mm | 260 |
Q | Max.Bulldozing depth | mm | 190 |
R | The bucket moves horizontally to the left | mm | 480 |
S | The bucket moves horizontally to the right | mm | 410 |
Operating Weight | kg | 1550 | |
Bucket Capacity | m³ | 0.04 | |
Engine | D902-E4B | ||
Displacement | L(cc) | 0.898 | |
Rated Power | KW/rpm | 11.8 | |
Swing speed | r/min | 9 | |
Swing angle | ° | 55(53) | |
Gradeability | ° | 58（30） | |
Ground pressure | kpa | 27 | |
Bucket digging force | KN | 13.8 | |
Fuel tank capacity | L | 18 |
Details Images
Optional Attachments
Other Products
About Us
Buyers Show
FAQ
Are you a manufacturer or Trader ?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term ?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation ?
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days,It depend on the order quantity.
Do you provide OEM/ODM Service ?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
Do you have CE certificate ?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing ?
We will provide professional installation video to illustrate.Also provide manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support andagricultural technical support.
What is your MOQ?
1Sets
