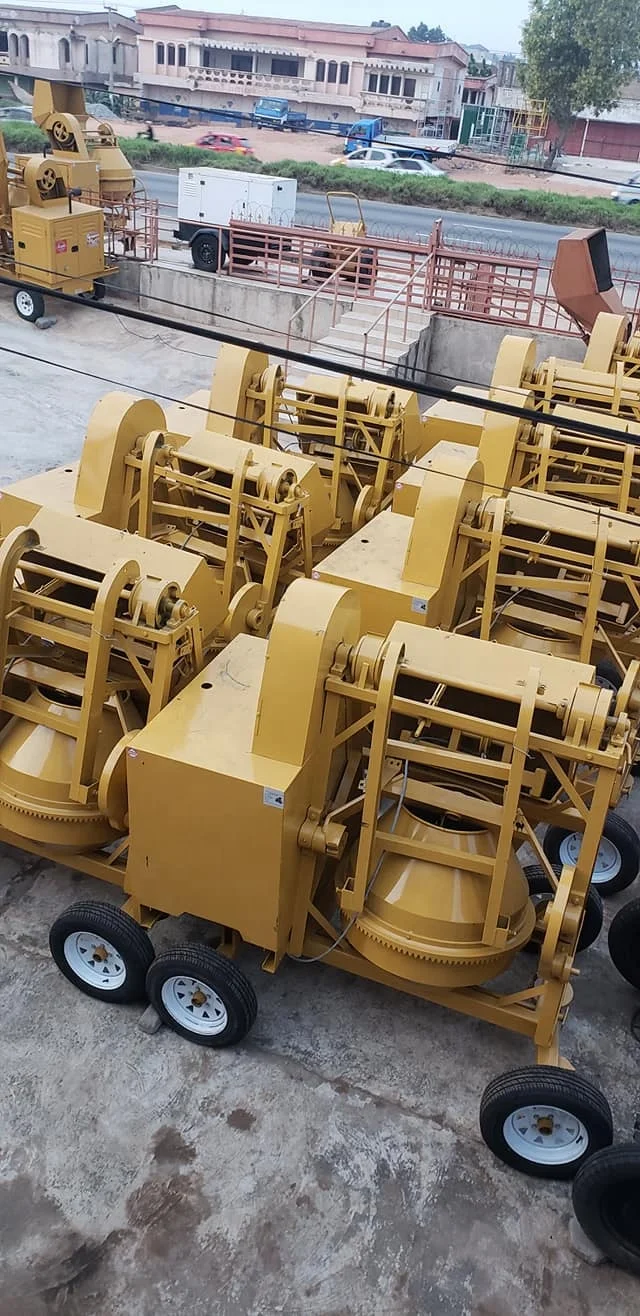

TMH500L Hoist lifting type concrete mixer

TECHWELLPOWER BRAND TM500L INDIA AND LEBANON TYPE

Main performance parameters

Discharging Capacity

350 Liter

Drum Capacity

510 Liter

Productivity

10-14 m³/h

Bags of Cement per Batch

1.5 bag (50kg/bag)

Max.Size of Aggregate

60 mm

Drum Thickness

3 mm Upper  /  8mm Bottom

Tyre Size

650-16

Engine

Engine brand

CHANGCHAI

Type

Horizontal, Single Cylinder, Four-stroked and Water Cooled

Rated Rotating Speed

2200 RPM

Power

16 Hp

Wire-Rope system

Wire-rope diameter

12.5 mm

Lifting System

Lifting Height

28 m

Lifting Wire-rope diameter

13 mm

20’ container

3 units

40’ container

9 units

Delivery time

4 weeks after confirmation of the order
