Automatic garage door infrared beam sensor
US $9.00-$9.50

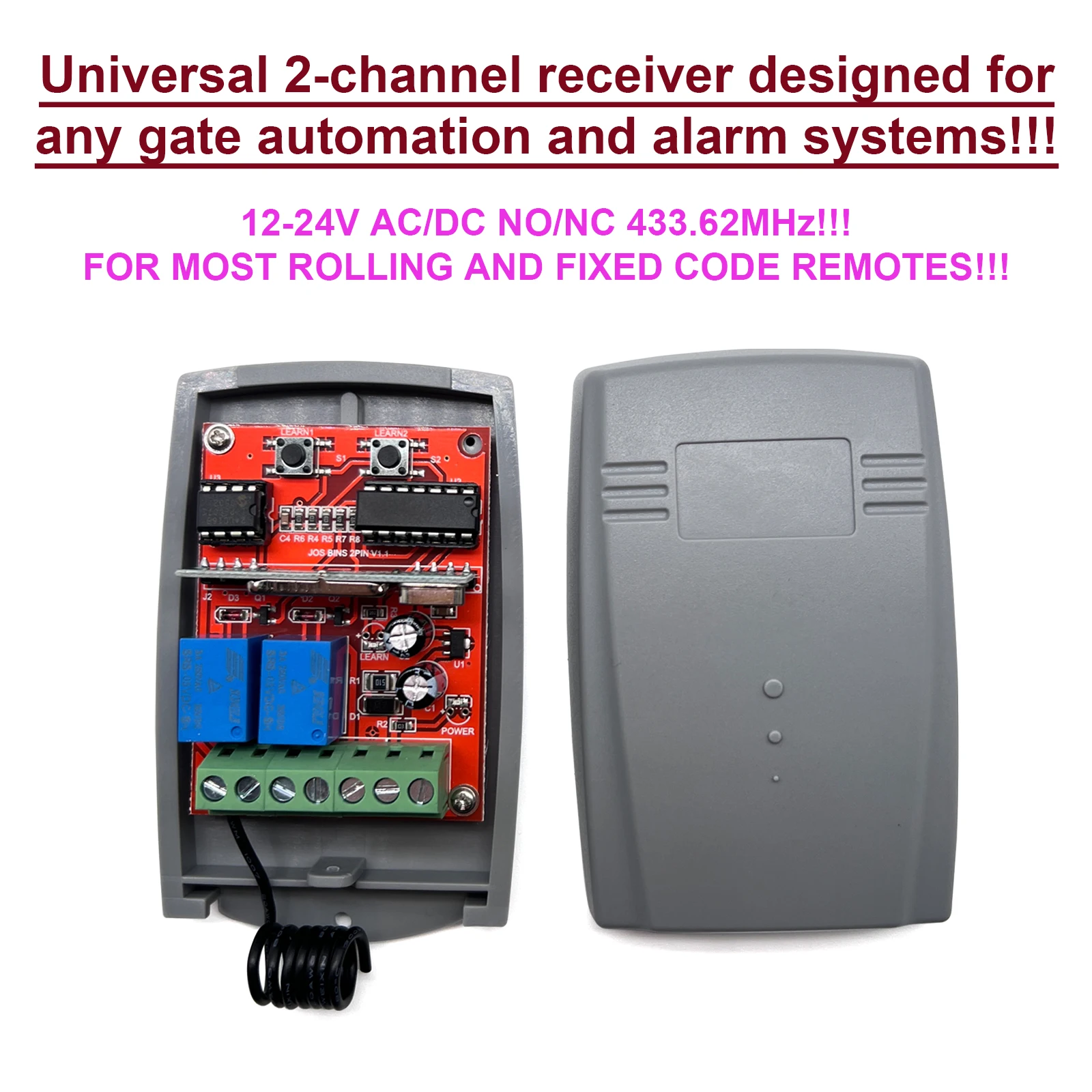

2RC/4RC POPS2 Compatible 2 channel Receiver 12 24V AC/DC 433.92MHz
- Category: >>>
- Supplier: Shenzhen Nanke Quantum Technology Co. Ltd.Shenzhen Ltd.
Share on (1600453086166):
Product Overview
Description
Product Description
Model No.:J-12A-400 433.92mhz gate garage remote control receiver
*The wireless receiving controller has the characteristics of high confidentiality, large storage capacity, stable performance, low power consumption, and is convenient to use, and does not need to adopt the traditional jumper or the code switch coding, and only needs to transmit the wireless signal transmitted by the remote controller. The receiving controller receives and stores. If the learned remote controller is lost during use, only clear the information stored in the receiving controller, and the lost remote will not be able to remotely control the receiving controller. To reuse, it must re-learn.
*This product is a general-purpose intelligent controller, which can be used with most wireless remote controllers on the market, including fixed code (2262, 2260, 2264, 5326, M1E, M5E, etc.) and learning code (1527, 2240, 6P20B, 6P20D, etc.), rolling code (HCS301, HCS300, HCS200, HCS201, HCS100, HCS101, etc.) and some custom remote controls .
*Very easy to program
*The wireless receiving controller has the characteristics of high confidentiality, large storage capacity, stable performance, low power consumption, and is convenient to use, and does not need to adopt the traditional jumper or the code switch coding, and only needs to transmit the wireless signal transmitted by the remote controller. The receiving controller receives and stores. If the learned remote controller is lost during use, only clear the information stored in the receiving controller, and the lost remote will not be able to remotely control the receiving controller. To reuse, it must re-learn.
*This product is a general-purpose intelligent controller, which can be used with most wireless remote controllers on the market, including fixed code (2262, 2260, 2264, 5326, M1E, M5E, etc.) and learning code (1527, 2240, 6P20B, 6P20D, etc.), rolling code (HCS301, HCS300, HCS200, HCS201, HCS100, HCS101, etc.) and some custom remote controls .
*Very easy to program
Application:
1. Motorcycle alarm remote control
2. Electric vehicle alarm remote control,
3. Sliding gate remote control, auto gate remote control, sliding door remote control, rolling door remote control,
4. Ceiling fan remote control
5. Wherever remote control needed
2. Electric vehicle alarm remote control,
3. Sliding gate remote control, auto gate remote control, sliding door remote control, rolling door remote control,
4. Ceiling fan remote control
5. Wherever remote control needed
Specification
*Operating Voltage: 12V/24V DC
*Static Working Current: ≤ 7mA
*Working Temperature: -40degree Celsius~+80degree Celsius
*Receiving Sensitivity: ≥-112dBm
*Frequency: 433.92Mhz
*Contactor Current: ≤3A
*Remote Control Capacity: Can be used with up to 400 wireless remote control, especially suitable for door control, community and
other occasions need to support a large number of remote control

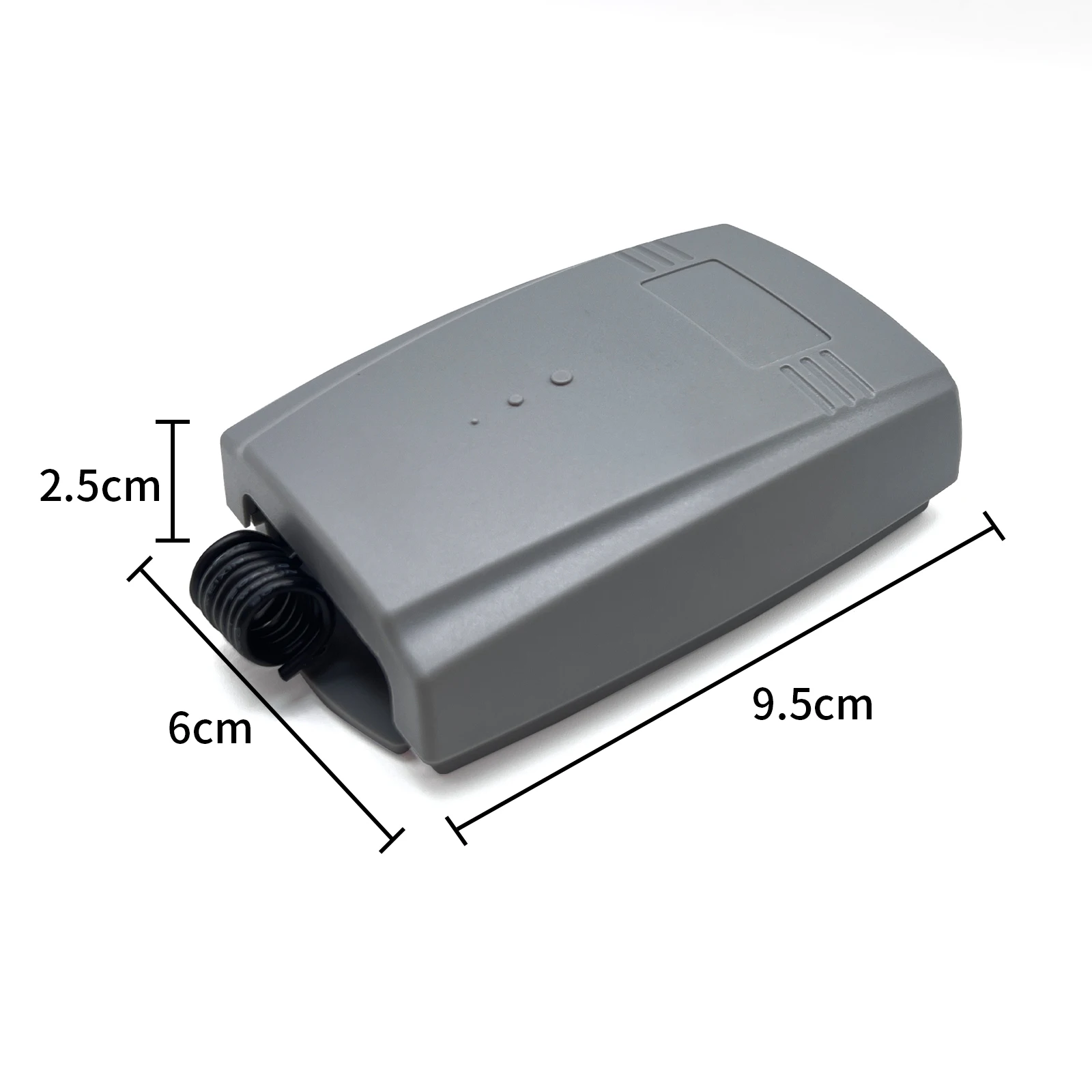

*Size: 94mm*60mm*28.5mm (Approx.)
Learning and Code Clearing Method:

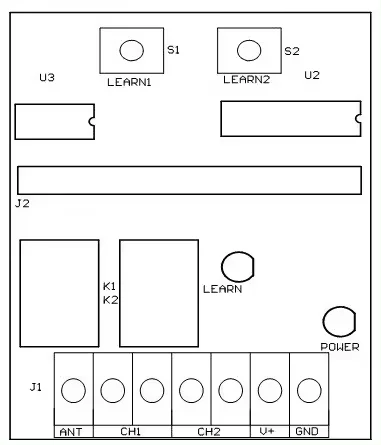

1. Press the learning button on the controller, release the learning button when the LED light is on, the controller will enter the learning state (at this time, the LED will be off), then press the remote control button to control the controller, when you see the LED light of the controller flash for 5 times, it means that the learning has been completed. The learning button1 on the controller corresponds to the relay 1, the learning button 2 corresponds to the relay 2. The control mode is jog.
2. If the remote control is lost, in order to make the remote control all invalid, long press the learning key 1 or learning key 2 (more than 5s). When the LED light is off, the controller will automatically clear the contents in the memory. To reuse,just learn again.
*Operating Voltage: 12V/24V DC
*Static Working Current: ≤ 7mA
*Working Temperature: -40degree Celsius~+80degree Celsius
*Receiving Sensitivity: ≥-112dBm
*Frequency: 433.92Mhz
*Contactor Current: ≤3A
*Remote Control Capacity: Can be used with up to 400 wireless remote control, especially suitable for door control, community and
other occasions need to support a large number of remote control
*Size: 94mm*60mm*28.5mm (Approx.)
Learning and Code Clearing Method:
1. Press the learning button on the controller, release the learning button when the LED light is on, the controller will enter the learning state (at this time, the LED will be off), then press the remote control button to control the controller, when you see the LED light of the controller flash for 5 times, it means that the learning has been completed. The learning button1 on the controller corresponds to the relay 1, the learning button 2 corresponds to the relay 2. The control mode is jog.
2. If the remote control is lost, in order to make the remote control all invalid, long press the learning key 1 or learning key 2 (more than 5s). When the LED light is off, the controller will automatically clear the contents in the memory. To reuse,just learn again.
Using Effects
Packing & Delivery
Company Profile
Shenzhen Nanke Quantum Technology Co., Ltd is a highly specialized company, founded in 2012. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.
We gained a good reputation in more than 50 countries worldwide and still growing with all our customers. OEM/ODM orders are also acceptable. We accept to mark customers' brand on all our products and we can finalize one product from a customers' idea to final product that is ready to sell. We are spending all our efforts in offering the quality products and excellent after-sales service to aim at long term win-win business relation ship with all our customers. Why choose us?(1) With the help of our well-trained staff, experienced R&D team and excellent sales team, We can develop the products based on customers' request and catch the most advanced trend in this field. We always pursue top quality and best service offered to customers.(2)We understand the safety of the products is the most essential and important to customer. We test all of our products from designing period to the final assembly.
With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world.
Safer life starts with our products.
We gained a good reputation in more than 50 countries worldwide and still growing with all our customers. OEM/ODM orders are also acceptable. We accept to mark customers' brand on all our products and we can finalize one product from a customers' idea to final product that is ready to sell. We are spending all our efforts in offering the quality products and excellent after-sales service to aim at long term win-win business relation ship with all our customers. Why choose us?(1) With the help of our well-trained staff, experienced R&D team and excellent sales team, We can develop the products based on customers' request and catch the most advanced trend in this field. We always pursue top quality and best service offered to customers.(2)We understand the safety of the products is the most essential and important to customer. We test all of our products from designing period to the final assembly.
With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world.
Safer life starts with our products.
Certifications
FAQ
Q1. Does all of our goods come with remote function? Yes
Q2. Do you provide OEM?
Sure,welcome OEM and DEM
Q3. Why your productsare more expensive than other suppliers' product
Our cost is depended on our brilliant surface, high quality raw materials, highstandard of safety and technology.
Q4. Are you a manufacturer? Where is your factory?
Yes, we are. Our factory is in Shenzhen City, Guangdong Pro.
Q5. Which market do you focus on?
We do global market. Every market is important to us.
Q6. How can you guarantee the quality in mass production?
Our original materials will be inspected strictly before mass production and our QC will follow up the quality accordingly in the
process of production. Before out of factory, we totally have more than 6 times strictly checking
Q7. Can i have a sample before order
Sure. Welcome sample order!
8.What frequency do you need?
Such as 315mhz,433.92mhz etc
9.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc. learning code: PT2240, EV1527 ,HS1527etc. fixed code:SC2260 , SC2262, PT2260, PT2262
etc Copy code/clone: face to face copy
Q2. Do you provide OEM?
Sure,welcome OEM and DEM
Q3. Why your productsare more expensive than other suppliers' product
Our cost is depended on our brilliant surface, high quality raw materials, highstandard of safety and technology.
Q4. Are you a manufacturer? Where is your factory?
Yes, we are. Our factory is in Shenzhen City, Guangdong Pro.
Q5. Which market do you focus on?
We do global market. Every market is important to us.
Q6. How can you guarantee the quality in mass production?
Our original materials will be inspected strictly before mass production and our QC will follow up the quality accordingly in the
process of production. Before out of factory, we totally have more than 6 times strictly checking
Q7. Can i have a sample before order
Sure. Welcome sample order!
8.What frequency do you need?
Such as 315mhz,433.92mhz etc
9.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc. learning code: PT2240, EV1527 ,HS1527etc. fixed code:SC2260 , SC2262, PT2260, PT2262
etc Copy code/clone: face to face copy
