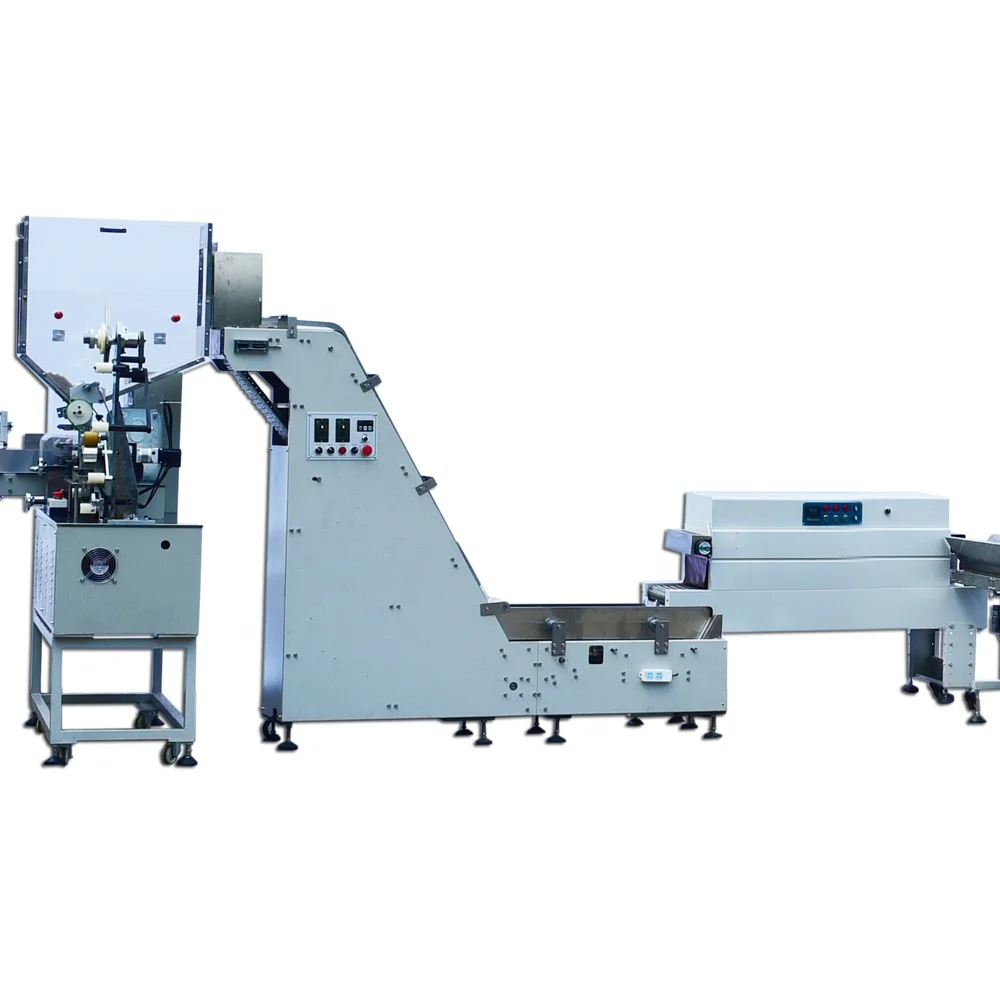

Plastic pla plastic drinking straw making machine extruding production line
- Category: Plastic Extruders >>>
- Supplier: Wenzhou Anbo Machinery Co. Ltd.
Share on (1600456586342):
Product Overview
Description
Product Description

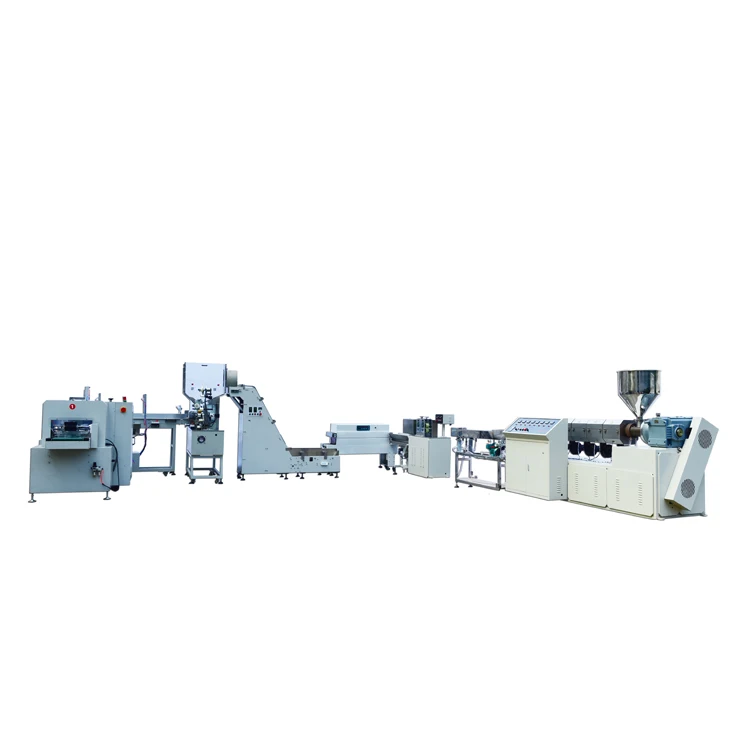

Drinking straw production line include 4 parts:

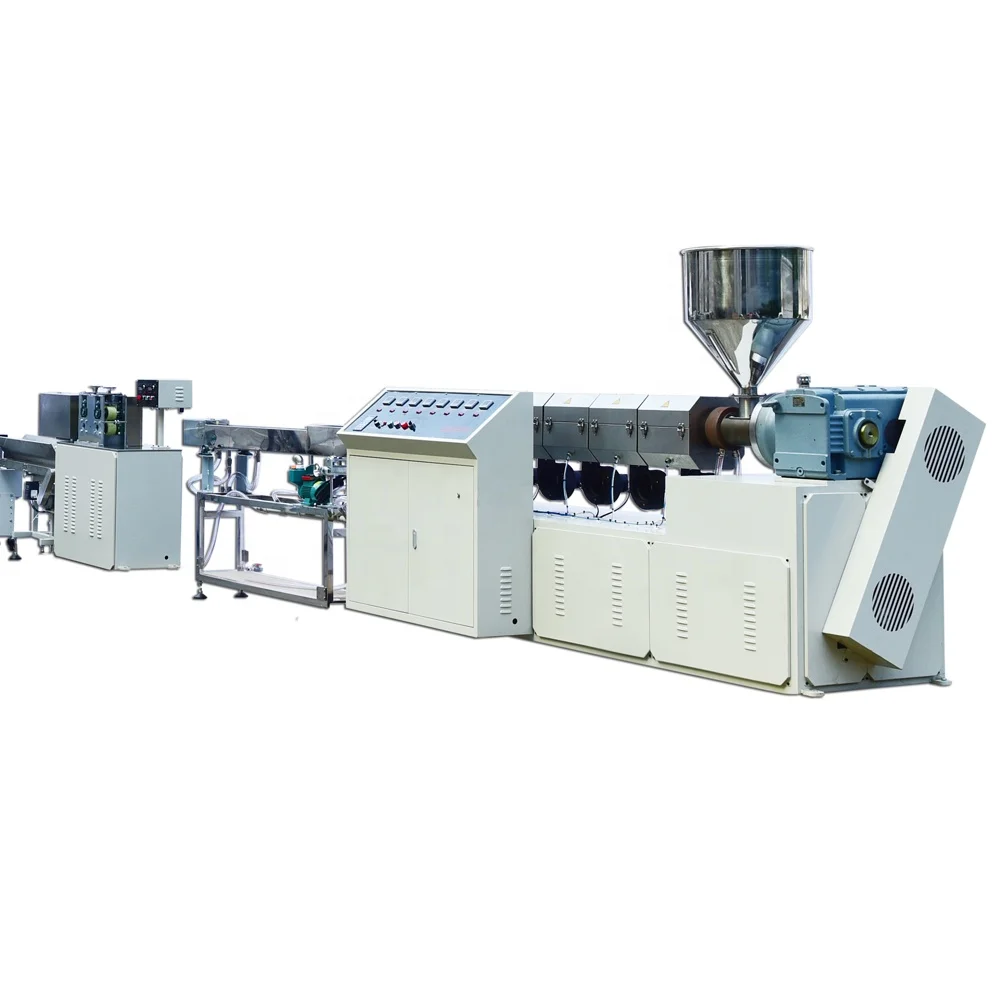

1.Drinking Straw Extruder
2.Automatic dryer
3.Automatic Elevator
4.Straw packing machine-online
Specification-Drinking Straw Extruder:
Model | AB-65J | ||
Power supply | Main Screw motor | 380V,3 Phase,50Hz,22Kw,frequency inverter | |
Heater | 15Kw(8Set,2sets for mold,Others 6 sets) | ||
Main motor | 380V,3 Phase,0.75Kw, speed adjust by frequency inverter | ||
Cutter motor | 380V,3 Phase,0.75Kw,Speed adjust by frequency inverter | ||
Cooling | Cooling fan motor 6 sets Water cooling 1 set | ||
Total Power | 40Kw | ||
Temperature controller | 8Sets | ||
Straw specification | Straw material | PLA, PBS, PP, etc. | |
Diameter | Φ2—Φ13mm | ||
Length tolerance | 0.1-1mm | ||
Working Speed | 600~1000pcs/min | ||
Color | 1 | ||
Cut angle | 90°/60°/45° | ||
Machine dimension | 9m*1m*1.3m | ||
Machine weight | 1.5 Ton | ||
Specification-Automatic dryer:
Power supply | 380v 50-60Hz |
Power | 9KW |
Dryer dimension (LxWxH) | 1000x400x200mm |
Max. product dimension(WXH) | 350x150mm |
Working speed | 0-15m/min |
Product weight | Max. 20kg |
Machine dimension (LxWxH) | 1200x560x660mm |
Machine weight | 60kg |
Specification-Automatic Elevator:
Power supply | 220v 50-60HZ |
Power | 1.2KW |
Straw length | 140-280mm |
Straw diameter | 6-12mm |
Working speed | Max. 1000Pcs/min |
Machine dimension(LxWxH) | 2300x580x1800mm |
Machine weight | 220kg |

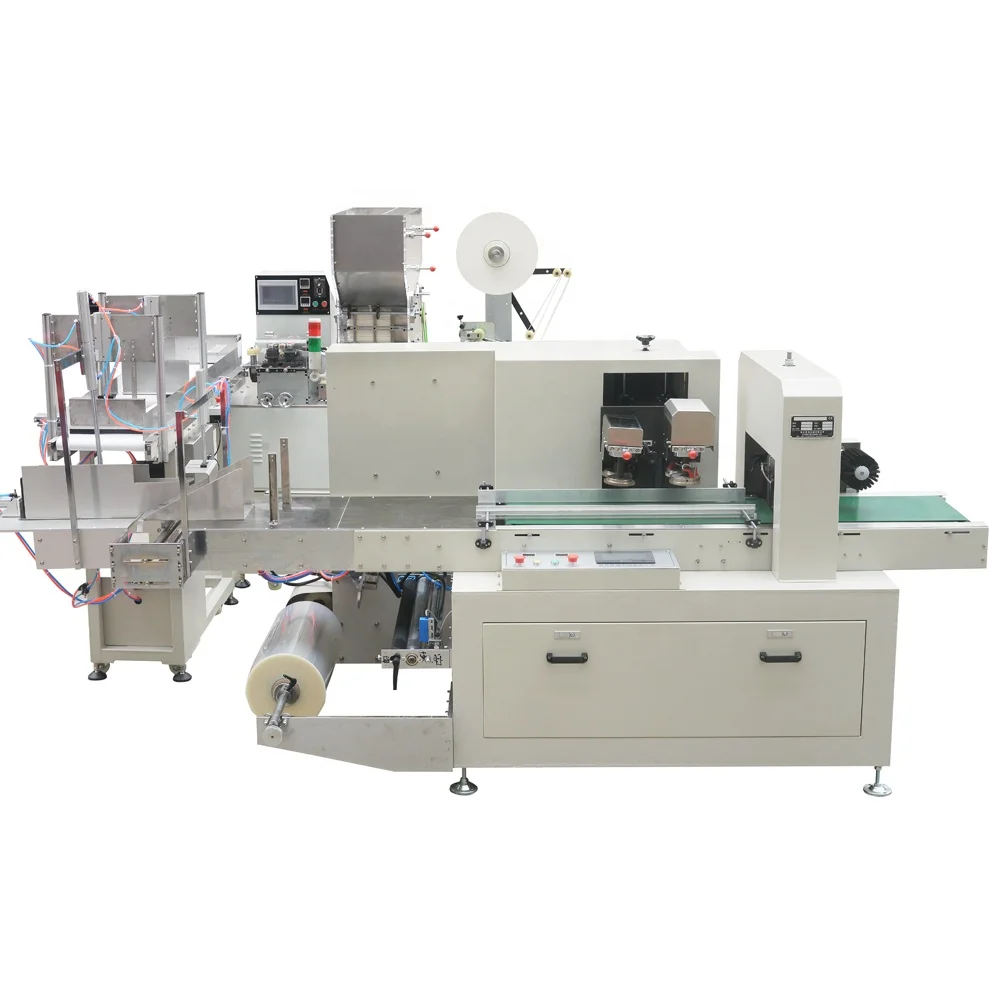

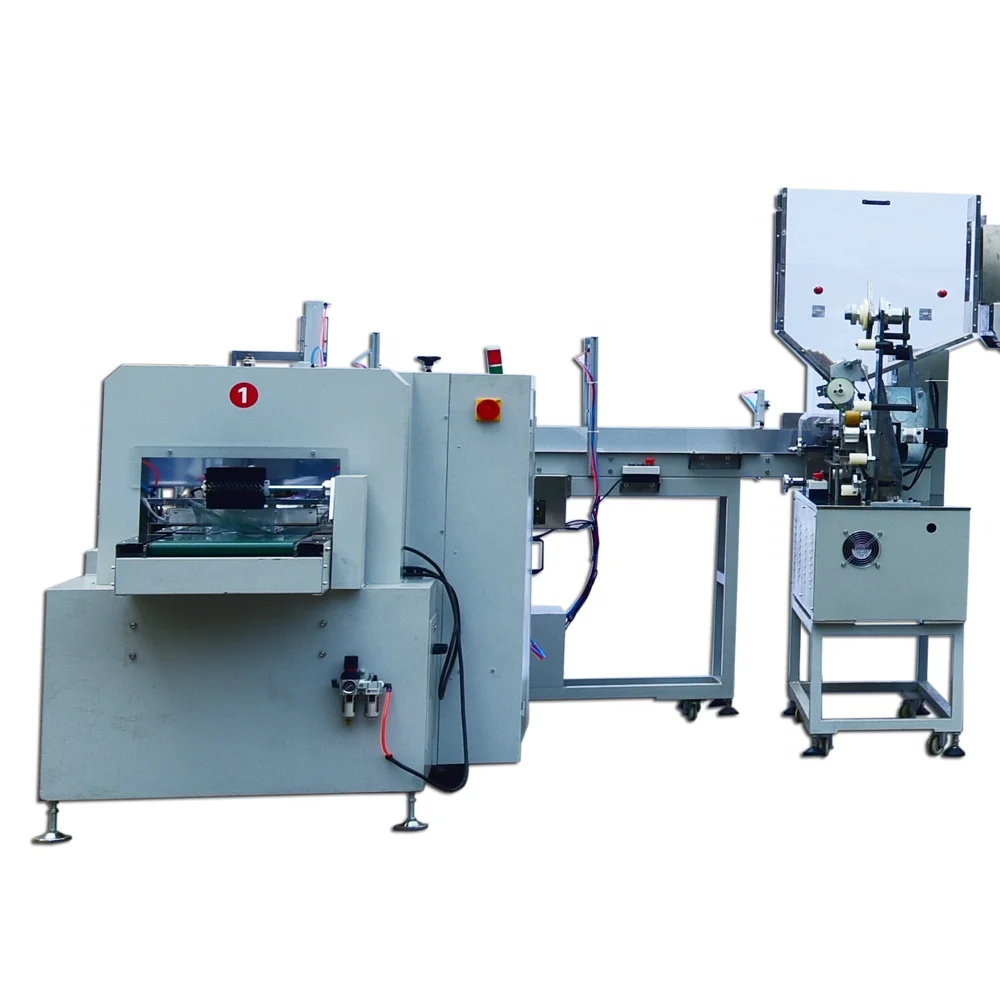

Specification-Straw packing machine-online:
Model | AB-031QS(single pack) | |
Drive motor | 3kw | |
Speed | 200~600pcs/minute | |
Seal | Back side sealing | |
Material | BOPP or paper material | |
Straw size |
Diameter | Φ4~Φ12mm |
Length | 150~280mm | |
Other size made by order | ||
Machine size and weight | 1500 × 800×1300mm 300kg | |
| Model | AB-850XGLJ (Bulk pack) |
| Max. film width | 850mm |
| Packing Speed(Adjustable) | 3-10 bag/min |
| Film thickness | 0.03-0.06mm |
| Bag Length | 90–600mm |
| Bag Width | 80–250mm |
| Straw quantity | 50-200pcs |
| Power Supply | 220V , 50/60 Hz , 4 KW, 1 Phase |
| Machine Size (L x W x H) | 2600 × 1500 x 1550 mm 2000 x 800 x 1000mm |
| Machine Weight | 750 Kg |
Packaging & Shipping

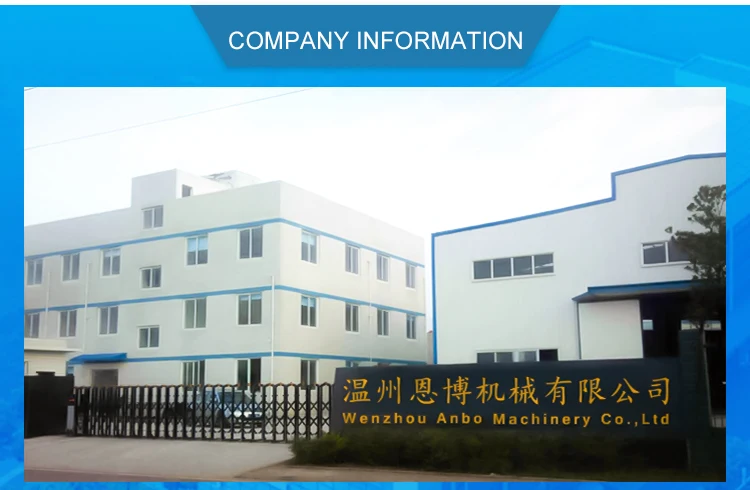

Company Information
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line, could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.

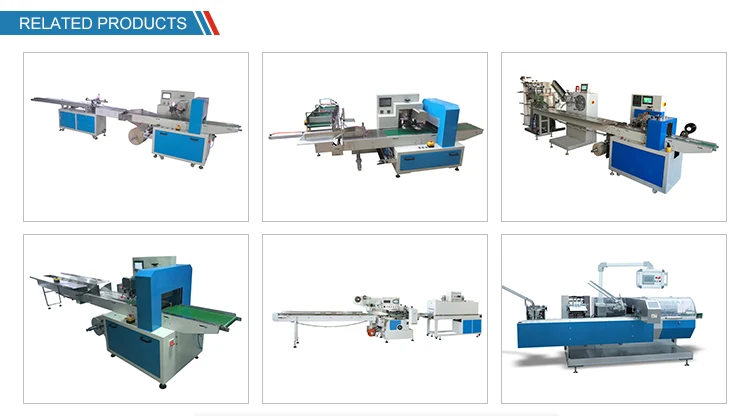

Related Product
