Water Treatment SS304 Stainless Steel Cartridge Filter Housing 5*10 20 30 40 Inch
- Category: Water Treatment Machinery >>>
- Supplier: Fujian Huamo Technology Co. Ltd.
Share on (1600457581339):
Product Overview
Description
Product Overview

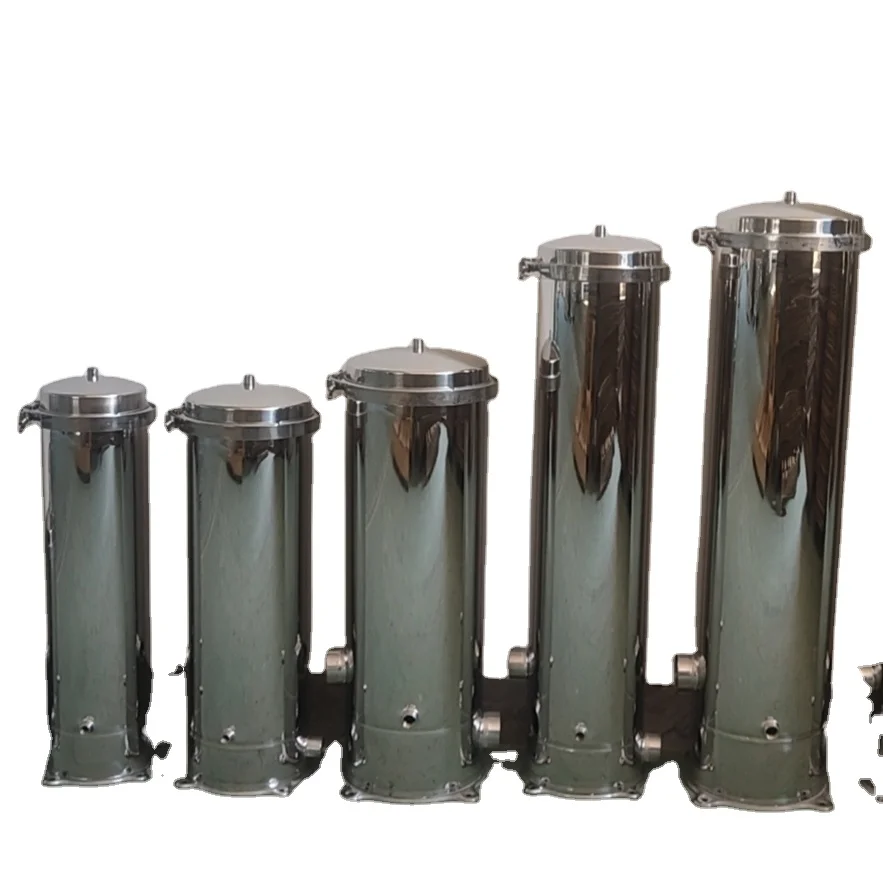

MG2-Cartridge Filter Housing
SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for
filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of
lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to
wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage,
chemical, and water treatment etc.
filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of
lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to
wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage,
chemical, and water treatment etc.
FEATURES AT A GLANCE
Material: SUS304L, SUS316L
Cartridge Capacity: 3element, 5element.. 160element
Connection Available: Flange, female thread
Cartridge Configuration Accepted: 222/Fin, DOE
Cartridge Capacity: 3element, 5element.. 160element
Connection Available: Flange, female thread
Cartridge Configuration Accepted: 222/Fin, DOE
PRODUCT SPECIFICATIONS
Model | A（mm) | B（mm) | D（mm) | E（mm） | F（mm） | In/Out | Drain |
MG2-W3L1 | 180 | 75 | ∮170 | ∮216 | 230 | 1“ -1 1/2" | 1/4“ -1/2“ |
MG2-W3L2 | 180 | 75 | ∮170 | ∮216 | 230 | 1“ -1 1/2" | 1/4“ -1/2“ |
MG2-W3L3 | 180 | 75 | ∮170 | ∮216 | 230 | 1“ -2" | 1/4“ -1/2“ |
MG2-W3L4 | 180 | 75 | ∮170 | ∮216 | 230 | 1“ -2" | 1/4“ -1/2“ |
MG2-W5L1 | 180 | 75 | ∮200 | ∮248 | 260 | 1“ -1 1/2" | 1/4“ -1/2“ |
MG2-W5L2 | 180 | 75 | ∮200 | ∮248 | 260 | 1“ -1 1/2" | 1/4“ -1/2“ |
MG2-W5L3 | 180 | 75 | ∮200 | ∮248 | 260 | 1“ -2" | 1/4“ -1/2“ |
MG2-W5L4 | 220 | 120 | ∮200 | ∮248 | 260 | 1“ -2" | 1/4“ -1/2“ |
MG2-W7L1 | 220 | 120 | ∮250 | ∮310 | 310 | 1 1/2“ -2" | 1/2“ |
MG2-W7L2 | 220 | 120 | ∮250 | ∮310 | 310 | 1 1/2“ -2" | 1/2“ |
MG2-W7L3 | 220 | 120 | ∮250 | ∮310 | 310 | 1 1/2“ -2 1/2" | 1/2“ |
MG2-W7L4 | 220 | 120 | ∮250 | ∮310 | 310 | 1 1/2“ -2 1/2" | 1/2“ |
Company Profile
Founded 2007 in Shanghai, HUAMO group has been focused on R&D, manufacturing and marketing of Reverse Osmosis Membrane, Ultrafiltration Membrane, MBR Filtration Systems and Ion Exchange Resin. Thanks to its cooperation with US high-tech companies, Huamo has developed and launched its ultra-low pressure series and brackish water series RO membranes, which have been tested by market and popular both at home and abroad over past few years. Nowadays, Huamo has become one of the leading manufacturers of RO/UF membranes in China, with production facility of 7500 m2 and annual output of 500,000 pieces of membrane per year. Our company is seeking to build up and enhance its sales network in the international market, welcome to contact us if you're interested in cooperation with HUAMO!
FAQ
Q: Who are we?
A: We are based in Fujian, China, start from 2021, sell to Southeast Asia(60.00%), Mid East(15.00%), South America(10.00%), South Asia(10.00%), North America(5.00%). There are total about 501-1000 people in our office.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q: What can you buy from us?
A: Ro Membrane, UF Membrane, FRP Membrane Housing, SS Membrane Housing, Ion Exchange Resin.
Q: Why should you buy from us not from other suppliers?
A: Focus on water treatment products such as ro membranes, UF membrane, Membrane housing and Ion Exchange Resin etc since year 2007. We are sure HUAMO will be your best partner for water treatment solution, no matter the quality or the price.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DAF；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Language Spoken:English, Chinese.
A: We are based in Fujian, China, start from 2021, sell to Southeast Asia(60.00%), Mid East(15.00%), South America(10.00%), South Asia(10.00%), North America(5.00%). There are total about 501-1000 people in our office.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q: What can you buy from us?
A: Ro Membrane, UF Membrane, FRP Membrane Housing, SS Membrane Housing, Ion Exchange Resin.
Q: Why should you buy from us not from other suppliers?
A: Focus on water treatment products such as ro membranes, UF membrane, Membrane housing and Ion Exchange Resin etc since year 2007. We are sure HUAMO will be your best partner for water treatment solution, no matter the quality or the price.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DAF；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Language Spoken:English, Chinese.
