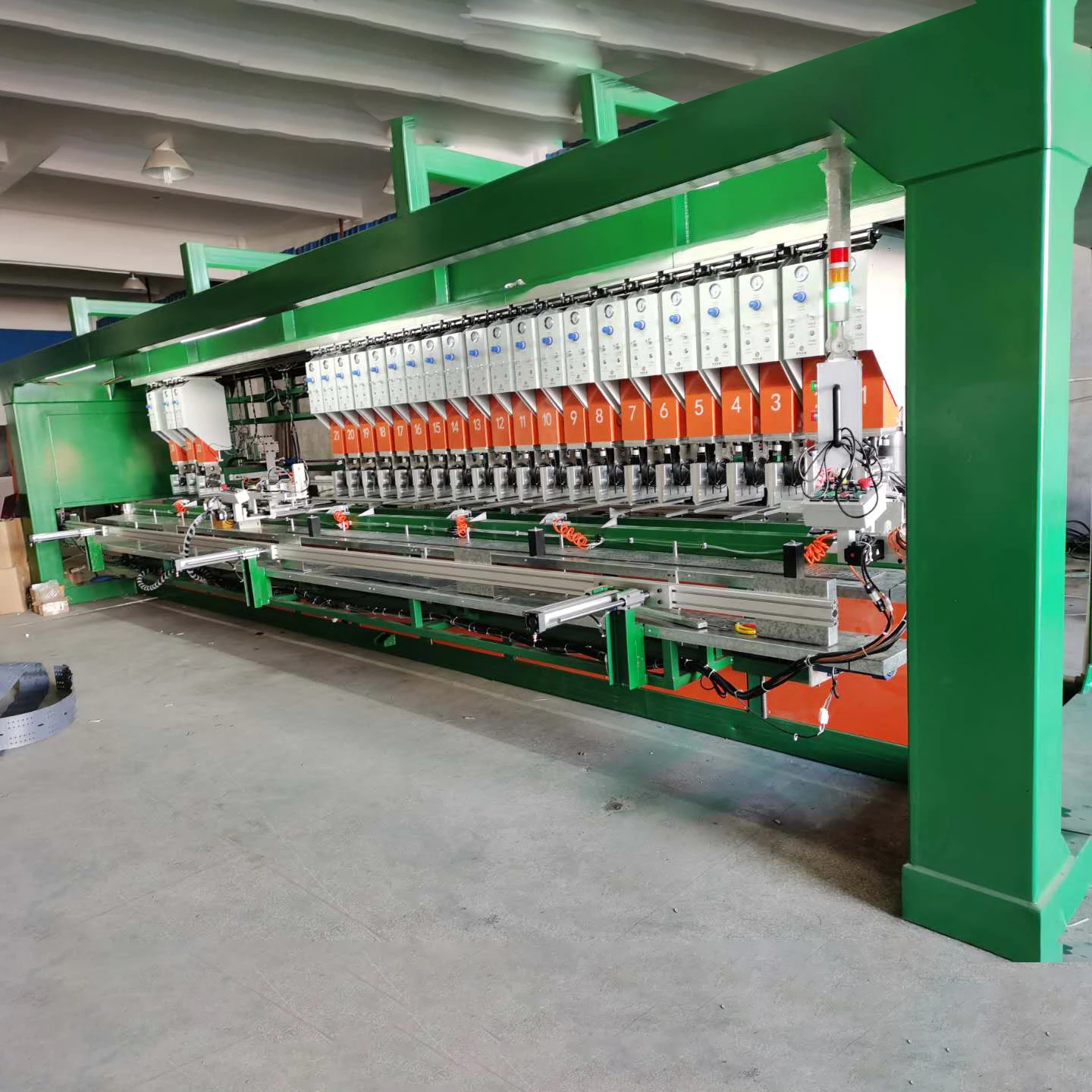

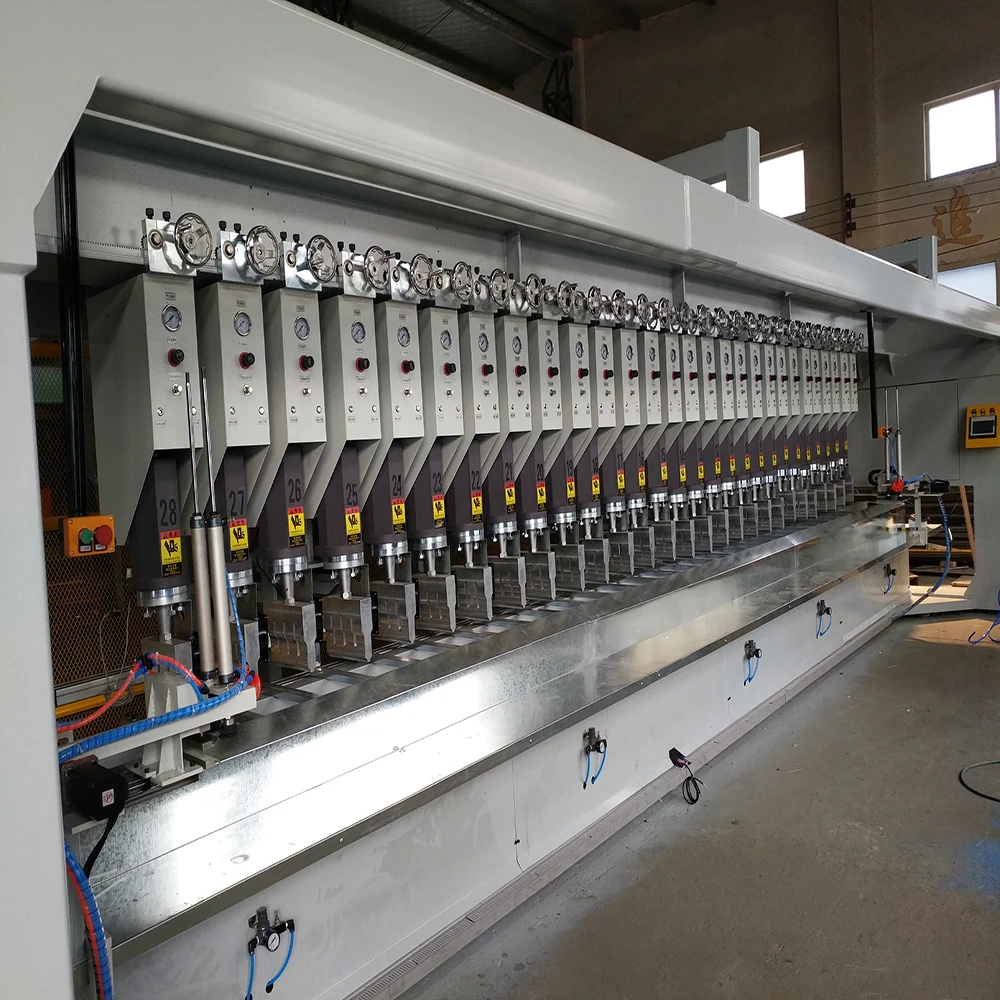

Высокомощный Ультразвуковой Сварочный преобразователь с титановым усилителем для сварочного аппарата Geocell
- Category: Sensors >>>
- Supplier: Shanghai Ruimin Machinery Manufacturing Co. Ltd.
Share on (1600457610482):
Product Overview
Description
Production Introduction :
Max output power :2.6-57.2KW±5%
power for single automatic frequency control ultrasonic generator 3200W
machine frame size : 8.2*2.2*2.4m
machine weight: 7.25T
Rated input power supply: AC380V±5% 50-60HZ±1HZ
Rated input pressure: 0.8~1.0MPa
air pressure vessel :≥0.6~1.0m³
Air pressure flow: 2.5~3.0m³
height for welding geocell: 50mm-200mm
width for welding geocell: 1000mm-4500mm
welding distance :300-500mm
welding material: PP,PE,PVC
max daily production 24 hours : 2000-4000
The capacity per minute calculated in 200mm sheets :8-13seconds per piece
Left and right automatic feeding motor power 60mm-0.6kw-4nm
Solder joint moving servo motor power 130mm-1.5kw-15nm
Solder joint moving servo reducer 1:10
Operating power of upper and lower bottom molds 80mm-0.75kw-4nm
The upper and lower bottom molds run the servo reducer 1:4
Welding tank lift servo motor power 80mm-0.75kw-6nm
Stacking platform motor AC380V 550w
Inverter AC380V 550w Low voltage electrical appliances Schneider
Programmable Controllers :FX3U Mitsubishi

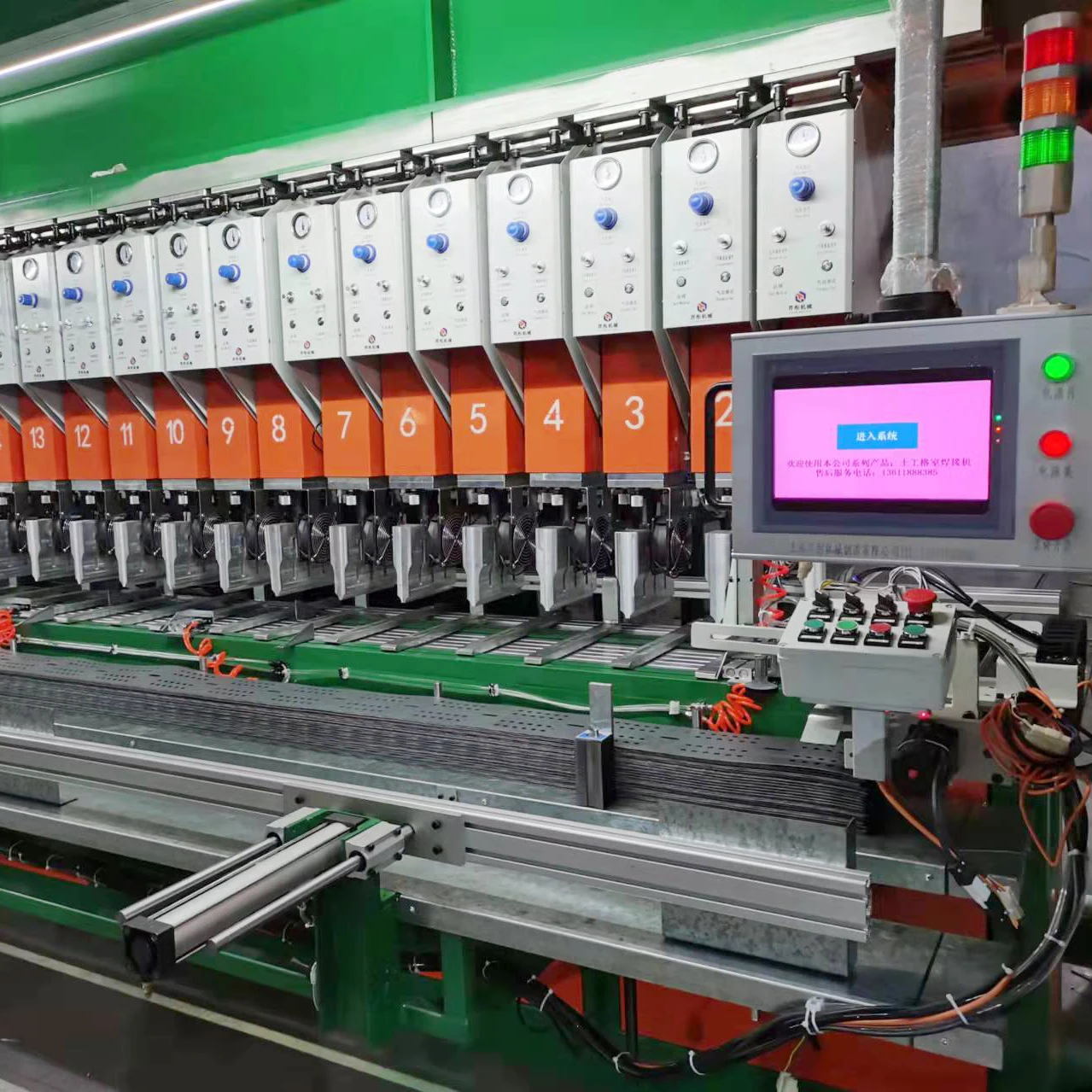

HMI touch screen: 10inch
The whole machine is equipped with remote assistance control Wifi -1set
Torch size adjustment method Between :300-500mm
The whole machine slider Taiwan Shangyin 20mm 25mm 45mm
Machine welding cylinder :63x75mm
Taiwan Shangyin complete machine drive screw 20mm 25mm 40mm
Bearing parts of the whole machine Havalo
welding heads material: titan
transducer ceramic sheet: Taiwan Risheng
models of transducer :15Khz
The welding torch adjustment method of the whole machine Each station has a scale above
the quick handle for corresponding adjustment
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.
Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
we often use it on ultrsonic welding machine . geocell and georid welding machine .
