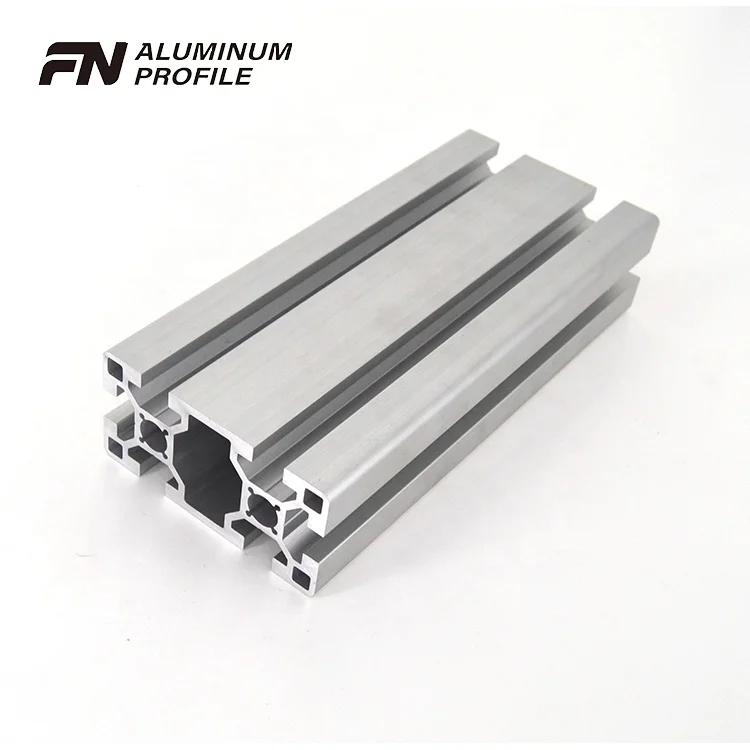

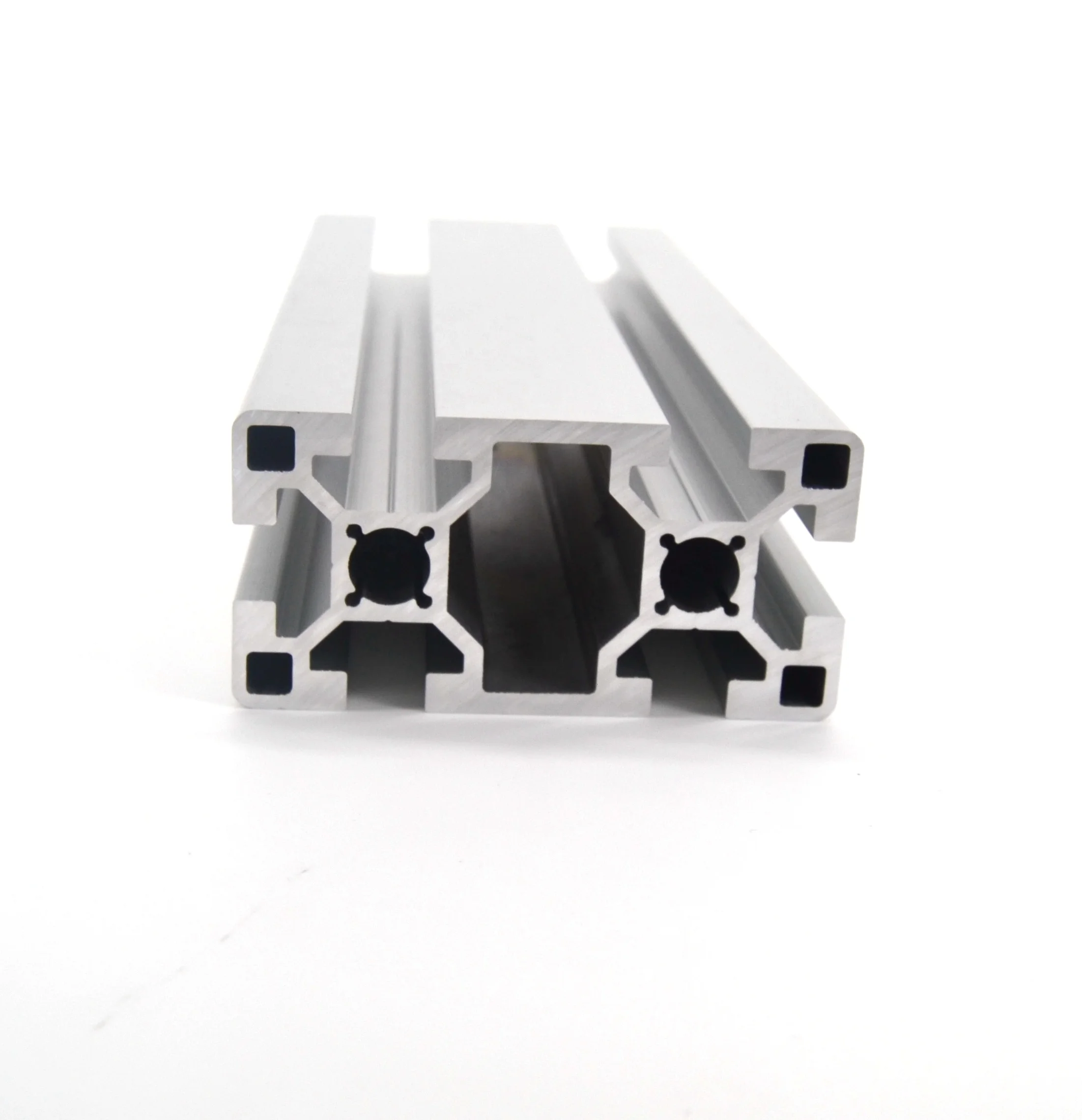

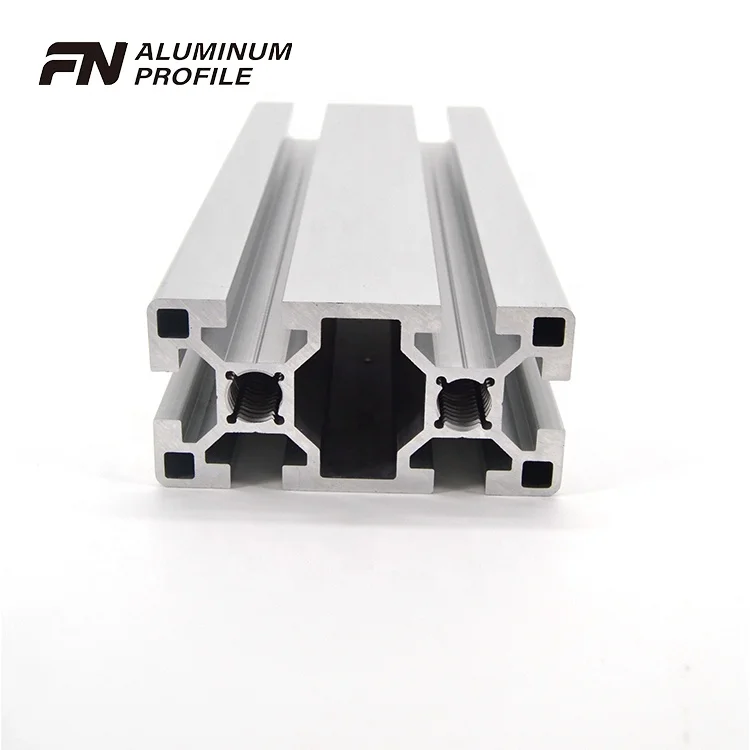

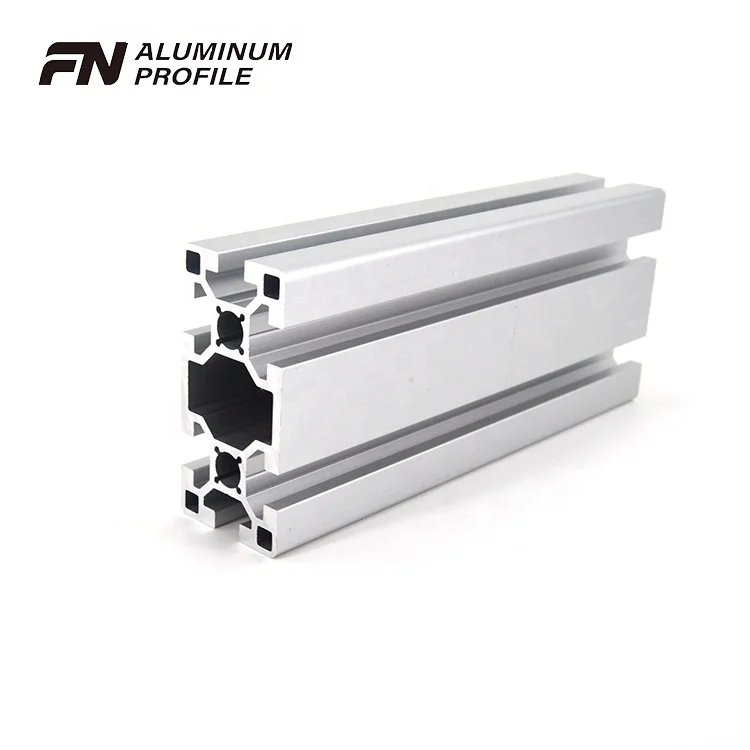

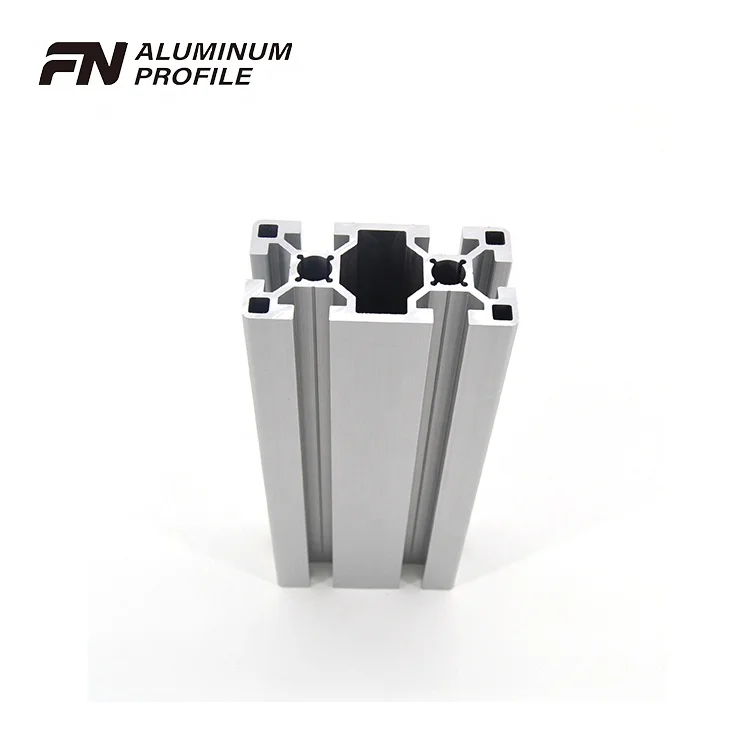

FINE METAL 6000 Series 4080 t slot anodize aluminium Industrial extrusion profile

Product Overview

Description

Feature of T-slot profile

1 . load-bearing structure, aluminum alloy material. Strong but light.

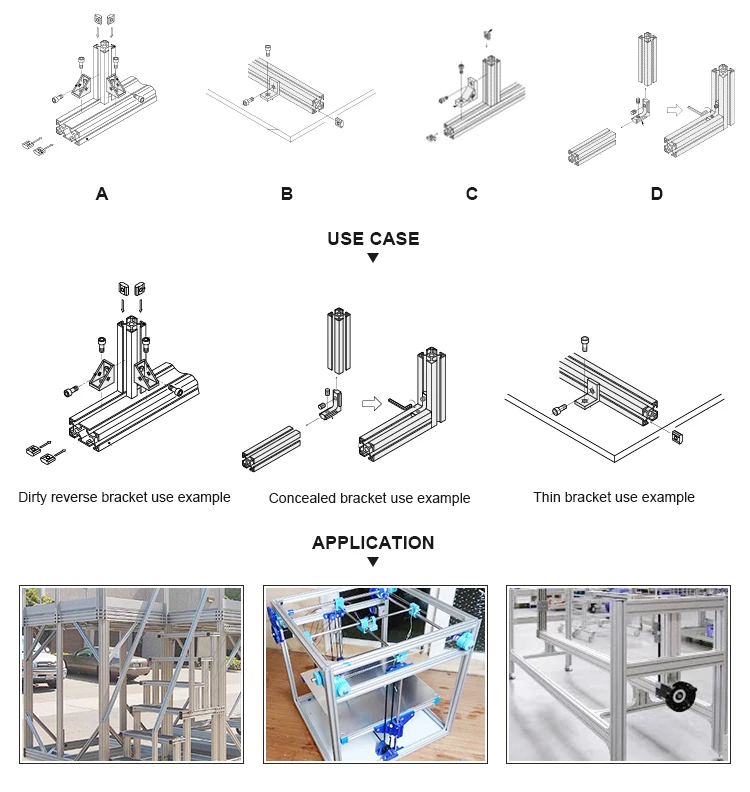

2 . T-Slot profile provide connection function.Each profile can be assemble by certain assessories anytime anywhere.Do not need to make fabrication in advance.
3 . Modular design, easy to assemble and disassemble to adapt to different requirements.
4 . Wide range of applications.Such as:Struct profile,production line,tooling trolley,angle profile,conduit profiles

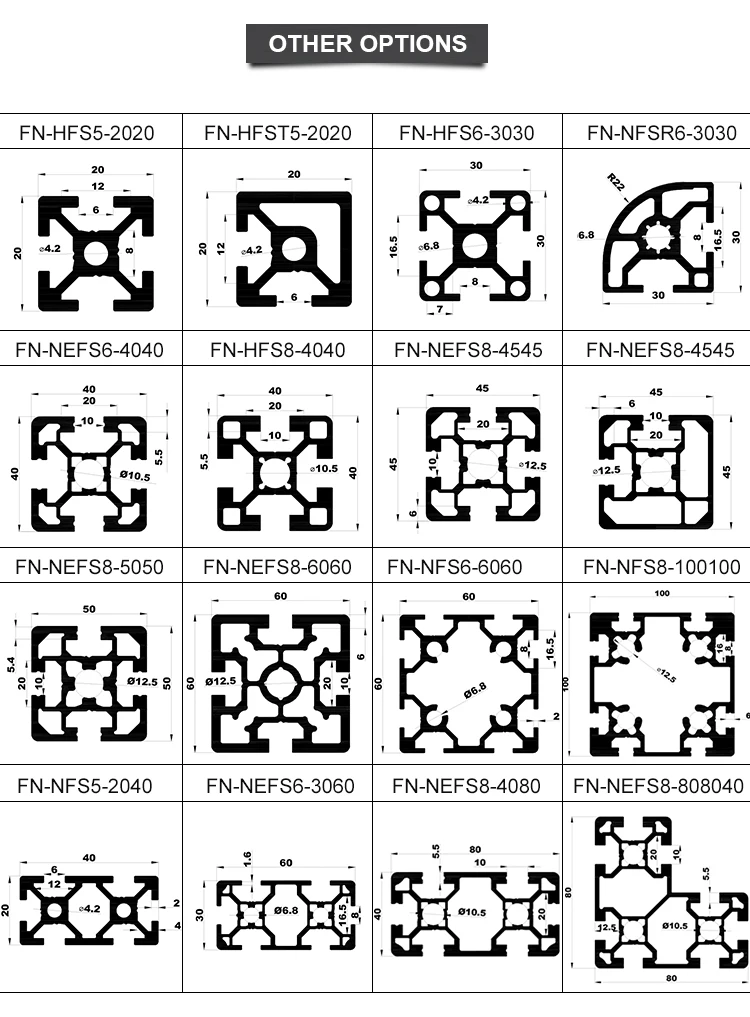

5 Series t-solt aluminum profile
Item	Mass (KG/M)	Sectional Area (mm2)	Moment of  Inertia   lx(cm4)	Moment of  Inertia   ly(cm4)
FN-NFS5-2020	0.5	183	0.742	0.742
FN-NFSB5-2040	0.88	324	1.368	5.128
FN-NFS5-4040	1.28	472	8.89	8.89
FN-NFSF5-2020	0.53	195	0.834	0.746
FN-NFSF5-2040	0.93	344	1.52	5.4
FN-NFSF5-4040	1.41	522	9.78	9.32
FN-NFST5-2020	0.53	196	0.808	0.808
FN-NFSR5-2020	0.42	153	0.57	0.57
FN-HFS5-2020	0.5	183	0.742	0.742
FN-HFSB5-2040	0.88	324	1.368	5.128
FN-HFS5-4040	1.28	472	8.89	8.89
FN-HFSF5-2020	0.53	195	0.834	0.746
FN-HFST5-2020	0.53	198	0.808	0.808





1 . Over 100 Existing mould and have stock product.We have over 100 mold and we have stock for long time.Customer can save R&D cost on mold.And also can get the cargo in short time.

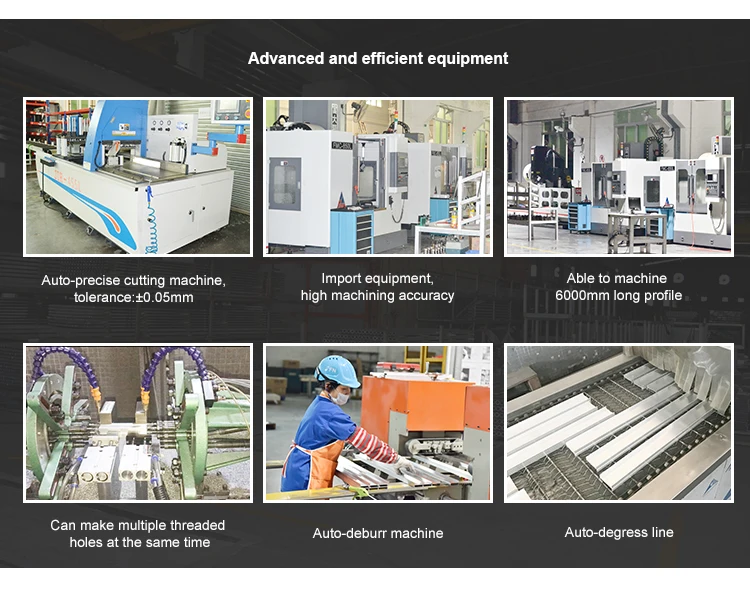

2 . We can provide machinery processing services.Such as:precise cutting(45degree/90degree),drilling,tapping,milling.Can meet a variety of custom machinery process requirement.
3 . We have professional Cross-section tapping machine. It can make multiple threaded holes at the same time, saving time and saving production cost.
