Product Overview
Description
As a professional plastic recycling washing line manufacturer, we already developed dozens of projects with customized configuration design and capacity up to 2000kg/h.
PRODUCT OVERVIEW

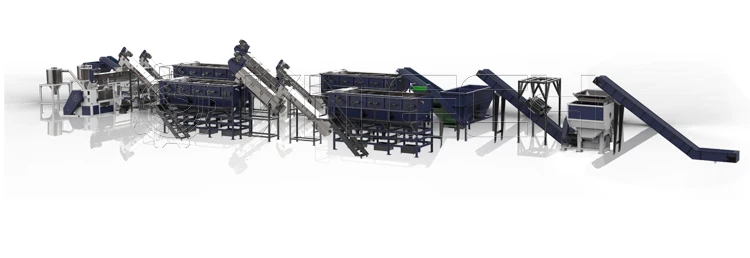

Plastic Soft Films Bags Recycling Machine

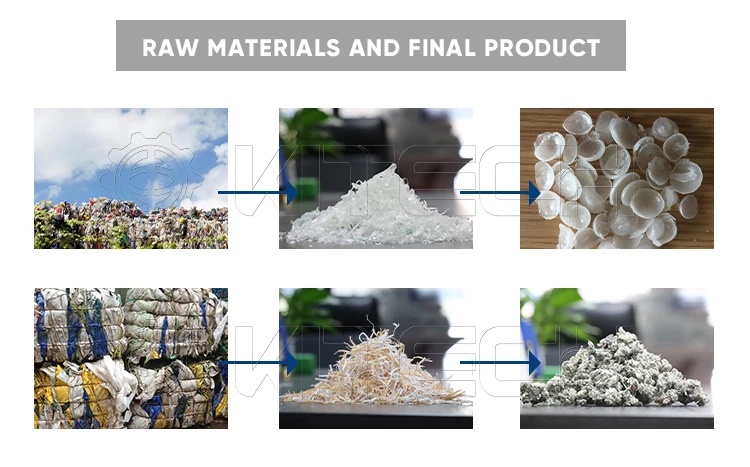

>>Soft Plastic (Film/woven bag/fiber/rope) Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently. Moreover, turn key solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.
>>You can get a different module combinations designed by KITECH according to your requirements and material's condition. In range of capacity 250-2000kg/h with both economy and high-level different configurations.
>>You can get a different module combinations designed by KITECH according to your requirements and material's condition. In range of capacity 250-2000kg/h with both economy and high-level different configurations.

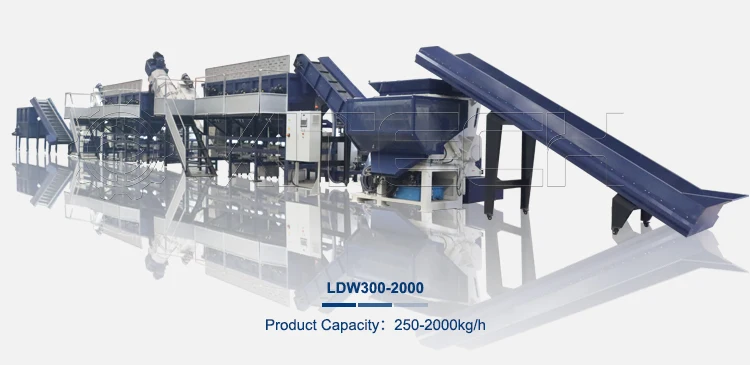

TECHNOLOGY DATA
Type | LDW300 | LDW500 | LDW1000 | LDW1500 | LDW2000 |
Capacity(kg/h) | 250-300 | 400-500 | 800-1000 | 1250-1500 | 1700-2000 |
Dimension:LxWxH(m) | 29x10x5 | 35x12x6 | 50x12x6 | 70x15x6 | 90x15x6 |
Steam consumption(kg/h) | 0-150 | 0-200 | 0-300 | 0-450 | 0-600 |
Chemical consumption(kg/h) | 0-2 | 0-4 | 0-8 | 0-10 | 0-12 |
Energy comsumption(kWh) | 120 | 180 | 280 | 395 | 490 |
Installation power(kWh) | 195 | 290 | 446 | 530 | 760 |
Man power(persons/shift) | 3 | 3 | 4 | 4 | 4 |
Delivery time(day) | 60-90 | 60-90 | 60-90 | 90-120 | 90-120 |
Warranty(month) | 12months | 12months | 12months | 12months | 12months |
Technical assistance | Engineer available to service machinery overseas | Engineer available to service machinery overseas | Engineer available to service machinery overseas | Engineer available to service machinery overseas | Engineer available to service machinery overseas |
GOOD QUALITY FROM DETAILS

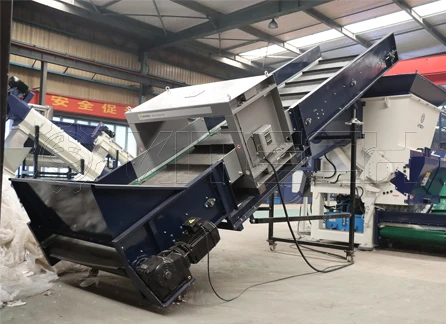

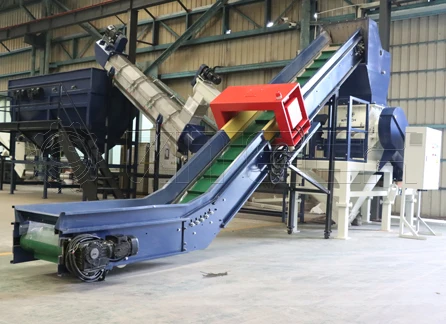

Belt conveyor
>>Heavy duty type, adopt gear motor;
>>Side walls to avoid spilling of feeding material;
>>Side walls to avoid spilling of feeding material;

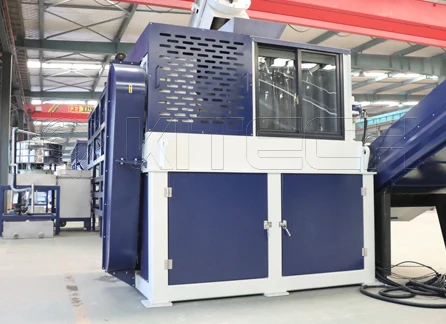

Crusher
>>Optimally designed blades are sharp and powerful;
>>Enclosed cutting chamber to prevent materials flying out;
>>Knives are externally adjustable;
>>Enclosed cutting chamber to prevent materials flying out;
>>Knives are externally adjustable;

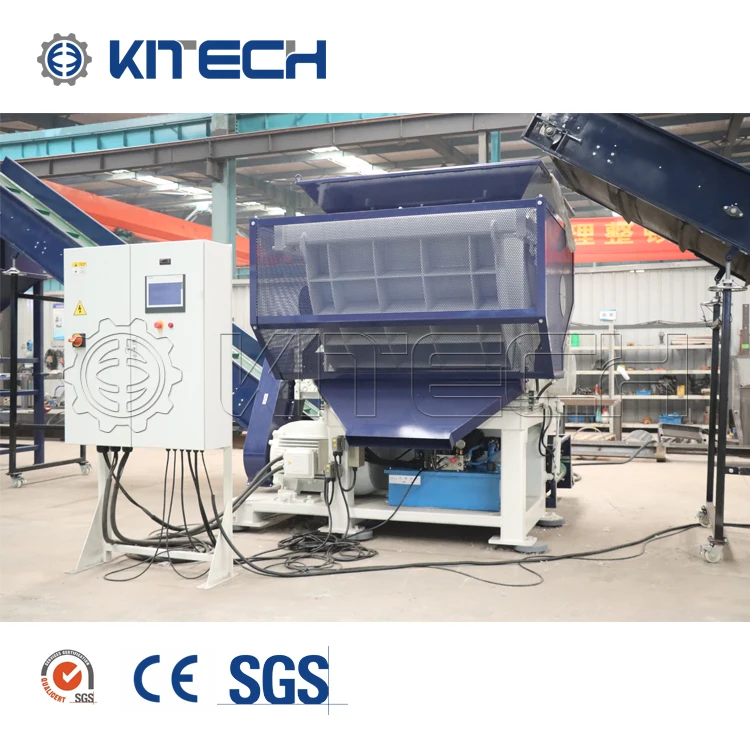

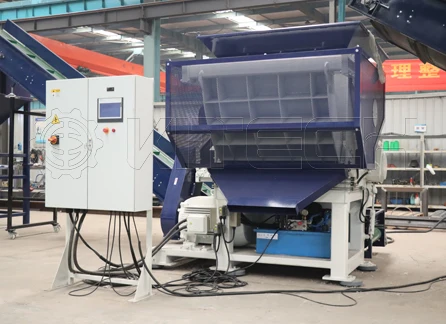

Shredder
>>Special designed hopper to avoid material flying out;
>>4-way rotating knives with special knife holders;
>>Extremely robust pedestal bearing housings;
>>External mounted of bearing pedestal designs;
>>4-way rotating knives with special knife holders;
>>Extremely robust pedestal bearing housings;
>>External mounted of bearing pedestal designs;

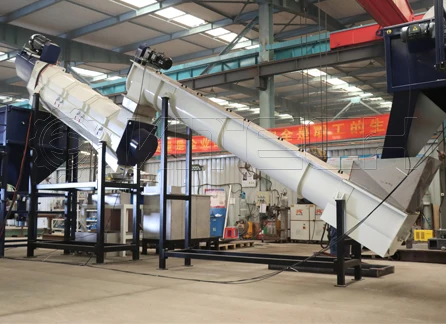

Screw Conveyor&Friction Washer
Screw Conveyor:
>>Screw adopt wear resistant stainless steel;>>Triple sealing, External bearing design;
Friction Washer:
>>Rotor and blades adopt wear resistant steel;
>>Rotor with dynamic balance treatment. >>Accuracy: ±3-5g;
>>Active material washing to protect downstream units;
>>Rotor with dynamic balance treatment. >>Accuracy: ±3-5g;
>>Active material washing to protect downstream units;

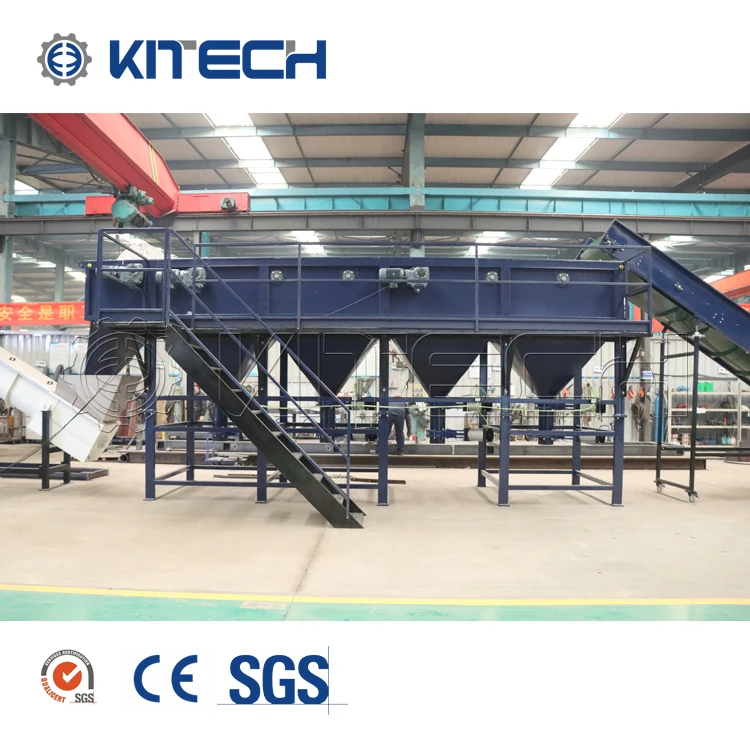

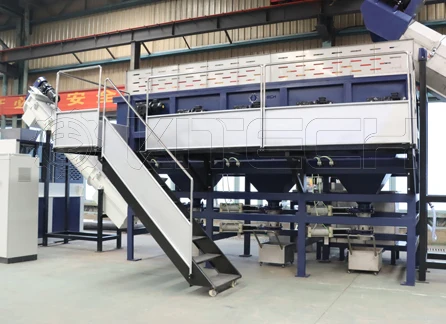

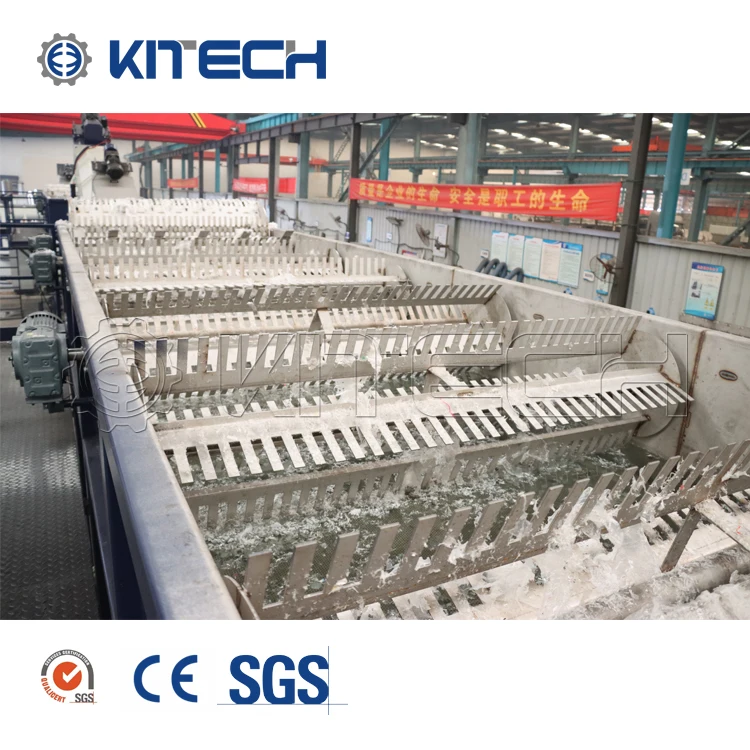

Washing Tank
>>Double station discharge valve at bottom;
>>All Thumb-wheel speed variable by inverter control;
>>Heavy duty washing, separation of different specific densities material;
>>All Thumb-wheel speed variable by inverter control;
>>Heavy duty washing, separation of different specific densities material;

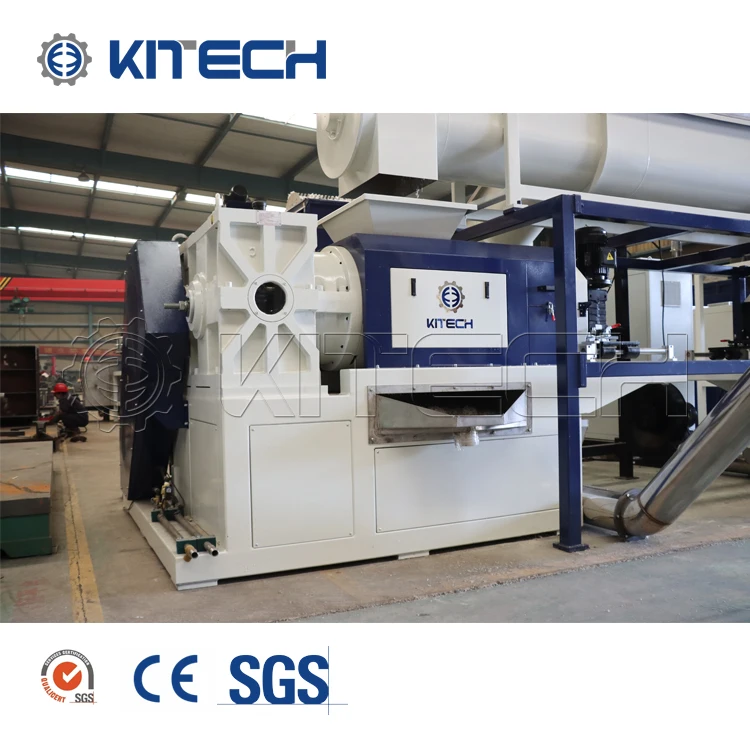

Squeezing Dryer
>>Heavy built shaft and balde;
>>Double hydraulic press units;
>>Motorized Screw Squeezing;
>>Double hydraulic press units;
>>Motorized Screw Squeezing;

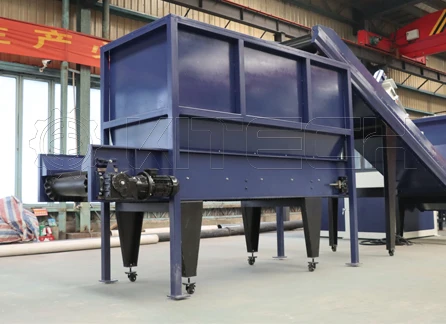

Storage Buffer
>>Direct connect with pelletizing process;
>>Large Storage capacity;
>>Large Storage capacity;

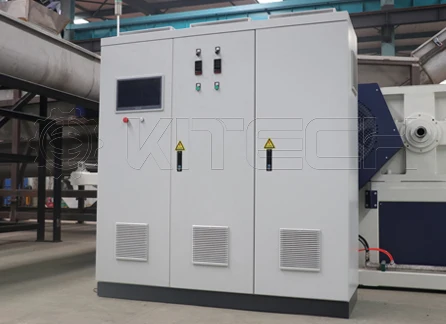

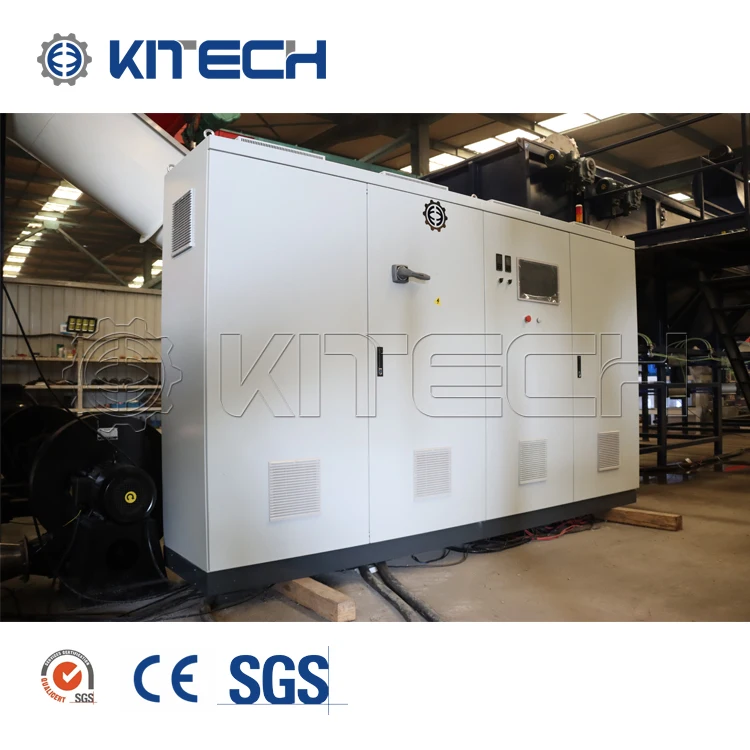

Electrical Cabinet
>>International brand Low voltage components ;
>>Double circuit safety relay;
>>Intelligent and modular PLC controlling system；
>>Double circuit safety relay;
>>Intelligent and modular PLC controlling system；

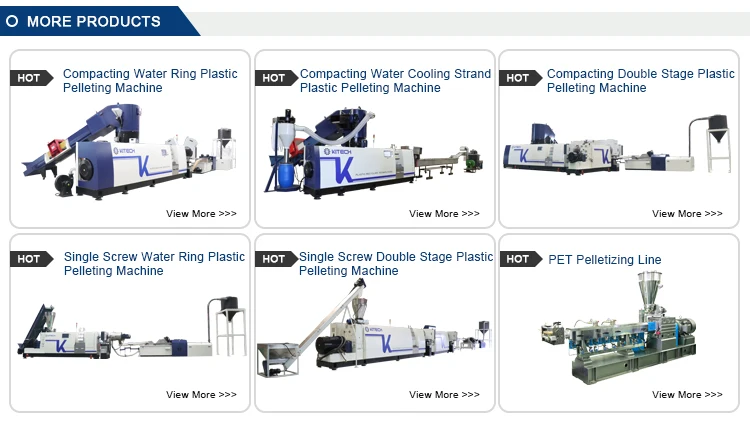

MORE PRODUCTS
We also supply PLASTIC PELLETIZING LINE or PLASTIC GRANULATOR to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.
CUSTOMER&PARTNER
KITECH Machine is a professional manufacturer of plastic recycling machinery in China.With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
We warmly welcome customers all over the world to visit our manufacture.
KITECH MACHINE SERVICE
KITECH Machine Service gives you fast and easy online access to your Installed Base to order your original spare parts and explore the Options & Upgrades relevant for your line. Designed to make your life easier in your day to day business,it will help you to improve your line and maintain its performance.
7/24 Online Service
1 - Machine running video
2 - Watch our factory online
3 - More service contact us
Successful Plastic Recycling Plant
1 - Supply a running plastic recycling line in your country , you can see machine running directly.
Installation / Debug / Training
1 - We will arrange seasoned technician for equipment installation, debug and test production.
2 - Our company offers technology training to the customer in his factory.
3 - We promise that our goods are all new and not used.
After-sales Service
1 - After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2 - If you could not solve the problems, we will arrange a technician to your factory solving the problems.
2 - If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3 - After quality guarantee, we offer technical support and after-sales service.
ABOUT KITECH MACHINE
We are confident about our product quality because of the Quality Assurance System backed by technical capabilities and production capacity.
We believe “all steps in production are quality control processes”.
FAQ
Q: What price terms you offer?
A: FOB, CIF, EXW ,LC and other price terms based on your kind request.
Q: Installation and stuff training available from you?
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
Q: How can we visit your company and machines?
A : Our factory is in No.7 Jiulong Industry Park,Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About one hour from Shanghai Pudong International Airport.
Q: Installation and stuff training available from you?
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
