High Quality Rail Surface Grinding Machine For Track Electric Rail Profile Grinder

Product Overview

Description

Introduction of High-Quality Rail Surface Grinding Machine For Track Electric Rail Profile Grinder

According to the line construction requirements, the GM-2.2 electric profiling rail grinding machine adopts a profiling device to profil the top surface of the rail after welding, the side, the fat side of the rail on the line, the top surface and the top surface of each rail. Polished. The machine has novel structure, convenient operation, high efficiency and stable performance, and can meet the grinding requirements of various rails. zmwm12

Parameter Of High-Quality Rail Surface Grinding Machine For Track Electric Rail Profile Grinder

Model	GM-2.2
Electric Motor Model	Y90L-2
Voltage	380V three-phase
Speed	2840r/min
Power	2.2kW
Grinding wheel: tightening bolt grinding wheel	150mm*72mm*55mm
Spindle rotation number	2840r/min
Roller span	1000mm
Machine weight:	70kg
Overall dimension:	1500x6300x760 mm

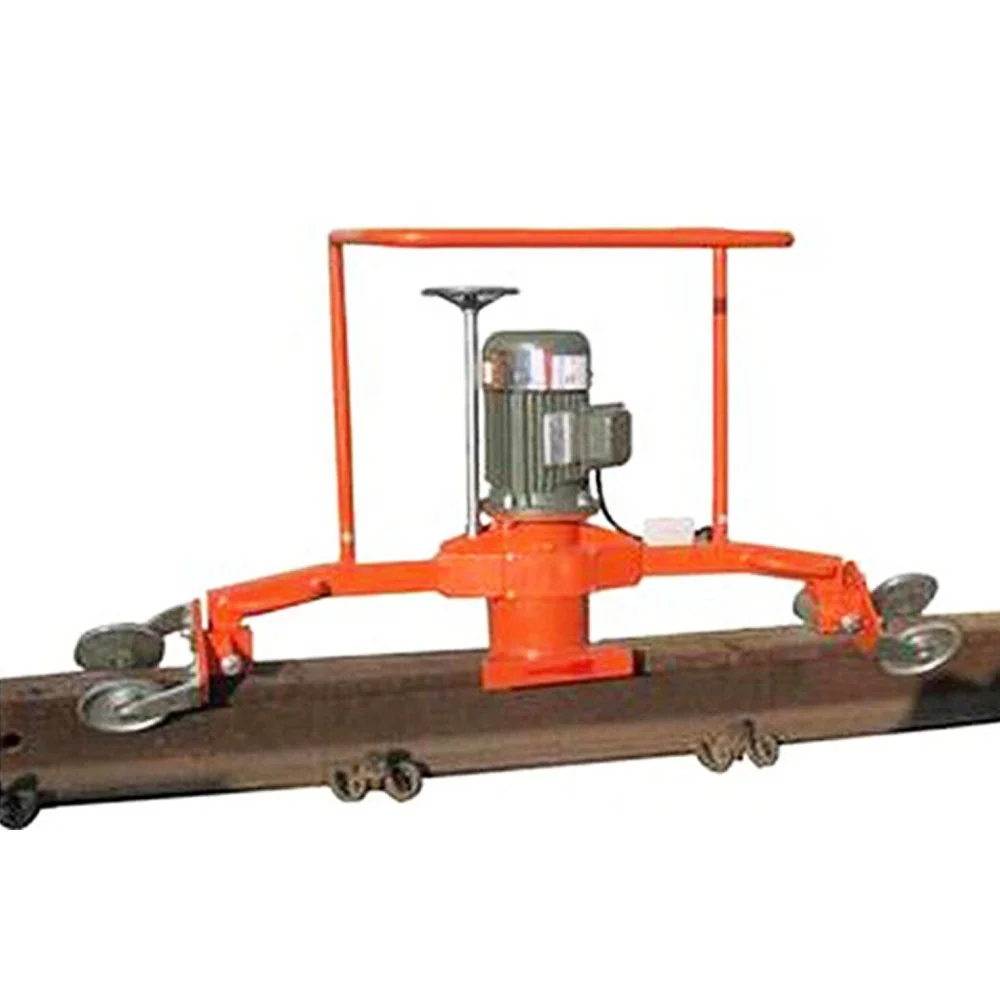

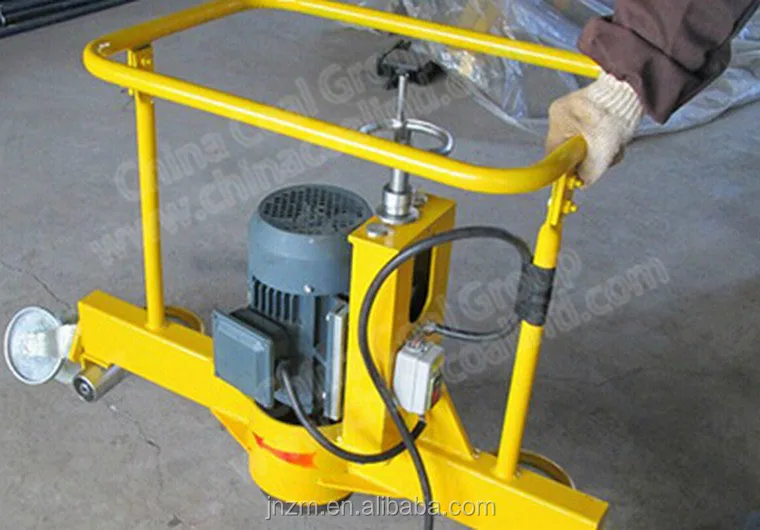

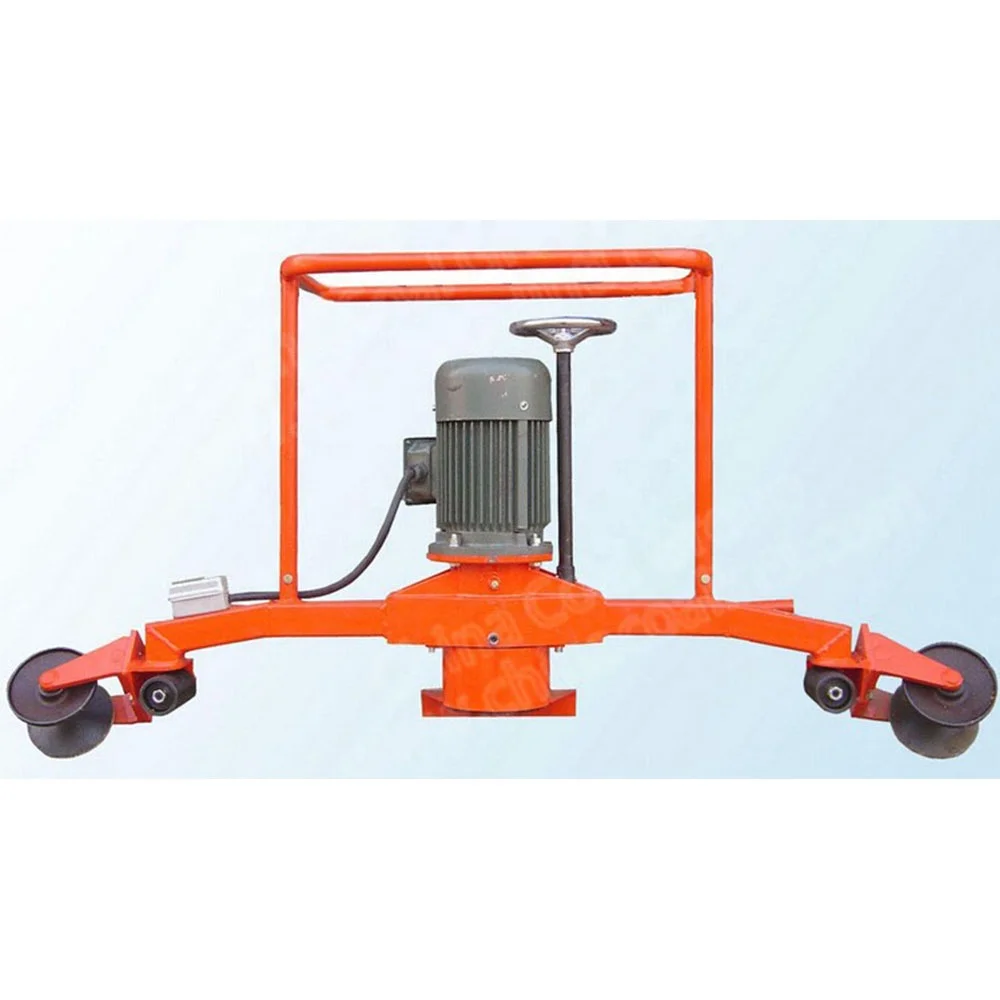

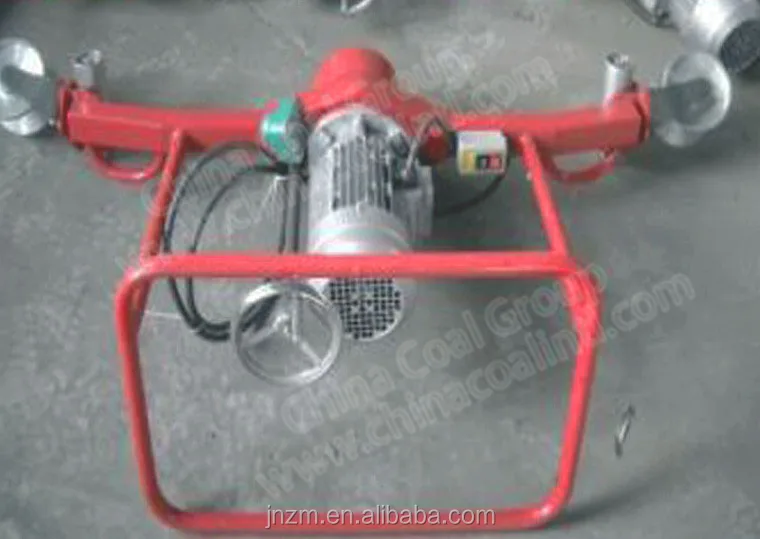

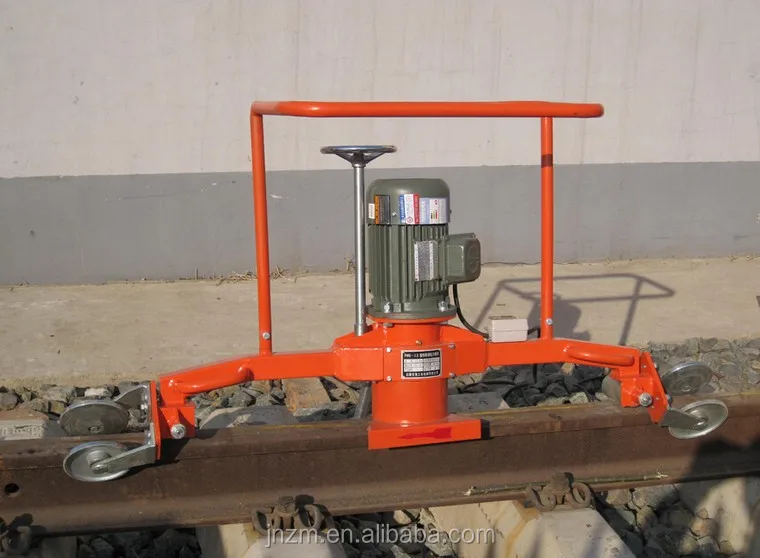

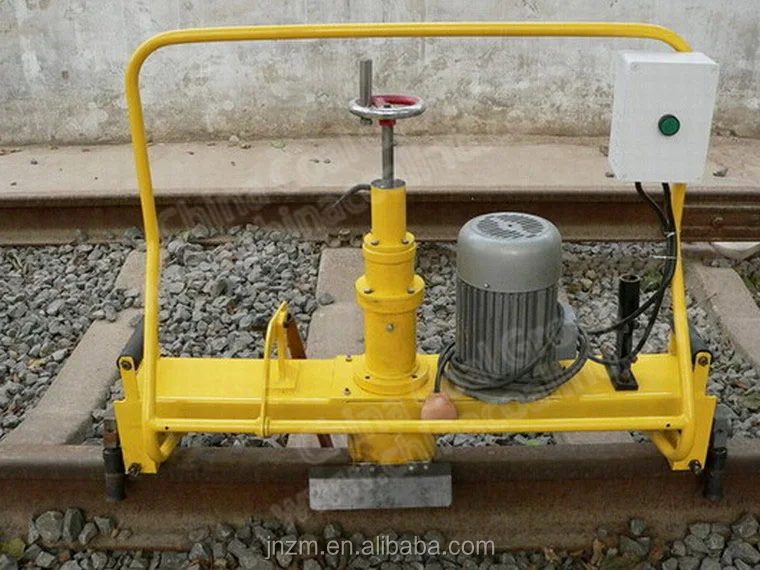

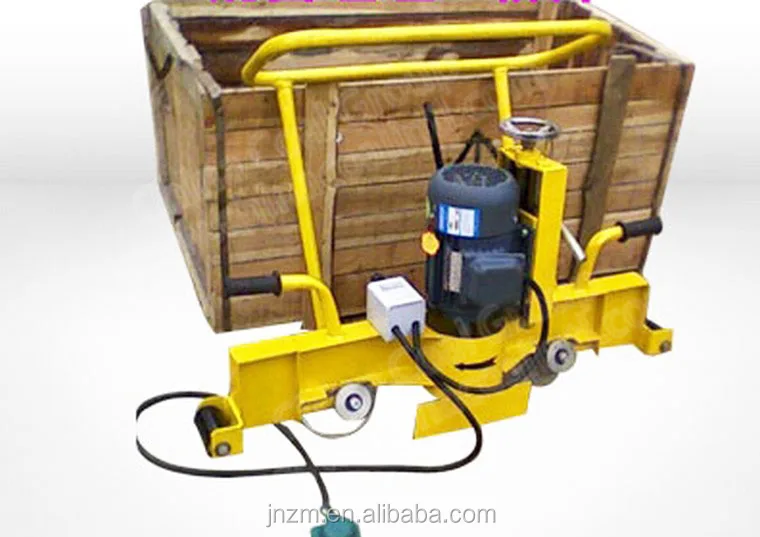

Photos Of High-Quality Rail Surface Grinding Machine For Track Electric Rail Profile Grinder
