Product Overview
Description
Product Overview

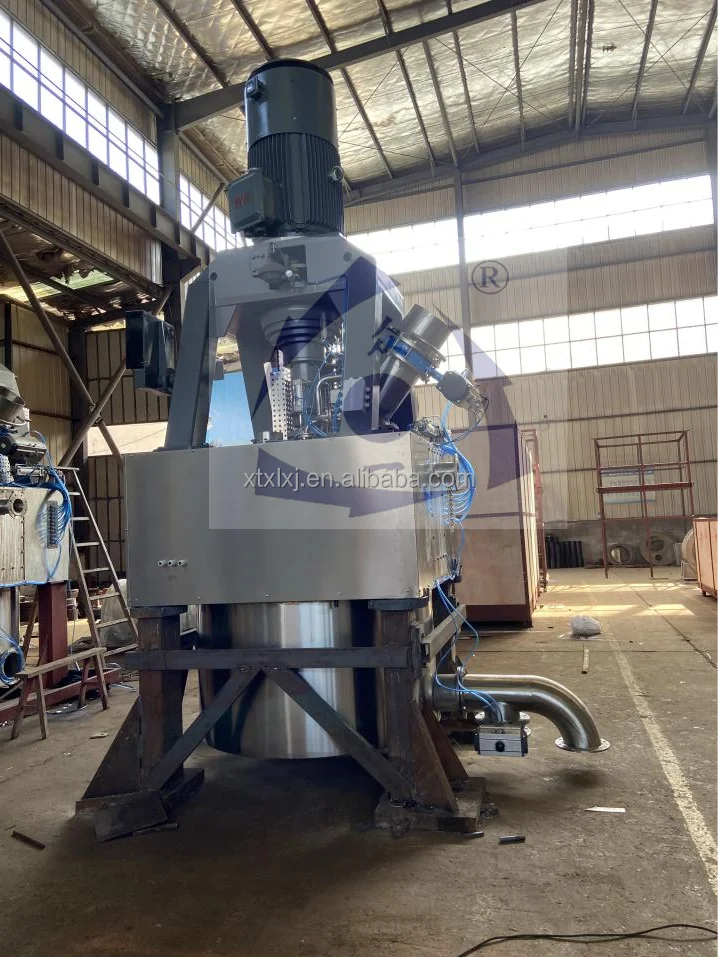

Sugar crystal centrifuge
Automatic Sugar Separation Centrifuge is a full-automatic equipment with top suspension mechanical scraper discharge.It separates sugar and molasses under the action of centrifugal force field, scrapes the sugar from the basket wall through the radial and axial movement of scraper, and completes the unloading process.The centrifuge equipment is equipped with water washing and steam washing devices,which can wash the materials fully and meet the needs of sugar making process.
This kind of centrifuge can also be used to separate materials with fine solid grains, high viscosity, good fluidity, compact texture and difficult to unload by gravity. Generally, the solid-liquid ratio (weight ratio) of suspension is 40 ~ 60%.such as used for separation of glucose, xylose (alcohol), maltose (alcohol), mannitol, fructose, monosodium glutamate.
This kind of centrifuge can also be used to separate materials with fine solid grains, high viscosity, good fluidity, compact texture and difficult to unload by gravity. Generally, the solid-liquid ratio (weight ratio) of suspension is 40 ~ 60%.such as used for separation of glucose, xylose (alcohol), maltose (alcohol), mannitol, fructose, monosodium glutamate.
FEATURES AT A GLANCE
Features
Compact designs
Compact designs
Automatic operation and easy to start
Step-less speed control with stable working
Low moisture after from the machine
Supporting self-cleaning
Less noise with high performance damper
Low moisture after from the machine
Supporting self-cleaning
Less noise with high performance damper
PRODUCT SPECIFICATIONS
No | Model | XJZ 1350-N | XJZ1400-N | XJZ1600-N | XJZ 1700-N |
1 | Dia of basket mm | 1350 | 1400 | 1570 | 1700 |
2 | Max.Speed mm | 1450 | 1200 | 1100 | 1050 |
3 | Max.load capacity kg | 1100 | 1300 | 1750 | 2200 |
4 | Working volume liter | 797 | 870 | 1089 | 1370 |
5 | G.force | 1590 | 1007 | 1083 | 1048 |
6 | Power of motor kw | 90 | 110 | 200 | 250 |
7 | Size mm | 2756*1846*4466 | 2508*1900*5364 | 3120*2290*4920 | 3190*2190*4780 |
8 | Weight kg | 6200 | 8600 | 10000 | 12000 |
PRODUCT CONFIGURATION
Working principle.
When the basket rotates at high speed, it will produce a centrifugal force thousands of times greater than its own weight, so that the sugar paste on the basket wall is subjected to the centrifugal force, and the granulated sugar crystal are intercepted in the basket by the screen to form a filter layer,Under the action of centrifugal force,
molasses will pass through the filter layer and screen, and finally flow out of the basket hole wall to complete the separation of crystal and mother liquor.
The primary sugar paste separation can be divided into four stages: sugar layer formation stage, centrifugal molasses removal stage,molasses washing stage and drying(separating) stage.
molasses will pass through the filter layer and screen, and finally flow out of the basket hole wall to complete the separation of crystal and mother liquor.
The primary sugar paste separation can be divided into four stages: sugar layer formation stage, centrifugal molasses removal stage,molasses washing stage and drying(separating) stage.

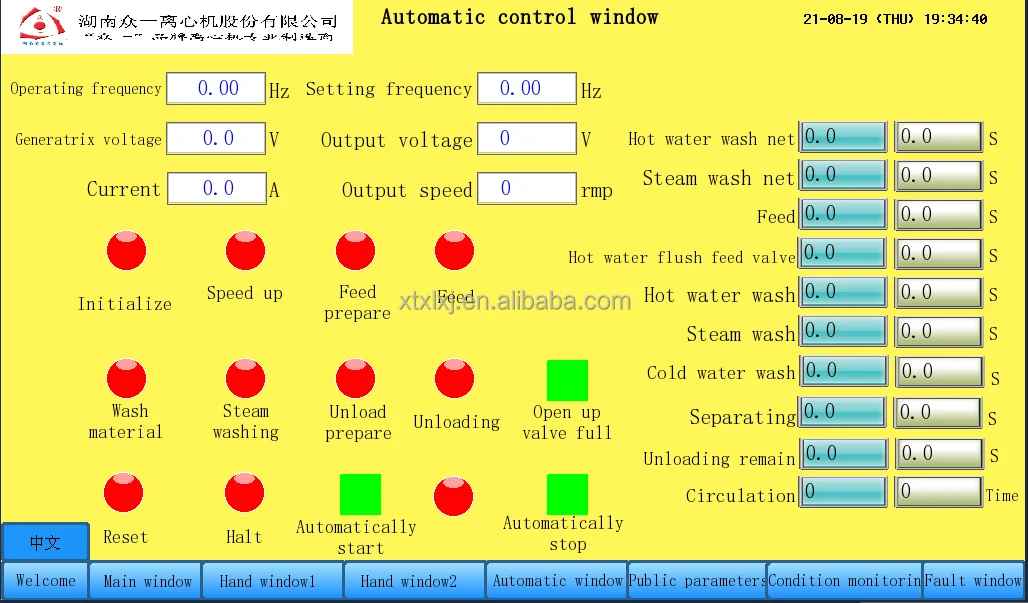

Operation of work cycle process
1. Feed
2. Speed up
3. Hot water washing and steam washing
4. Drying (Separating)
5. Speed down
6. Unloading
7 Screen (net)washing
Note : Any program can be cancelled or not totally depends on the actual request on site .
Basket
It is the most important part of the centrifuge , Strict dynamic balance test before assembling .The mesh is lining on the wall of the basket .
Machine casing
It is consists of machine cover and machine casing connected by bolts. There is a discharging hole at the bottom of the machine casing .
Motor
Adopt the high efficiency motor from famous supplier in China and its step-less speed running makes the machine operation more stable..Qualified with TUV, UL, CE
Recommend Products
Horizotal Peeler （scraper ) Centrifuge
It is a kind of automatic scraper discharge filter batch operation centrifuge , Widely used for powder dewatering in Food , pharmaceutical, chemical industries.
Two Stage Pusher Centrifuge .
It is a kind of automatic and continuous type filter centrifuge . Widely used for crystal, fiber dewatering in food, pharmaceutical ,chemical industries.
SALES AND SERVICE NETWORK
FAQ
1.What’s the application of centrifuge?
This machine is used to wash and dehydrate the suspension with small cystal and powder, widely used in environmental,
pharmaceutical food, chemical industry .
2.How to clean the machine?
The machine has self-cleaning function. When the processing is finished, you just put one button and the machine will do the cleaning automatically.
3. How to choose the machine material?
For the material, we have stainless steel 304, 316L and 321 for your option. Generally SS304 is used. If there’s suspension with corrosion, then SS 321 /316L or Ti is needed.
4.What’s the capacity of the machine?
Firstly we have different model with different capacity for this machine.
Secondly, the capacity will be customized according to concentration of the suspension. Higher the concentration, lower the capacity.
5. How is the processing result?
The finished cake moisture and solid lost rate is based on the material feature. And different machine just brings different
processing capacity. Also we can offer testing service to get realistic results.
