Algae Tubular Separator Centrifuge
US $6800
Самая популярная ботаническая пленочная центрифуга BB 30 Для Экстракции Масла CBD с криоэтанолом
- Category: Separation Equipment >>>
- Supplier: Nanjing,Kingreat,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Production Description

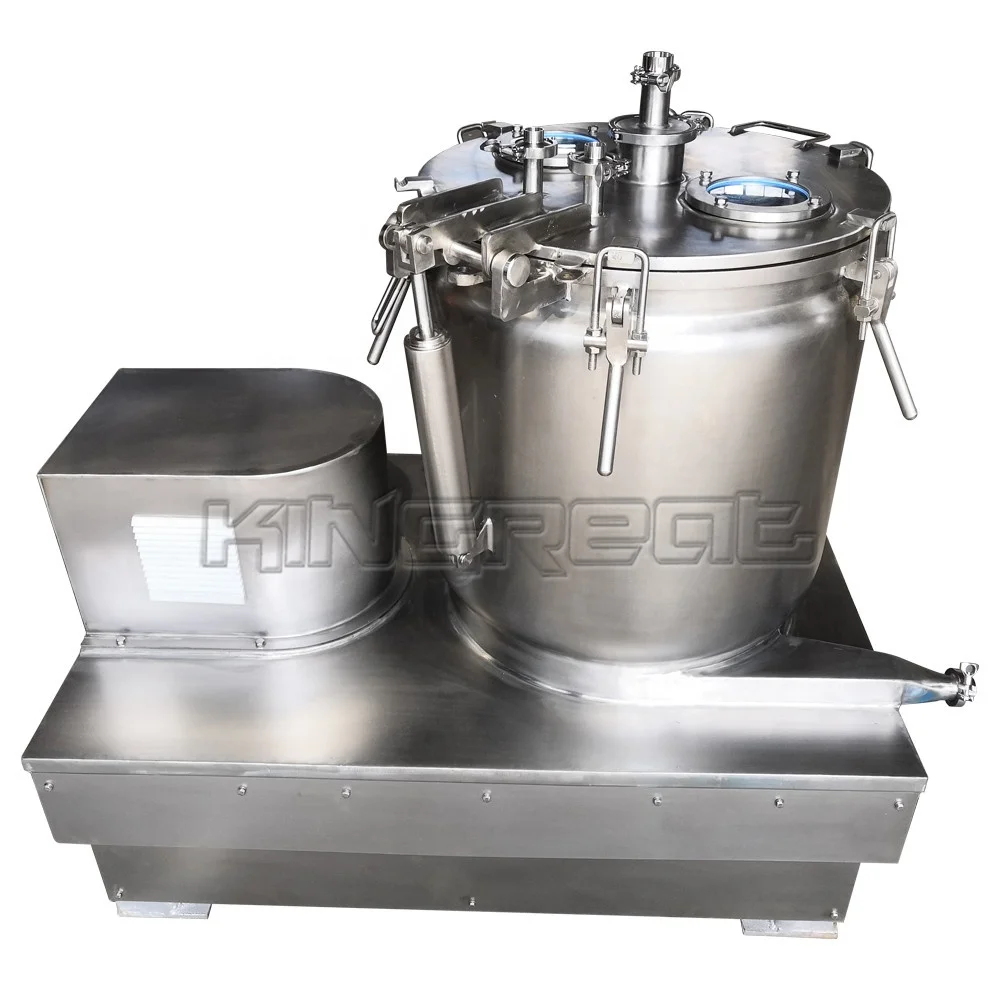

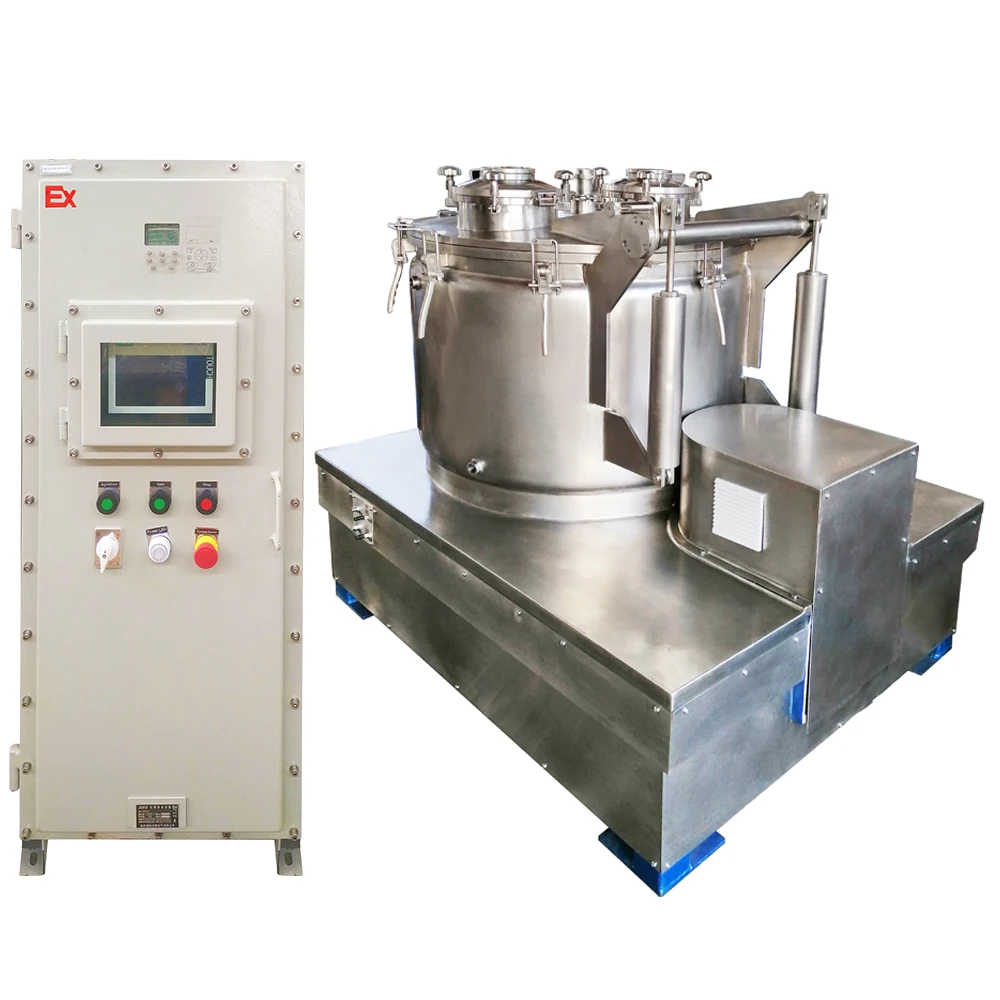

BB series centrifuge is top discharging, hermetic closure type equipment, for plant material extraction from ethanol.
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Process overview
The BB series centrifuge is top discharging, floodable jacketed hermetic closure type equipment, with flat bottom basket. The dry material dip in ethanol to flood and wash in two directions, and then spin in one direction. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing.
Technical parameters
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Process overview
The BB series centrifuge is top discharging, floodable jacketed hermetic closure type equipment, with flat bottom basket. The dry material dip in ethanol to flood and wash in two directions, and then spin in one direction. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing.
Technical parameters
Model | Motor power (kw) | Max capacity per batch (kg/pound) |
BB-30 | 3.7 | 17/35 |
BB-100 | 7.5 | 50/110 |
BB-150 | 11 | 80/170 |
BB-200 | 11 | 125/280 |
Our obligation
For requirements of markets, our team design and manufacture the centrifuge to carry out oil extration. We are also develping the whole system, which includes:
1. Vessels
2. Centrifuges
3. Filters
4. Tanks
5. Desillation equipments like single effectives evaporators, short parth desillation, rotary disillation equipments.
6. Cooling towers, chillers
7.Valves, pumps, connections, etc.
Features
304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40C~-80C
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required
Our advantages
1.Cold temperature operation
2.High recovery rate till 90%+
3.Variable capacity from 10 pounds till 280pounds per batch
4.Less labor needed
5. Low power consumption
6.Small loss
7. A to Z complete line provider
8.Commissioning and training
Application
1. Low temperature ethanol extraction
2.Trim and leaf extraction
3.Any dry biomass extraction
For requirements of markets, our team design and manufacture the centrifuge to carry out oil extration. We are also develping the whole system, which includes:
1. Vessels
2. Centrifuges
3. Filters
4. Tanks
5. Desillation equipments like single effectives evaporators, short parth desillation, rotary disillation equipments.
6. Cooling towers, chillers
7.Valves, pumps, connections, etc.
Features
304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40C~-80C
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required
Our advantages
1.Cold temperature operation
2.High recovery rate till 90%+
3.Variable capacity from 10 pounds till 280pounds per batch
4.Less labor needed
5. Low power consumption
6.Small loss
7. A to Z complete line provider
8.Commissioning and training
Application
1. Low temperature ethanol extraction
2.Trim and leaf extraction
3.Any dry biomass extraction

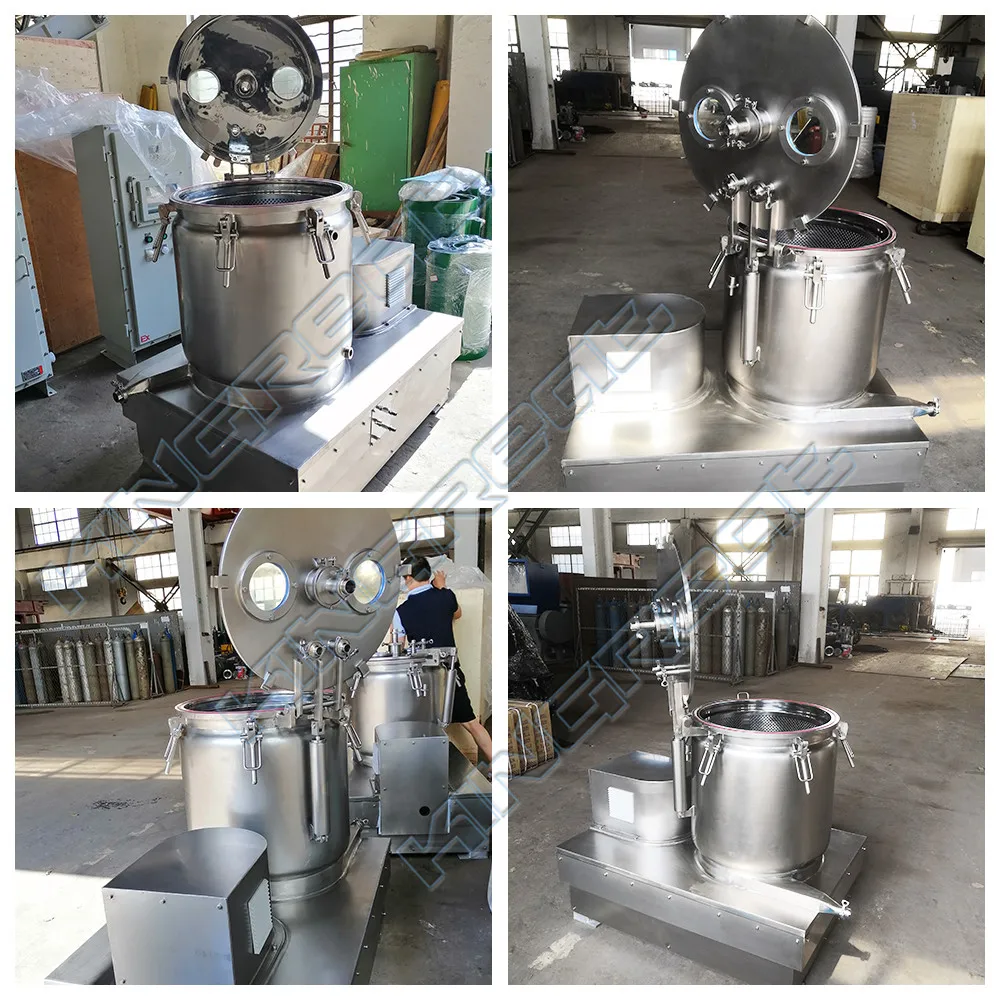

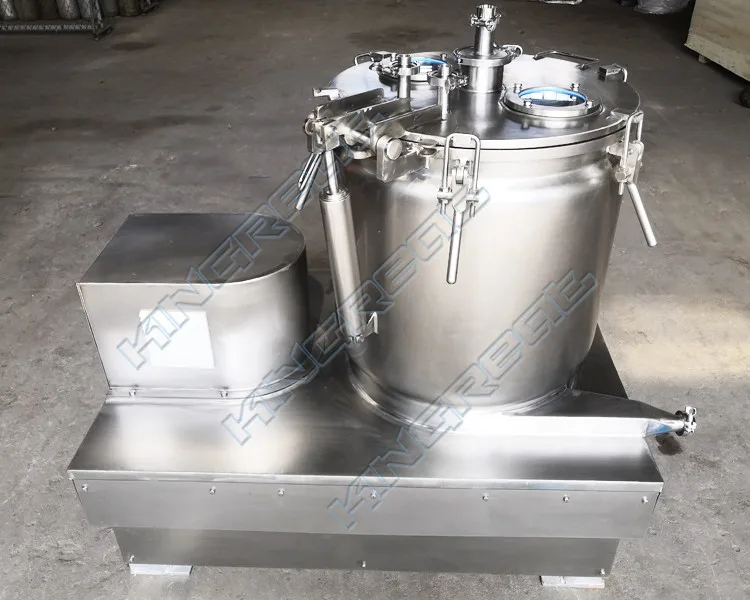

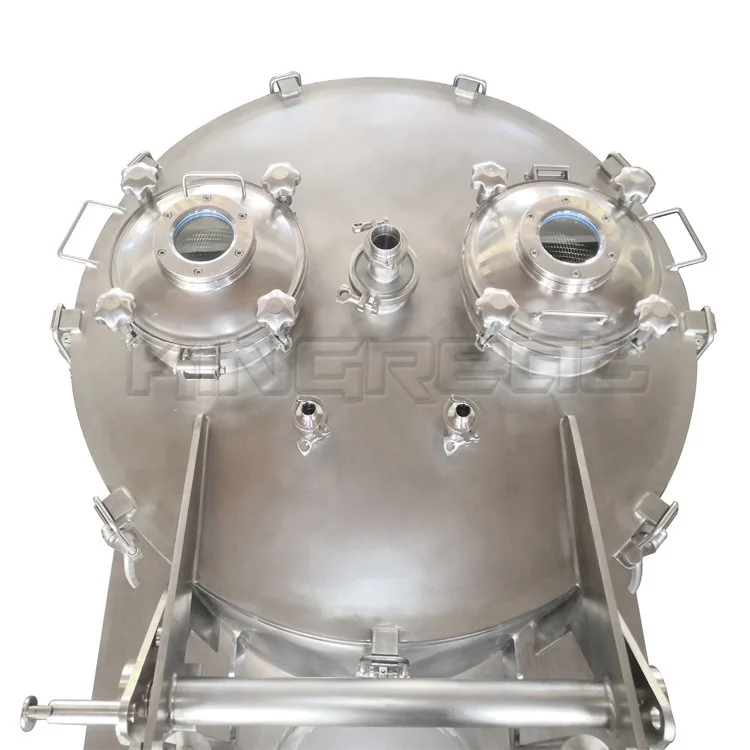

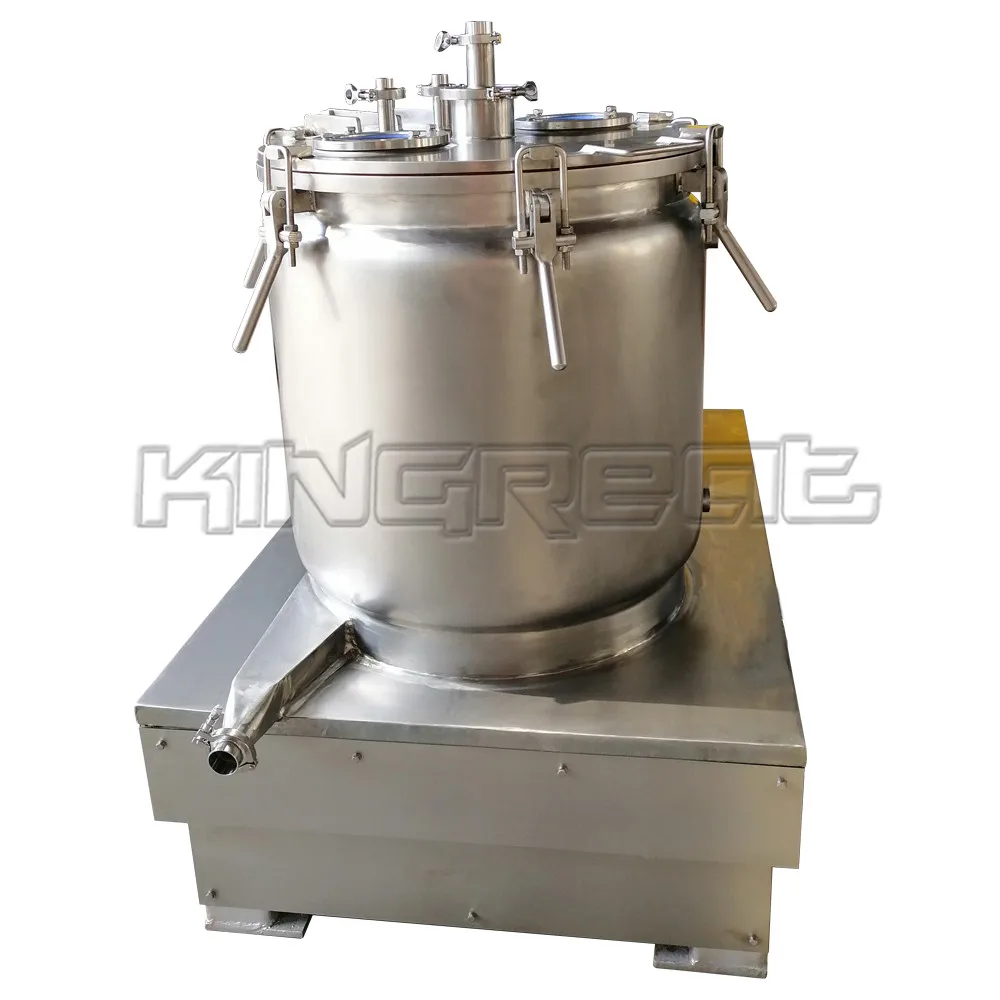

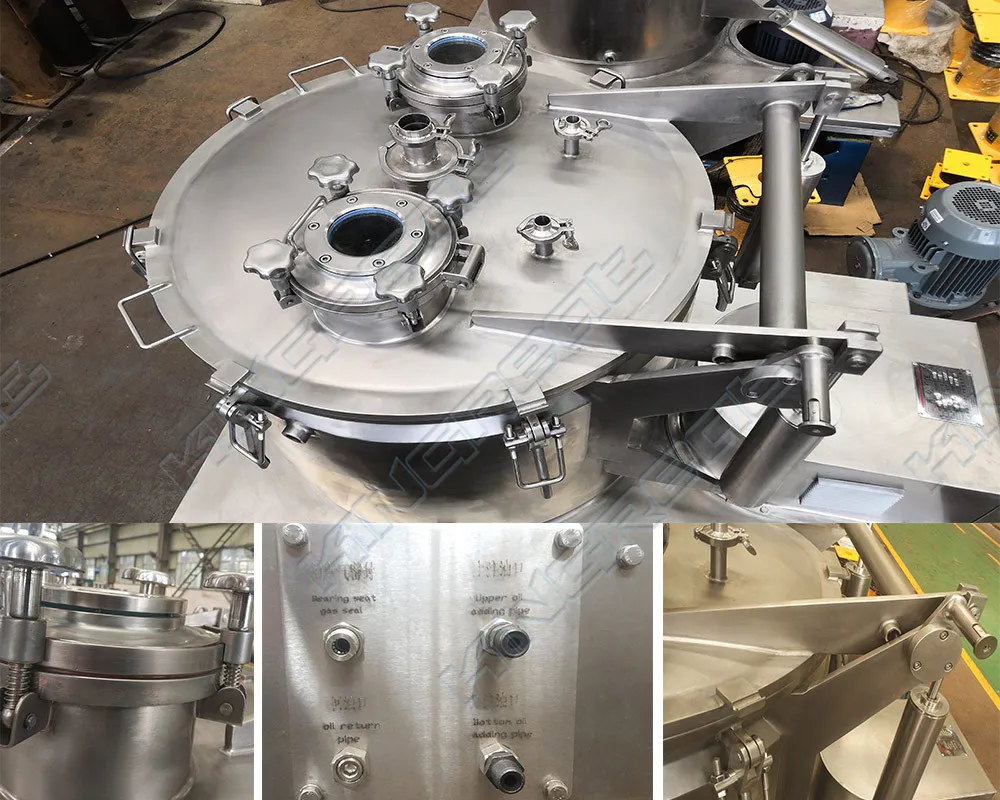

Detailed Images
Packing&Delivery

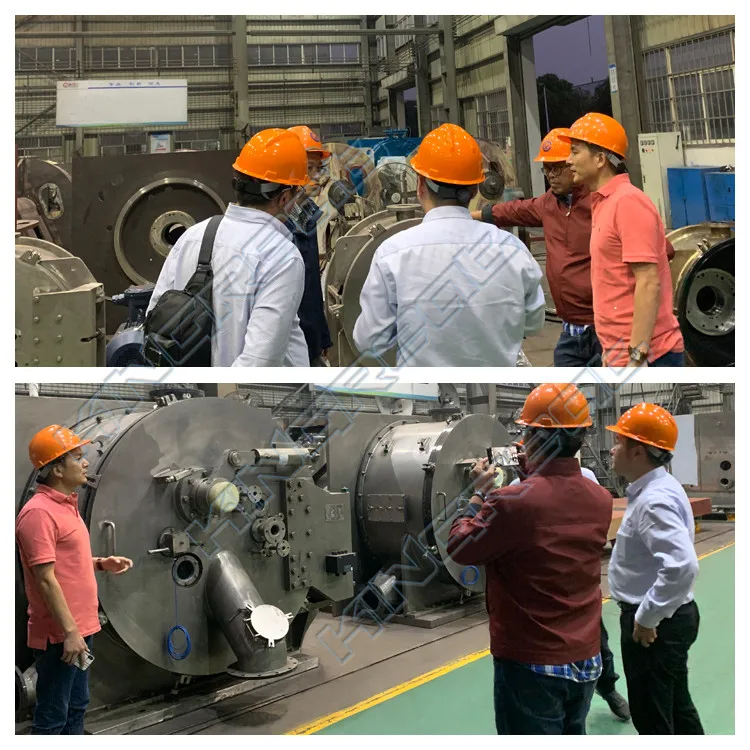

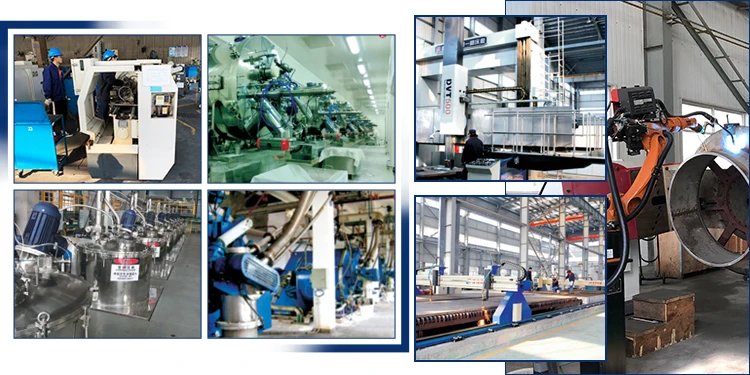

Our Company

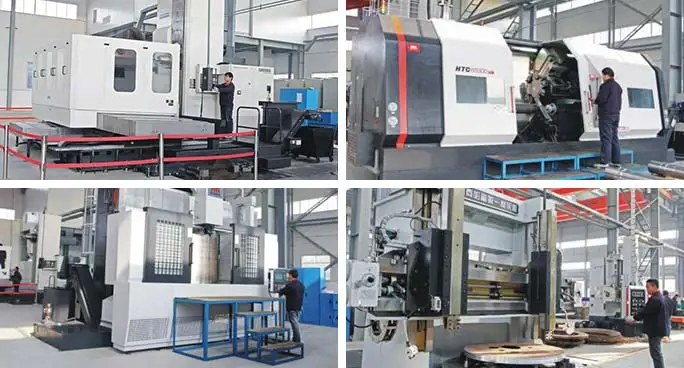

Nanjing Kingreat Machinery Co., Ltd , covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
Our Certification
Our Service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
FAQ
1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get
multiprocessing,transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous
brands.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.
10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
11. What payment mode you accept?
TT, Wester Union and LC at sight.
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get
multiprocessing,transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous
brands.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.
10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
11. What payment mode you accept?
TT, Wester Union and LC at sight.
