Большой пластиковый цилиндр 15 Вт odyssey gelid гризли проводящий термальный накладка лист 1 мм 1,5 мм 2 мм 3 мм 12,8 Вт/м. K Кремния Тепловой Зазор колодки графический процессор
- Category: Insulation Materials & Elements >>>
- Supplier: Hunan Feihongda New Material Co. Ltd.
Share on (1600460966956):
Product Overview
Description
Dear Friend
Welcome to Hunan Feihongda Technology Co., LTD.
Product Description
Youtube link:
1. https://www.youtube.com/watch?v=XxqXs_nIu8A
2. https://www.youtube.com/watch?v=FgmYbDhVIfE
Test file:
1. https://docs.google.com/spreadsheets/d/1W7XnBz942TSvD5Xo6wH1-A_vKmelTp68/edit#gid=1423190588
333

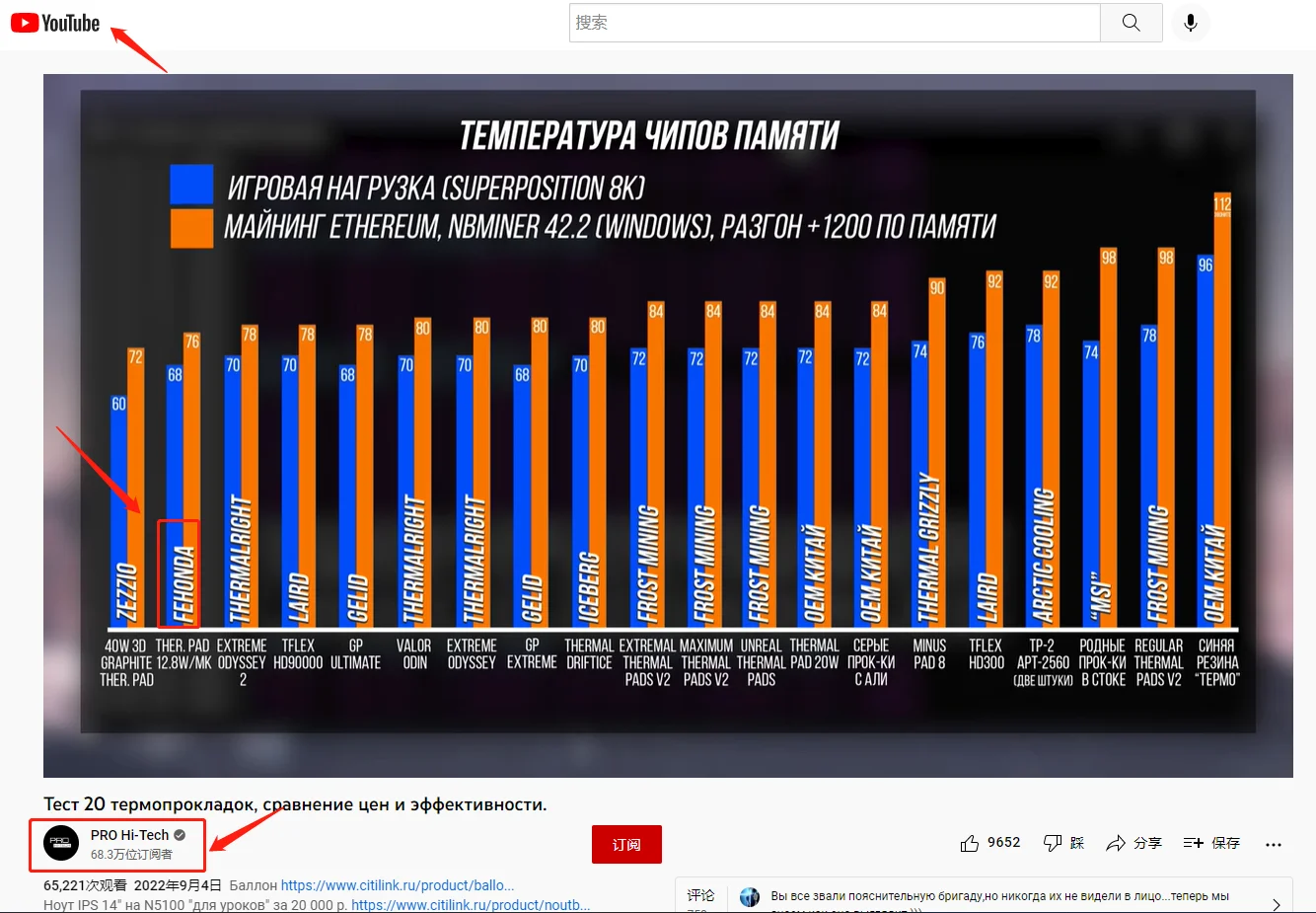

Thanks to PRO Hi-Tech and VIk-Off for testing, Thanks all you have done, it is very valuable!
I'm glad that Feihongda 12.8W thermal conductive silicone sheet is second only to 3D graphite among the 20 products. However, the conductive property of graphite will bring greater safety risks to your products in the process of use, which is easy to cause equipment damage.
Fehongda thermal pad has a high thermal conductivity of 12.8W and has passed more than 2000 hours of reliability test, which makes it more safe and effective in GPU, Asics and other equipment. And 12.8W is not our limit. At present, we can achieve 20W thermal conductivity products, but we are still breaking through it.
We welcome global retailers / wholesalers / distributors / factories to cooperate with us, we have more than 80 professional sales managers and more than 30 R & D personnel, can provide you with more effective value solutions and product solutions. Help you get more profits, better products, better service and after-sales service.
We can customize thermal conductivity products according to your needs, and can provide free engineering samples. We will be determined to build the world's leading thermal conductivity products, let it help more friends.

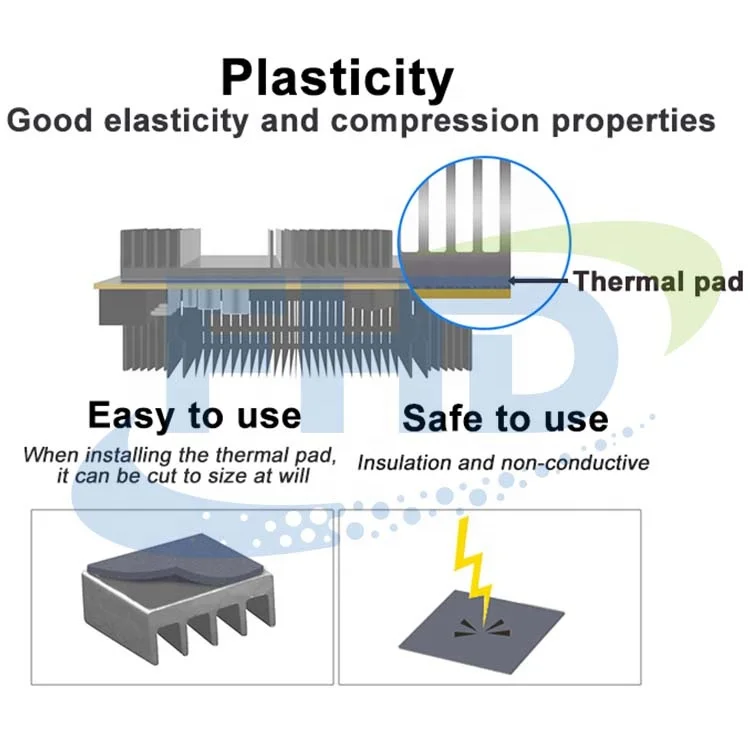

Features:
* Good thermal conductivity (12.8 w/m-k)
* Good softness and is conformable at low pressure ( Shore c= 35~55)
* Softness results in low stress on board components
* Good dielectric properties
* Slight tack allows pre-assembly. Good wettability for better thermal conductivity
* UL 94 V-0,ISO9001, ISO14001,ISO45001,ROSH
* High temperature résistance

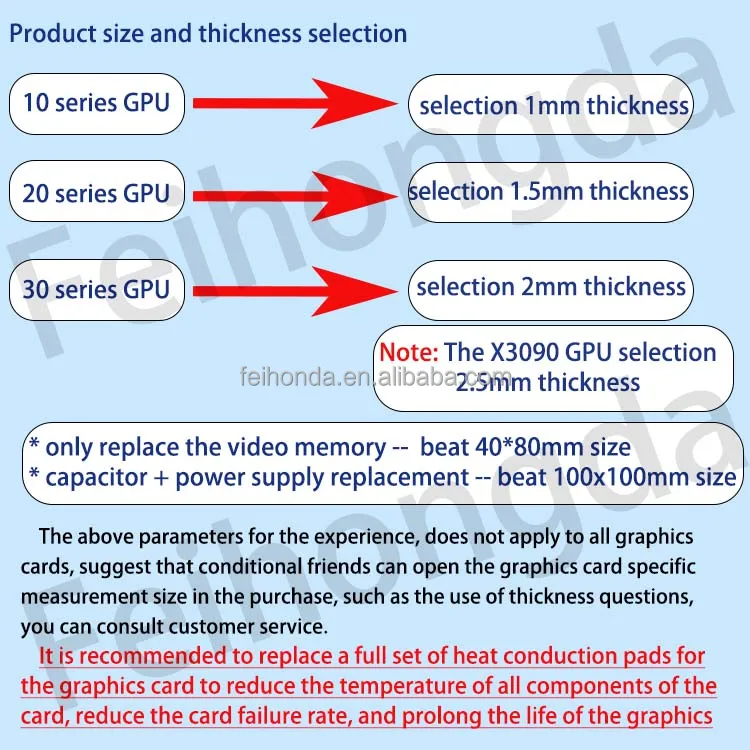

* Thickness : 0.5 mm,1.0 mm, 1.5 mm, 2.0 mm, 2.5mm,3.0mm custom thickness
* Good thermal conductivity (12.8 w/m-k)
* Good softness and is conformable at low pressure ( Shore c= 35~55)
* Softness results in low stress on board components
* Good dielectric properties
* Slight tack allows pre-assembly. Good wettability for better thermal conductivity
* UL 94 V-0,ISO9001, ISO14001,ISO45001,ROSH
* High temperature résistance
* Thickness : 0.5 mm,1.0 mm, 1.5 mm, 2.0 mm, 2.5mm,3.0mm custom thickness
* 85*45mm/100*100mm/120*120mm Larger sheet size is available
Product parameters can be customized based on requirements | ||||||
Test item | Test method | Unit | Test Value | |||
Color | Visual | Grey/Black/Blue/Pink/Custom | ||||
Thickness | ASTM D374 | Mm | 0.3-20.0 | |||
Specific Gravity | ASTM D792 | g/cm3 | 2.0±0.2 ~ 3.5±0.2 | |||
Hardness | ASTM D2240 | Shore C | 35~55 | |||
Tensile Strength | ASTM D412 | kg/cm2 | ≥30-50 | |||
Continuous Use Temp | EN344 | ℃ | -40~180 | |||
Volume Resistivity | ASTM D257 | Ω-CM | ≥10^10 | |||
Breakdown Voltage | ASTM D149 | KV/mm | >6 | |||
Flame Rating | UL-94 | V-0 | ||||
Conductivity | ASTM D5470 | w/m-k | 12.8w(custom 1.5~15W) | |||
Oil Penetration Rates | ≤1 % / ≤3% | |||||
Certifications | ISO9001, ISO14001,ISO45001,ROSH, CE,UL | |||||

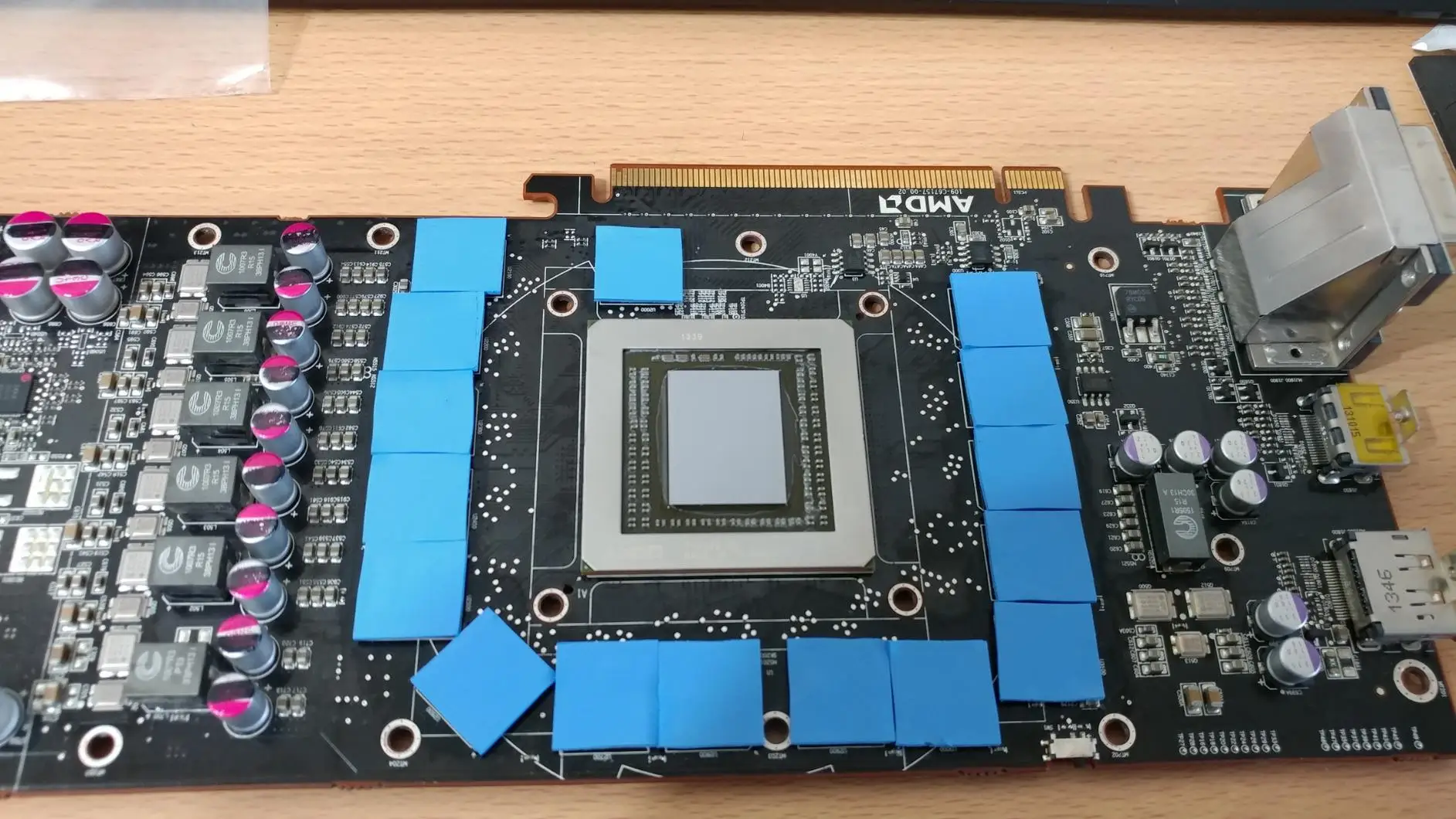

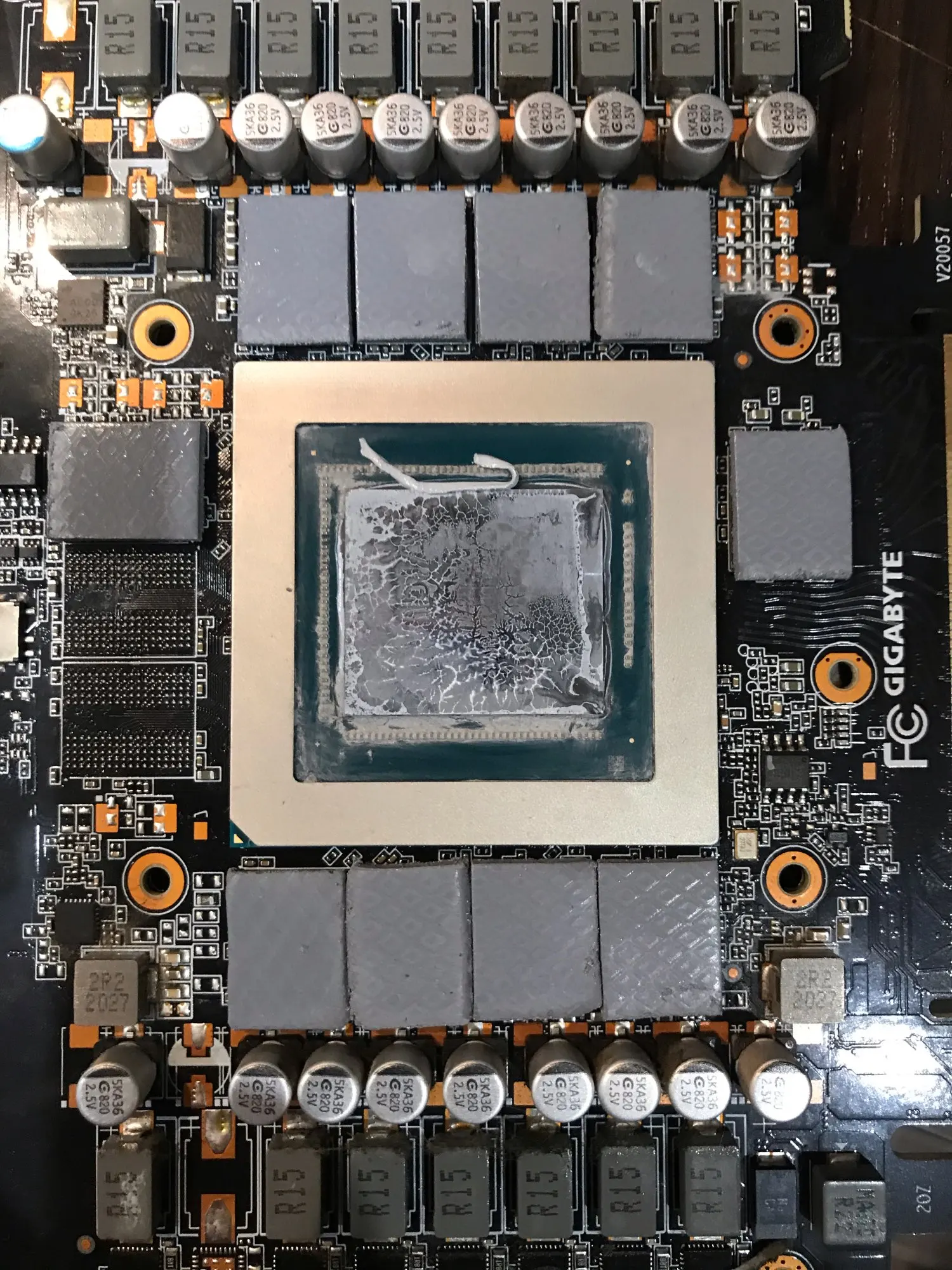

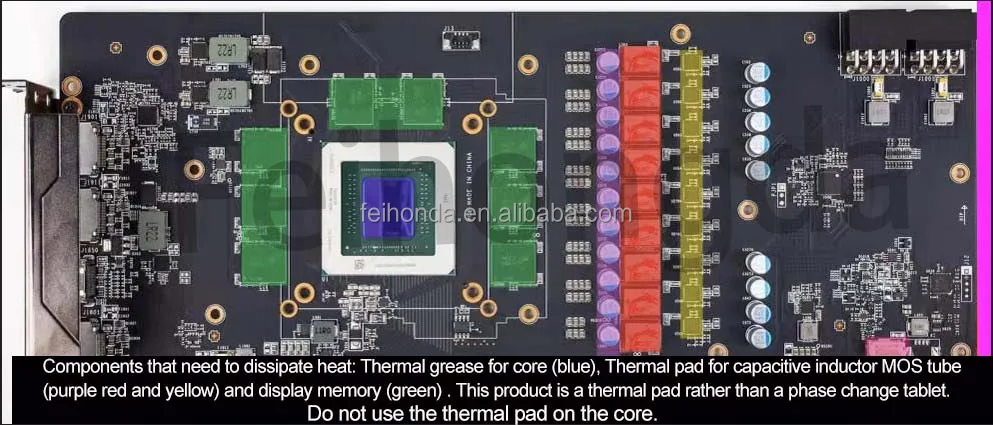

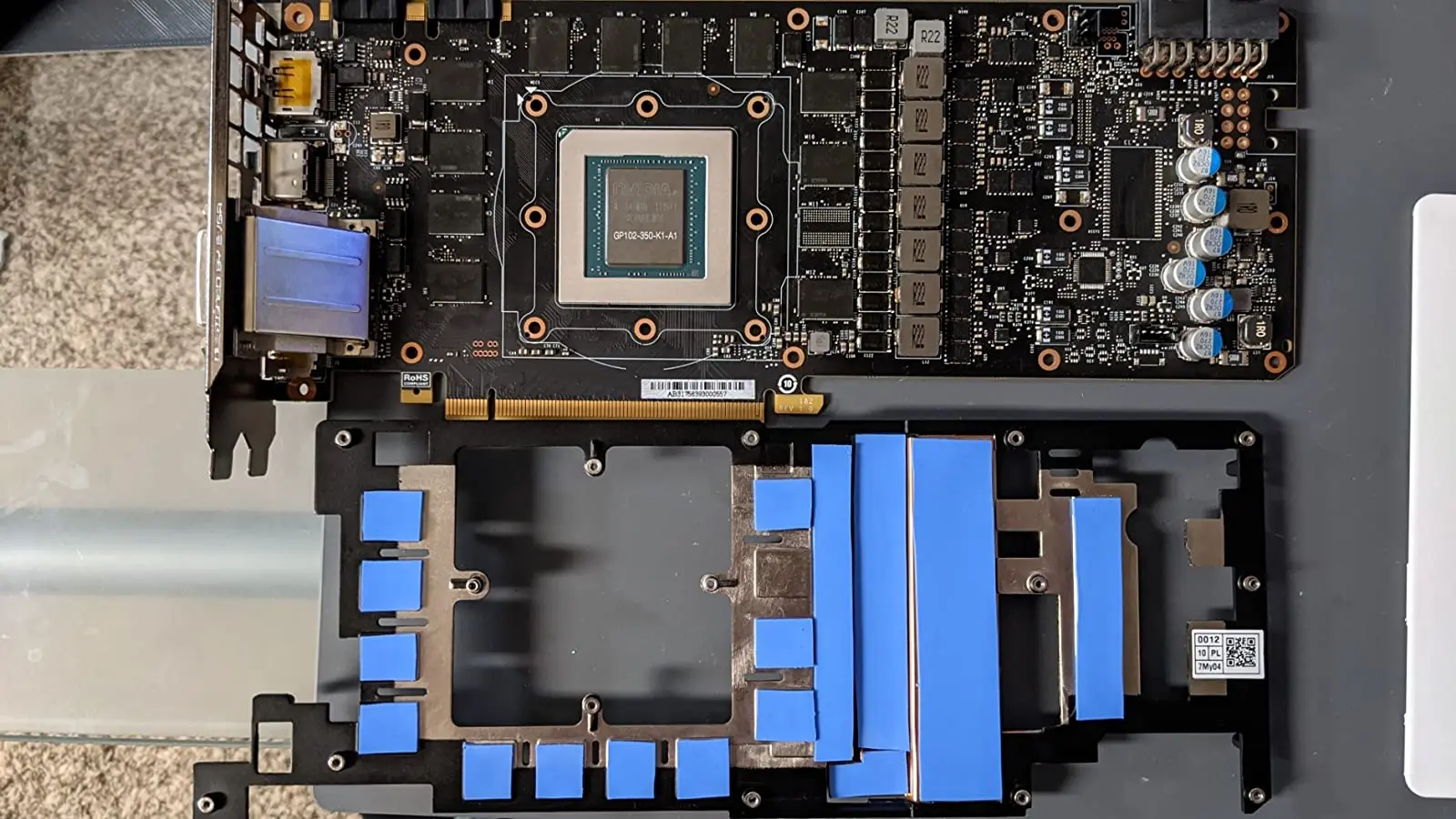

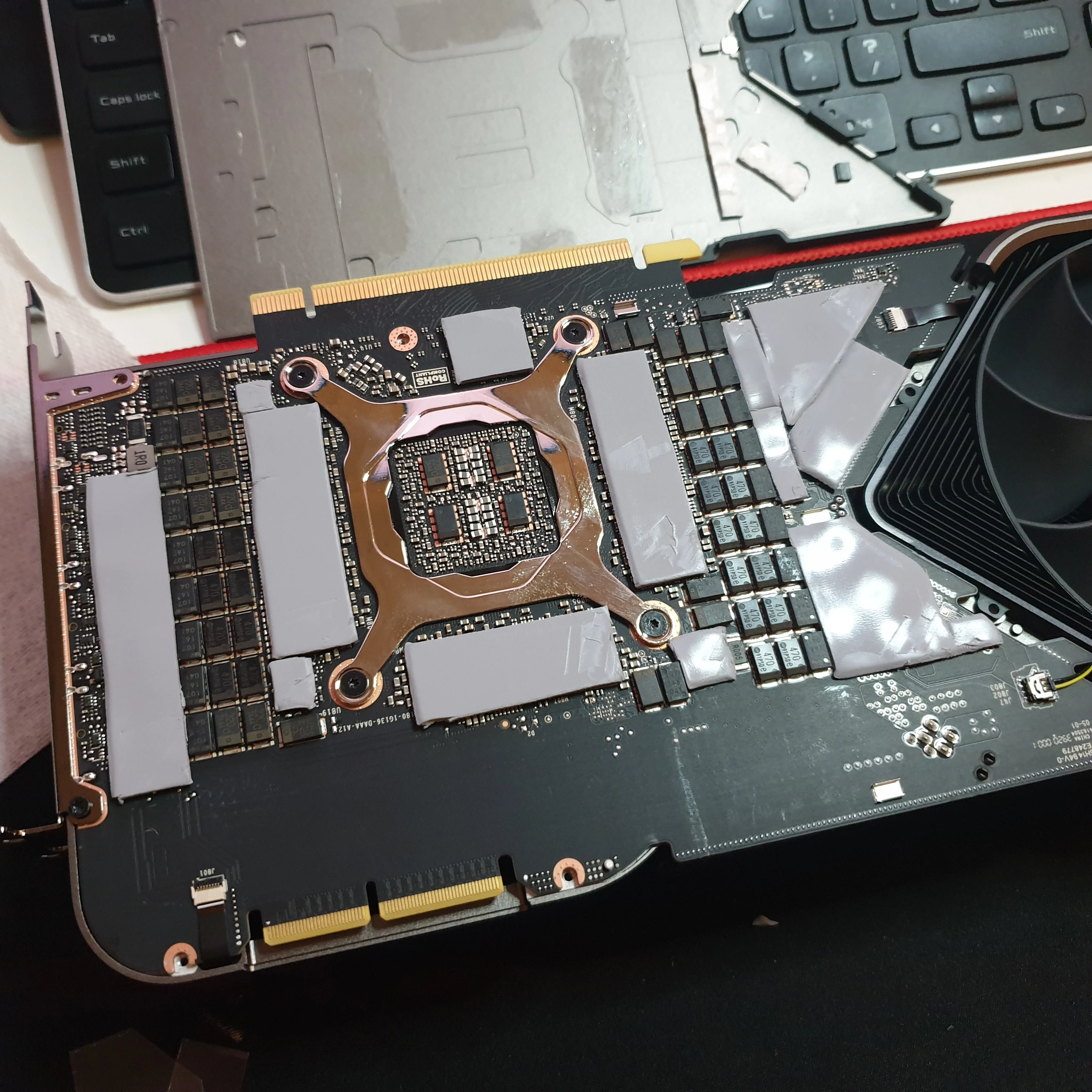

Components that need to dissipate heat:
Thermal grease for core (Purple area), Thermal conductive pad for capacitive inductor MOS tube (Pink area,Red area and Yellow area) and display memory (Green area).
This product is a thermal conductive pad rather than a phase change tablet.Do not use the thermal conductive pad on the core.

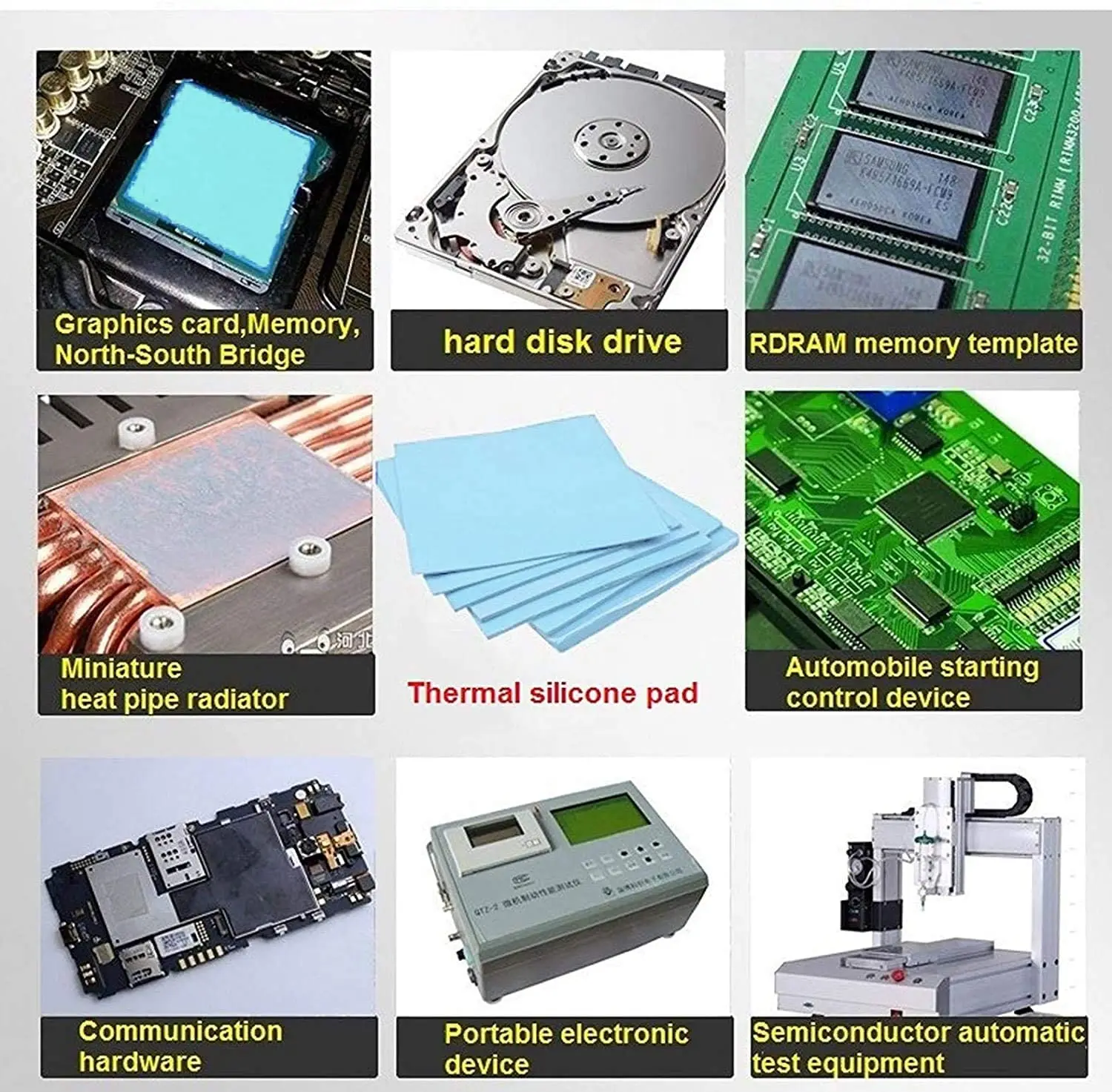

Application:

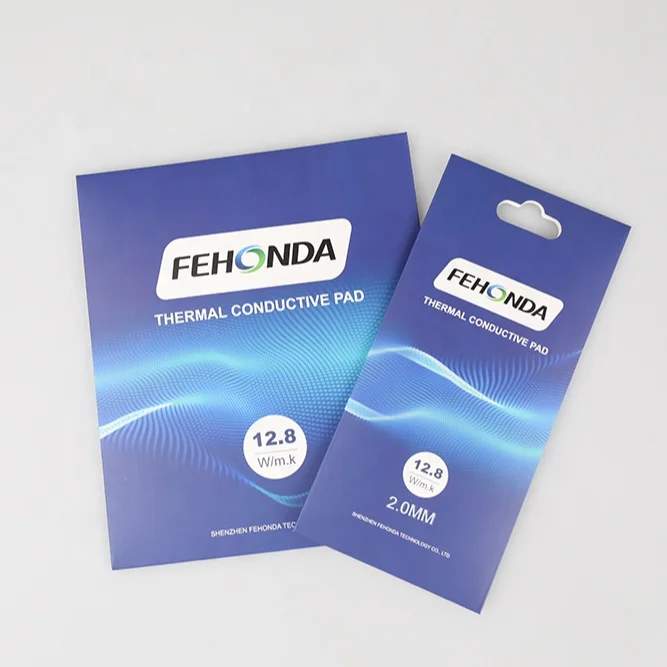

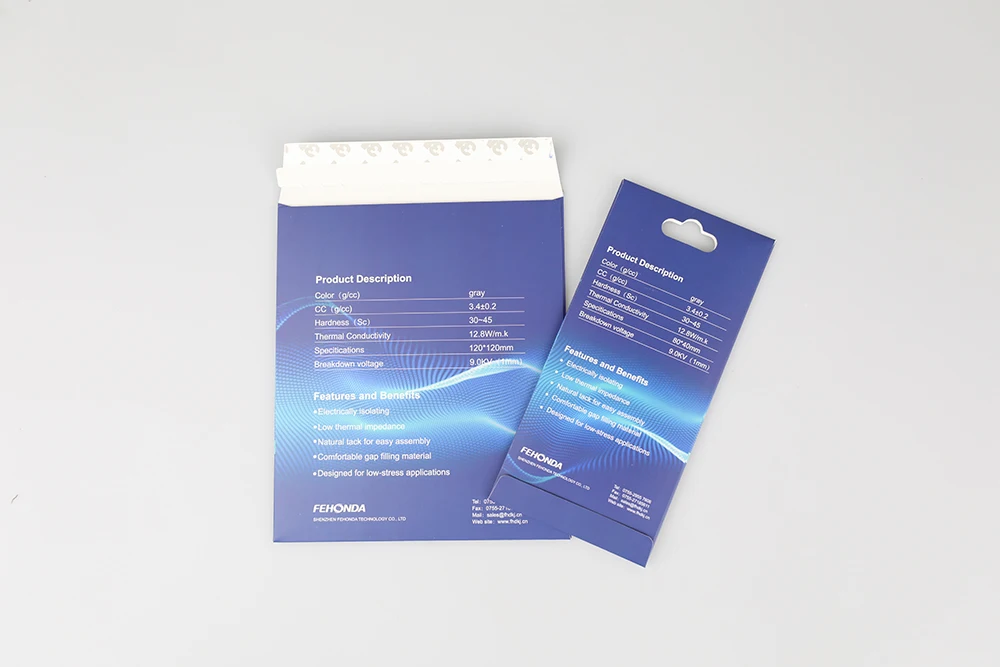

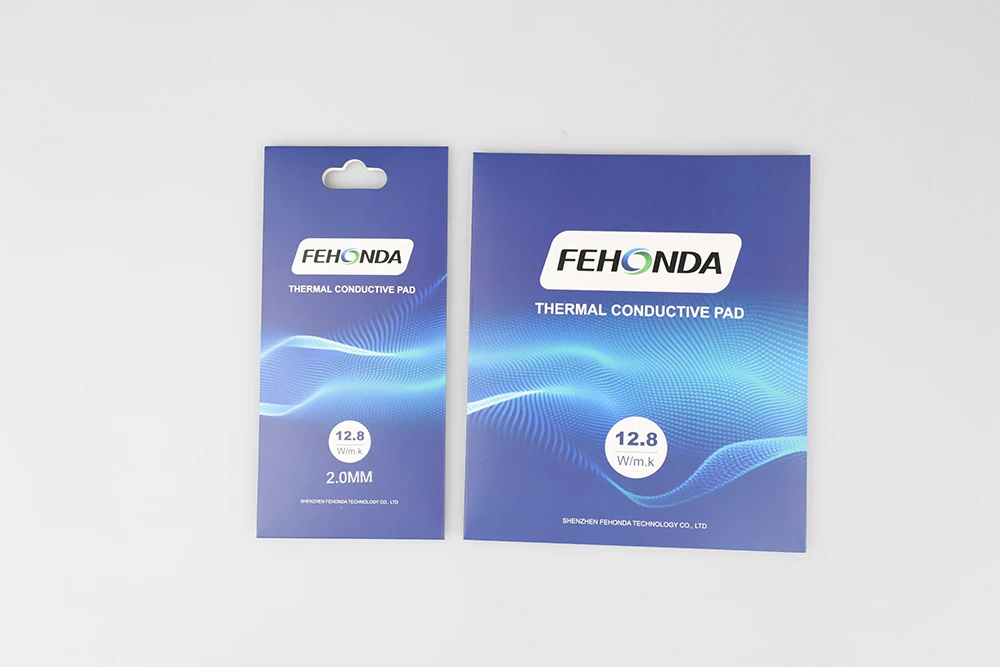

Packing

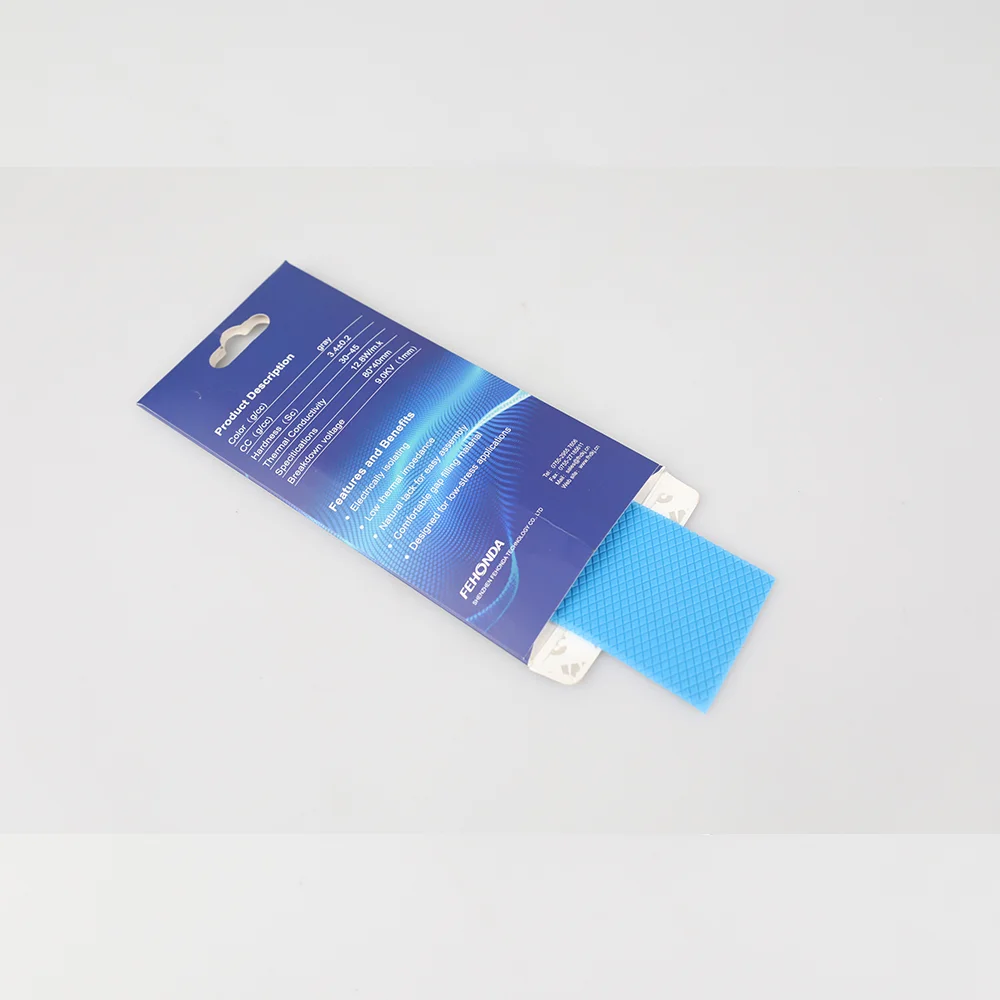

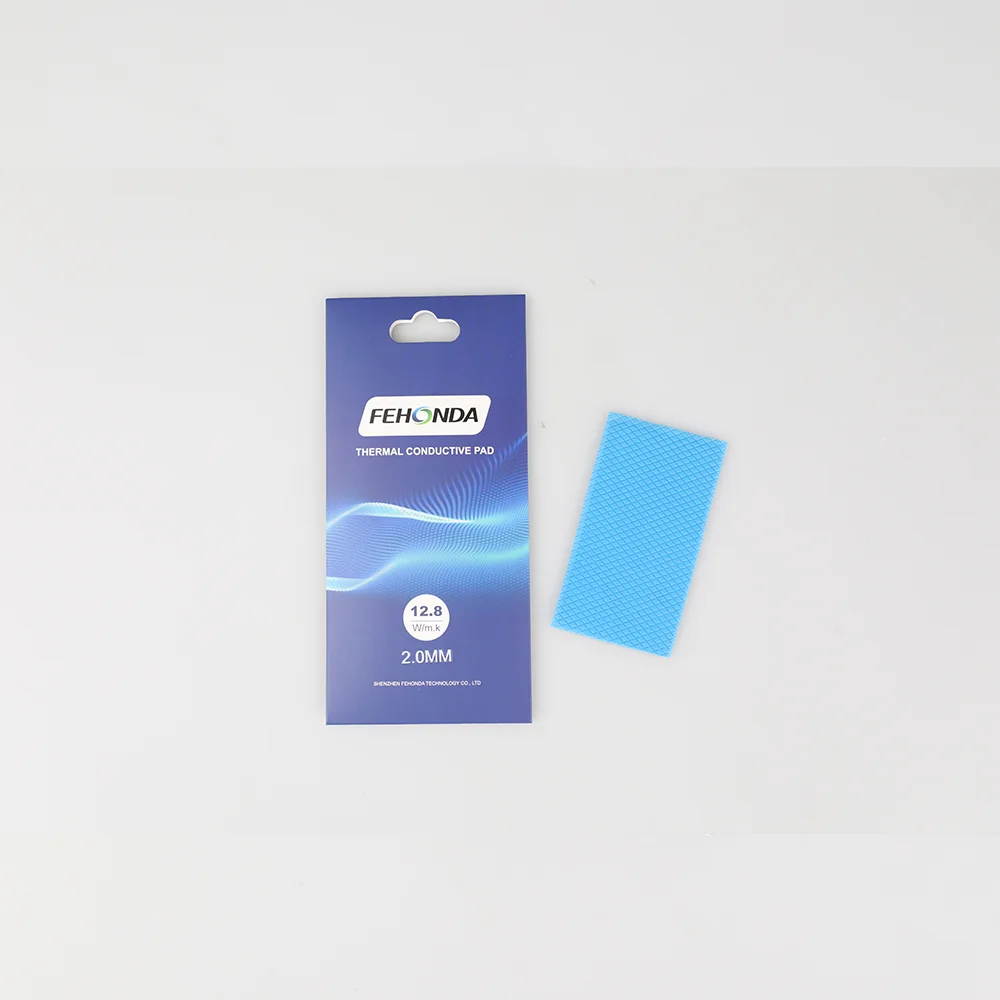

85*45mm Package
120*120mm Package
Buyer Feedback

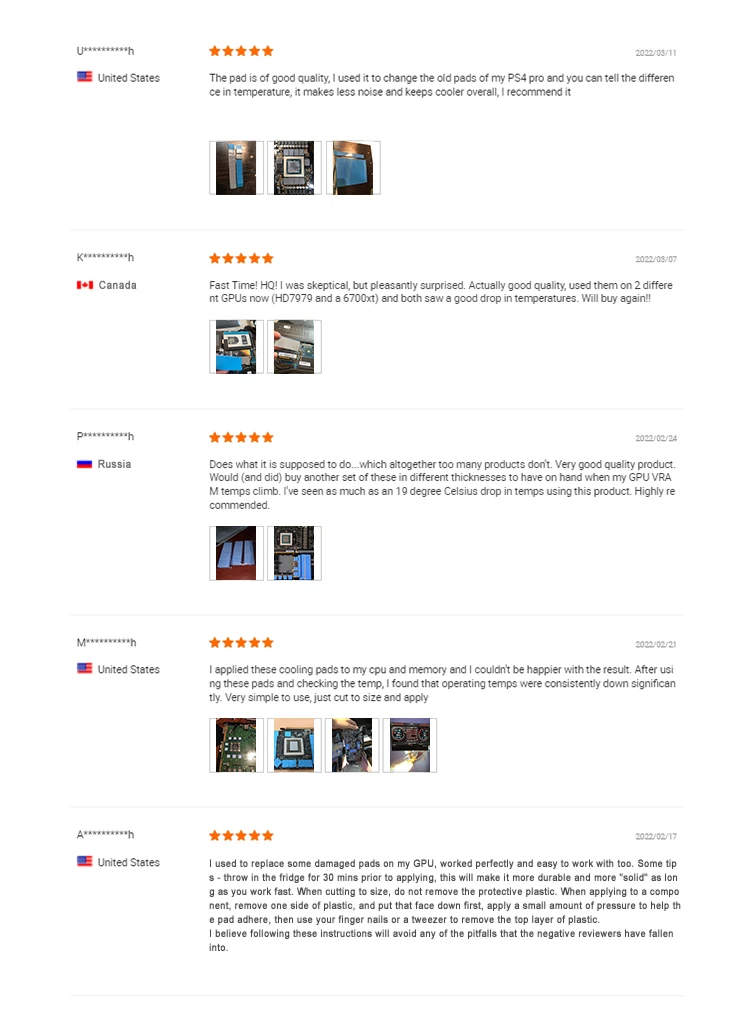

Buyer's Comments！！

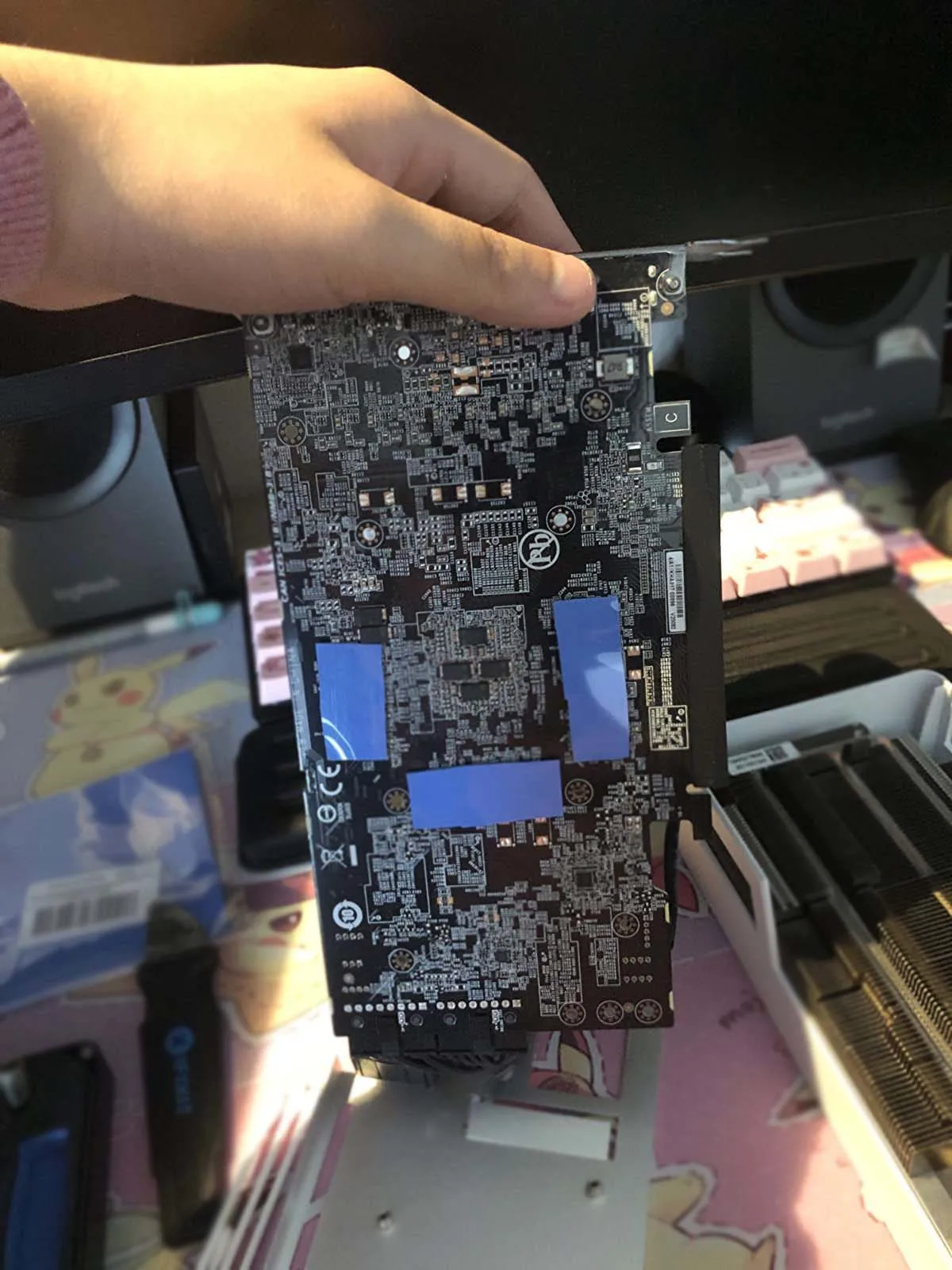

Buyer's Pictures！！
Recommend Products
Our Advantages
About US

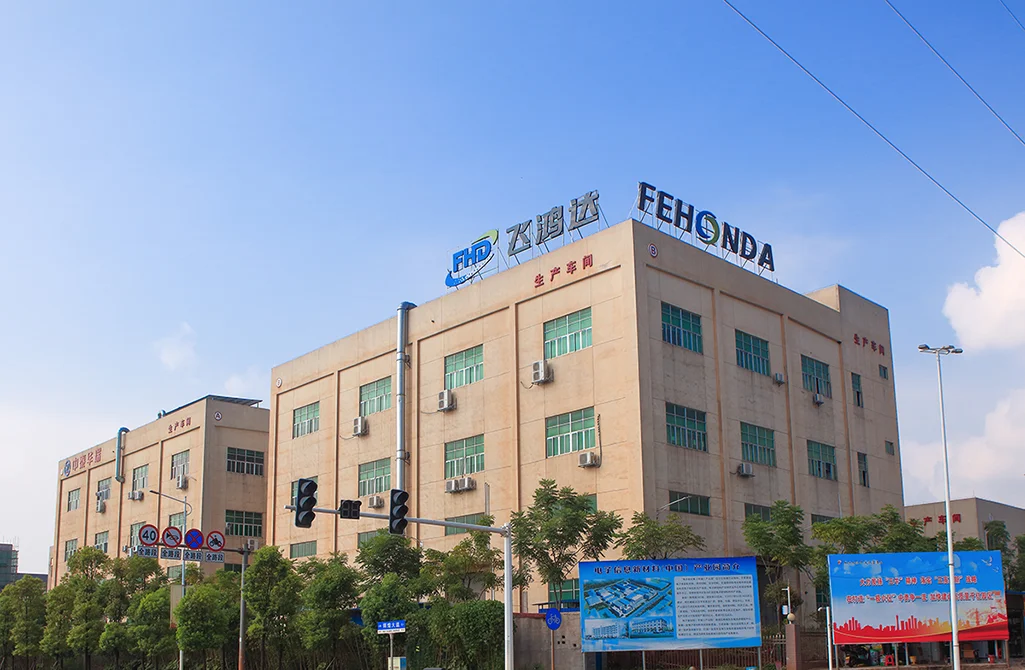

Feihonda Founded in 2007, is a national high-tech enterprise. It is a leading domestic electromagnetic shielding and thermall application solution provider for civil electronic equipment. The company has passed ISO,ROSH,UL,SGS,CE certifications, has complete R&D/production and quality control equipment.With an independent production base, the total production area is more than 7000 square meters.Its high-quality products are widely used in mobile phone terminals, military industry, power supplies, and lighting. , Automotive electronics, instrumentation, network communications and other fields.
1. Leading Manufacturer With 15+ Years Experience;
2. China high-tech certification, products through UL certification
3. Free for drawing Making, Free for sample making;
4. Highest 1000 level dust-free production line,ISO14001:2020 and ISO9001:2020 Quality and Environment control standard;
5. Fast & On time delivery and Low MOQ;
6. Strict QC Procedure, Carry out product inspection according to American standard and provide product inspection report,
Defecective Rate is below 0.2%, 1:1 replacement or refund for any defectives. Tolerance Size strictly controlled in ±0.2mm;
7. Premium Quality with Compatitive Price;
8. Flexible Funds Payment Solutions.
2. China high-tech certification, products through UL certification
3. Free for drawing Making, Free for sample making;
4. Highest 1000 level dust-free production line,ISO14001:2020 and ISO9001:2020 Quality and Environment control standard;
5. Fast & On time delivery and Low MOQ;
6. Strict QC Procedure, Carry out product inspection according to American standard and provide product inspection report,
Defecective Rate is below 0.2%, 1:1 replacement or refund for any defectives. Tolerance Size strictly controlled in ±0.2mm;
7. Premium Quality with Compatitive Price;
8. Flexible Funds Payment Solutions.
