Product Overview

Description



Product Description

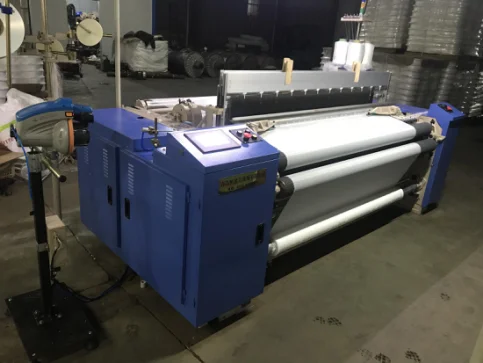

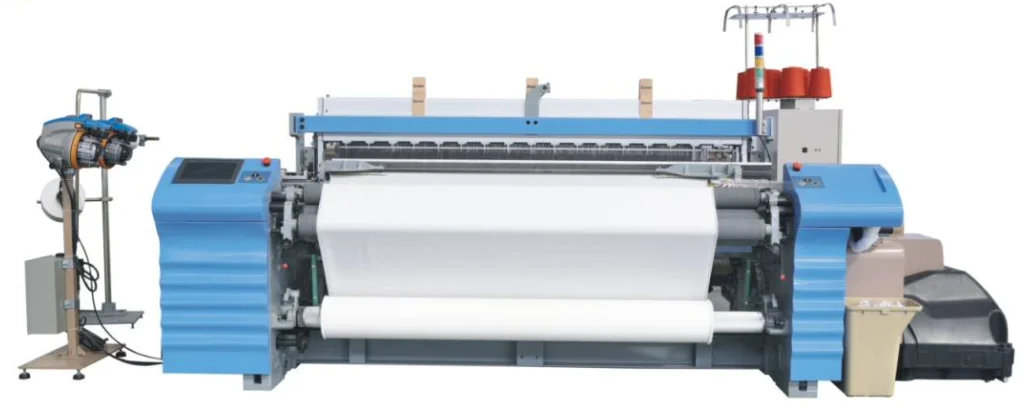

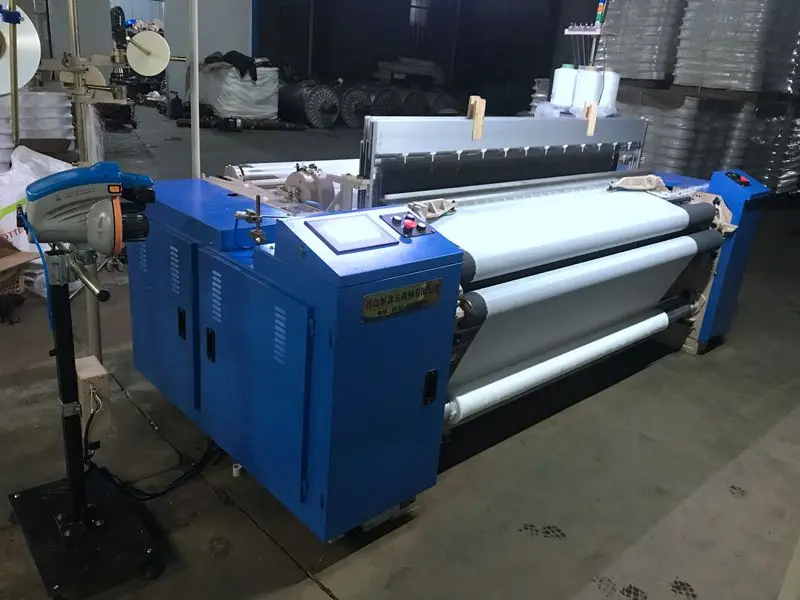

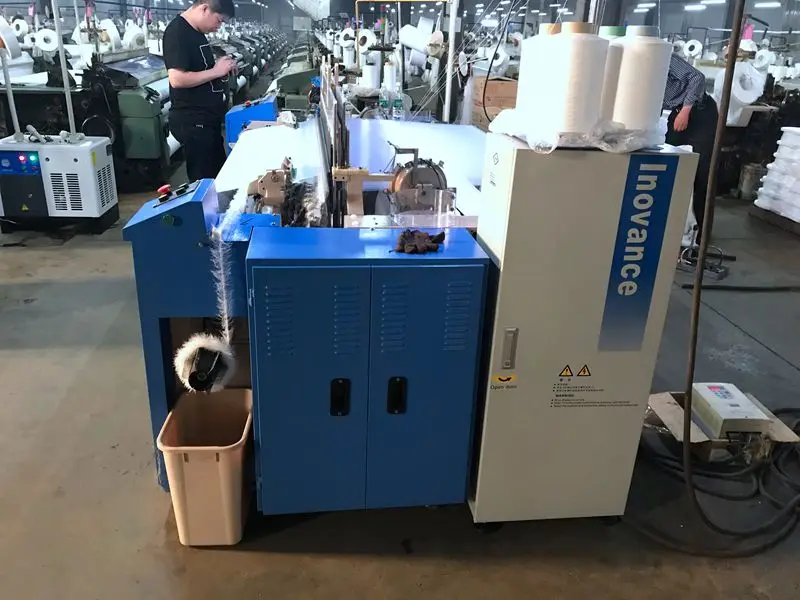

High-end Air Jet Loom Machine




 Main features
1. High speed

2. Low energy consumption
3. Low vibration

4. Flexibility and wide applicability
5. Easy operation & new Electronics

6. Optional as needed



  • Description

HXD900 is designed with the concept provide the high performance air jet loom with economical price for our customer. It can weave high-quality fabric with lower cost, to realize the maximization of investment gains, to guarantee winning victory in the keen market competition.
And this loom was advance design using computer streamline analysis provides stable insertion of welt yarns and reduced air consumption.

Any questions pls feel free to contact us.


Size Information


The specifications of Air Jet Loom Machine (HXD900)


Item
specification
Selection of modules

Reed space
Nominal (CM)
150/170/190/210/230/250/280/340/360

Useful reeding width
Same as nominal width maximum reduction:60cm(150-250cm)
Same as nominal width maximum reduction:80cm
Same as nominal width maximum reduction:80cm(≥280cm)
Weavable range
Spun:Ne 100-Ne2.5
Filament:56dtex-1350 detex
Filling selection
1,2,4,6 colors, can be selection

Power
/
Direct start of Super-start motor drive
Programable speed control
/
Push-button operation with both hands
Motor power
2.7kw/3.0kw/3.7kw/6.5kw

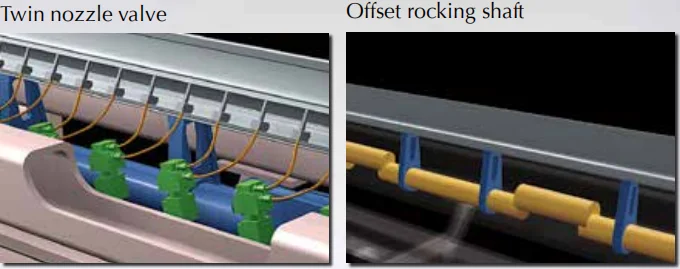

Filling insertion
Main and sub-nozzles combined system, profiled reed, auxiliary main nozzle

Tensile spray WBS weft insertion braking Fuzzy control of filling insertion in FIC Main nozzle wire clamp
New solenoid valve with built-in manifolds
Independent sub-nozzle timing control b color.
AJC Auto jet controller, first pick control



Shedding
Crank plain shedding:Shaft number:4
Positive cam shedding :shaft mumber up：8
Negative cam shedding：shaft mumber up：8
Dobby shedding（Electronic，Positive，Floor-mounted)：Shaftnumber up to 16
Jacquard shedding




Let-off
Electronic let-off(ELO)，with kickback function
Twin beam
Negative easing
Positive easing
Flange diameter
800mm/914mm/1000mm

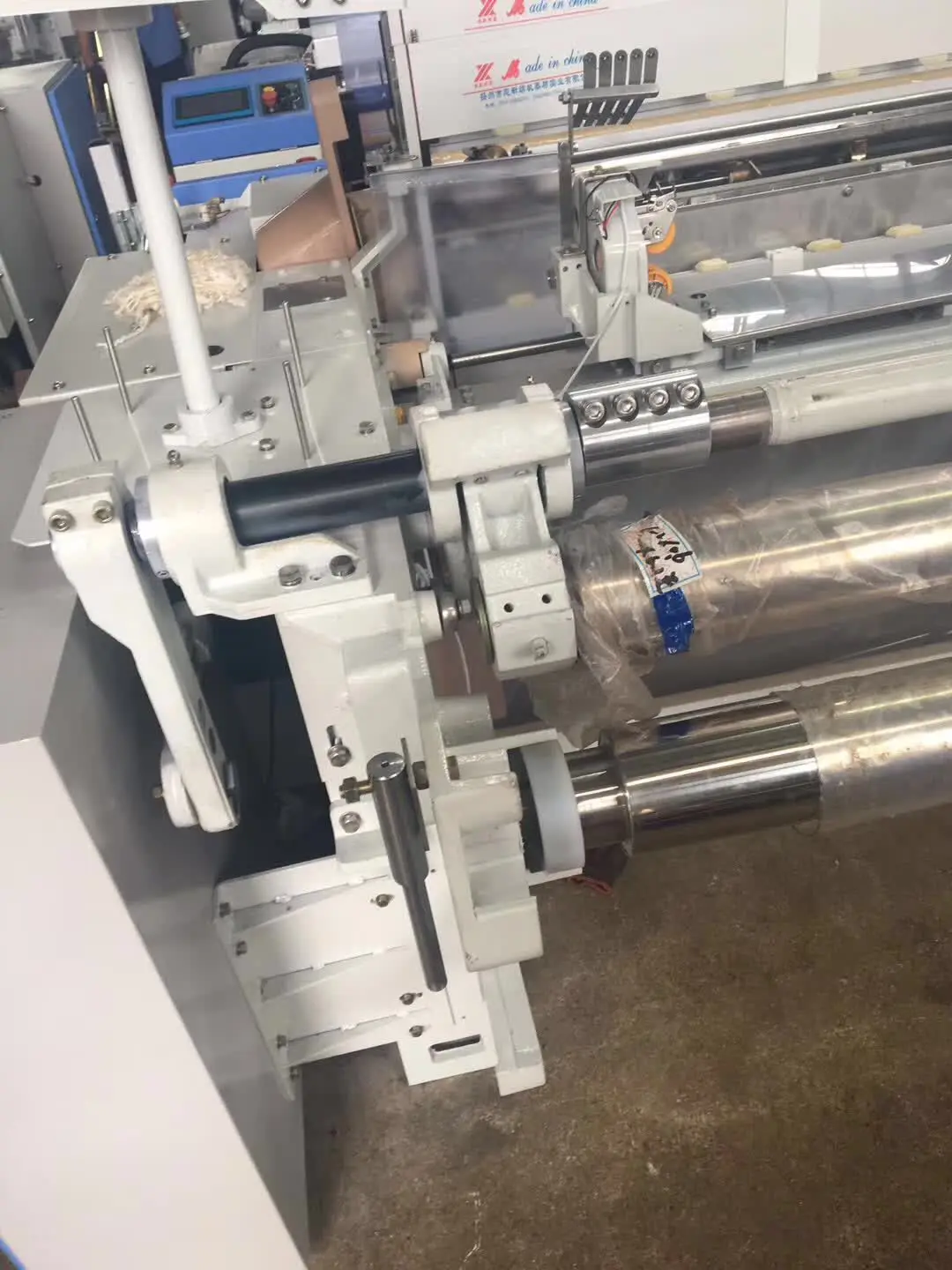

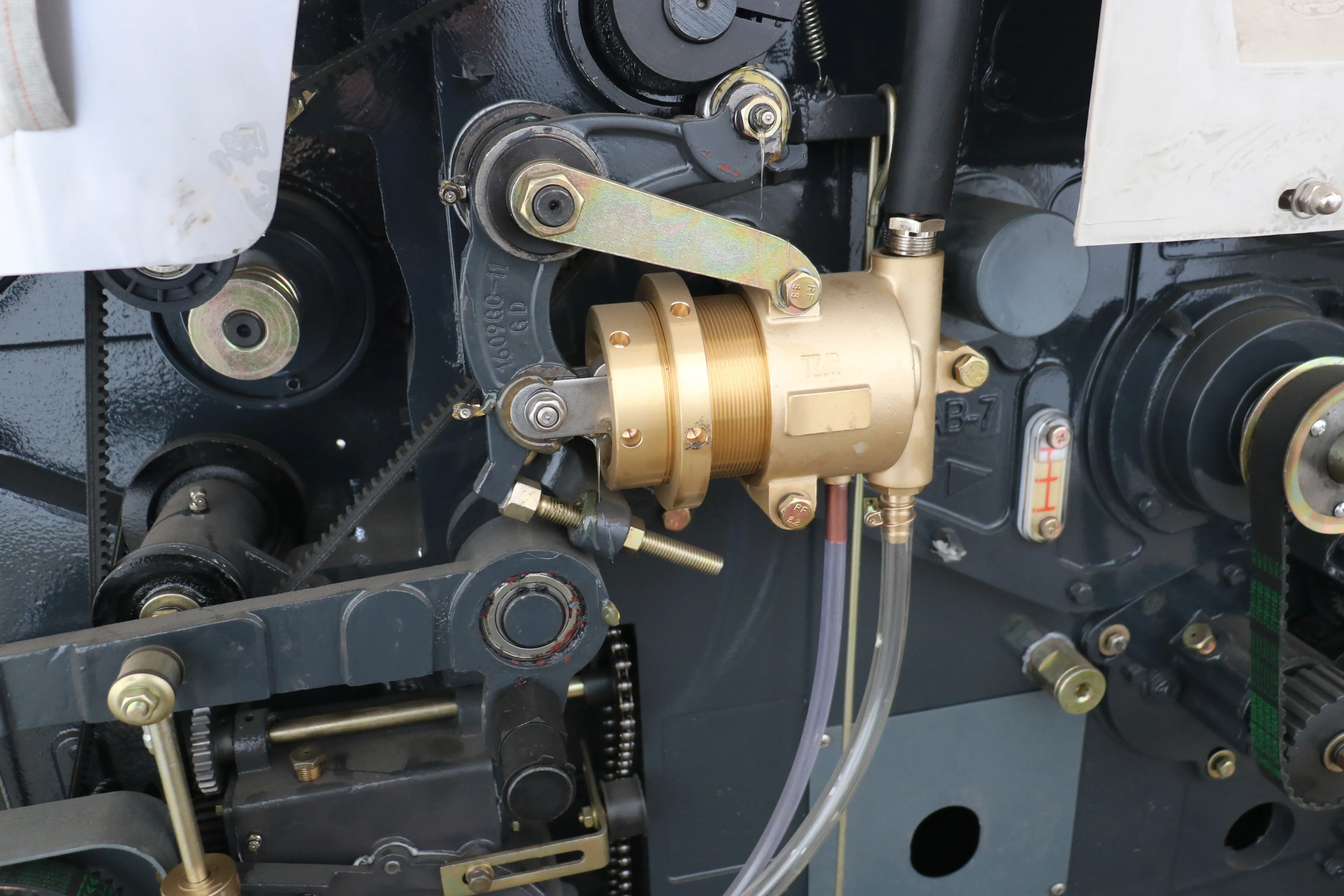

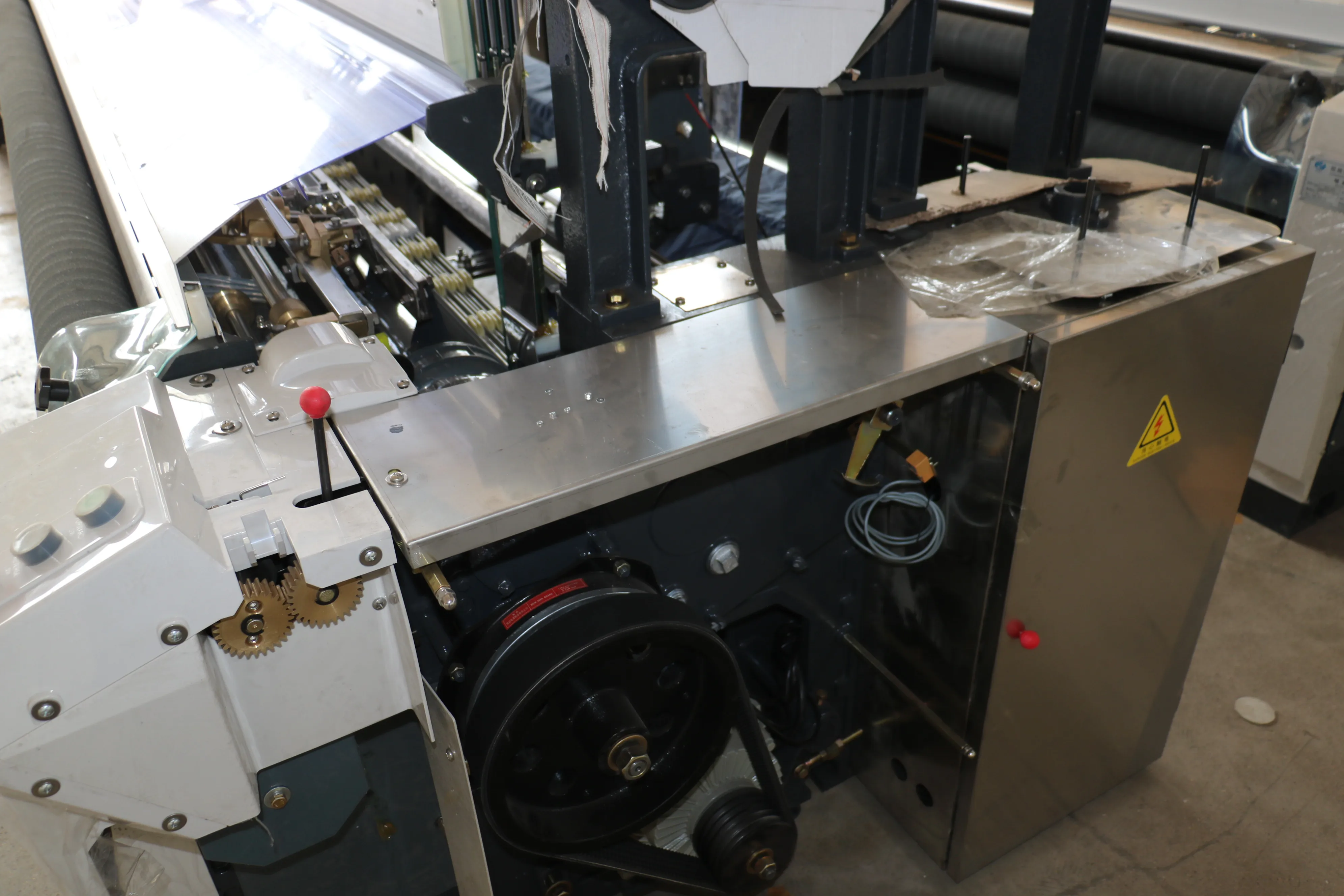

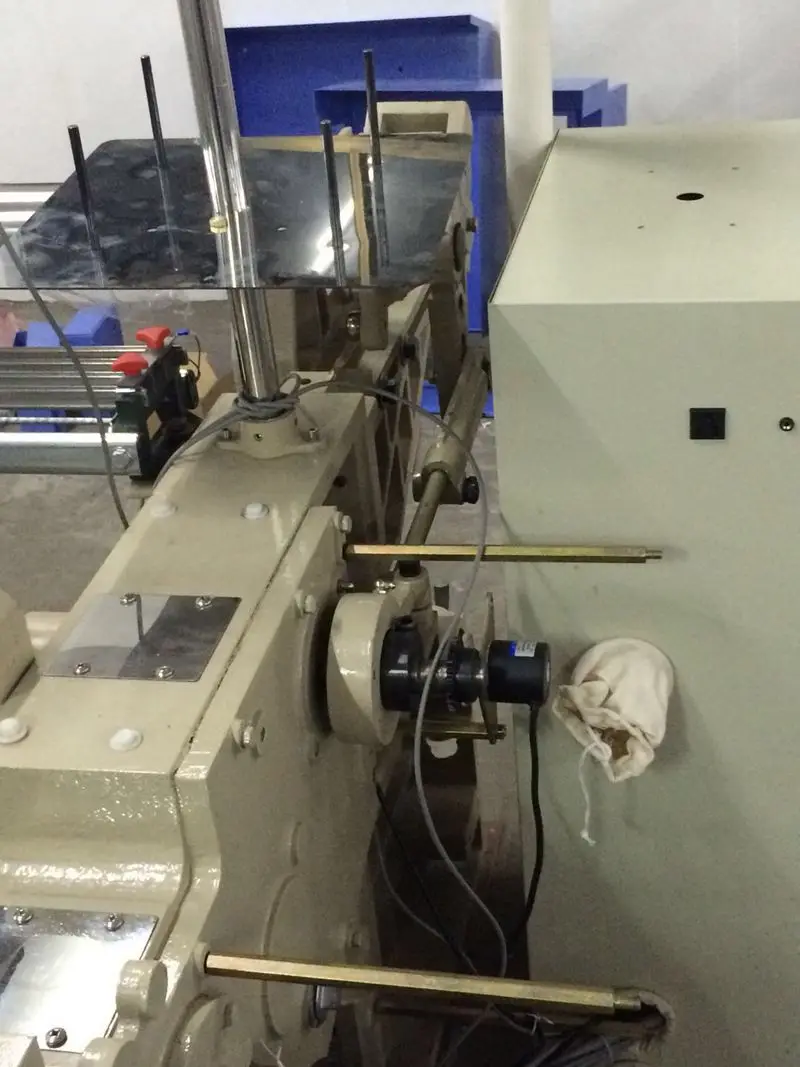

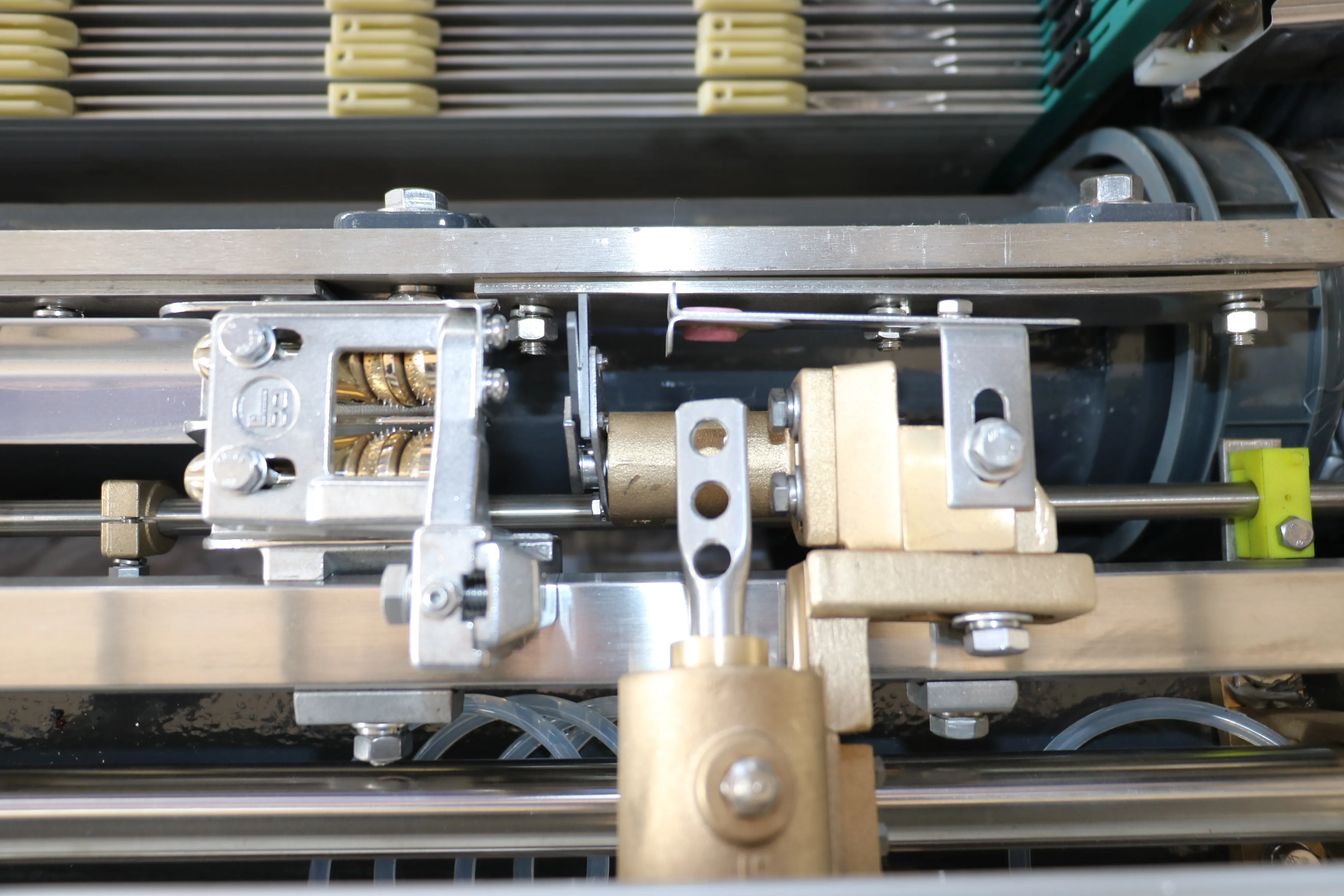

Detailed Images










Packing&Shipping




Company Introduction




Qingdao Hengxinda Machinery Co.,Ltd. is located in Jiaozhou Bay, close to the Qingdao economic, Technological Development Zone and Tourism Development Zone. There is completed water network, on-land traffic system, convenient cargo transportation and developed communication facilities. Our company is committed to the textile machinery research and development of the professional manufacturers. Our factory is a collection of scientific research, development, production and sales as an integrated whole textile machine company.
The enterprise with science and technology as the guide, and acticely introducing and digesting advanced technology. Specializing in the production of HXD708 series plastic knitting machine, HXD851,HXD408,HXD922 series of water jet loom, HXD800,HXD900 series air jet loom. Our technology has reached the industry advanced level and our products sell well all over the world.
Our company is strict of quality management system, the new business idea and perfect after sale service. High quality is we to your pledge, the sincere cooperation, develops the market together, your satisfaction is our anticipation, will create happy tomorrow hand in hand!


FAQ


Q: Are you factory or trade company?
A: We are factory with trade department
Q: What kind of product do you make?
A: Water jet loom, air jet loom, medical gauze loom
Q: Do you have engineer work available in abroad?
A: Yes, we have more than 20 engineers for sales service in domestic and abroad.
Q: Which market has your water jet loom and air jet loom?
A: We sold machine in India, Pakistan, Russa , Uzbekistan, Tailand , Korea, Indonesia, Ethopia, South Africa, Turkey, Uganda.
Q: How can we go to your factory?
A: Arrive at Qingdao air port, take one hour to our factory by car. We will pick you up from air port.
