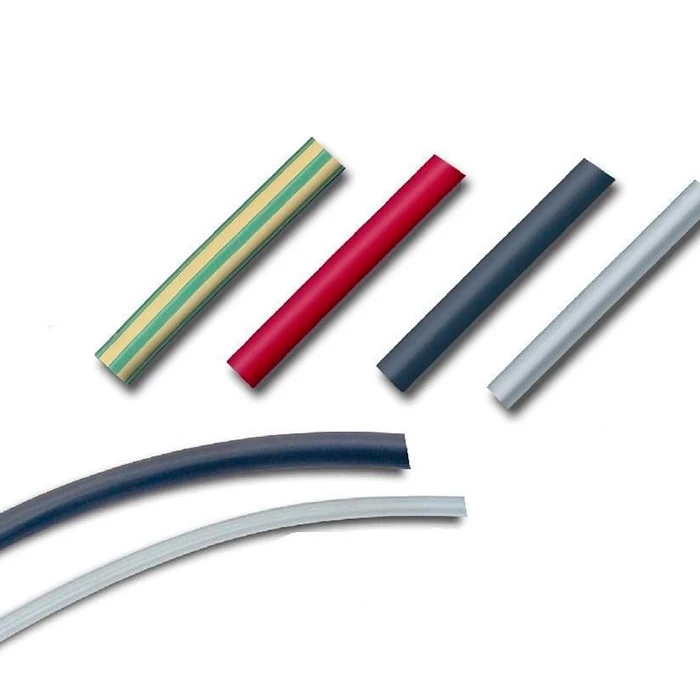

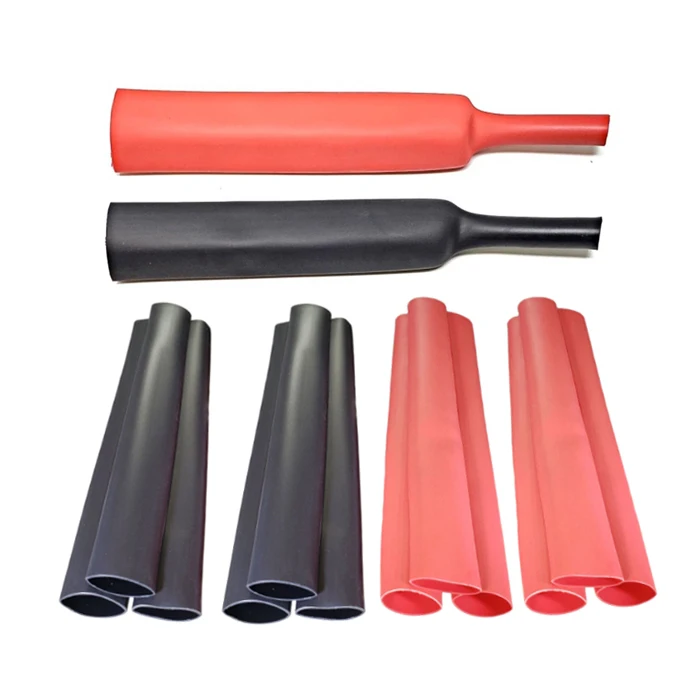

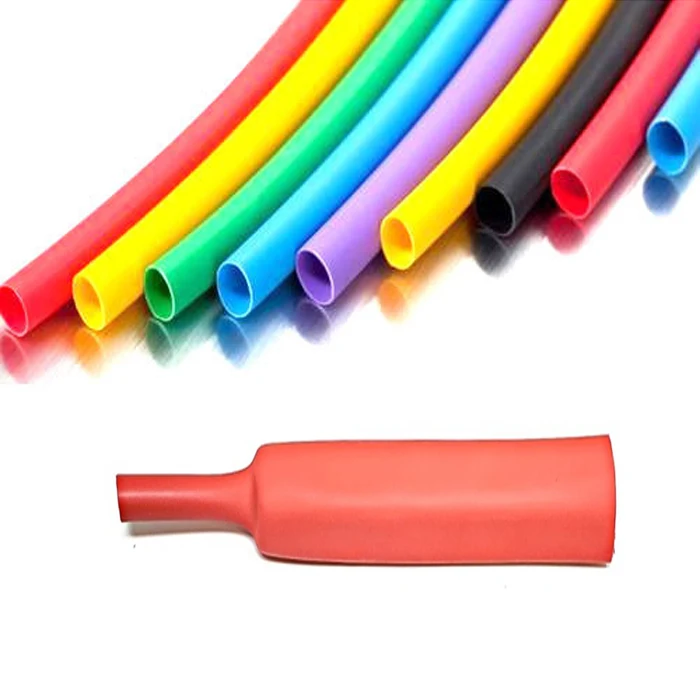

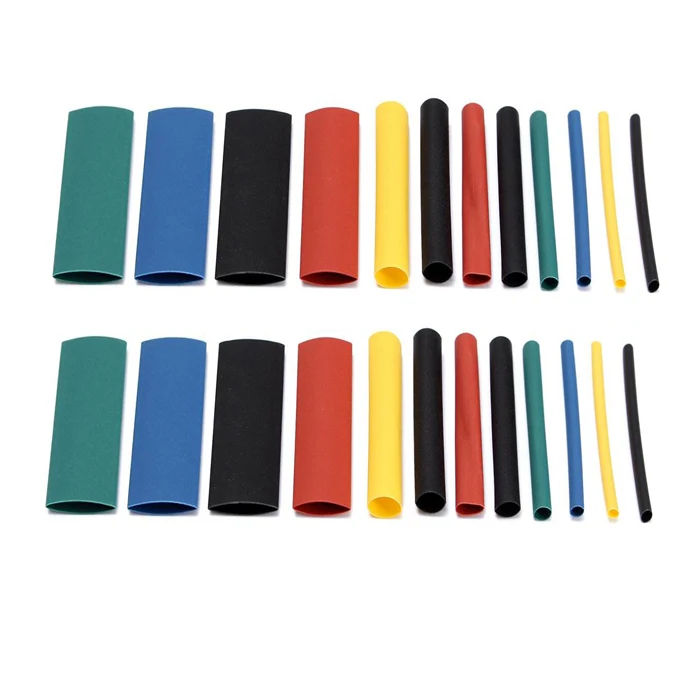

Multi color Halogen Free Single/Double Wall Flexible Polyolefins Heat Shrinkable/Shrink Tube/Tubing

Product Overview

Description

105 Degree Halogen Free 600V 2X Standard  heat shrink tube:





1.Product description:

The product is characterized by halogen-free, Flame resistant, environmentally friendly, soft, Insulation, shrink at low Low Voltage



2.Application:

For insulation and protection of components, terminals, wiring connectors and wiring strapping, marking and identification mechanical protection.



3.Why choose us:

1)We are professional Factory of vehicle heat shrinkable tube and Fiberglass.

2) We can help you in your New Product Design by offering customized type.

3) We can also offer One-Stop Service in other related electronic material products.

4) Various Approved Certificates.

5) Good service.

6) Low MOQ is accepted.

7) Estalished since 2009 as factory.



4.Performance and Technical data :

Product Overview
Product Name			Heat Shrinkable Tube
Place of Origin			Suzhou, China
Model Number			TY-HFT-600-105C-H3(600)-2X
Material			Polyolefins
Application			Low Voltage
Rated Voltage:			600V
Type			Single Wall
Shrink Ratio			2:1
Radiol shrinkage			50%
Axial shrinkage			Φ0.6-Φ28≤±5%,Φ30-Φ50≤±10%
With heart rate(%)			≥65%
Certification			REACH,IATF16949,RoHS
Halogen Content			Halogen Free
EU RoHS Directive 2011/65/EU			Compliant
EU REACH Regulation (EC) No. 1907/2006			Compliant
UL NO.			Not Compliant
Package			Reel,Stick,Bag,Box
Brand Name			TUOYAN,OEM
Flammability			Flammable
Operating Temperature Range (℃ )			From -55 to 105
Minimum shrink temperature (℃ )			80
Minimum full recovery temperature (℃ )			115
Color			CL,BK,RE,BL,YE,GR,BR,WH
Feature			Flexible
Usage			Insulating and protecting for components of high and low valtage of New energy vehicle battery's bus bar.
Area			New energy vehicle battery's bus bar pack.
Benefits			Excellent in insulation,High flame retardant with orange
Special Character			Special for New energy vehicle battery's bus bar pack.
Physical and Chemical Property
Performance	Project		Test Conditions		Index
Physical Properties	Operating Temper. Range(℃ )				From -55 to 105
	Tensile strength(Mpa)		GB/T1040		≥8
	Elongation(%)		GB/T1040		≥300
	Tensile strength after aging(Mpa)		GB/T1040 GB/T7141		≥6.4
	Elongation after aging (%)		GB/T1040 GB/T7141		≥100
	Thermal shock		160C,4H		No fluid,No crack,No dripping
	Low temperature impact		-40℃×4H		No crack
Electrical Properties	Voltage Rating				600V
	Dielectric strength		UL224		Min.2500V/1min
	Volume resistivity(Ω.cm)		UL224		Min. 4.3X1014
	Breakdown strength(Kv/mm)		UL224		≥15
Chemical	Copper Corrosion		UL224,158℃×168hr		No Corrosion
	Copper Stability		UL224,158℃×168hr		Elongation≥100%
	Flammability		ASTM D2671		Flammable

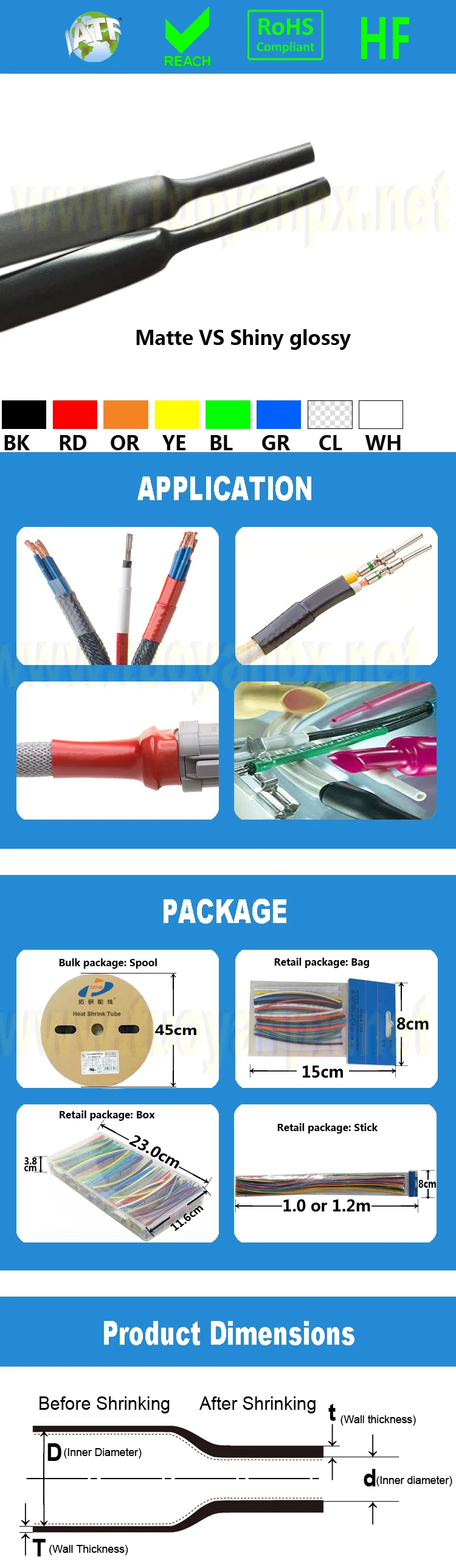

5.Application,Package we can offer and Technical Drawing:

6.Table of Size Specification:

Size Specification

Size

As Supplied

After Recovery

Form

Package: M/roll

Range of application

Min ID

Thickness

Max ID

Thickness

D

T

d

t

mm

inch

mm

inch

mm

inch

mm

inch

30/15

≥30

≥1.1811

2.0±0.60

0.0787±0.0236

≤15.0

≤0.5905

4

±0.30

0.1575

±0.0118

Flat

15

30

35/18

≥35

≥1.3779

2.0±0.60

0.0787±0.0236

≤17.5

≤0.6889

4

±0.30

0.1575

±0.0118

Flat

15

30/40

40/20

≥40

≥1.5748

2.0±0.60

0.0787±0.0236

≤20.0

≤0.7874

4

±0.30

0.1575

±0.0118

Flat

15

40

50/25

≥50

≥1.9685

2.0±0.60

0.0787±0.0236

≤25.0

≤0.9842

4

±0.30

0.1575

±0.0118

Flat

15

50

60/30

≥60

≥2.3622

2.0±0.60

0.0787±0.0236

≤30.0

≤1.1811

4

±0.30

0.1575

±0.0118

Flat

15

60

65/33

≥65

≥2.5590

2.0±0.60

0.0787±0.0236

≤32.5

≤1.2795

4

±0.30

0.1575

±0.0118

Flat

15

60/70

70/35

≥70

≥2.7559

2.0±0.60

0.0787±0.0236

≤35.0

≤1.3779

4

±0.30

0.1575

±0.0118

Flat

15

70

75/38

≥75

≥2.9527

2.0±0.60

0.0787±0.0236

≤37.5

≤1.4763

4

±0.30

0.1575

±0.0118

Flat

15

70/80

80/40

≥80

≥3.1496

2.0±0.60

0.0787±0.0236

≤40.0

≤1.5748

4

±0.30

0.1575

±0.0118

Flat

15

80/100

100/50

≥100

≥3.9370

2.0±0.60

0.0787±0.0236

≤50.0

≤1.9685

4

±0.30

0.1575

±0.0118

Flat

15

100/120

120/60

≥120

≥4.7244

2.0±0.60

0.0787±0.0236

≤60.0

≤2.3622

4

±0.30

0.1575

±0.0118

Flat

15

150

150/75

≥150

≥5.9055

2.0±0.70

0.0787±0.0275

≤75.0

≤2.9527

4

±0.30

0.1575

±0.0118

Flat

15

180

180/90

≥180

≥7.0866

2.0±0.70

0.0787±0.0275

≤90.0

≤3.5433

4

±0.30

0.1575

±0.0118

Flat

15

MAX

210/105

≥210

≥8.2677

2.0±0.70

0.0787±0.0275

≤105.0

≤4.1338

4

±0.30

0.1575

±0.0118

Flat

15

MAX

230/115

≥230

≥9.0551

2.0±0.70

0.0787±0.0275

≤115.0

≤4.5275

4

±0.30

0.1575

±0.0118

Flat

15

MAX

250/115

≥250

≥9.8425

2.0±0.70

0.0787±0.0275

≤125.0

≤4.9212

4

±0.30

0.1575

±0.0118

Flat

15

MAX



 7.Certificates and Reports of this iterm compliant:

Details of Certificates and Reports
Name of Product		Name	Report NO.	Testing Agency	Test Subject		According to standard		Result
Heat Shrink Tube		ROHS	A2200385693101006E	CTI	Pb,Cd,Hg,Cr VI,PBB,PBDE,DEHP,BBP,DBP,DIBP		RoHS Directive 2011/65 EU with amendment(EU) 2015/863		Not Detected(<MDL)
Heat Shrink Tube		REACH	A2200251537101003E	CTI	The 4 SVHC		(EC) No 1907/2006(REACH)		less than 0.1%(w/w)
Flexible 125℃ 300V Heat Shrink Polyolefin Tube		UL	E479329	UL					compliant
Flexible 125℃ 600V Heat Shrink Polyolefin Tube		UL	E479329	UL					compliant
Heat Shrink Tube		IATF16949:2016	0346975/CNIATF036723	NSF ISR					compliant
