Share on (1600464841021):


Price:$7,500.00 - $8,000.00

Quantity:


Product Overview

Description





20/5 ton LH Model Double Girder Bridge Crane Puente Grua Electric Overhead Travelling Crane



























































Brief Introduction

1. The Electric Hoist 10 20 Ton Double Girder Overhead Crane is light and medium duty materials lifting machine, with lifting capacity of 1-10 ton, span of 10.5~31.5 meters, and lifting height of 6-9 meters. The equipment is widely used in factories, mines, warehouses and workshops.
2. The 16t Hoist Overhead Crane is mainly comprised of box-shape bridge, trolley, long travelling mechanism, cab and electric control system.
3. It is prohibited to use the equipment in combustible, explosive and corrosive environment.




Technology Parameter



















































Lifting weight(t)



10



Span(m)



10.5-31.5



Speed


(m/min)



Hoisting



7,7/0.7



Traveling of crab



20



Traveling of trolley



Surface



20(30)



Cabin



20(30)



Electric hoist






ZD151-4/13



Lifting height(m)



9,12



Working class



A3~A5



Power source



380v 50Hz three-phase



Crane rail recommended(kg/m)



38






Sketch
Electric Hoist 10 20 Ton Double Girder Overhead Crane

Component


Electric Hoist 10 20 Ton Double Girder Overhead Crane

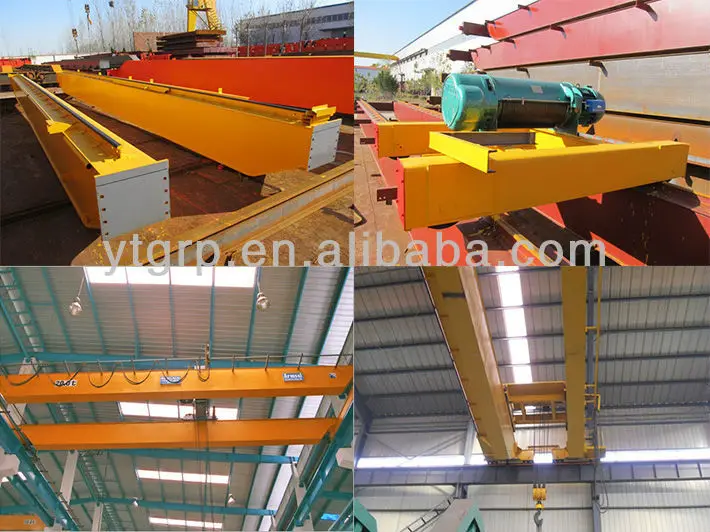

Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus the intensity and toughness are reliable. On the main girders laid the rails for cross travel.


The trolley adopts an electric hoist fixed on the trolley frame as the lifting mechanism. CD model electric hoist with single speed and MD model electric hoist with double speeds are in choice according to your demand.


Electric parts adopt international brand Siemens and Schneider.


Electric Hoist 10 20 Ton Double Girder Overhead Crane

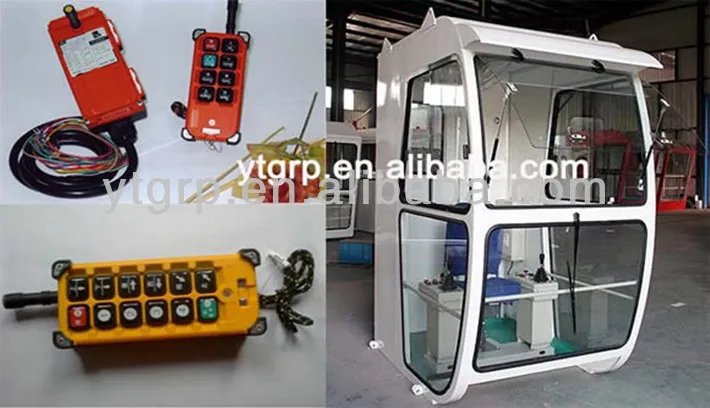

Three control methods are for choice, including pendent line with press button, remote control and cabin control.
Electric Hoist 10 20 Ton Double Girder Overhead Crane

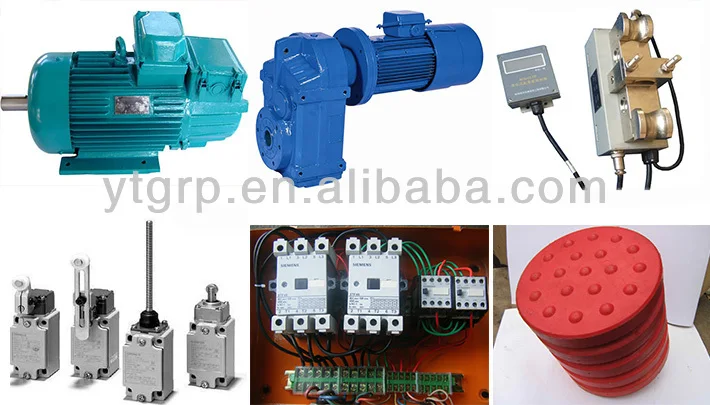

1. The motor adopted is top in China and features large overload capacity and high machinery intensity with low noise. With the protection level of IP44 or IP54, and insulation class of B or E, , the LH overhead crane is able to meet the demand of general usage.


2. The electric parts adopt international brand Siemens, Schneider, or Chinese top brand Chint to ensure the accurate and safe operation.


3. Wheels, gears, and couplings are processed by medium-frequency quenching technology, abd have a great improvement in intensity, rigidity and tenacity.


4.Painting: a Primer and finishing paint   b Average thickness: about 120 microns   c Color: according to your request


Safety

1. Weight overload protection device Weight overload protection device will warn when the lifted materials are beyond the capacity, and the displayer will show the data.


2. Current overload protection device shall cut off the power when the current overstep the set figure.


3. Emergency stop system shall be used to stop all motions once any emergency occurs to avoid more damage.


4. The limit switch prevent the travelling mechanism from over travel.


5. The polyurethane buffer can absorb impact and help travelling mechanism stop softly and harmlessly.


After-sale Service

1. The warranty is 1 year.


2. During the warranty spare parts are provided fee okgkgkgk charge for quality problem under correct operation.


3. Low charge for maintenance when the warranty is expired.


4. Experienced engineers are available.




         1.the crane lifting weight is           ton.


         A.0-10t    B.10-25t    C.25-100t    D.80-120t


         2.the crane lifting height is            m.


         A.0-5m    B.5-10m    C.10m-20m    D.20m-30m


         3.the voltage is            V              HZ 3phase.


         A.208/240V   B.220V    C.380/460V    D.400V


         4. the crane work duty is            (normal A3)


         A.Manufacturing   B.MetalsProduction   C.Shipyards   D.Power


         5.the span of crane is           m


         A.5fpm   B.10fpm    C.15fpm    D.30fpm


         6.What material will be lifted?


         7.the control model is


         A.pendent control   B.remote control    C.cabin control


         8.If you need rail and bus bar,please supply the travelling length is            m





To get the latest quotation, please copy the above options and click here to select your specific requirements.
