High Pressure Concrete Pump Cement Grouting Machine Power Building Liquid Weight Material Type
- Category: Concrete Pumps >>>
- Supplier: Henan,Shengmao,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

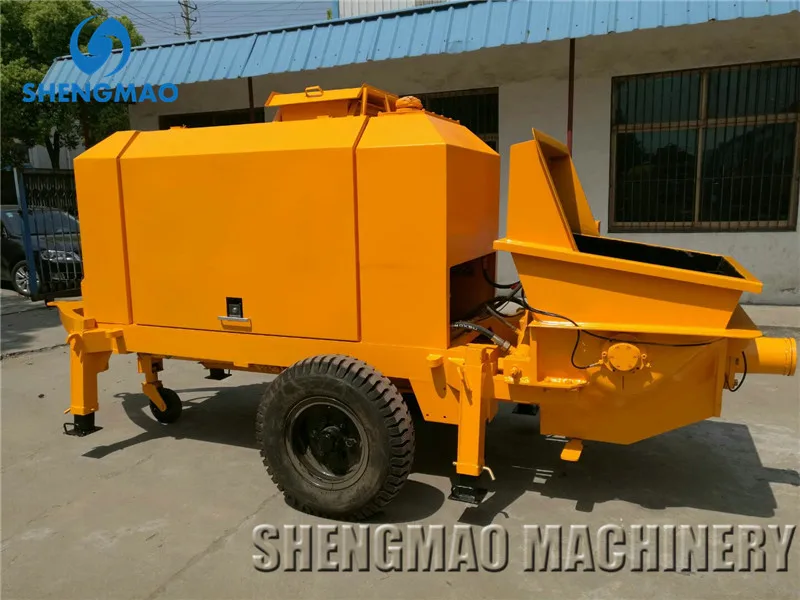

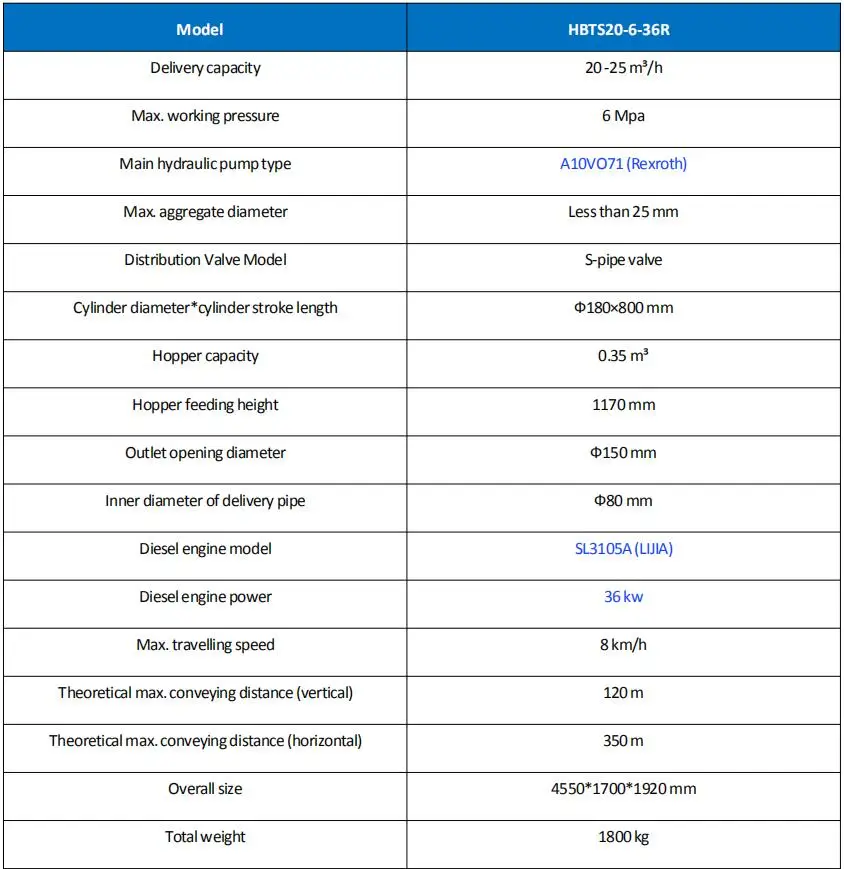

HBTS20-6-36R Diesel Concrete Pump
※ Automatic lubrication system ensure long successive running time※ High quality parts, spare parts electronic list, make the selection fast and accurate
※ One-key switch between high pressure and low pressure, allows switch at any time, featuring no leakage and no pollution
※ Two-way cartridge valve patent technology, assisted with independent cooling system and filtration system, low oil temperature,
small impact to the hydraulic system, prolongs the service life
※ Intelligent control system, computer automatically control technology for diesel engine speed, energy saving and environment friendly
Other related concrete pump
Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel
construction. Our concrete pump can deliver concrete to about 200 meters in height and 300 meter in length.
We use world famous brand for the main parts of our concrete pump which can ensure the performance of the machine. Such as: Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal, France Schneider electrical elements etc.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.
Currently, we have 10m3/h to 90m3/h electricity powered or diesel-powered concrete pump for you to choose. Welcome to contact us for details and quotations.
construction. Our concrete pump can deliver concrete to about 200 meters in height and 300 meter in length.
We use world famous brand for the main parts of our concrete pump which can ensure the performance of the machine. Such as: Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal, France Schneider electrical elements etc.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.
Currently, we have 10m3/h to 90m3/h electricity powered or diesel-powered concrete pump for you to choose. Welcome to contact us for details and quotations.
HBTS10R Diesel Concrete Pump
Capacity: 10m³/h
Capacity: 10m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 30/80m
Diesel engine power: 36kw
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
HBTS20R Diesel Concrete Pump
Capacity: 20m³/h
Capacity: 20m³/h
Max. aggregate diameter: 30mm
Conveying Distance (Vertical/Horizontal): 120/350m
Diesel engine power: 36kw
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
BS30R diesel powered concrete pump
Capacity: 30m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Diesel engine power: 56kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
BS30 electricity powered concrete pump
Capacity: 30m³/h
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Max. aggregate diameter: 30mm
Max.Conveying Distance (Vertical/Horizontal): 160/400m
Motor power: 37kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
HBTS40R diesel powered concrete pump
Capacity: 40m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Diesel engine power: 62kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
HBTS40 electricity powered concrete pump
Capacity: 40m3/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600 m
Motor power: 45kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
HBTS60R diesel powered concrete pump
Capacity: 60m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Diesel engine power: 82kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
HBTS60 electricity powered concrete pump
Capacity: 60m³/h
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Motor power: 90kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Max. aggregate diameter: 40mm
Max.Conveying Distance (Vertical/Horizontal): 180/600m
Motor power: 90kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
HBTS80R diesel powered concrete pump
Capacity: 80m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Diesel engine power: 129kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
HBTS80 electricity powered concrete pump
Capacity: 80m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
HBTS90R diesel powered concrete pump
Capacity: 90m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Diesel engine power: 129kw
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
Diesel Engine Brand: Weichai
Main Hydraulic Pump: Korean Kawasaki
HBTS90 electricity powered concrete pump
Capacity: 90m³/h
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Max. aggregate diameter: 50mm
Max.Conveying Distance (Vertical/Horizontal): 300/1000m
Motor power: 110kw
Motor Brand: Rongcheng
Main Hydraulic Pump: Korean Kawasaki
Detailed Images
Machine Parts

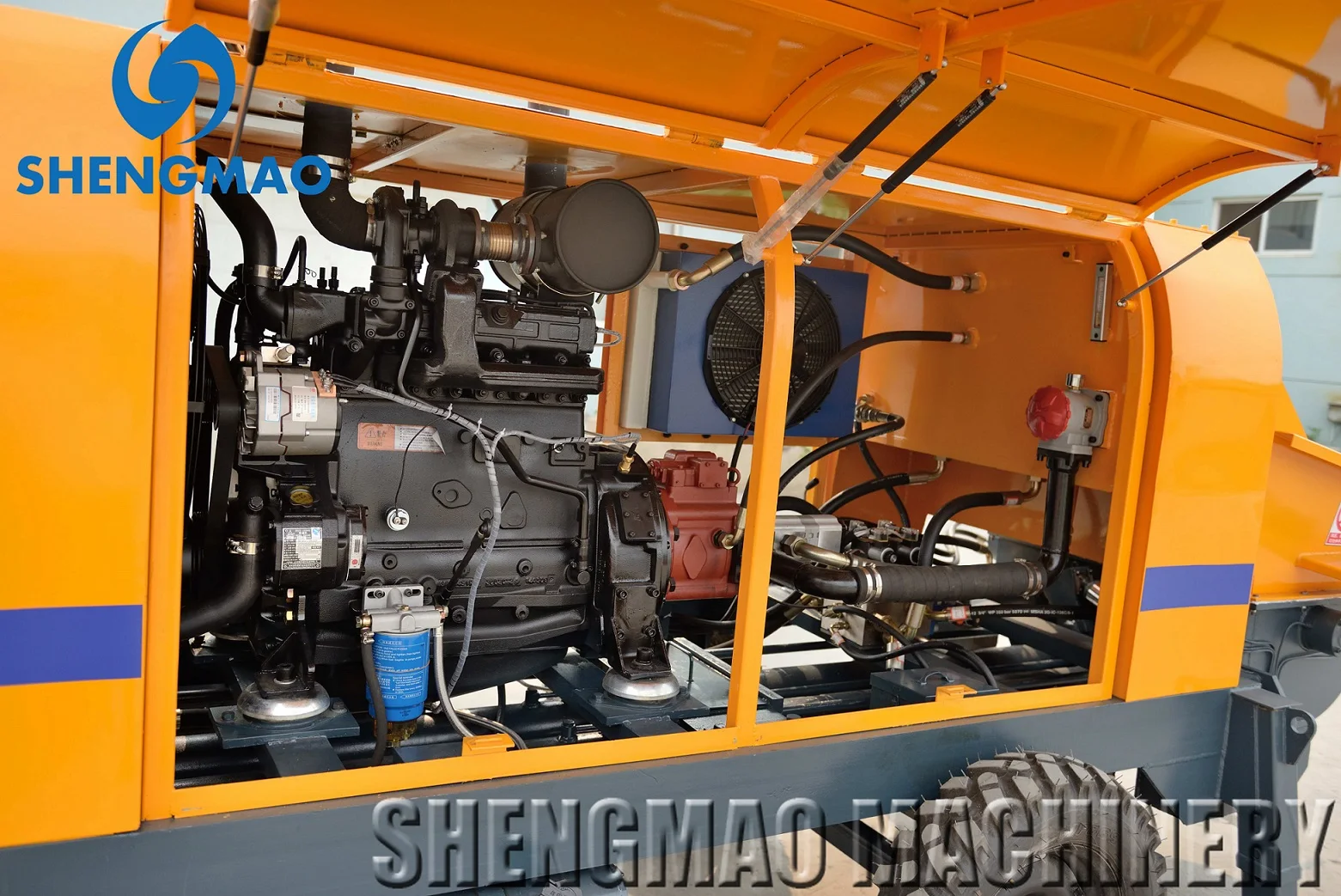

Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.
Machine Parts
Name: Hydraulic pump
Brand: FLUTEK Kawasaki
Original: Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.
Machine Parts
Name: Hydraulic oil pipe
Brand: Manuli
Original: Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.
Main Features
Name: PLC
Brand: OMRON
Original: Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
Brand of main parts
Oil pump | Korean Kawasaki | ||||||||||||||
PLC | Japanese OMRON | ||||||||||||||
Hydraulic pipe | Italy Manuli | ||||||||||||||
Seal | American Parket | ||||||||||||||
Electric control elements | French Schneider | ||||||||||||||
Intermediate relay | French Schneider | ||||||||||||||
Control mode | Remote Control | ||||||||||||||
Our projects
Packing&Shipping
Our Services
Our services
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
