hot sale classroom for training Electronic Whiteboard OPS C 30cm mobile i5 3210M 80 PIN industrial computer ops pc
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Aio Electronics Technology Limited
Share on (1600465266169):
Product Overview
Description
Product Description
● Intel OPS-C standard module
● Supports Intel 2-3th Gen CPU
● Compatible with 95% of large panle
● Supports SSD & 2.5 "HDD
● 9 x USB2.0/3.0,1000M LAN
● Cool cooling & silent fan
● Supports 12V-19V DC
● Super cost performance ratio
● Supports Intel 2-3th Gen CPU
● Compatible with 95% of large panle
● Supports SSD & 2.5 "HDD
● 9 x USB2.0/3.0,1000M LAN
● Cool cooling & silent fan
● Supports 12V-19V DC
● Super cost performance ratio
Specifications
Processor System | CPU | 2-3th Gen Intel® Mobile , PGA988，TDP 35W |
PCH | HM76 | |
BIOS | AMI UEFI BIOS | |
Graphics | Chipset | Intel UHD Graphics |
VRAM | 1.1GB (Max) | |
Multi displays | Support Dual displays | |
Interface | 1 x HDMI1.0 , resolution1920 x 1080 @ 60Hz 1 x VGA , resolution1920 x 1080 @ 60Hz 1 x 80pin Con. HDMI1.0, resolution 1920 x 1080 @ 60Hz | |
Memory | Type | 1 x SO-DIMM DDR3 |
Max | 32GB | |
Storage | Type | SSD/HDD |
Interface | 1 x MSATA SSD,1 x SATA | |
Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
Interface | 10/100/1000Mbps | |
Connector | 1 x RJ45 | |
Wireless | Type | PCIe+USB Wi-Fi/BT module |
Interface | 1 x MINIPCIE for Wifi+BT module | |

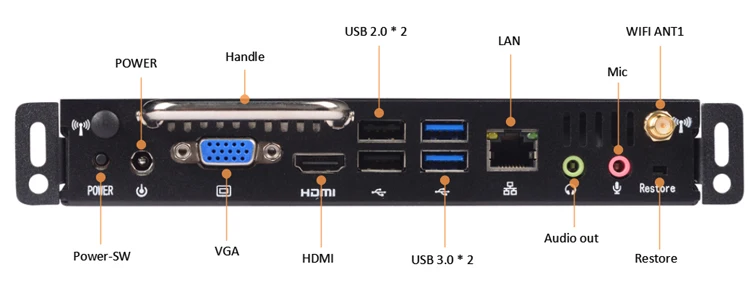

IO Interface | Front panel | 1 x HDMI1.0,1920 x 1080 @ 60Hz 1 x VGA,1920 x 1080 @ 60Hz 4 x USB 2.0, 2x USB 3.0, 1 x RJ45 1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT 1 x Power button, 1 x Reset button, 2 x POWER HDD LED |

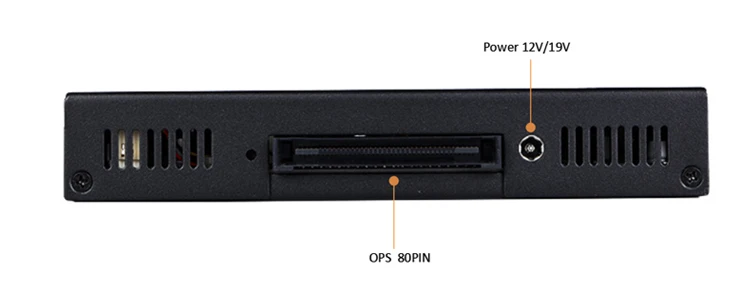

Rear pane | 1 x 80pin : HDMI 1.4,3 USB2.0 ,TTL,AUDIO out 1 x 2.5/5.5 DC IN JACK | |
Software | OS Supports | WINDOWS xp/7/10 / LINUX |
Watchdog | Support | |
vPro/AMT | N/A | |
TPM | N/A | |
Ghost | Support | |
Power | Power inpu | 12 /19V DC IN, 2.5/5.5 DC Jack |
Size | size | 195 x 180 x 30mm |
Environment | Operating Temp | -5~45℃ |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |

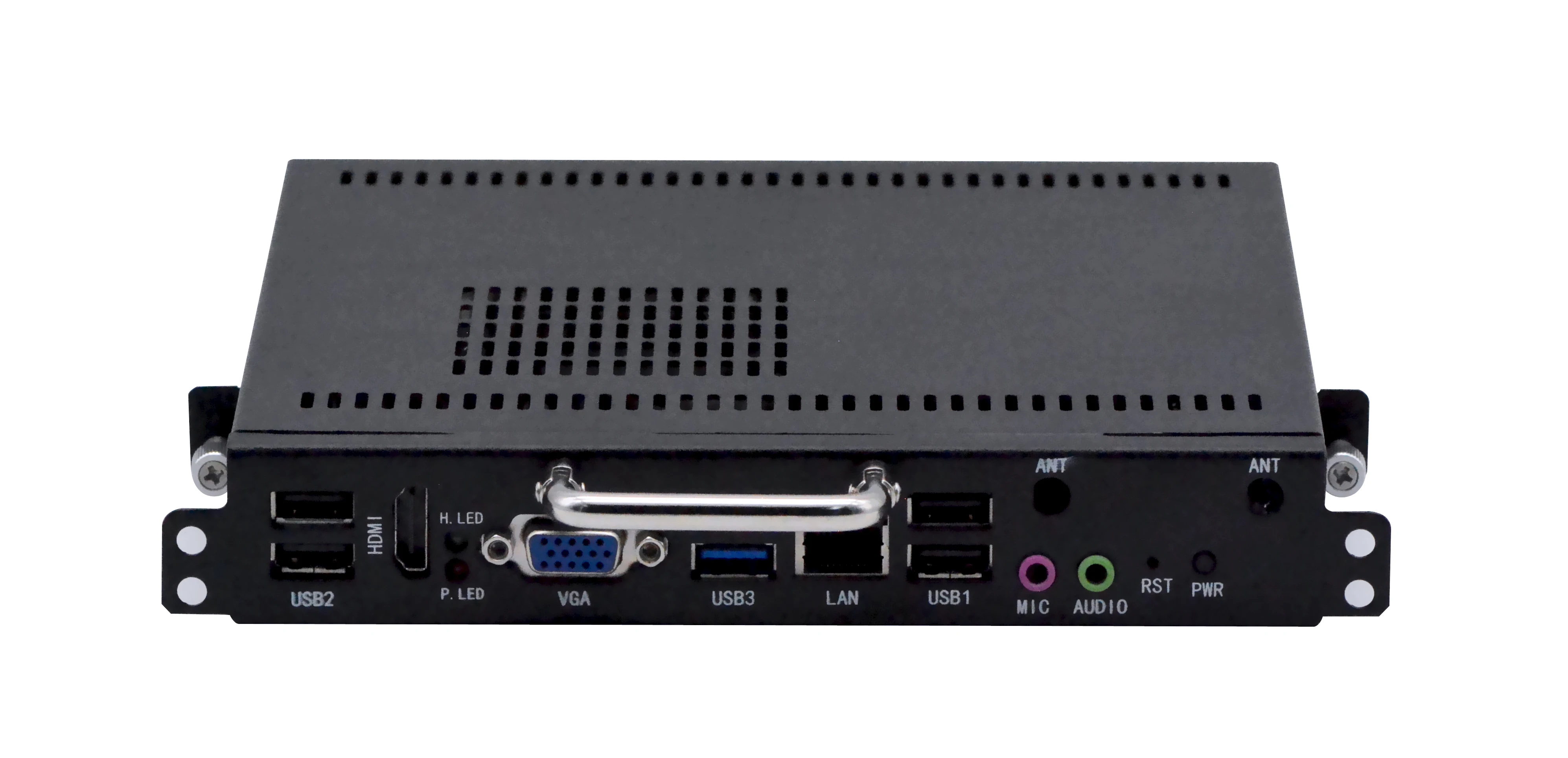

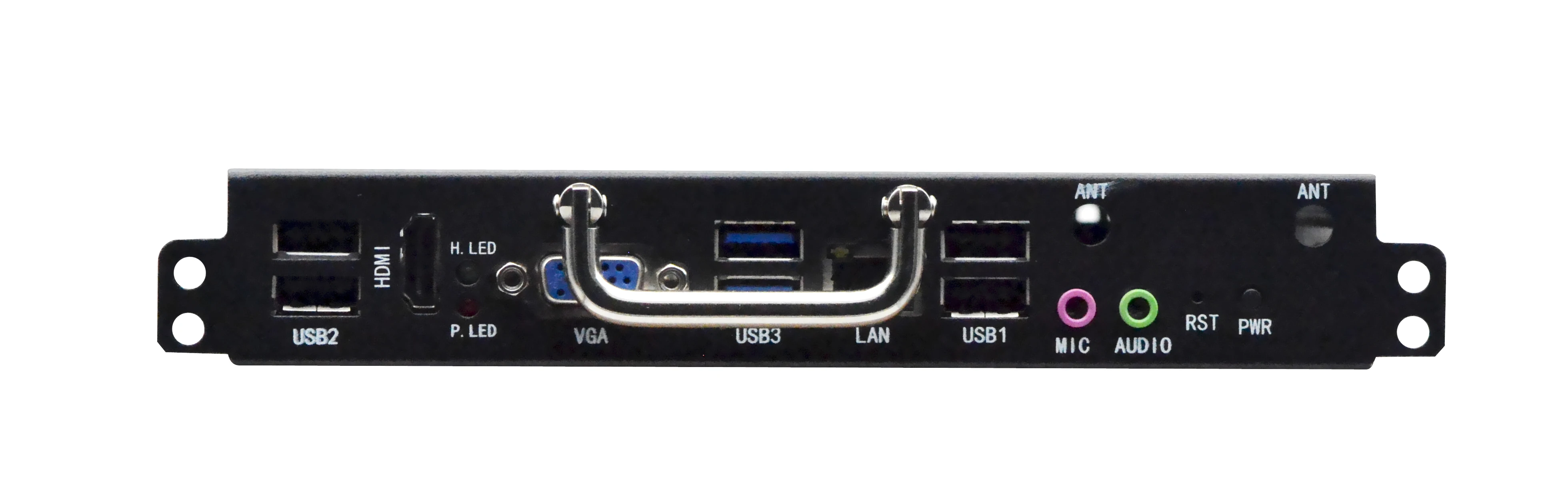

I/O

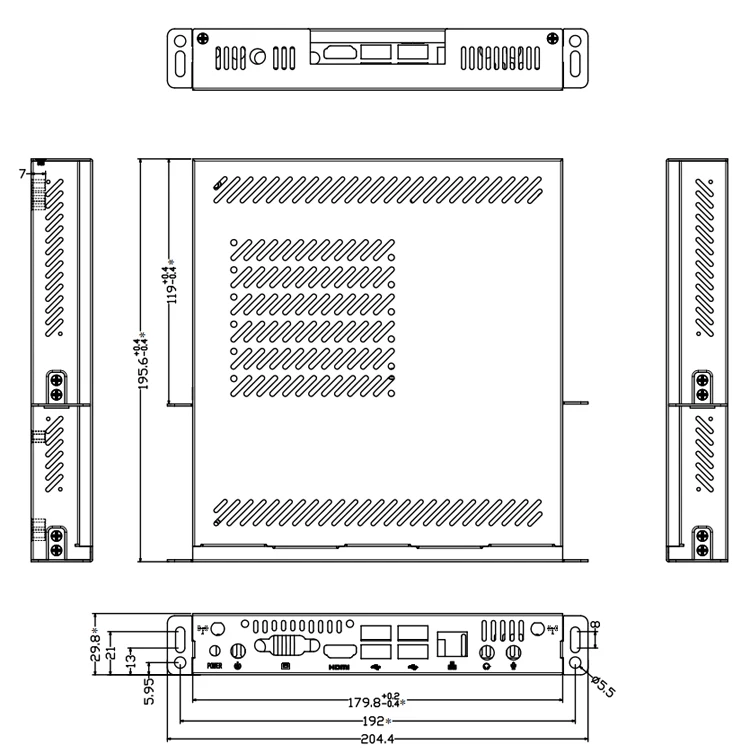

Size

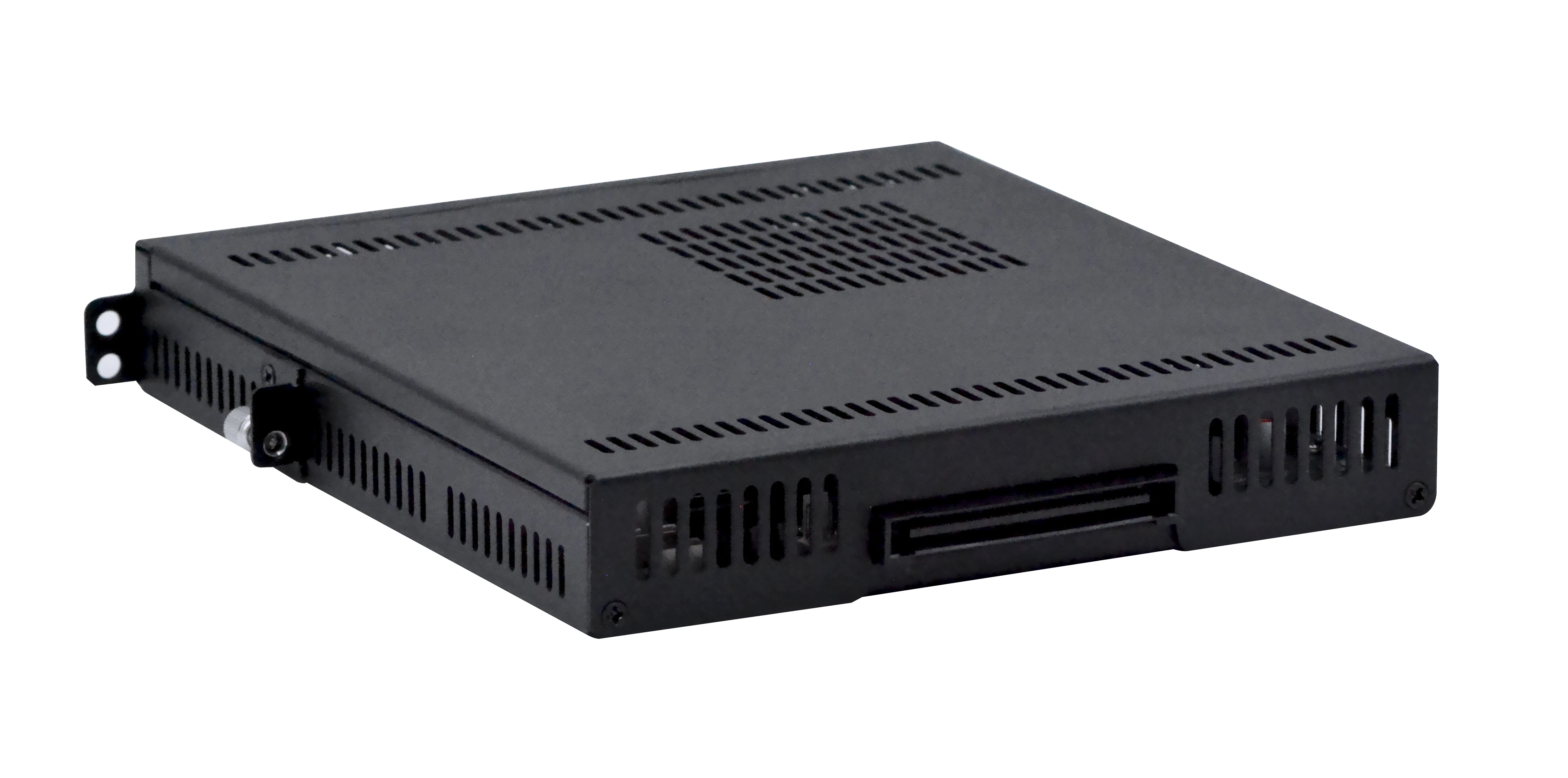

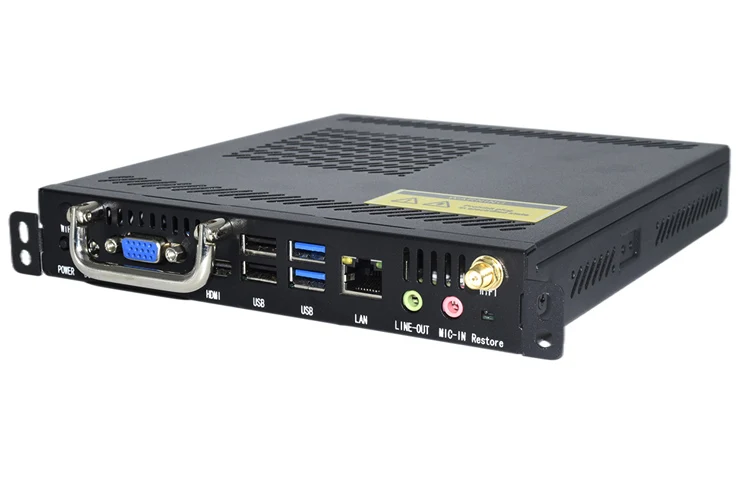

View
Information
Model | Description |
OPS-C37U3 | I3-3110M/MSATA/ SO-DIMM DDR3/ WIFI+BT module/ HDMI /VGA/USB |
OPS-C57U3 | I5-3210M/MSATA/ SO-DIMM DDR3/ WIFI+BT module/ HDMI /VGA/USB |
OPS-C57U3 | I7-3520M/MSATA/ SO-DIMM DDR3/ WIFI+BT module/ HDMI /VGA/USB |
Manufacturing & Quality Control
Ops Manufacturing capacity.
Production equipment: 3*20m standard assembly lines, 13*product test stands, 6 *aging racks and 2 packaging lines.
Production personnel: production personnel * 3 groups, QC personnel * 1 group, maintaine * 1 group, Production engineering * 1 group.
Manufacturing system: Manufacturing system: MES, ISO9001, IE, lean production.
Daily output: 1000 standard parts/day，Max 120%.
Production personnel: production personnel * 3 groups, QC personnel * 1 group, maintaine * 1 group, Production engineering * 1 group.
Manufacturing system: Manufacturing system: MES, ISO9001, IE, lean production.
Daily output: 1000 standard parts/day，Max 120%.
SMT line
DIP line
Assembly line
QC test
Packaging line
Finished product warehouse
Quality reliability test
High&low temperature test
Simulated vibration test
BGA welding analysis
Aging test
EMC&ESD test
Heat dissipation test
Power adaptability test
Quality control flow chart
Wireless transmission test
I/O plug fatigue test
Product Application
The OPS computer is a Pluggable OPS computer based on Intel OPS(Open Pluggable Specification) solution. The product is widely used in multimedia teaching system,computer touch all-in-one, digital signage.
Packaging logistics
Packaging : We carefully wrapped OPS computers and components in antistatic bags, and then fixed them in inner boxes with EPE pearl cotton protective covers. Put 5 inner boxes into the outer box, and then seal the outer box with adhesive tape.
Packing list : OPS PC*1 Antenna *2 Do not loosen screws *2
Shipping Methods.
Shipping by DHL, Fedex, Aramex, post and Alibaba, RETS Express and negotiation. ( choose as you prefer).
Freight calculation reference:
1 piece/independent carton (average: 1.0-1.5kg,Meas:27.5*23*10cm);
5 pieces/standard independent carton (g.w:5.6-8kg,Meas:47*28*24.5cm);
5 pieces/standard 5-in-1pack carton (g.w: 5.0-7.7kg,Meas::32*27.8*26.5cm);
1 piece/independent carton (average: 1.0-1.5kg,Meas:27.5*23*10cm);
5 pieces/standard independent carton (g.w:5.6-8kg,Meas:47*28*24.5cm);
5 pieces/standard 5-in-1pack carton (g.w: 5.0-7.7kg,Meas::32*27.8*26.5cm);
FAQ
Q1: What types of large display are compatible with your OPS PC?
A: Our OPS PC is designed according to the standard Intel OPS protocol. As long as the large screen conforming to the OPS protocol can be matched. According to statistics, 95% of the OPS slots and 80pin definitions of large screens in the market comply with Intel OPS protocol and are fully compatible. Compatible manufacturers include Samsung LG Philips AOC BenQ hitevision Hisense konna change Skyworth TCL KCT iboard riotouch Deli ipboard boct Qinguan JAV hushida maxhub sosu w-media, etc. incompatible manufacturers include cvte seewo ViewSonic (some models). You can also tell me the model of the large screen.
Q2: How to adapt the best OPS computer according to the large screen?
A: The selection of OPS PC configuration is calculated according to specific use requirements and scenarios. The OPS size is determined according to the measured large screen OPS slot size. You can inform the customer service of the demand and the approximate size of large screen OPS, and professional engineers will serve you. Ops has three conventional sizes: 180 * 195 * 42cm, 180 * 195 * 30cm and 180 * 119 * 30cm.
Q3: What configuration options do you have for your OPS?
A: Ops size: 180 * 195 * 42cm, 180 * 195 * 33cm, 180 * 195 * 30cm, 180 * 119 * 30cm, customized size.
Appearance color: black, white, custom color
CPU: Intel 3rd-11th, atom Celeron Pentium I3 i5 i7 i9
RAM: DDR3/4/5,4G-64G
Hard disk: SSD / HDD, 64g-10t, SATA, msata, ngff PCIe
Graphics card: integrated graphics card / independent graphics card
Display output: 2K / 4K / 8K, 30Hz / 60Hz / 120Hz, VGA / DVI / HDMI / DP
I/O : USB2.0/3.0,TYPC/HDMI VGA DP/audio/LAN/COM
Network: WiFi / BT / 4G / 5G
Q4: Can OPS PC be operated on the large screen?
A: Of course, it supports the operation of OPS computer on the large screen, such as startup and shutdown, touch port call, etc..
Q5: Support os one click restore and backup?
A: Of course, most models of our OPS PCs have hardware ghost function and support one click restore.
Q6: Do you support OEM / ODM?
A: Of course, we support OEM/ODM service. service content:
OEM
1. logo printing on housing
2. Customize package
3. Software Customization: Booting image, UI, APP, Function… and so on
ODM
1. PCBA desgin
2. Housing desgin
3. Software Customization: Booting image, UI, APP, Function… and so on
Q7: How much do I need to pay for your OEM/ODM service?
A: There is no extra charge for simple Oems, special Oems and simple ODMs are charged at cost, generally not more than $500, but if you order 300 units per lot, it will be Free for oem. Special ODMS are charged at cost, but if your order reaches 500 per lot, it will be Free.
Q8:What is the price base?
A: Our price is based on detailed specification such as RAM, HD/SSD, WIFI card, etc. The price range on Alibaba basically covers all specification, so pls contact us first with your detailed specification before your order release.
Q9: What is the minimum order quantity?(MOQ)
A: 1 unit
Q10: What trade terms do you accept?
A: EX-W/FOB/CIF all can accept.
Q11: What is your warranty and after-sales policy?
A: The defect rate of our OPS computers is lower than 0.3% The general warranty period is 3 years. The product adopts modular design, during the warranty period of failure and repair, we will quickly send spare parts in the past to replace, if necessary can also recall.
Q12: How long the package will ready after I buy the OPS pc?
A: mainboard Under normal inventory conditions, 50 units can be delivered within 24 hours, and 200 units can be delivered within 48 hours. Please consult us for more information.
Q13: Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm model with us before placing your order.
