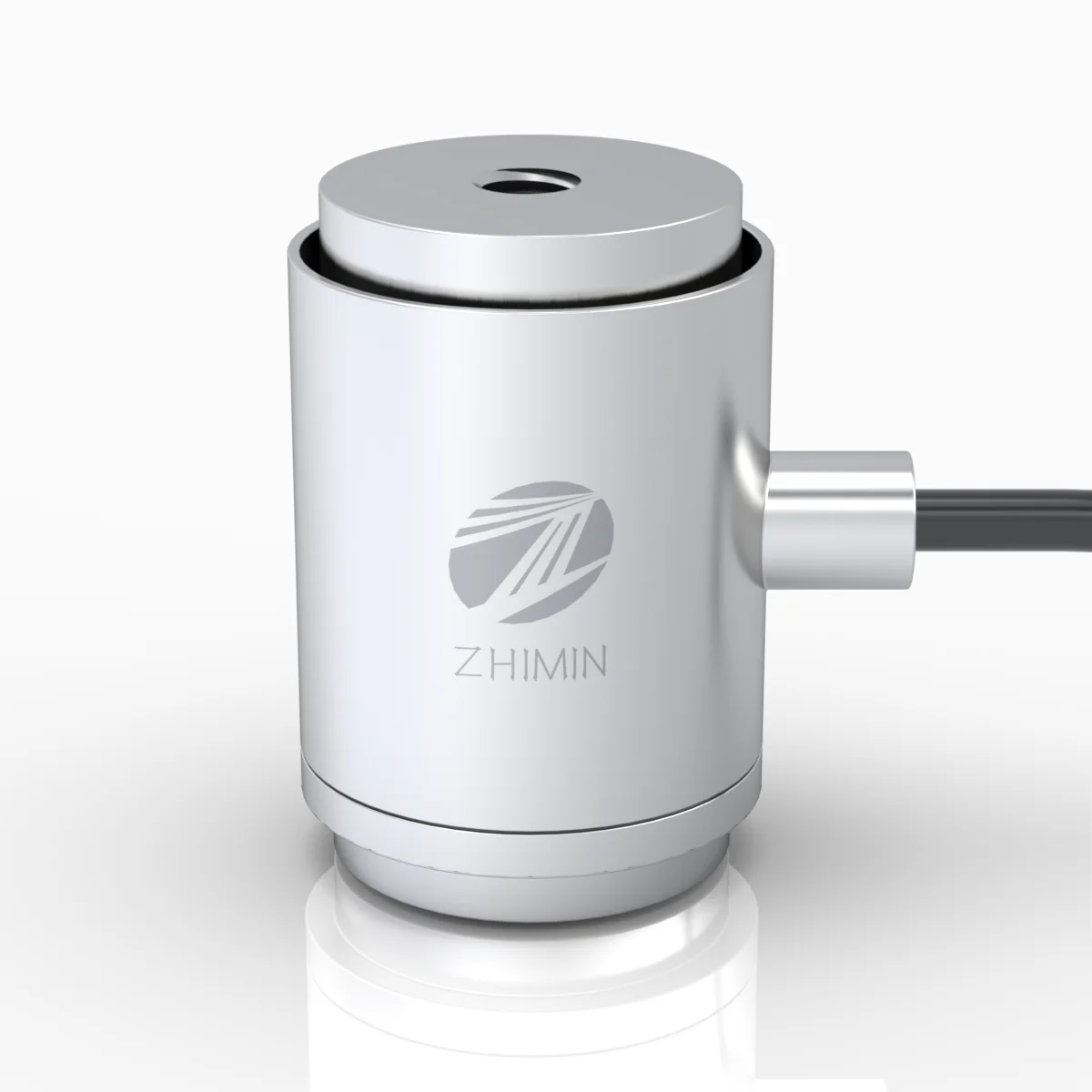

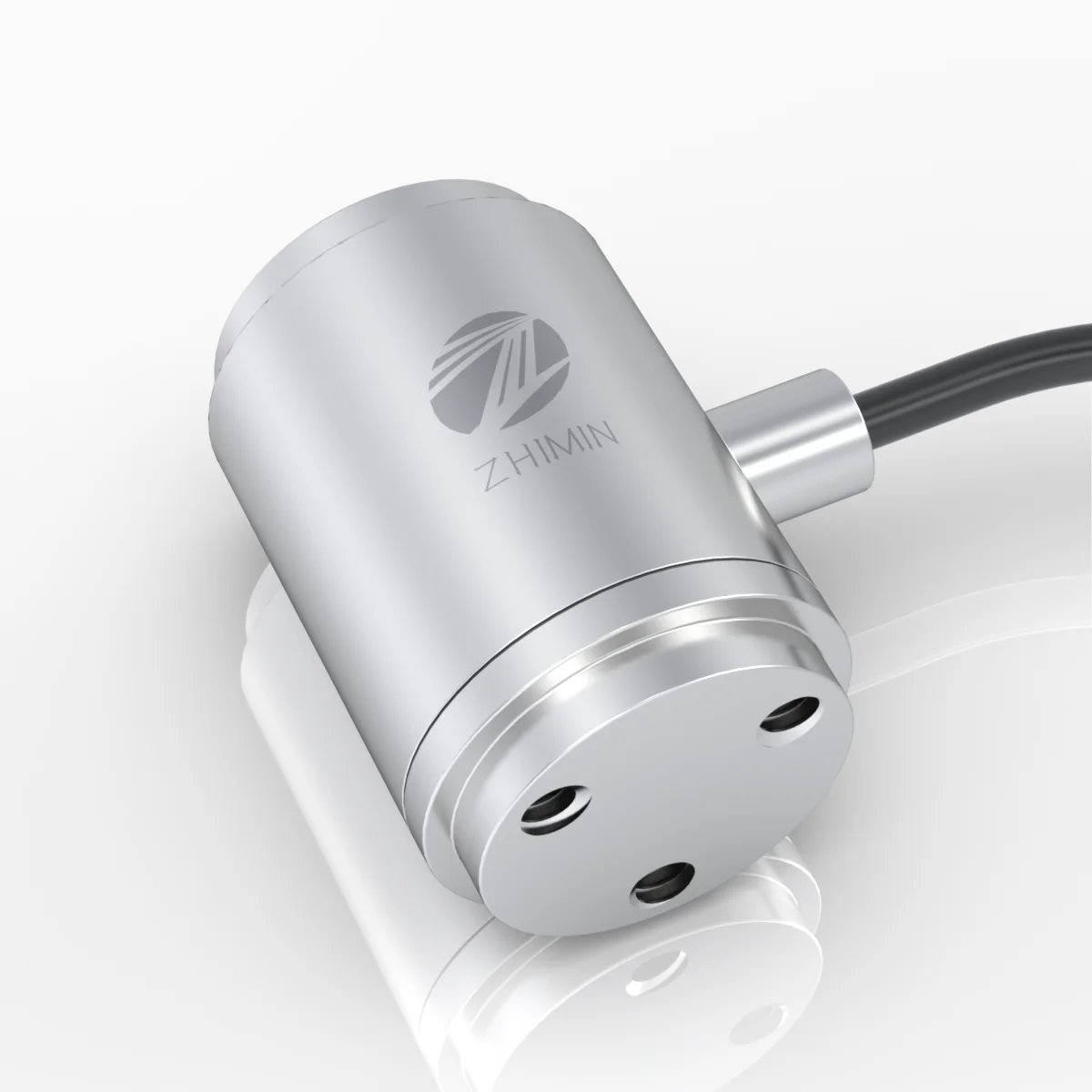

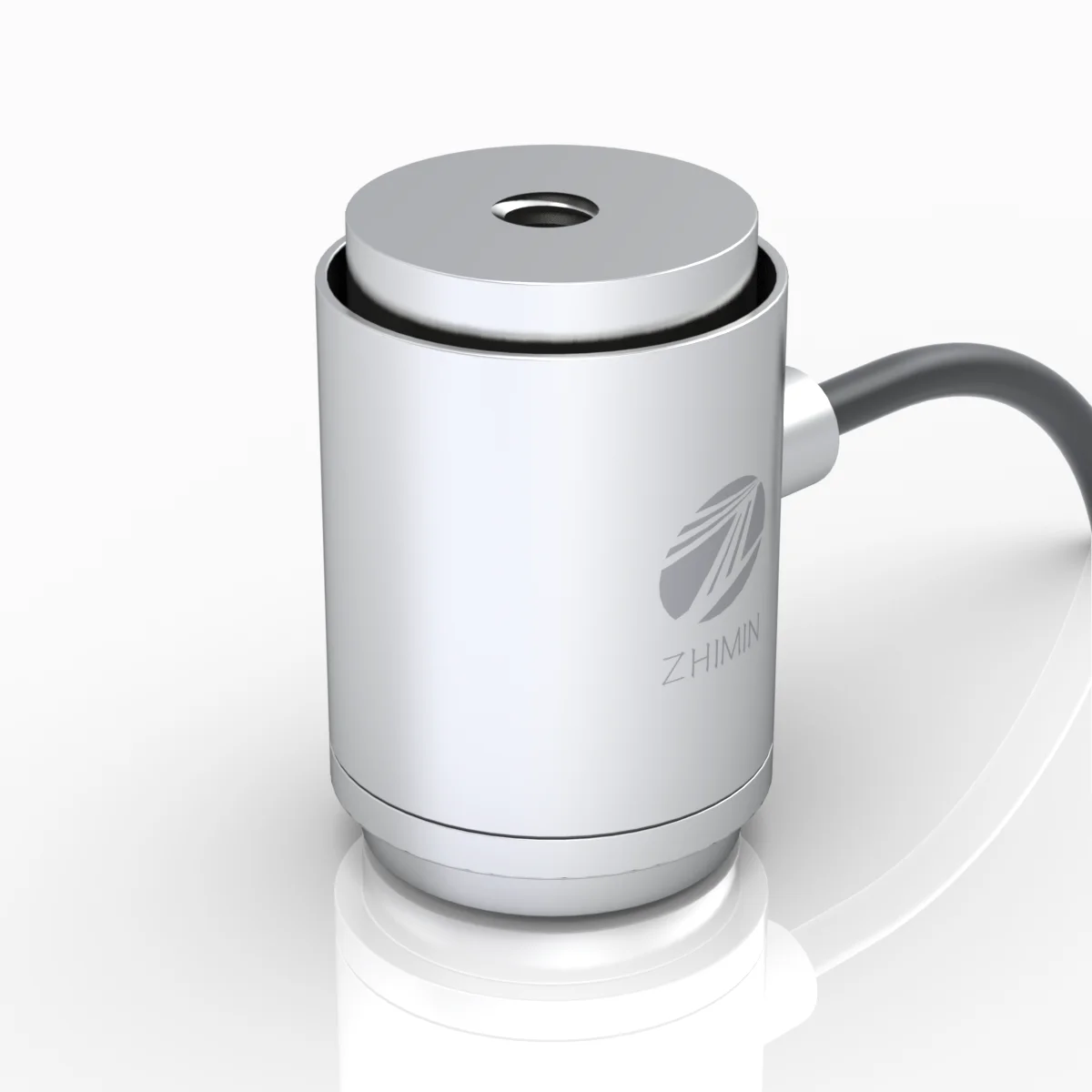

subminiature tension and compression load cell
- Category: >>>
- Supplier: Anhui Zhimin Electrical Technology Co. Ltd.
Share on (1600466140563):
Product Overview
Description

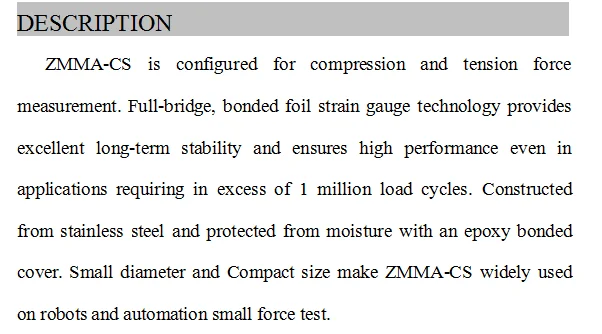

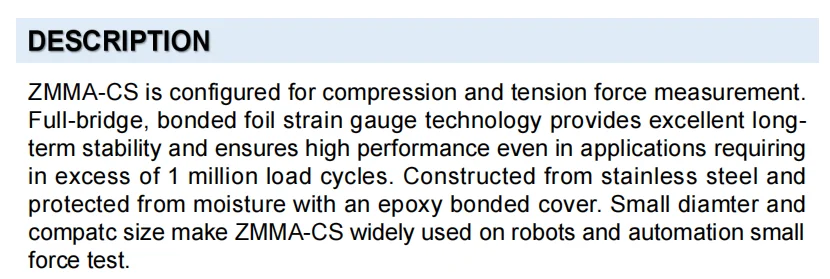

Product Description
Features:
Capacity 2N,3N,5N,10N,20N,30N,50N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
Capacity 2N,3N,5N,10N,20N,30N,50N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
Accuracy class: | 0.3%F.S | ||||
2,3,5,10,20,30,50Maximum capacity(Emax) | Optional from 2N, 3N, 5N, 10N, 20N, 30N, 50N | ||||
Maximum number of intervals (nLC): | 3000 | ||||
Output sensitivity (Cn): | 1.0mv/v | ||||
Sensivity tolerance : | ± 0,003 | ||||
Minimum dead load (Emin) : | 0 | ||||
Limit load (EL): | 150 % of Emax | ||||
Breaking load (Ed): | 200 % of Emax | ||||
Recommended supply voltage (Uref): | 5 - 12 V | ||||
Excitation, maximum (BU): | 15 V | ||||
Zero balance: | ≤ ± 1 % v. Cn | ||||
Input resistance (RLC) at reference temperature: | 370± 20 Ω | ||||
Output resistance (RO) at reference temperature: | 352 ± 3 Ω | ||||
Insulation resistance: | >5.000 MΩ | ||||
Cable length: | 3 m | ||||
Nominal temperature range (BT): | - 20 ... + 60 °C | ||||
Protection class (DIN 40.050 / EN 60529): | IP 66 | ||||
Material: | Stainless steel | ||||
Related Products

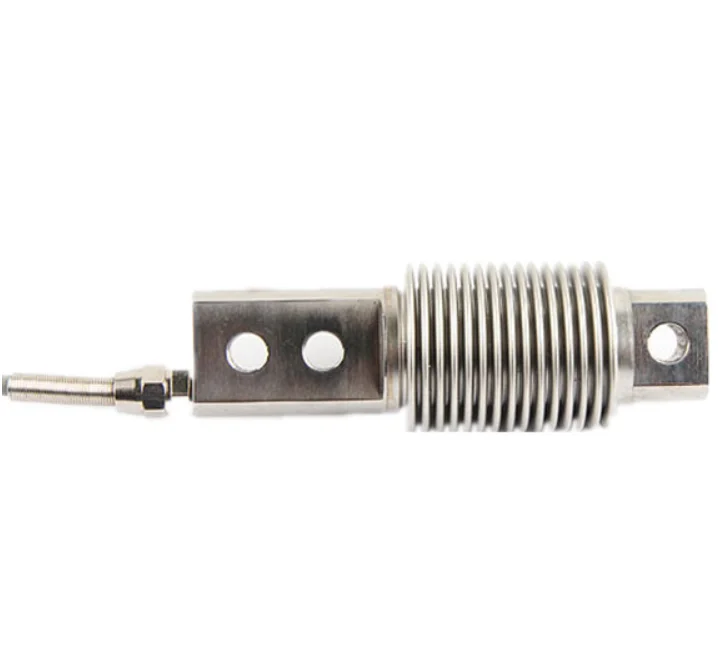

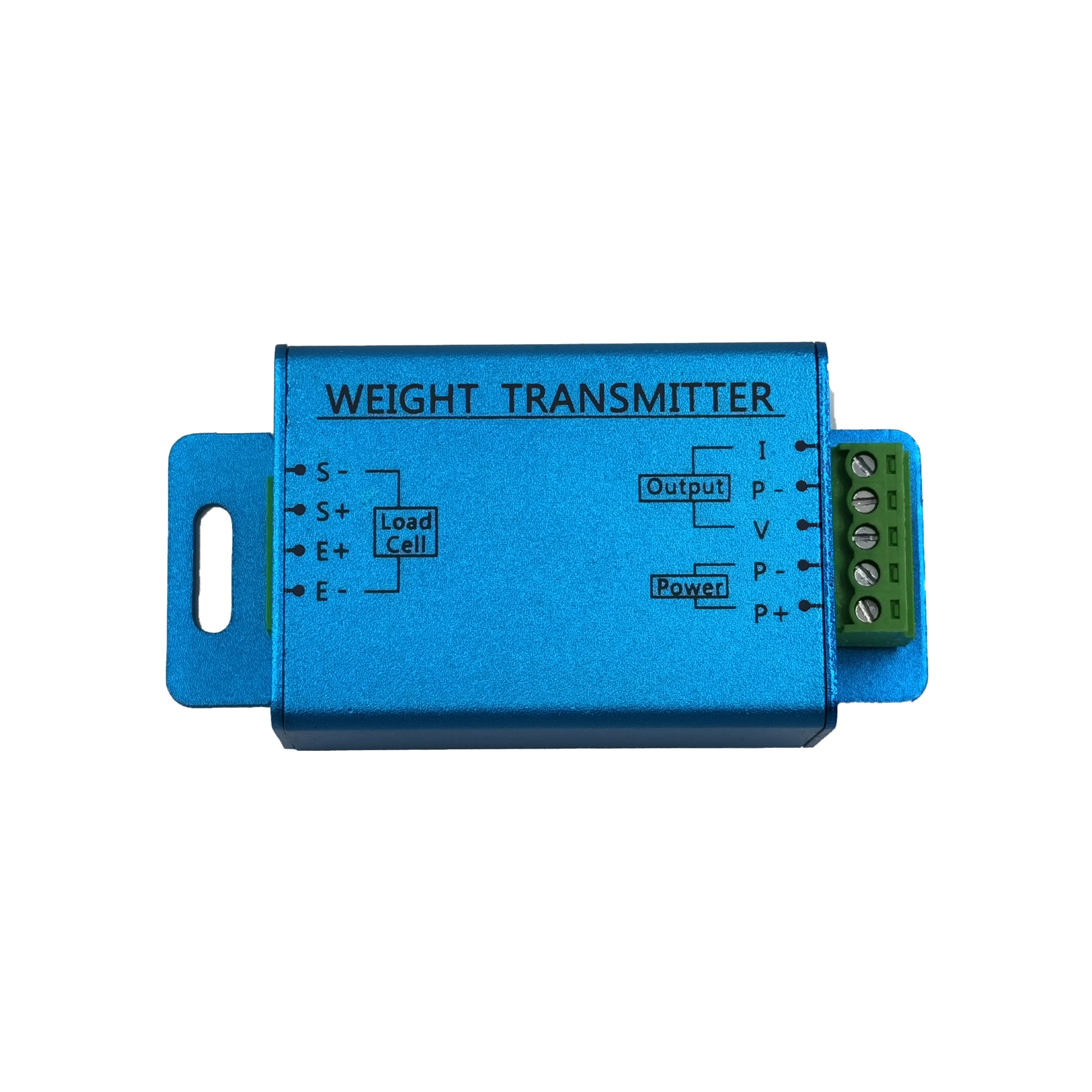

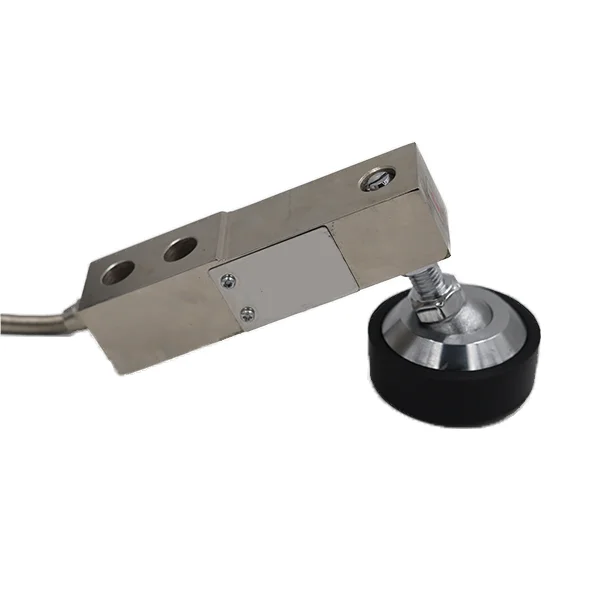

Bending beam load cell Shear beam load cell Indicator Load cell amplifier
Equipment
Strain gauge under dust-free condition
Digital calibration test
Dust-free and constant temperature&humidity Room
TC0 SPAN testing machine
Our Company
Anhui Zhimin electrical technology CO.,Ltd is a fast growing domestic leader in strain gauge transducers for multiple application in force, weighing, load limiting, torques and other specialized manufacturing(oil, space, laboratories,, multiple-dimension etc. ). An unrelenting strategic focus on our customers' needs and a succession of technological challenges supported by research and significant development, by continuous innovation and improving our traducers, and finally by an organization recognized by the highest quality standards drives our culture.
Founded in 2000, ZM has served and established good relationship with a number of customers in almost all the automation areas such as industries of metallurgy, chemicals, architecture, building materials, lifting, transportation and aviation. The company was awarded the title of 'high and new technology industries' by government in 2018 and successfully listed on the stock of Anhui innovation board in 2019(Code:630129).

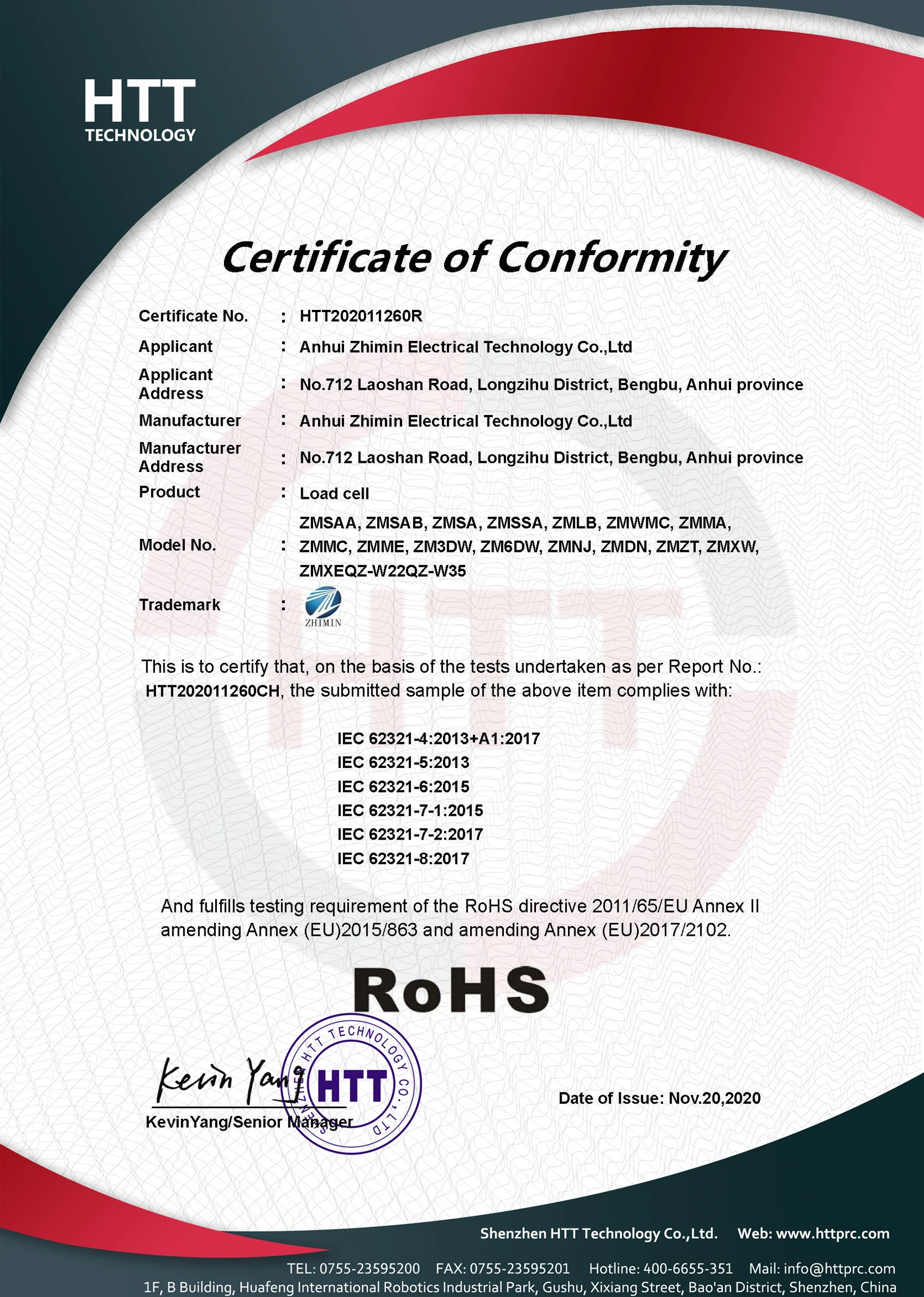

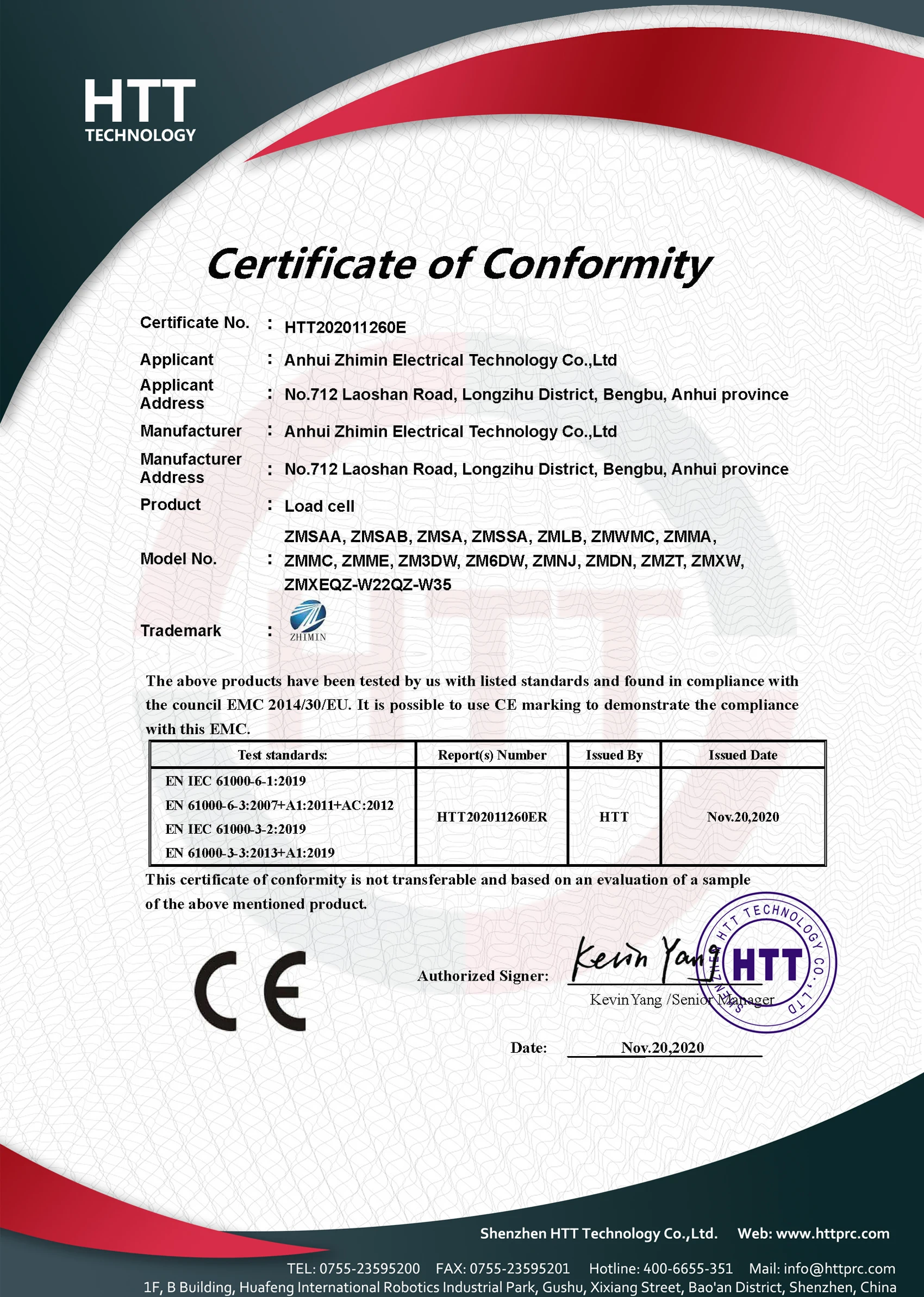

Certifications
ISO9001 High-tech corporation CE RoHS
Packing & Delivery
♦ Packing: packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with filter of foamed plastic.
♦ Delivery: A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
FAQ
1.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.
2.Can you design and customize products for me?
Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.
3.How long is your warranty period?
Our warranty period is 12 months.
4.I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?
We are delighted to meet you in China and really welcome you to communicate technical questions with us. If your coming could establish cooperative relationship, we are also delighted to pay travel expense for you..
