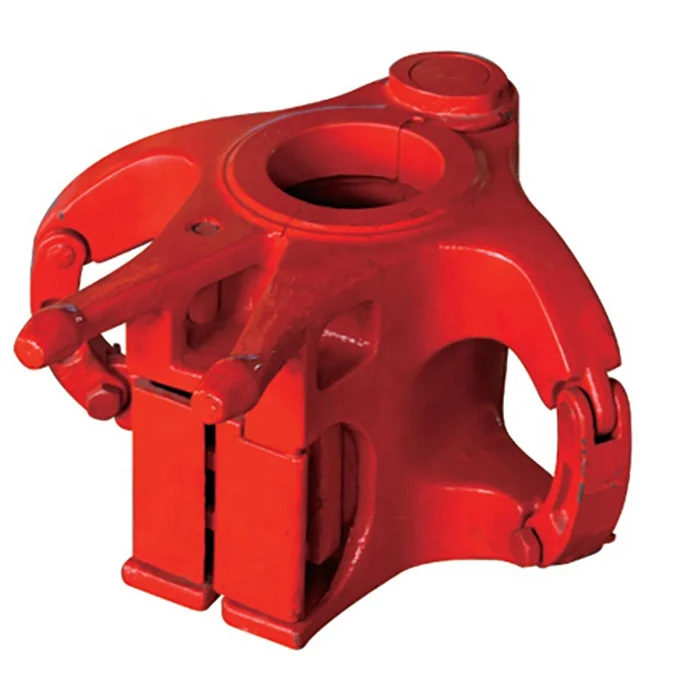

Type TA Elevator for Drill Collar Drill Pipe Tubing and Casing
Type TA elevators are widely used to lift drill pipe, casing, tubing and drill collar in oil and gas drilling operations. The elevator is designed and manufactured in accordance with API Spec 8C Standard.

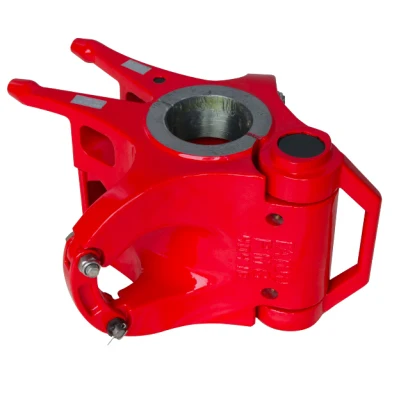

Center Latch Elevator Type TA
Model
Suitable Pipes
Loading capacity (US Tons)
Drill Collar
tubing
Casing
NU
EU
TA35
2 7/8-3 1/8
1.05-2 7/8
1.05-2 7/8
-
35
TA65
2 7/8-3 1/8
1.66-2 7/8
1.66-2 7/8
-
65
TA100
3 1/8-8 5/8
2 3/8-5
2 3/8-4 1/2
--
100
TA150
4 1/8-11 1/4
-
-
4 1/2-10 3/4
150


Drill Collar Elevator Type TA (DD)


Collar O.D
Elevator Recess Dia
Elevator Bore Dia. （d1）
Max. Working Load
inch
inch
inch
mm
KN
Tons
2 7/8
2 7/8
-
2.9/16
65.09
311
578
890
1334
2 7/8


3 1/8
-
2 13/16
71.56
3 1/2
-
3 3/16
81
4 1/8
3 11/16
3 13/16
96.84
4 3/4
4 1/4
4 3/8
111.13
5
4 1/2
4 5/8
117.48
5 1/4
4 3/4
4 7/8
123.83

5 1/2
5
5 1/8
130.18
1334
150
5 3/4
5 1/8
5 1/4
133.35
6
5 3/8
5 1/2
139.70
6 1/4
5 5/8
5 3/4
146.05
6 1/2
5 7/8
6
152.40
6 3/4
6
6 3/16
157.16
7
6 1/4
6 7/16
163.51
7 1/4
6 1/2
6 11/16
169.86
7 1/2
6 3/4
6 15/16
176.21
7 3/4
7
7 3/16
182.56
8
7 1/4
7 7/16
188.91
8 1/4
7 1/2
7 11/16
195.26
8 1/2
7 3/4
7 15/16
201.61
9
8 1/8
8 3/8
212.73
9 1/2
8 5/8
8 7/8
225.43
9 3/4
8 7/8
9 1/8
231.78
10
9 1/8
9 3/8
238.13
10 3/4
9 5/8
10 1/8
257.18
11
10 1/8
10 3/8
263.53
11 1/4
10 3/8
10 5/8
269.88
