Product Overview

Description



Product Paramenters

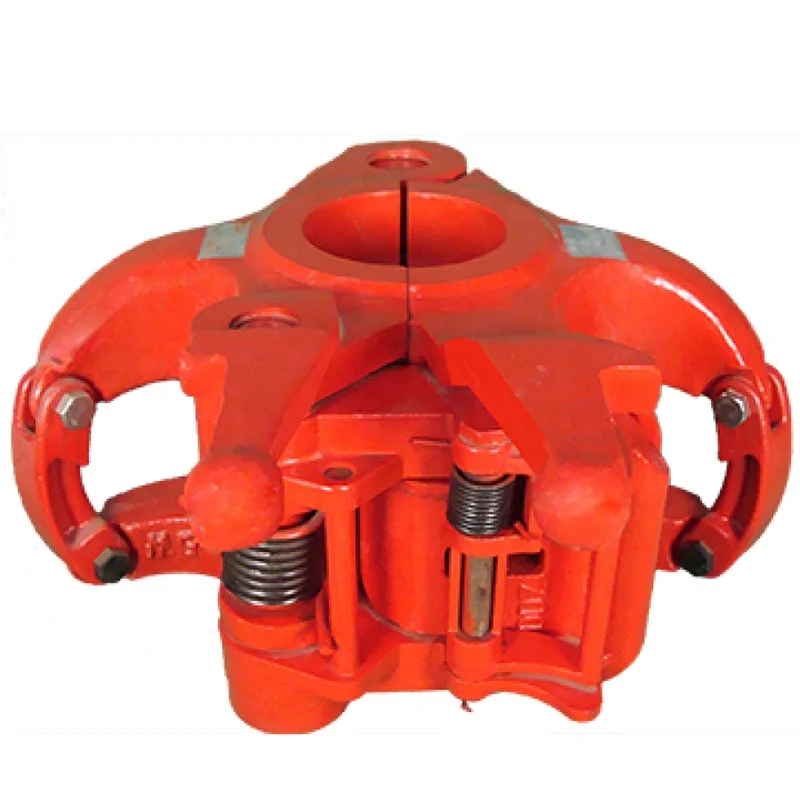

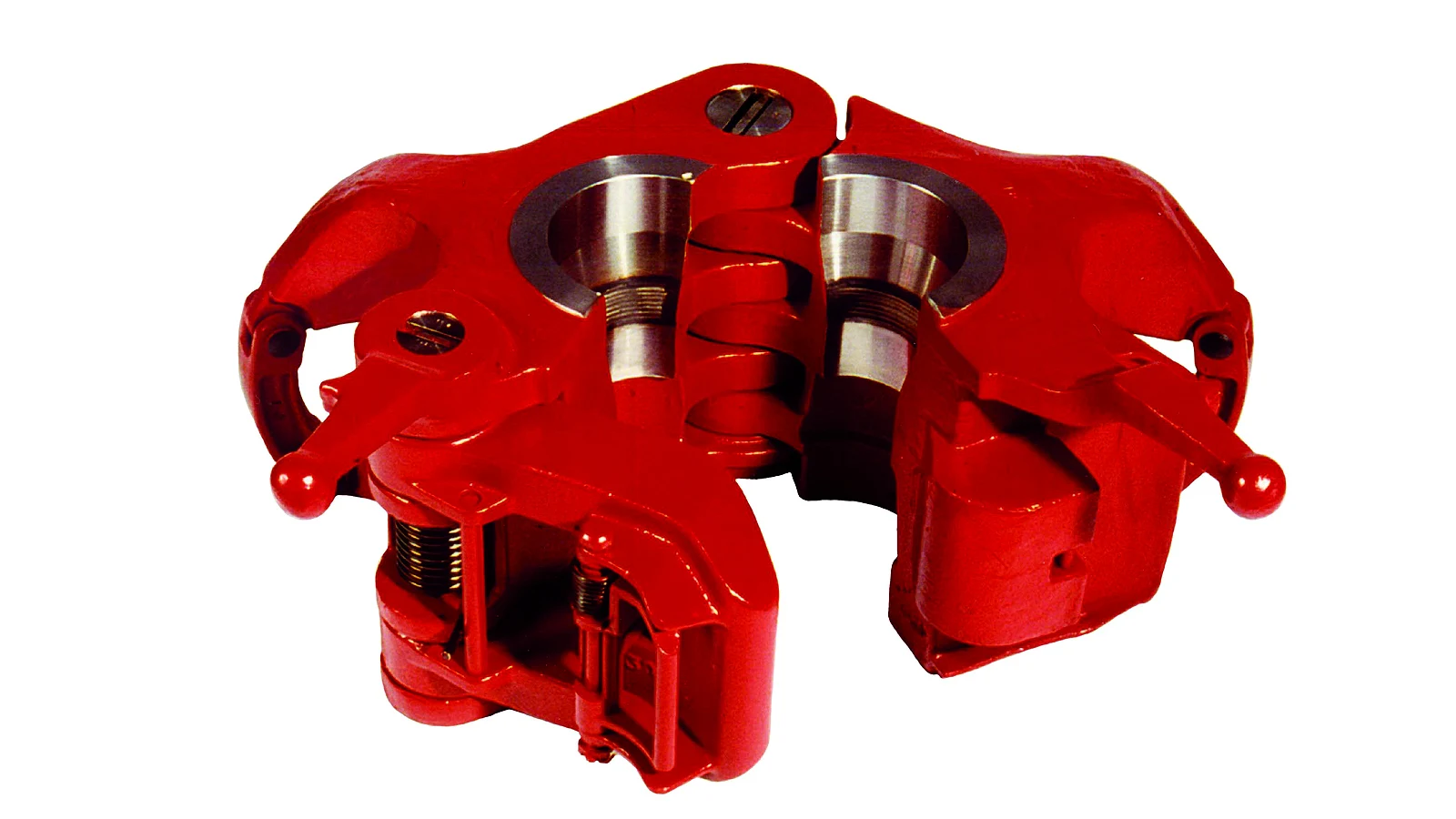

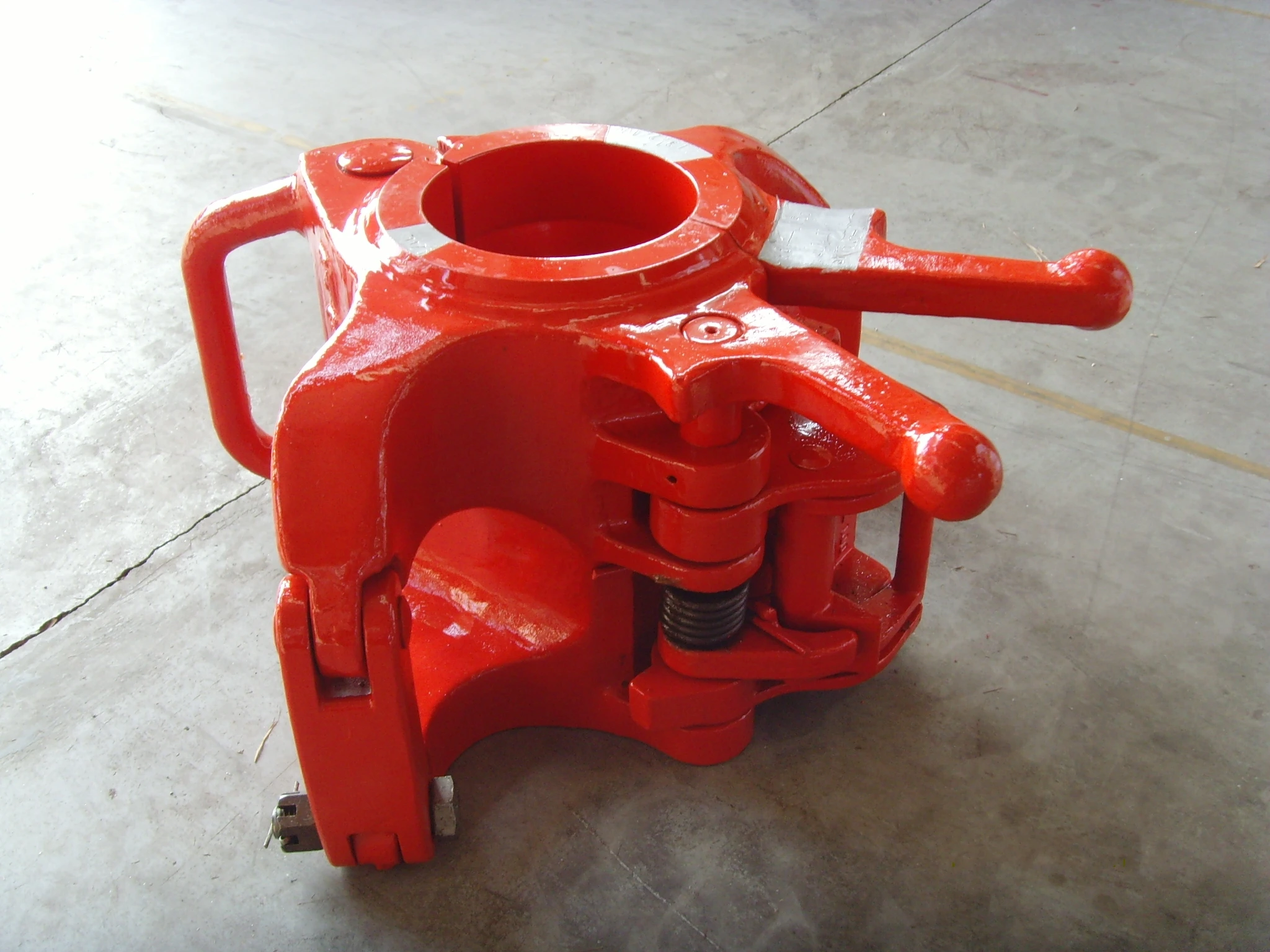

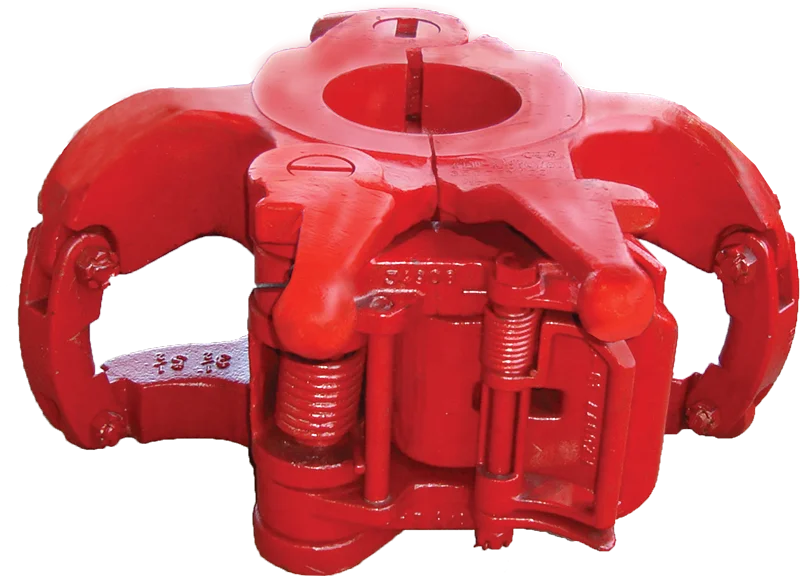

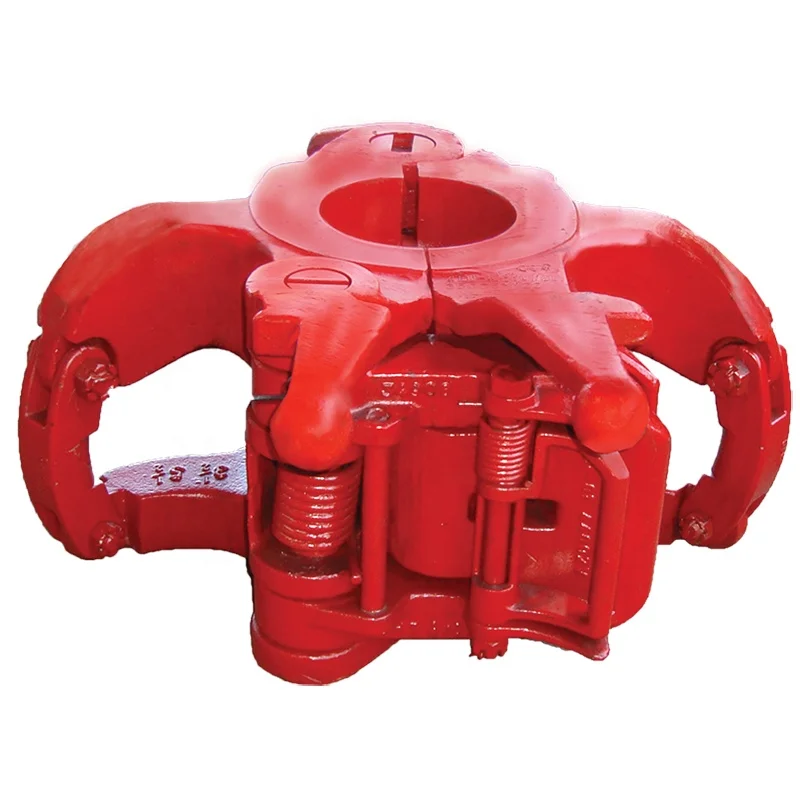

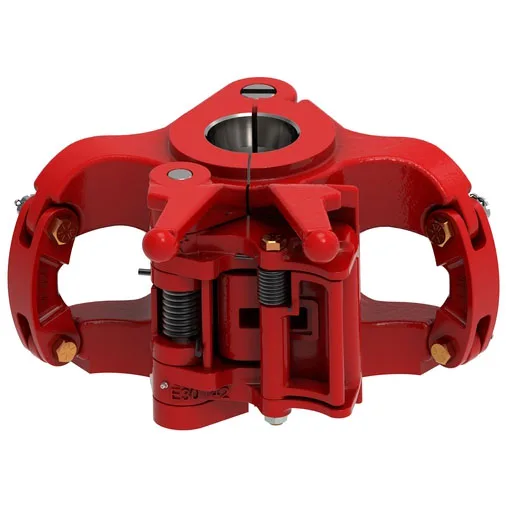

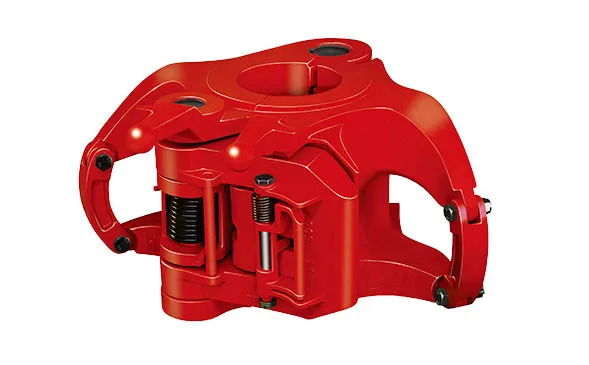

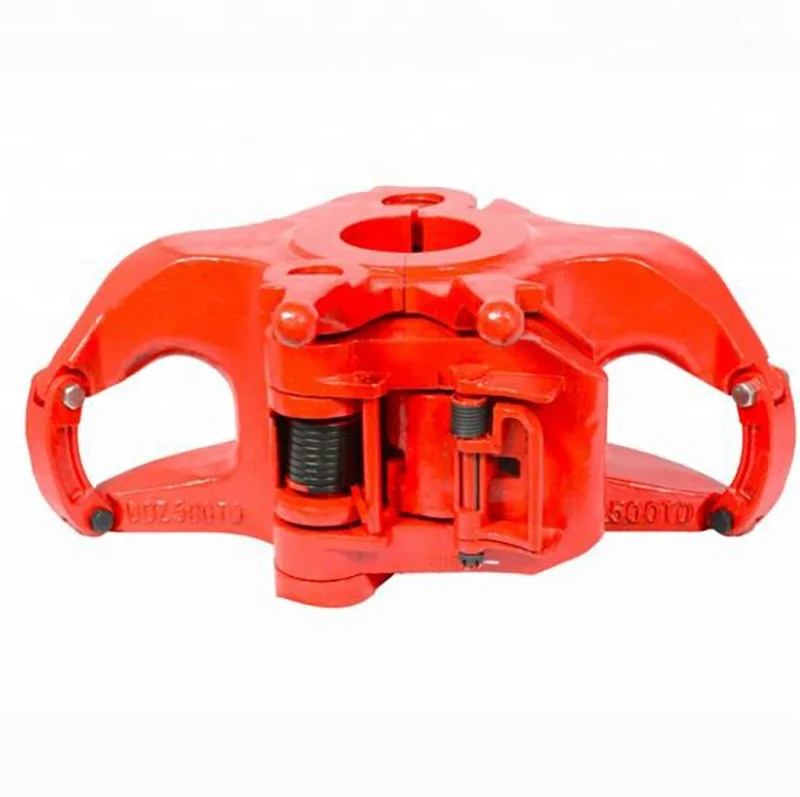

Type DD Elevator Drill Collar Drill Pipe Tubing Casing
DD type elevators are used to suspend drill collars, casing and tubing etc pipes with 90° shoulder. Loading range is from 150 tons to 350 tons, and the handling pipe diameter is from 2 3/8 to 5 1/2; The elevators are designed, manufactured and inspected in accordance with API Spec 8C standard.


Center Latch Elevator Type DD (for 90° shoulder pipes)
Model
Pipe Size (inch)
Rated capacity(tons）
DD-150
2.3/8-5.1/2(DP)
150
DD-150
4.1/2-5.1/2(Casing)
150
DD-150
2.3/8-4.1/2(Tubing)
150
DD-250
2.3/8-5.1/2(DP)
250
DD-250
4.1/2-5.1/2(Casing)
250
DD-250
2.3/8-4.1/2(Tubing)
250
DD-350
2.3/8-5.1/2(DP)
350
DD-350
4.1/2-5.1/2(Casing)
350
DD-350
2.3/8-4.1/2
350




Drill Collar Elevator Type TA (DD)


Collar O.D
Elevator Recess Dia
Elevator Bore Dia. （d1）
Max. Working Load
inch
inch
inch
mm
KN
Tons
2 7/8
2 7/8
-
2.9/16
65.09
311
578
890
1334
2 7/8


3 1/8
-
2 13/16
71.56
3 1/2
-
3 3/16
81
4 1/8
3 11/16
3 13/16
96.84
4 3/4
4 1/4
4 3/8
111.13
5
4 1/2
4 5/8
117.48
5 1/4
4 3/4
4 7/8
123.83

5 1/2
5
5 1/8
130.18
1334
150
5 3/4
5 1/8
5 1/4
133.35
6
5 3/8
5 1/2
139.70
6 1/4
5 5/8
5 3/4
146.05
6 1/2
5 7/8
6
152.40
6 3/4
6
6 3/16
157.16
7
6 1/4
6 7/16
163.51
7 1/4
6 1/2
6 11/16
169.86
7 1/2
6 3/4
6 15/16
176.21
7 3/4
7
7 3/16
182.56
8
7 1/4
7 7/16
188.91
8 1/4
7 1/2
7 11/16
195.26
8 1/2
7 3/4
7 15/16
201.61
9
8 1/8
8 3/8
212.73
9 1/2
8 5/8
8 7/8
225.43
9 3/4
8 7/8
9 1/8
231.78
10
9 1/8
9 3/8
238.13
10 3/4
9 5/8
10 1/8
257.18
11
10 1/8
10 3/8
263.53
11 1/4
10 3/8
10 5/8
269.88








Company Profile






FAQ




1.How to get free samples?
Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.

2.Can you produce products with my own brand?
Yes,we can offer OEM services.

3.Do you have any international certificate?
Yes,we have API, ISO and etc.

4.How long does my order take to be delivered?
It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
