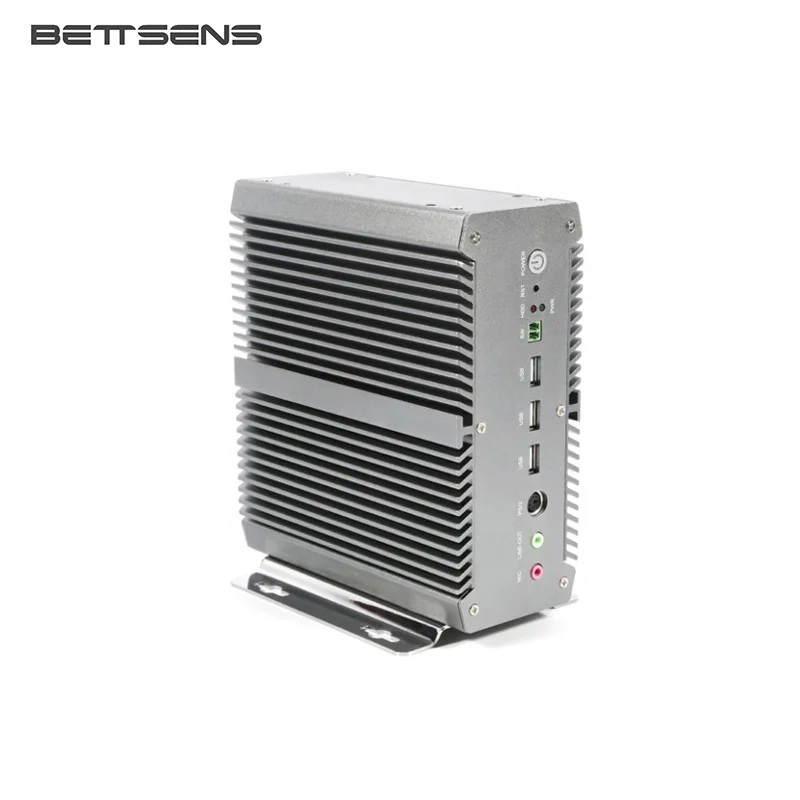

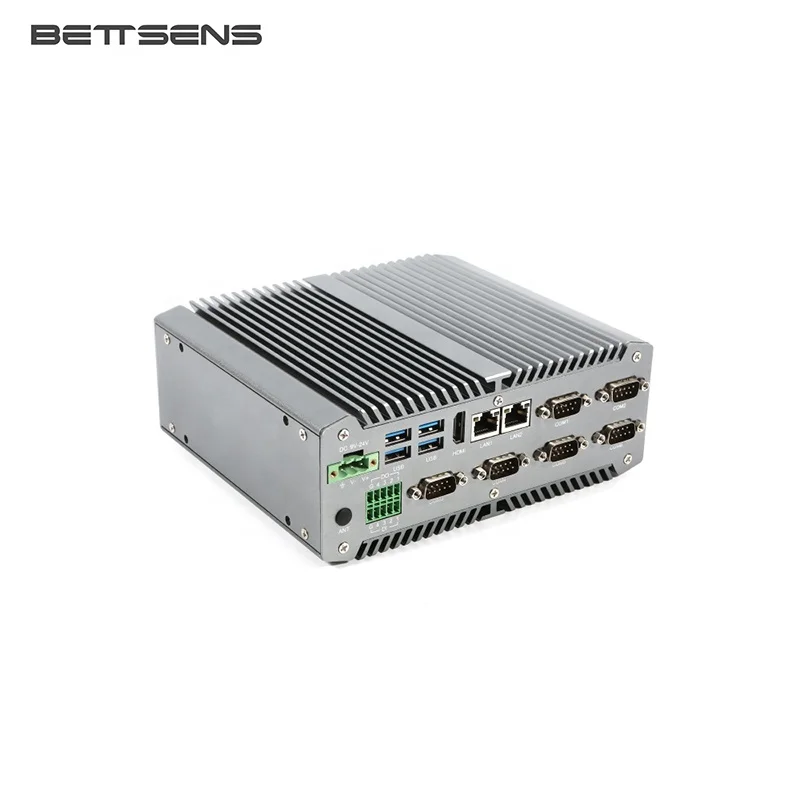

All in One I3 I5 I7 Processor Industrial PC 2020 Fanless Embedded X86 Computer Status Storage
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Bettsens Industrial Co. Ltd.
Share on (1600467767164):
Product Overview
Description
Product Description
Main features
●Aluminum alloy double-layer heat sink
● Support M.2 (NVME) and MSATA simultaneous installation
● Integrated wireless PCBA scalable design
● 6*COM, optional RS-232/422/485 ● 4*USB 3.0, 4*USB2.0, PS/2 ports
● Support 16bit GPIO (8 in 8 out)
● USB overcurrent and short circuit protection design
● 2*Intel 82574L 1000M network
● Built-in filter lightning protection design ● DC 9-36V voltage input
PRODUCT NAME | intel X86 Industrial embedded computer |
CPU | Intel® Core™ i5-6200U Processor (Dual Core Quad Threads 3M Cache, Max 2.8 GHz) |
Intel® Celeron® Processor 3855U (Dual Core Dual Threads 2M Cache, 1.6 GHz) | |
Intel® Celeron® Processor J1900 (Quad core 2.0GHz Threads 2M Cache, Max2.42GHz) | |
RAM | Onboard DDR4 2133MHz 4GB, up to 8GB |
STORAGE | 1*mSATA slot (64G/128G/256G SSD Optional), 1×M.2(NVME) slot |
OS | Windows7/8/10, Linux |
POWER SUPPLY | DC 9-36V power supply and AC power adapter |

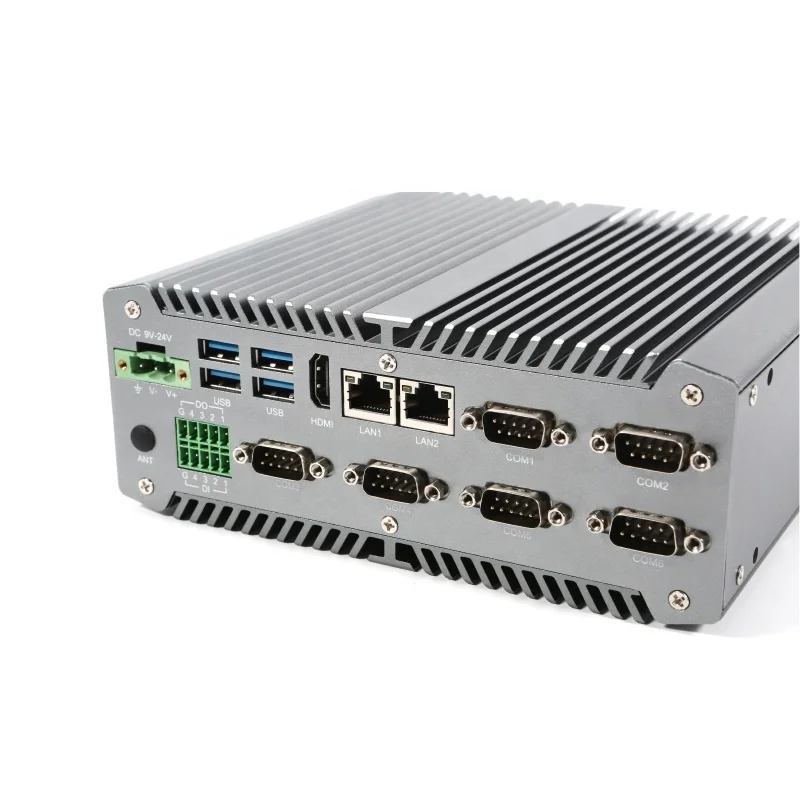

I/O PORTS | Lan 2*RJ45 (Gigabit Ethernet) USB 4*USB3.0, 3*USB2.0 and 1*USB2.0 in built Display 1*HDMI COM 6*COM (support RS-232/422/485) SPK 1*Line-out Mic 1* Mic-in 1*3pin Phoenix terminal power input 1*10pin Phoenix terminal GPIO interface(with opto-couplers isolation function) Expansion 1* mini-PCIe(support WIFI/3G/4G module, optional) |
MATERIAL | Aluminum alloy cooling fins and chassis |
FUNCTION | As a computing center, storage center and equipment control center, it can be used as the control brain and server of the equipment. |
CERTIFICATES | FCC, CE, RoHs, CAN/CSA-CISPR |
WORKING CONDITION | Working Temp. -20°C ~ 65°C (-4°F ~ 149°F) Storage Temp. -40°C ~ 80°C (-40°F ~ 176°F) Working Humidity 10% - 95% @40°C non-condensing |

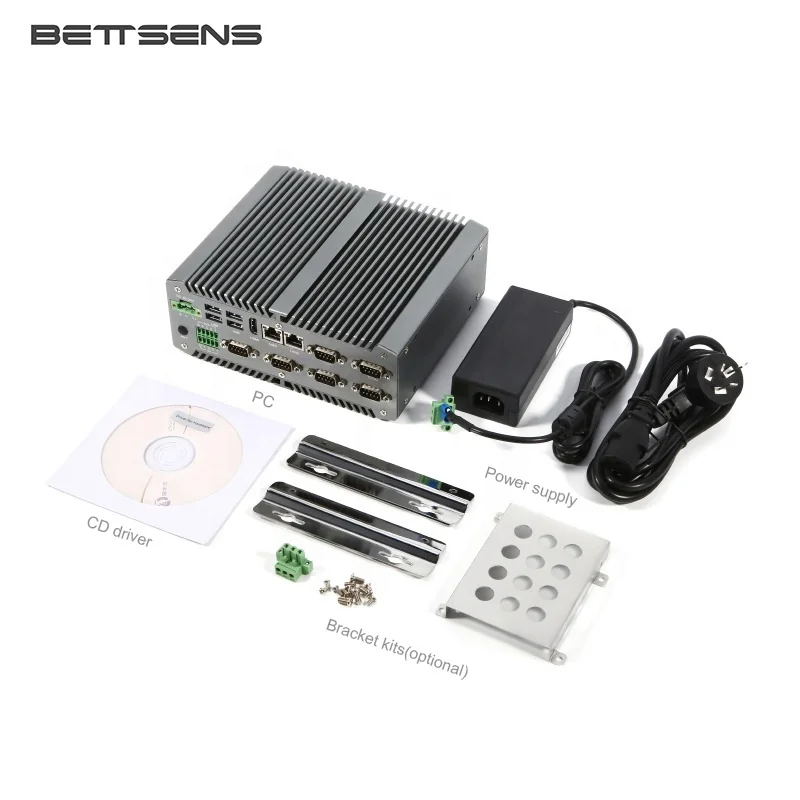

PACKAGE | Industrial cardboard carton, containing anti-impact foam. |
Details Images
The special industry adaptability design of the industrial computer is the key feature of the product, which mainly includes the internal airtightness of the host, heat dissipation performance, scalability, and the use of efficient and stable components and motherboard materials.

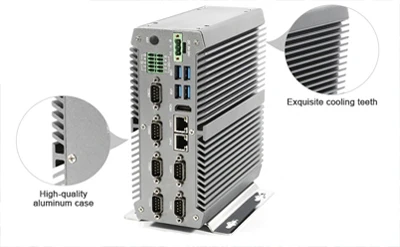

Our products are made of 6061 aluminum alloy material, and the heat dissipation fins are evenly distributed on double-side, so that the body temperature can be kept at a reasonable range during long-term work.

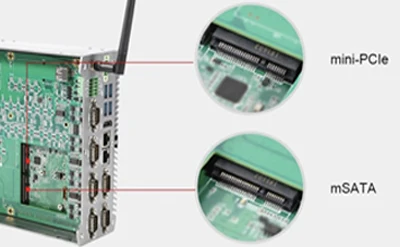

In addition to the existing rich data interfaces, this computer also has certain scalability, including a MINI PCIe, a SIM card slot, an m.SATA slot, and an M.2 (NVME) slot.

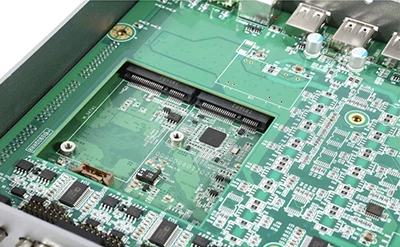

The circuit is suitable for various industries, using more than 8 layers of pcb, ESD anti-static, anti-lightning filter, -20 to 65 degrees operating temperature range and other stringent design solutions.
Certifications
Related Products
Packing&Shipping
Usually we put the products in recyclable environmental protection plastic bags, and then pack them in cardboard boxes. Inside the carton, there is anti-collision foam as a support, which can withstand a drop impact from a height of 0.8 meters.
Company Introduction
Bettsens has been working in the field of industrial computer since 2012. From the beginning of the trade business of international brands, to owning independent research and development, own brand, authorized production and assembly, etc., we have accumulated rich resources and experience. We have established a complete sales and after-sales system in China. In the global market, we provide global partners with 1-5 years of after-sales quality assurance and lifetime technical support.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ) for current models?
A: For ready stocks or current available models, Just 1 set as sample order is acceptable.
2.Q: Are you a factory or a trading company?
A: We are one of the most professional computer manufacturers located in Shenzhen China.
3.Q: What about the after-service?
A: We offer 1-5 years quality warranty depends on the models and commerical conditions. After the warranty period, we can repair it for free, but charge for parts is needed. We offer the lifetime technical service support.
4.Q: Can you provide OEM/ODM service?
A: Yes, we can do the customization services. Please advise the CPU, memory, SSD or HDD, WIFI, interface ports, OS, Logo, colors, package box and labels request. The prices will be varied according to the quantity and specifications.
5.Q: Can I have my own logo on the devices?
A: Yes, MOQ is 100 sets, or extra cost will be charged for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: We can do a lot of customization for your bulk order, including but not limited on put your logo and labels on the device and package, make some color options for you, make the booting interface with your logo or brand.
7.Q: What kind of Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7/10 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, for current ready models 1-3 days for sample order, and 7-20 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW, FOB, CIF & CNF price and accept T/T, L/C, Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment for me from China to my place?
A: Yes, for sample orders, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
