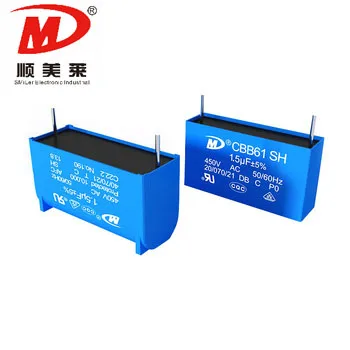

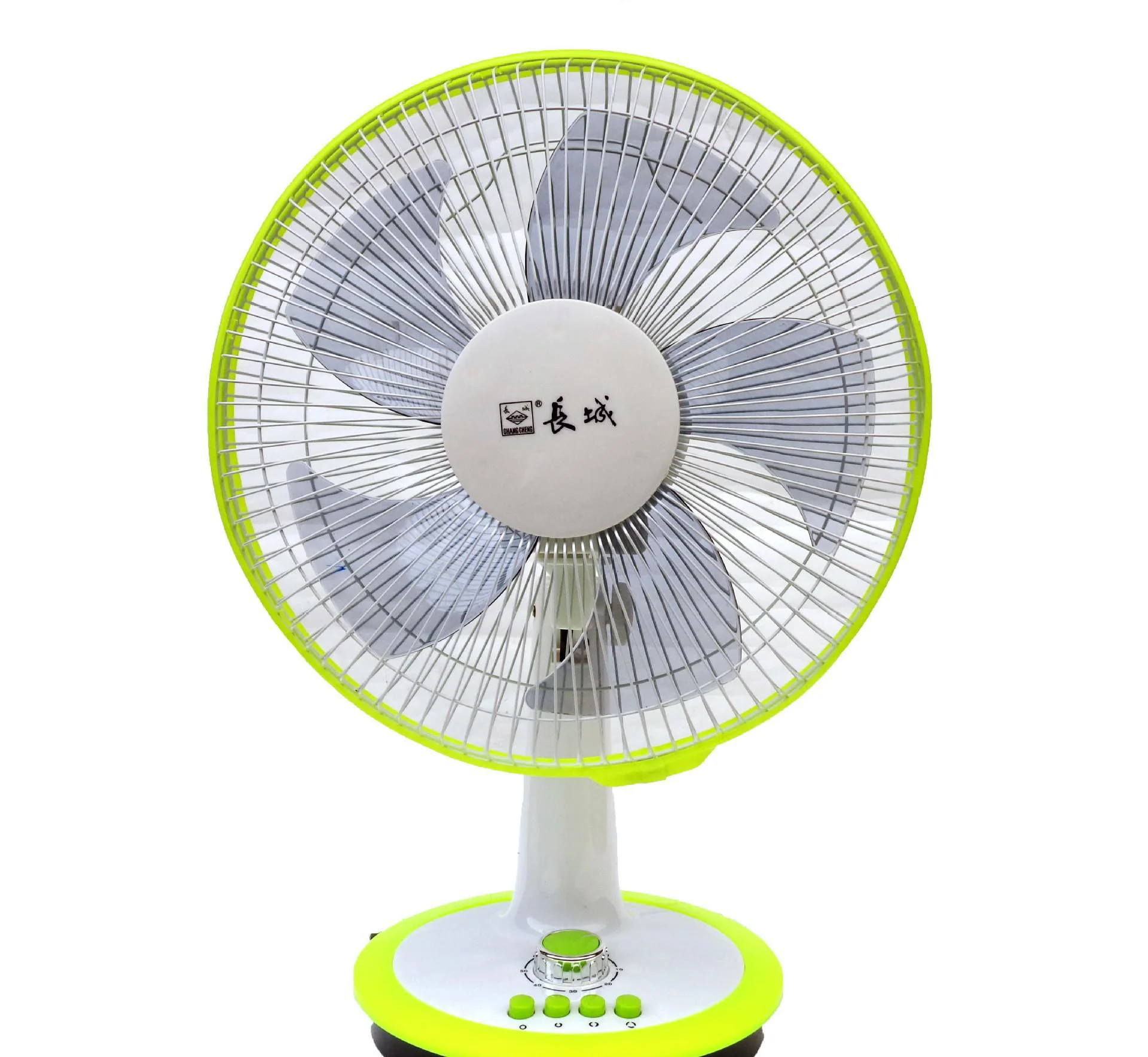

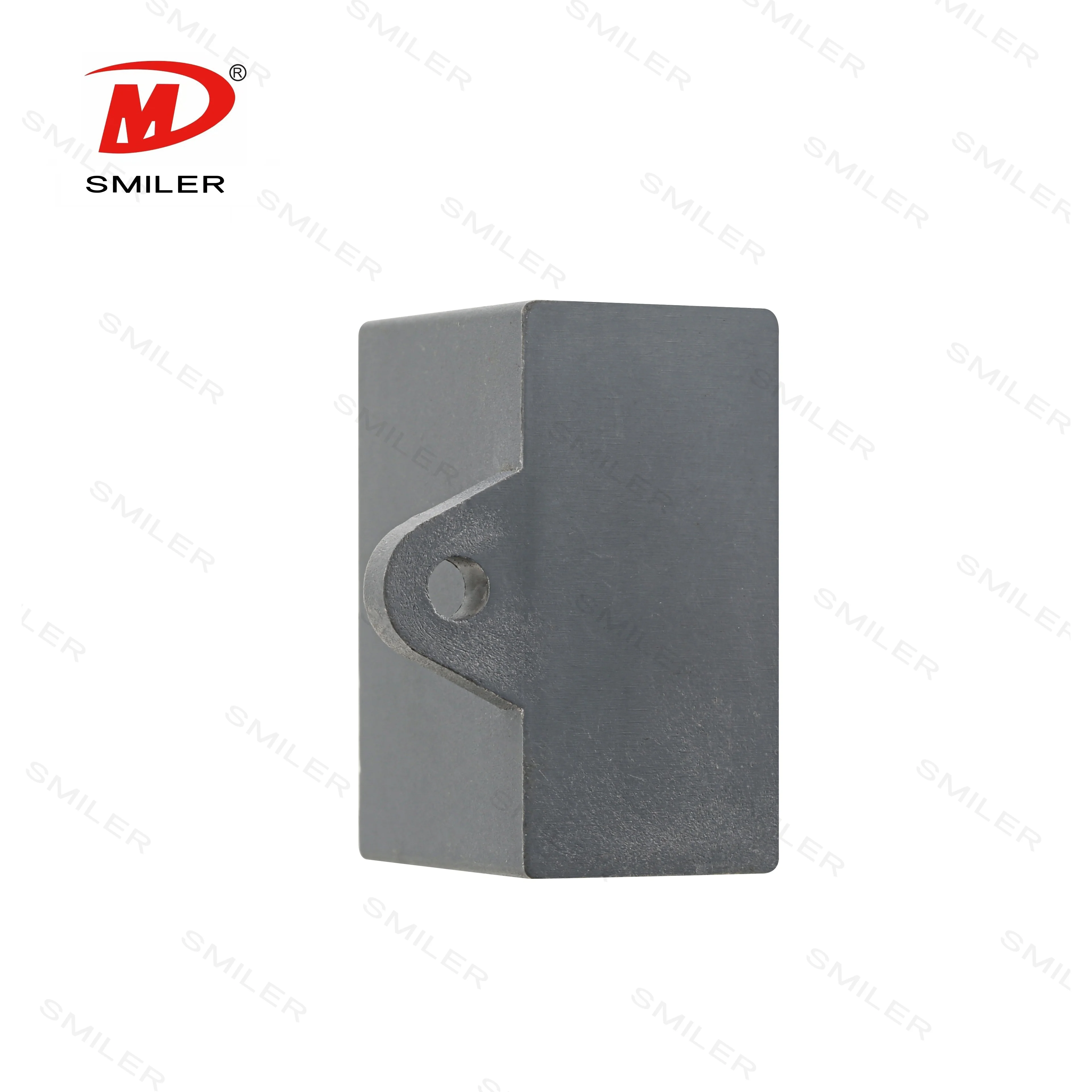

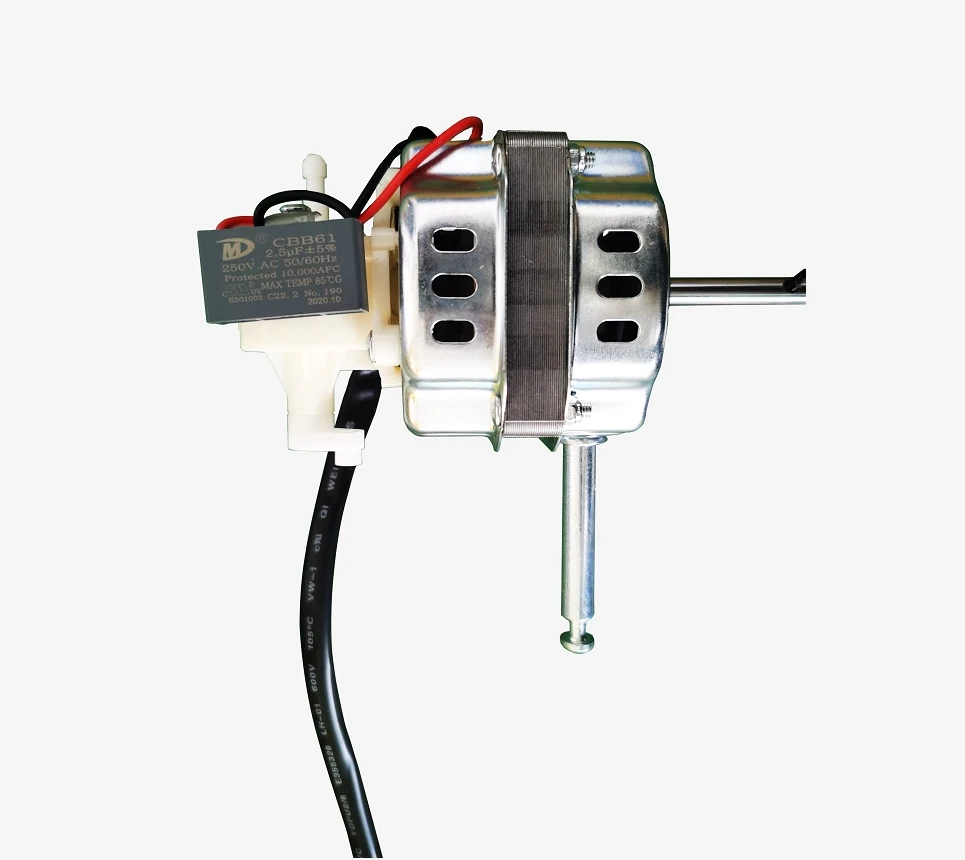

CBB61 Capacitor CBB61 4UF 450V Capacitor CBB61 450VAC Capacitor 5% 50/60hz Ceiling fan CBB61 1.2/1.5/1.8/2/2.2/2.5/3/4/5 20UF
- Category: Passive Components >>>
- Supplier: Smiler Electronic Industry Co. Ltd.
Share on (1600468940331):
Product Overview
Description
Recommend Products view more >>

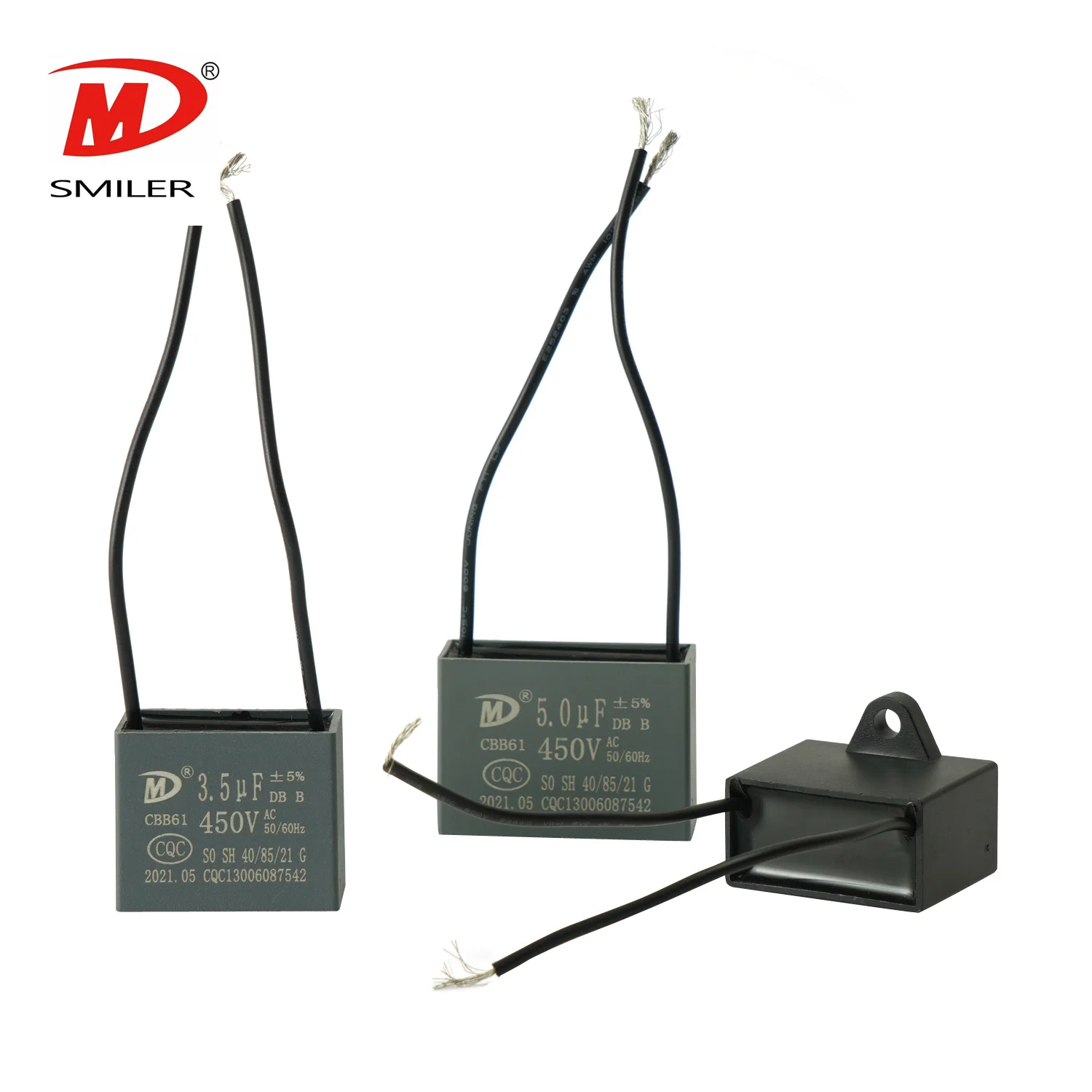

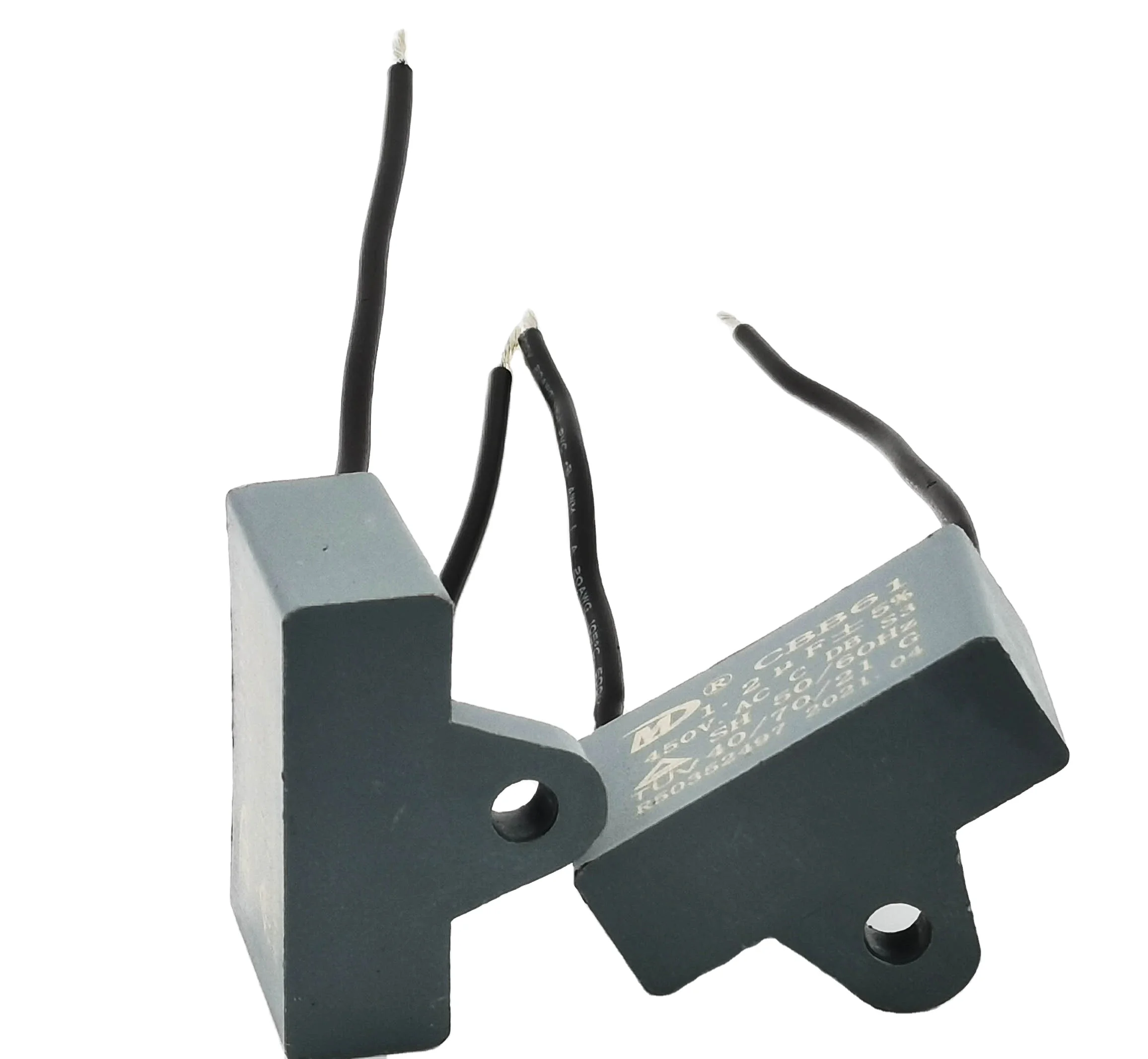

Model Number: | CBB61 with wires | |
Type | Polypropylene film capacitor | |
Safety approvals: | CQC/UL/VDE/TUV/CE | |
Approval standard | GB/T3667,UL810,EN60252-1 | |
Climatic category | 25/70/21,25/85/21 | |
Rated voltage | 250VAC~500VAC(50-60Hz) | |
Capacitance range | 0.1uf~35uf | |
Capacitance tolerance | +_5%(J),+_10%(K) | |
Testing voltage: | ||
Between terminals | 2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(UL) | |
Between terminals and case | 2*Un+1000(VAC)/3s(>=2000VAC) | |
Insulation Resistance(20) | between terminals and case>=5000/C(100VDC,3s) | |
Tangent of loss angle(20) | <=0.002(1KHz) | |
Fault Currency | S0/S3 | |
Place of Origin | CHINA | |
Packing | More pieces in one inner box or polybag as customer request. | |
Color | accept customization | |
Supplier type | OEM factory | |
Capacitance(uf) | 250V | 300V | 400V | 450V | 500V |

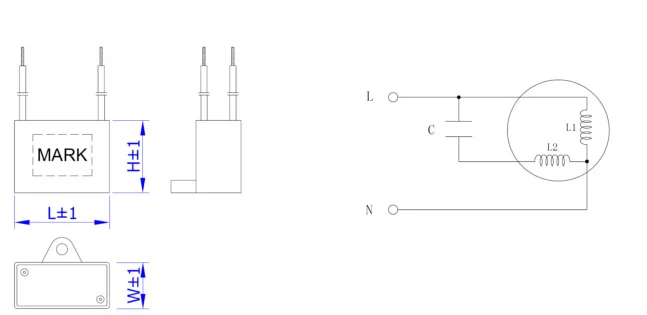

L/W/H | L/W/H | L/W/H | L/W/H | L/W/H | |
0.8UF | 32*10*20 | 32*10*20 | 32*10*20 | 32*11*22 | 36*11*22 |
1.0UF | 32*10*20 | 32*11*22 | 32*11*22 | 36*10*20 | 36*13*23 |
1.2UF | 32*10*20 | 32*11*22 | 36*10*20 | 36*11*22 | 37*13*24 |
1.5UF | 36*10*20 | 36*11*22 | 36*11*22 | 37*13*24 | 37*15*27 |
2.5UF | 36*10*20 | 36*13*23 | 36*13*23 | 38*15*25 | 38*17*28 |
3.0UF | 36*11*22 | 37*13*24 | 38*15*25 | 38*17*28 | 38*19*31 |
3.5UF | 36*11*22 | 38*15*25 | 38*17*28 | 38*18*29 | 47*19*31 |
4.0UF | 36*13*23 | 37*15*27 | 38*17*28 | 38*19*31 | 47*19*33 |
5.0UF | 37*13*24 | 38*17*28 | 47*17*28 | 47*19*33 | 47*25*35 |
6.0UF | 38*15*25 | 38*18*29 | 48*19*31 | 47*20*35 | 47*27*37 |
8.0UF | 38*17*28 | 47*17*31 | 47*20*35 | 47*25*35 | 47*30*43 |
FAQ：
1. Which style of capacitor lead out do you available?

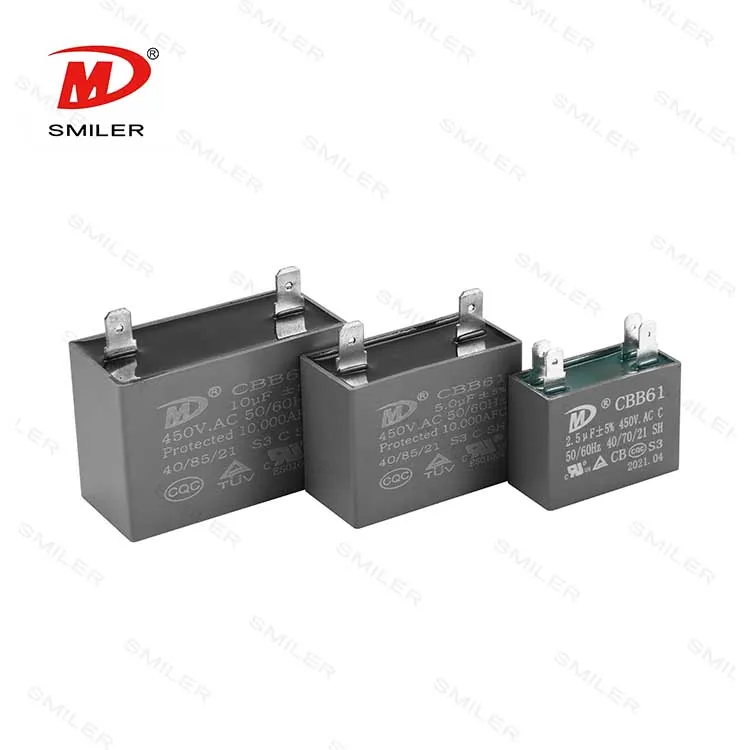

The lead out of capacitor we available is Wires, pin, insert and terminal.
The terminals are divided into 187# (width 4.8mm) and 250# (width 6.3mm).
At the same time we accept the customization.
2. Which style Installation hanger of capacitor do you have?
We own the Installation hanger styles which in the market selling. The detail please reference follow pictures.
At the same time we accept the customization.
1. Which style of capacitor lead out do you available?
The lead out of capacitor we available is Wires, pin, insert and terminal.
The terminals are divided into 187# (width 4.8mm) and 250# (width 6.3mm).
At the same time we accept the customization.
2. Which style Installation hanger of capacitor do you have?
We own the Installation hanger styles which in the market selling. The detail please reference follow pictures.
At the same time we accept the customization.
3. What color plastic shell do you have?
The general color is black, white and blue etc.
At the same time we accept the customization.
4. Which certificate do you have?
From the company, we own near 15 honour certificates from the government and our customers. The main certificate is the high -tech
enterprises which pass the audit of the government.
At the same time, we own near 20 patent certificates of the production and products.
From the products,We own near 20 certificates which such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There main parameter with Capacity and voltage.
6. The unit of capacitor capacity is F (Farad).
The conversion formula of F (Farad) is:
1F(Farad)=1000000μF(Micro method)
1μF (micro method)=1000000pF (picofarad)
The amount of F is very large, generally μF and pF are used as the unit of capacitance.
7. What does CBB mean?
CBB is China's abbreviation for metallized polypropylene film capacitors.
8. The words PO and P2 in capacitor for what meaning?

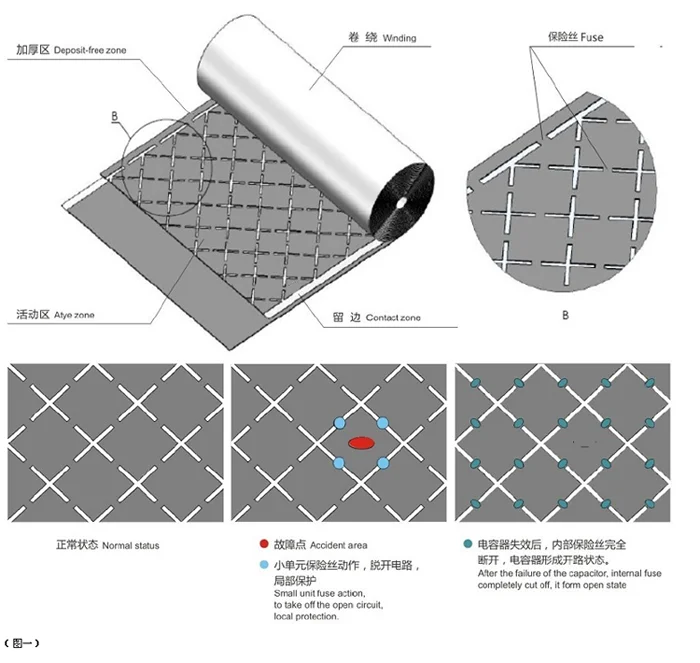

P0 in the capacitor means non-explosion-proof, and P2 means explosion-proof. The explosion-proof principle of safety
filmcapacitors. The metalized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails,
themicro-fuse is disconnected and the power supply is automatically cut off, thereby preventing the expansion of the fault
andachieving the purpose of self-safety protection.
The general color is black, white and blue etc.
At the same time we accept the customization.
4. Which certificate do you have?
From the company, we own near 15 honour certificates from the government and our customers. The main certificate is the high -tech
enterprises which pass the audit of the government.
At the same time, we own near 20 patent certificates of the production and products.
From the products,We own near 20 certificates which such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There main parameter with Capacity and voltage.
6. The unit of capacitor capacity is F (Farad).
The conversion formula of F (Farad) is:
1F(Farad)=1000000μF(Micro method)
1μF (micro method)=1000000pF (picofarad)
The amount of F is very large, generally μF and pF are used as the unit of capacitance.
7. What does CBB mean?
CBB is China's abbreviation for metallized polypropylene film capacitors.
8. The words PO and P2 in capacitor for what meaning?
P0 in the capacitor means non-explosion-proof, and P2 means explosion-proof. The explosion-proof principle of safety
filmcapacitors. The metalized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails,
themicro-fuse is disconnected and the power supply is automatically cut off, thereby preventing the expansion of the fault
andachieving the purpose of self-safety protection.
