wirewound dynamic braking resistor
- Category: Passive Components >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (60546454585):
Product Overview
Description
Product features

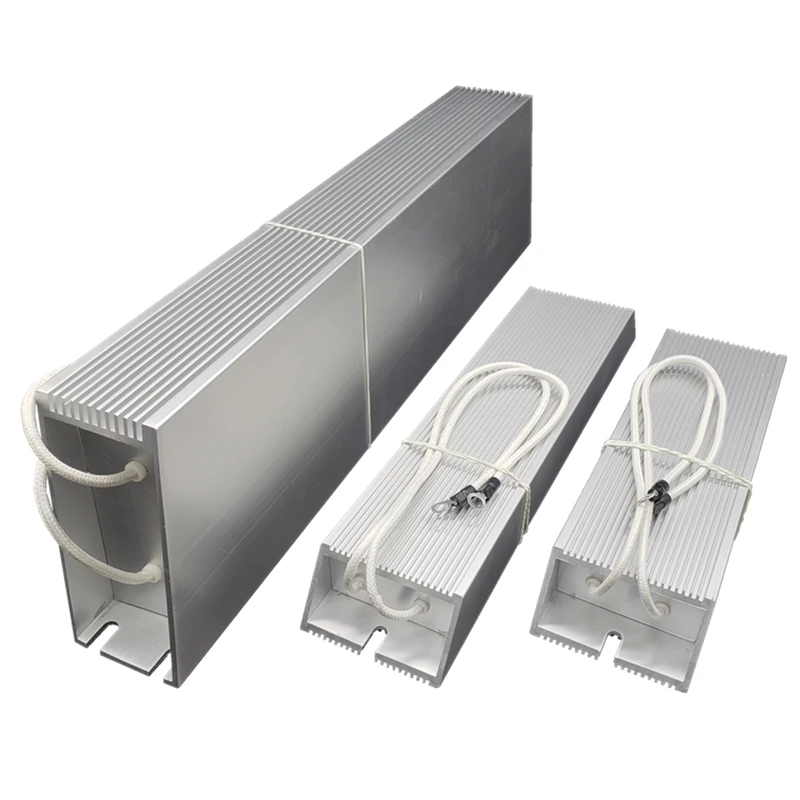

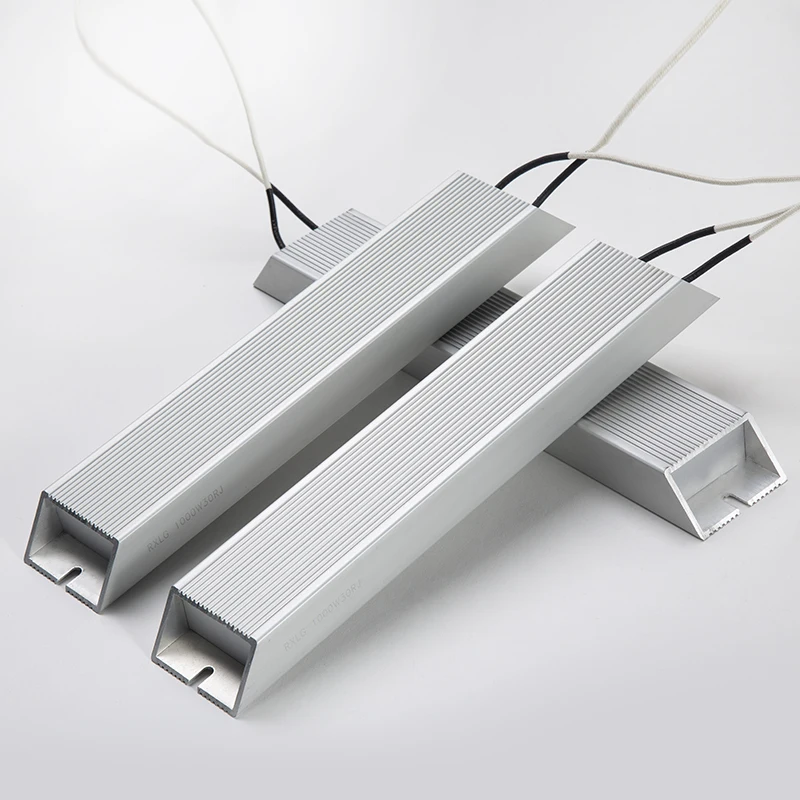

RXLG ladder aluminum shell resistors, due to their beautiful appearance, durability and strong heat dissipation performance, are widely used in frequency converters and servos as brake resistors
1. Stable performance, high power, good heat dissipation performance, can be used in harsh environment for a long time.
2. High insulation, using flame retardant inorganic material integrated packaging.
3. Operating temperature: -55°C~+275°C.
4. Accuracy range: ±5%, ±1%
2. High insulation, using flame retardant inorganic material integrated packaging.
3. Operating temperature: -55°C~+275°C.
4. Accuracy range: ±5%, ±1%
Product Description
Specification
Size(mm) | Wiring | lead | Single weight(KG) | |||||
A | B | MM | MM | |||||
50-60W | 20*40 | 115 | 98 | 1.5 | 300 | 0.65 | ||
80W | 20*40 | 115 | 98 | 1.5 | 300 | 0.65 | ||
100W | 20*40 | 115 | 98 | 1.5 | 300 | 0.65 | ||
120W | 20*40 | 185 | 173 | 1.5 | 300 | 1.1 | ||
150W | 20*40 | 190 | 173 | 2.5 | 300 | 1.1 | ||
200W | 30*60 | 165 | 147 | 2.5 | 300 | 0.45 | ||
300W | 30*60 | 215 | 215 | 2.5 | 300 | 0.6 | ||
400W | 30*60 | 245 | 227 | 2.5 | 500 | 0.65 | ||
500W | 30*60 | 245 | 227 | 2.5 | 500 | 0.65 | ||
600W | 30*60 | 265 | 247 | 2.5 | 500 | 0.7 | ||
800W | 30*60 | 400 | 317 | 2.5 | 500 | 1.1 | ||
800W | 59*61 | 400 | 2.2 | |||||
1000W | 30*60 | 335 | 317 | 2.5 | 500 | 0.95 | ||
1000W | 50*107 | 400 | 3.6 | |||||
1200W | 30*60 | 420 | 2.5 | 500 | 2.3 | |||
1200W | 50*107 | 450 | 4.2 | |||||
1500W | 30*60 | 420 | 402 | 2.5 | 500 | 2.3 | ||
1500W | 50*107 | 485 | 4.7 | |||||
2000W | 50*107 | 450 | 434 | 4 | 500 | 4.2 | ||
2500W | 50*107 | 450 | 434 | 4 | 500 | 4.2 | ||
3000W | 50*107 | 550 | 532 | 4 | 500 | 4.6 | ||
3500W | 50*107 | 550 | 4 | 500 | 4.6 | |||
4000W | 50*107 | 600 | 4 | 500 | 5.1 | |||
4800W | 50*107 | 600 | 4 | 500 | 5.1 | |||
5000W | 50*107 | 700 | 682 | 4 | 500 | 7 | ||
6000W | 50*107 | 750 | 700 | 4 | 500 | 7.5 | ||
8000W | 50*107 | 700 | 682 | 4 | 500 | 7 | ||
10000(10KW) | 50*107 | 900 | 880 | 4 | 500 | 9 | ||

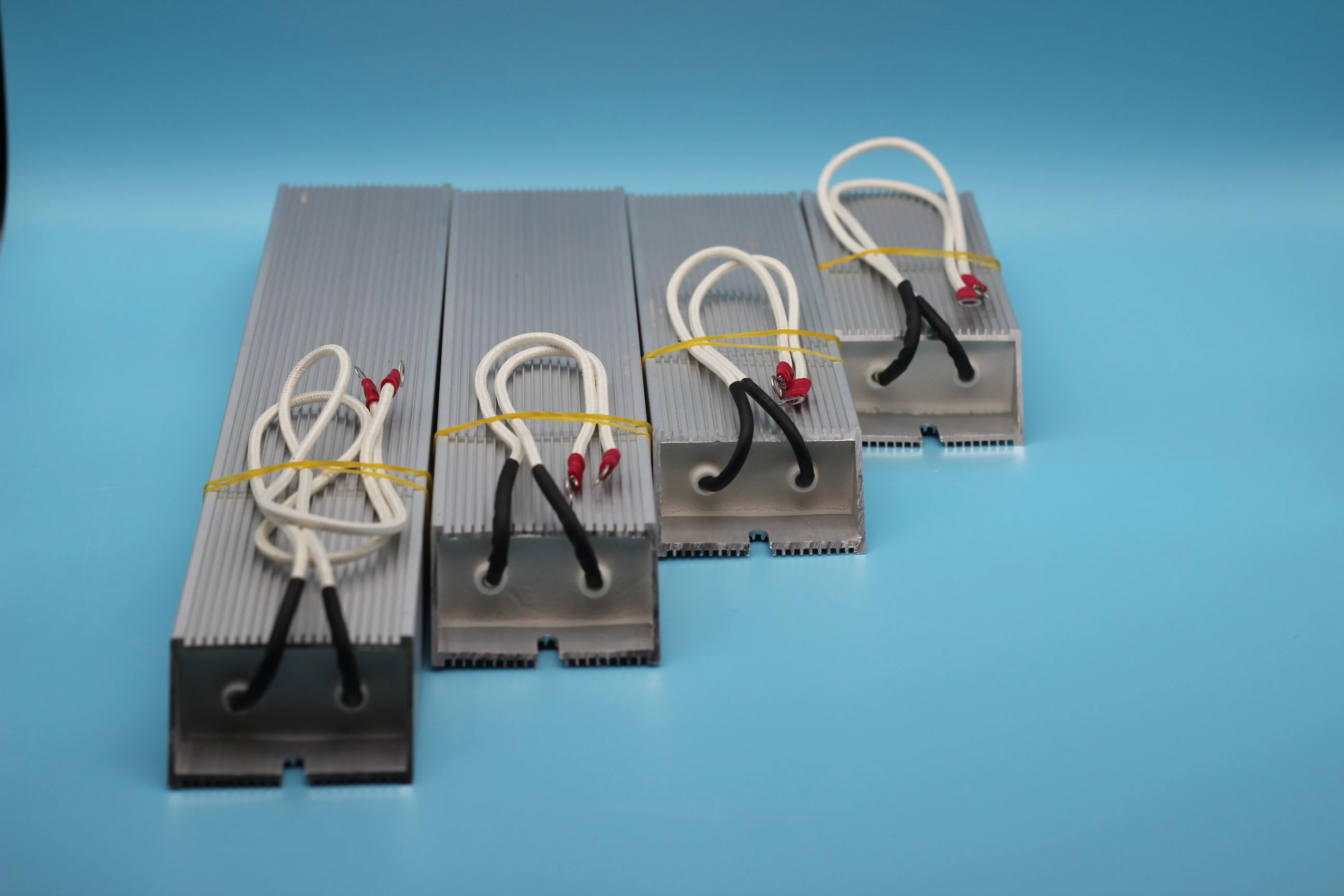

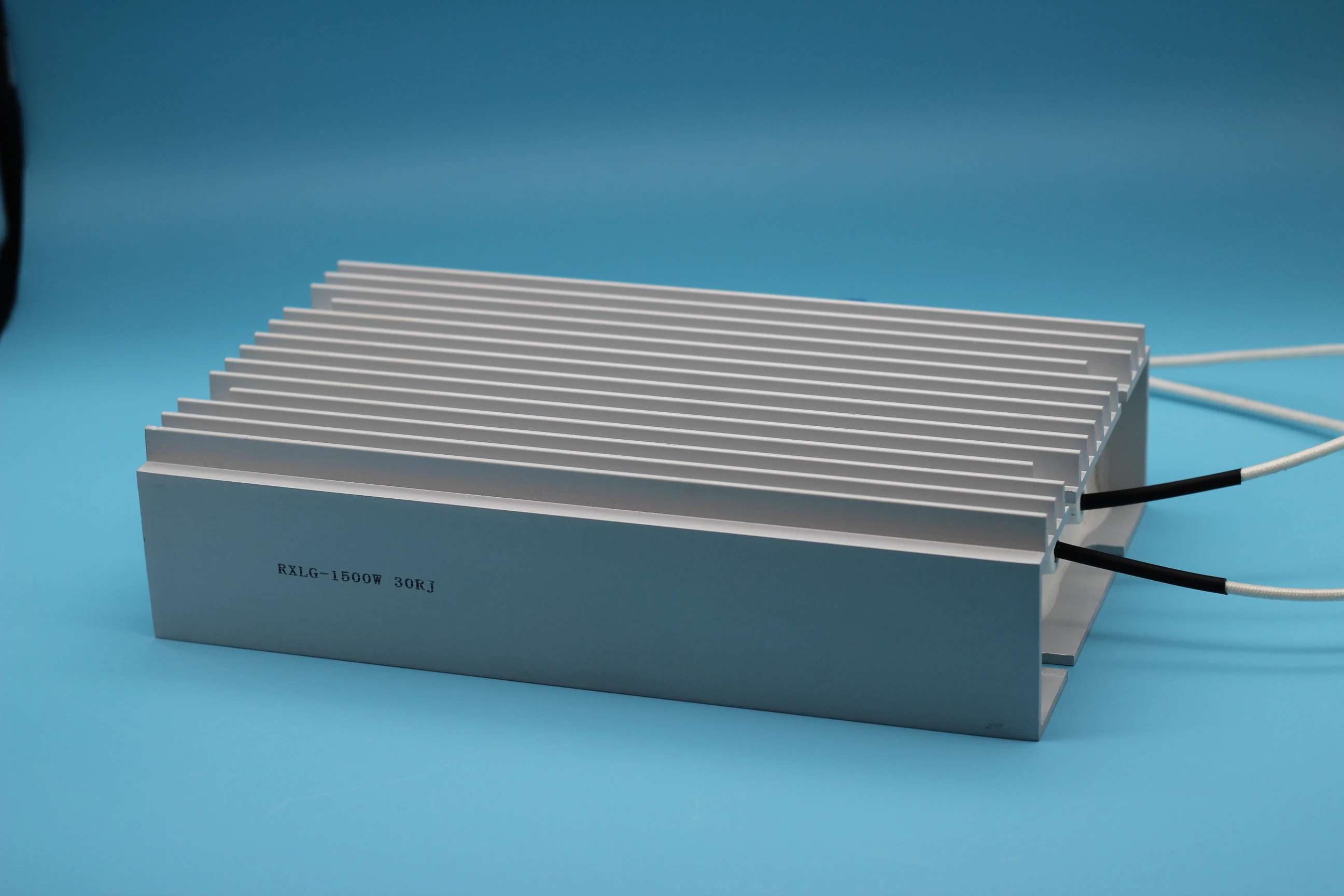

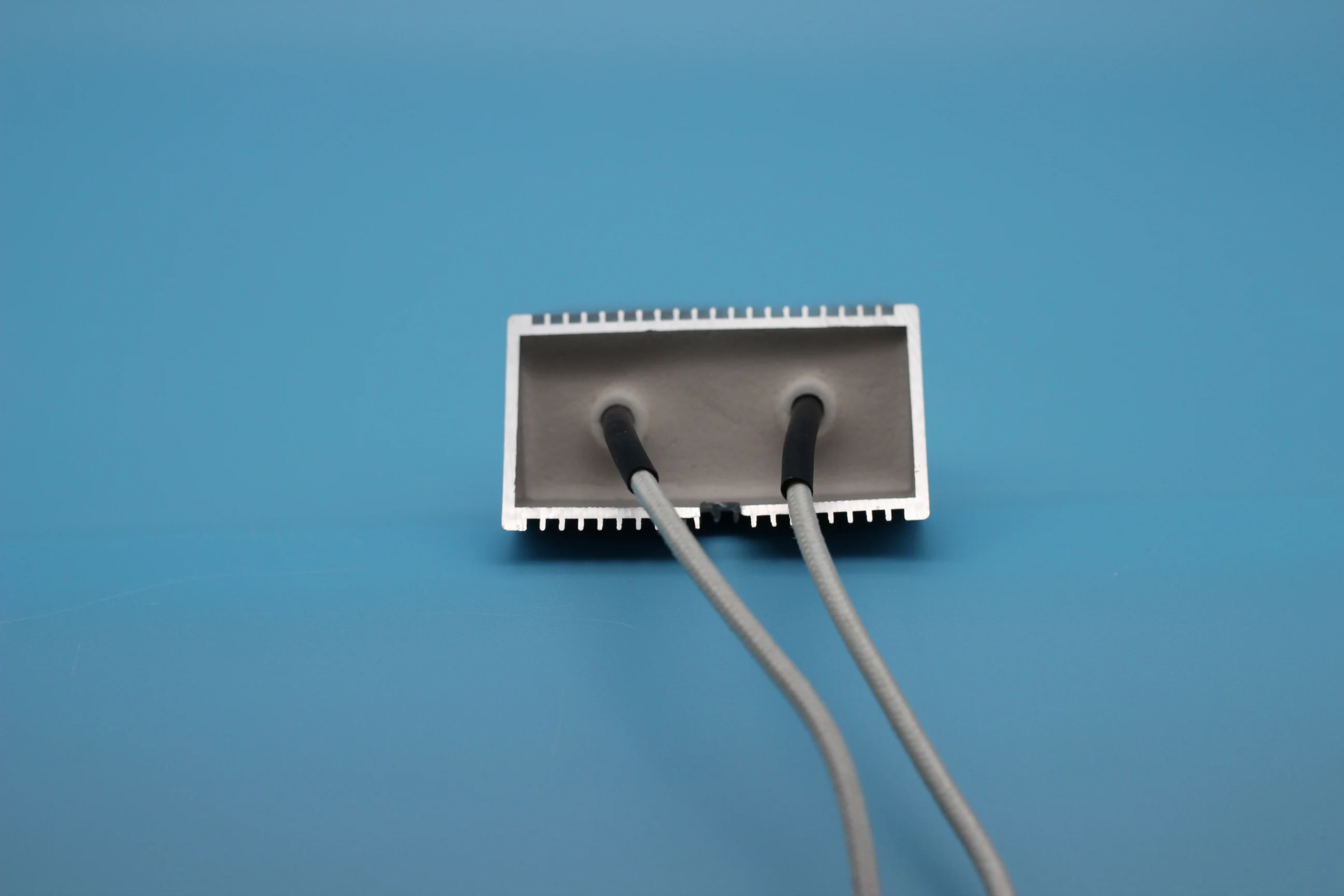

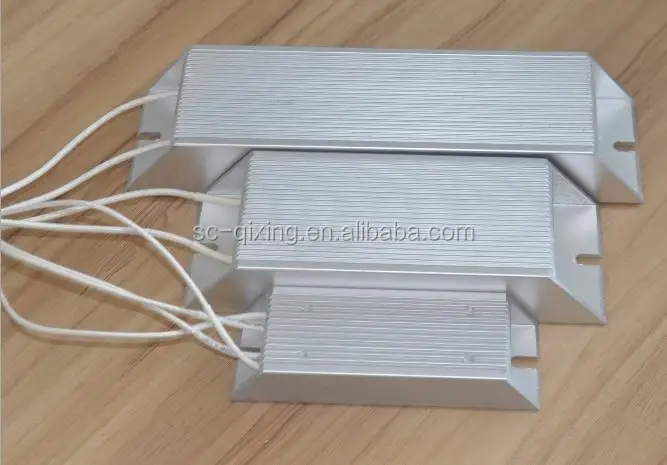

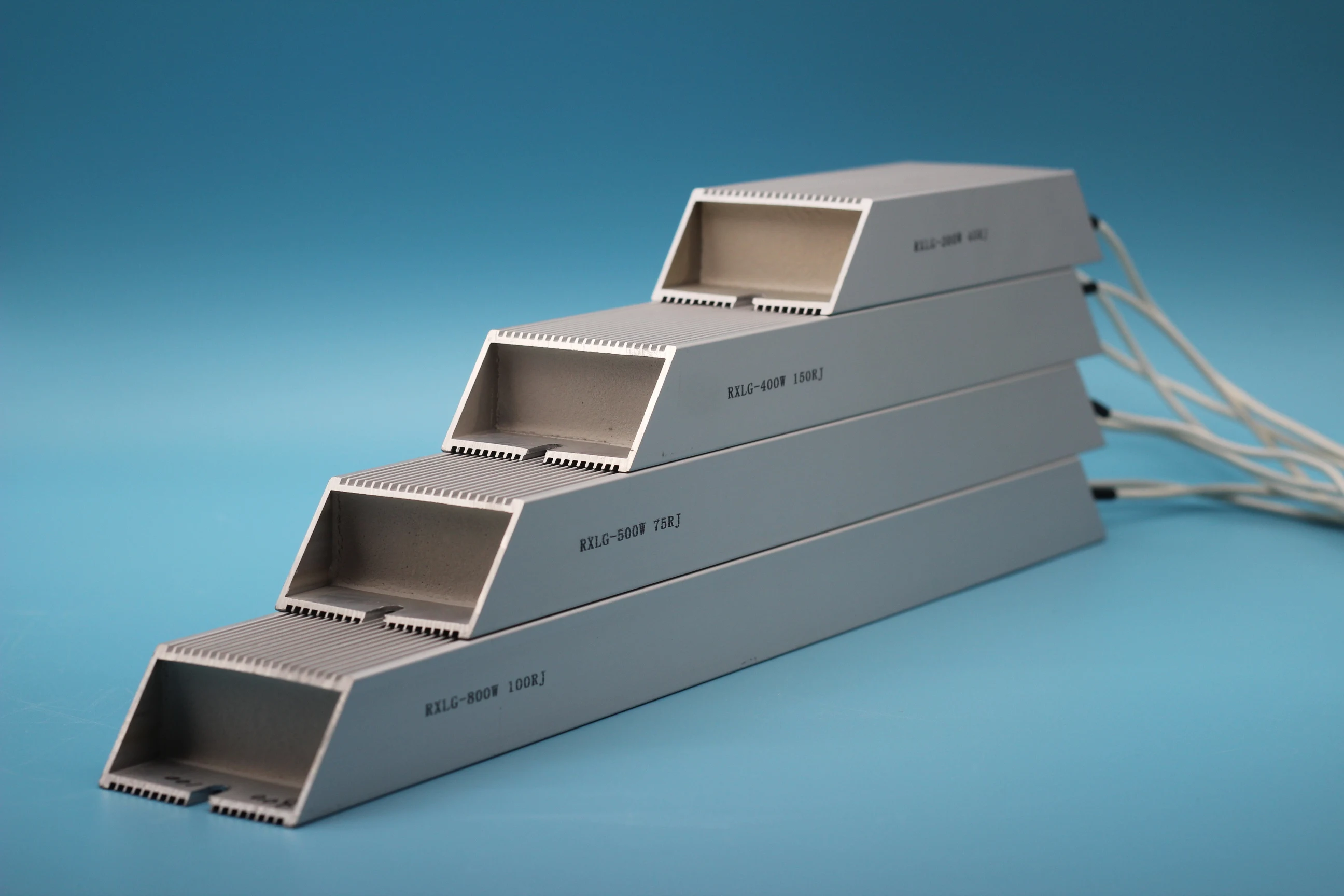

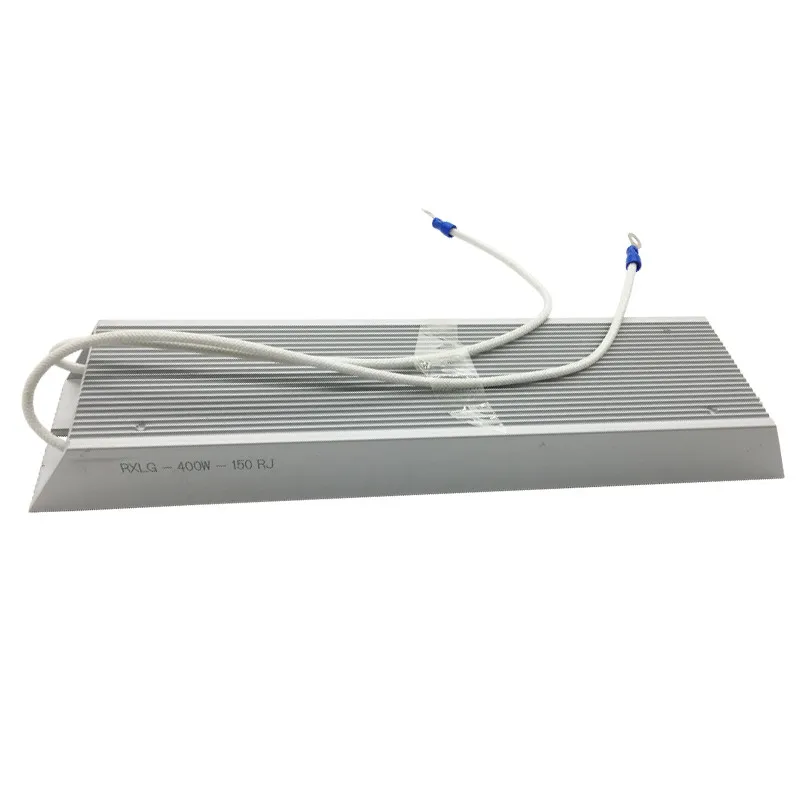

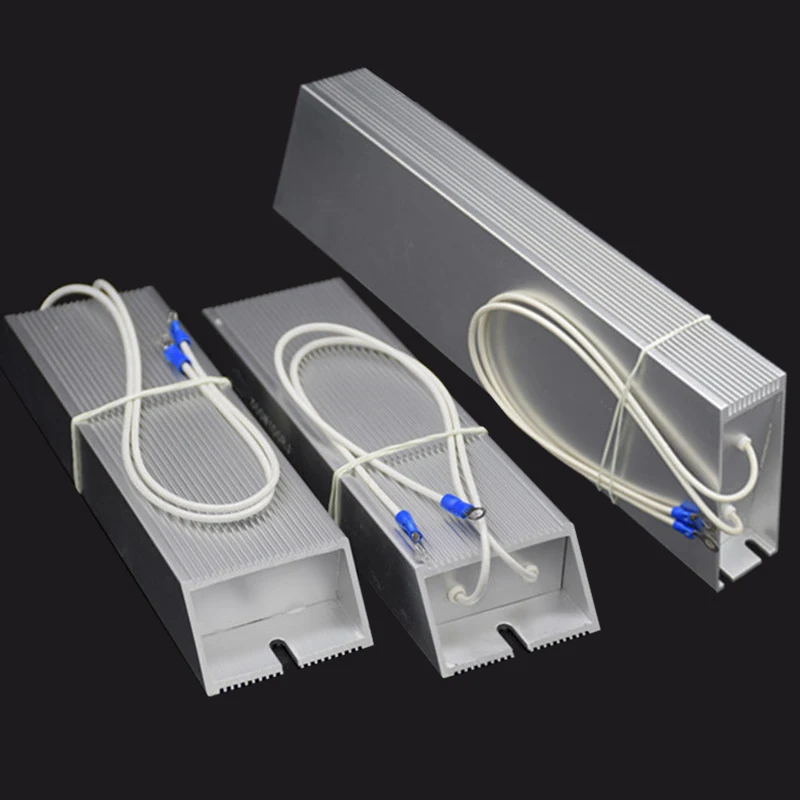

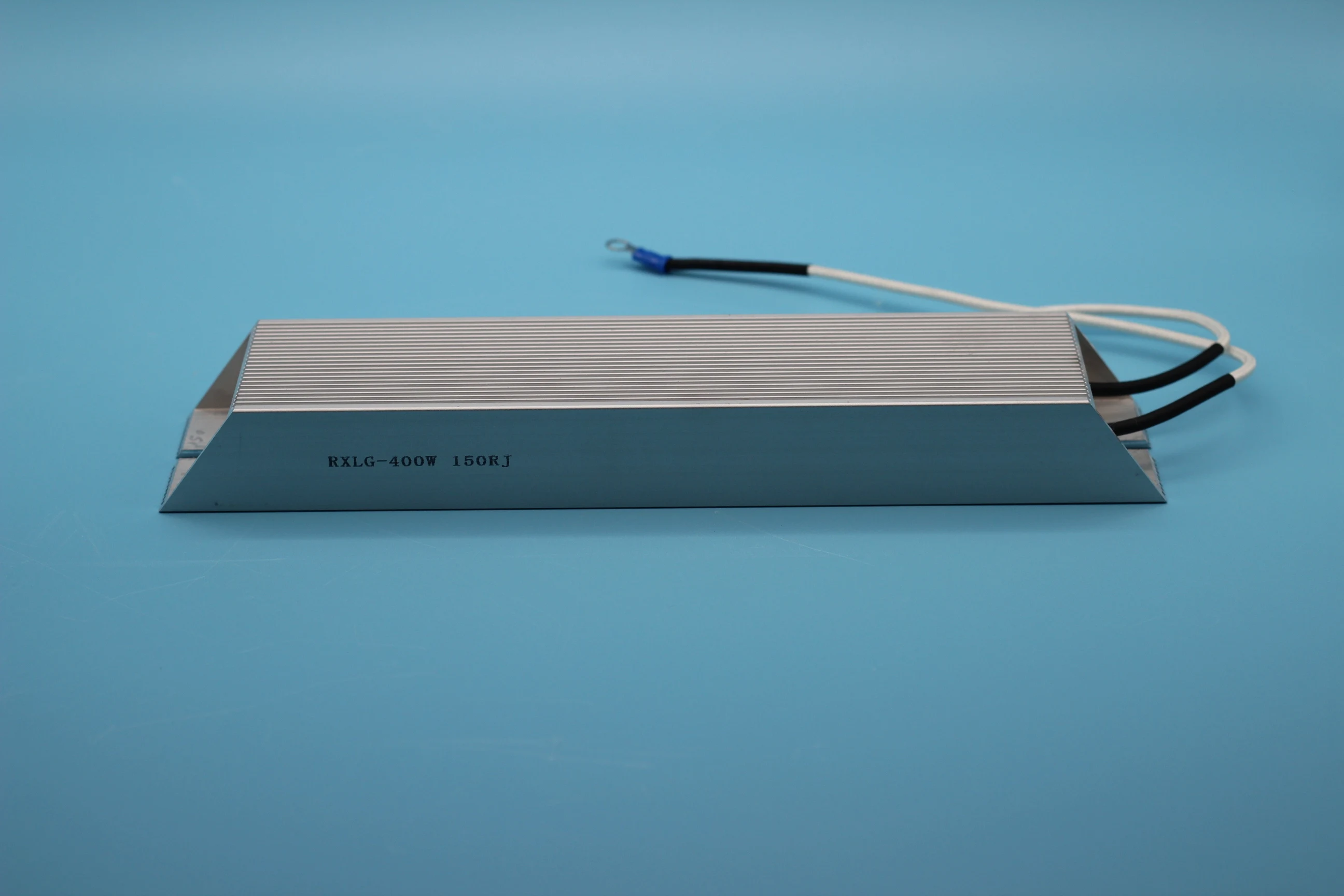

Product photos

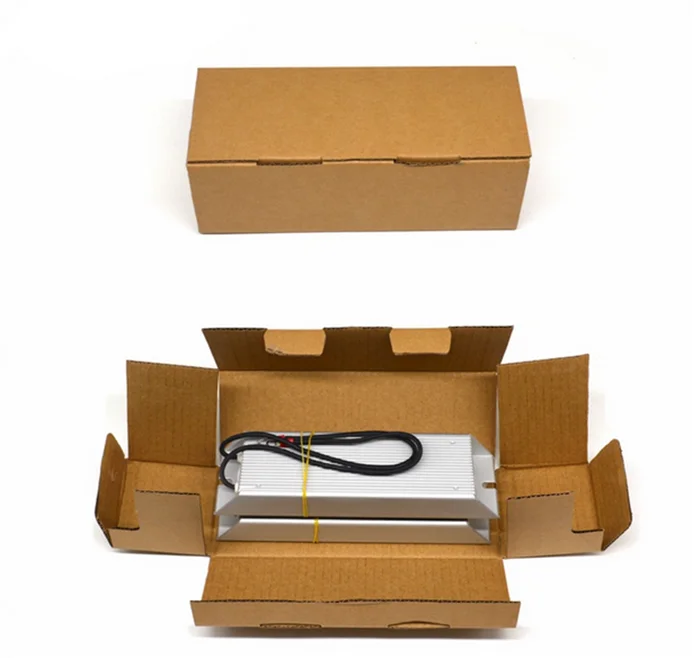

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

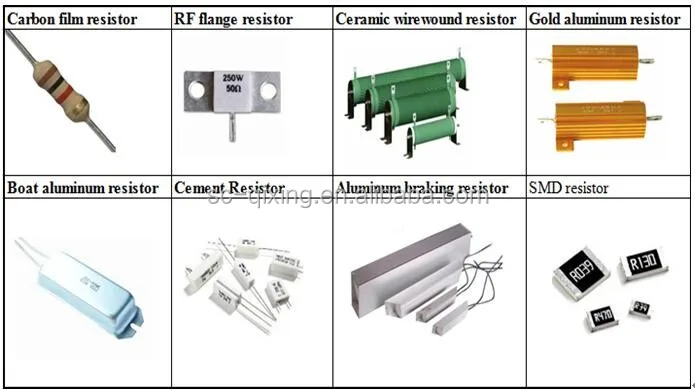

Sichuan Qixing Electronics Co., Ltd. is specialized in manufacturing high-power resisters, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, precision parts and so on ... The company has advanced production equipment and professional R&D personnel. For 17 years, it has won the favor of customers with its excellent product quality, and its products are exported to more than 30 countries around the world.
