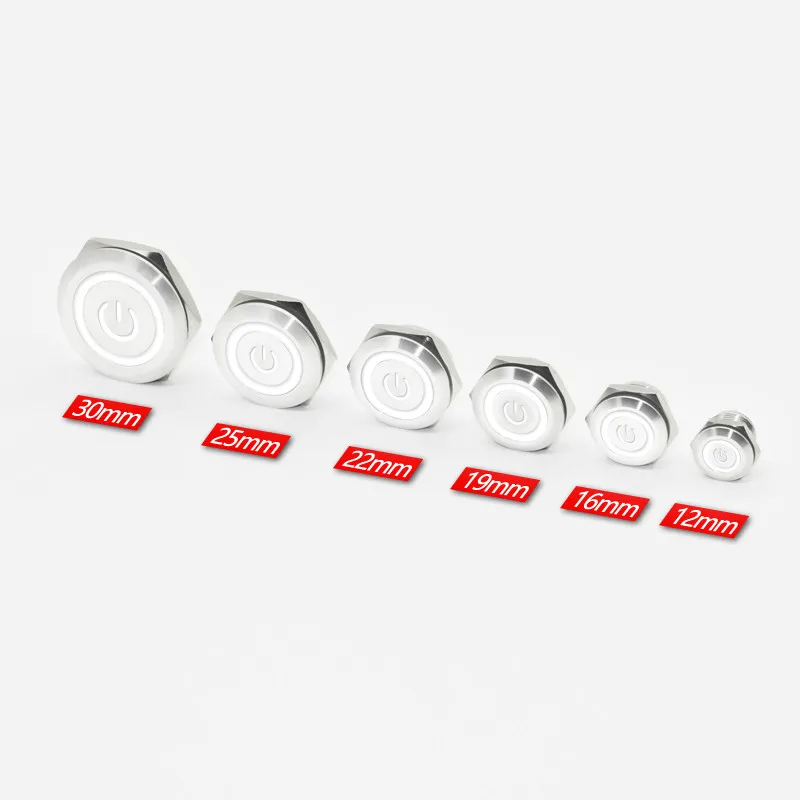

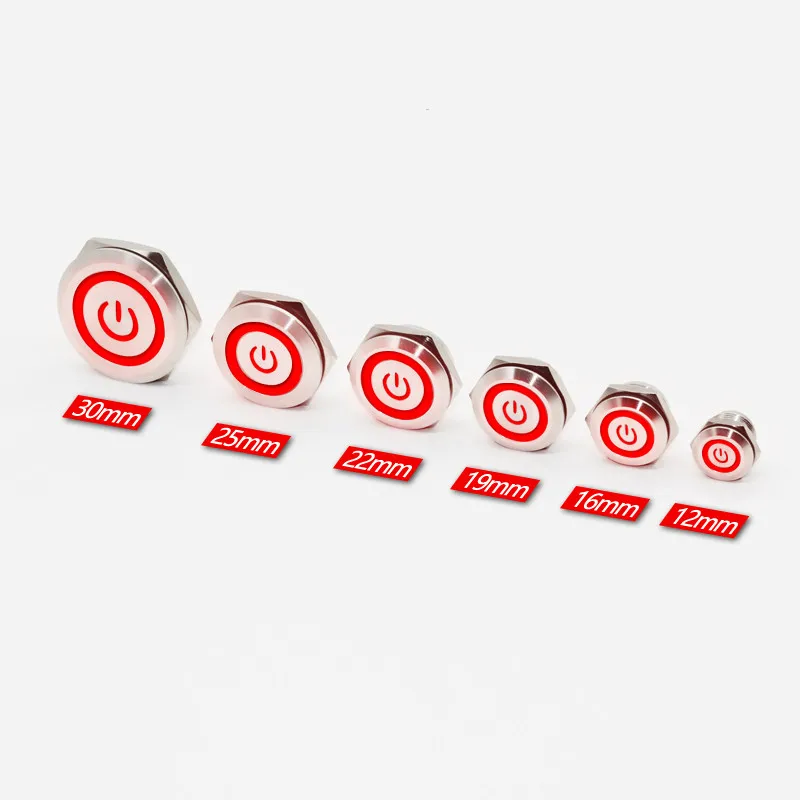

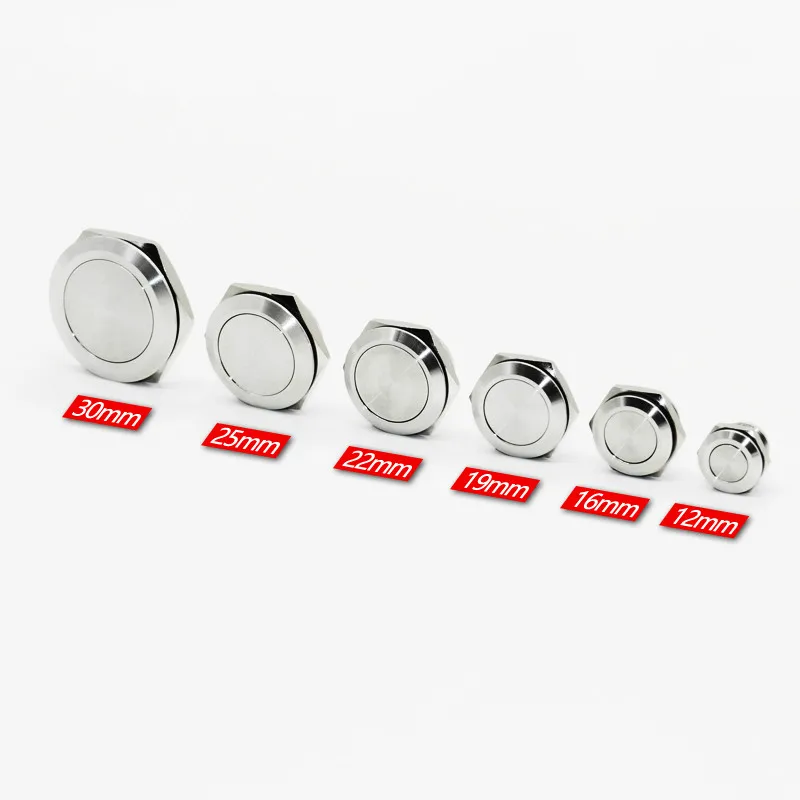

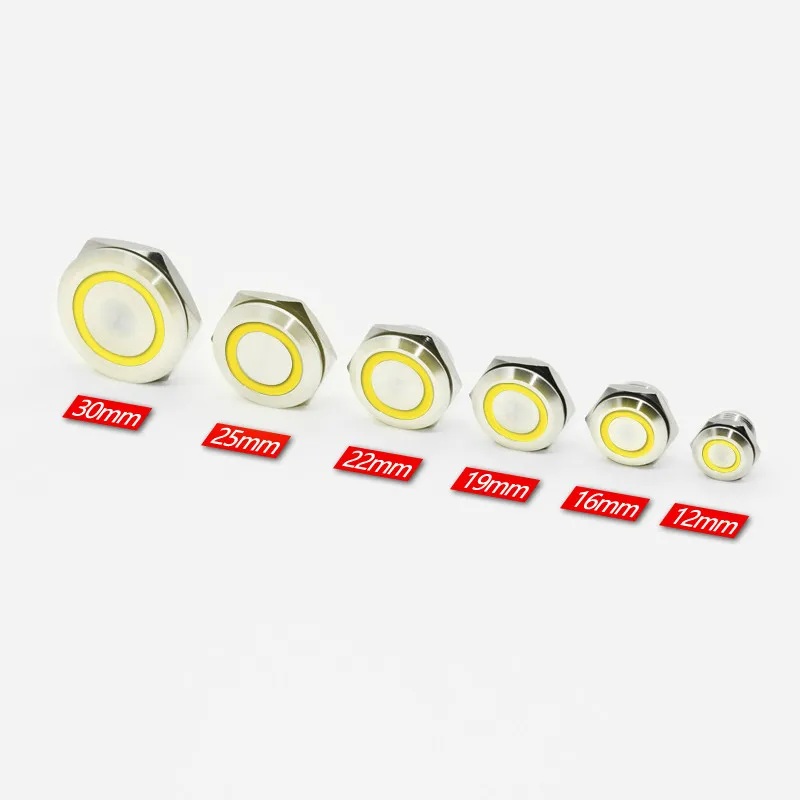

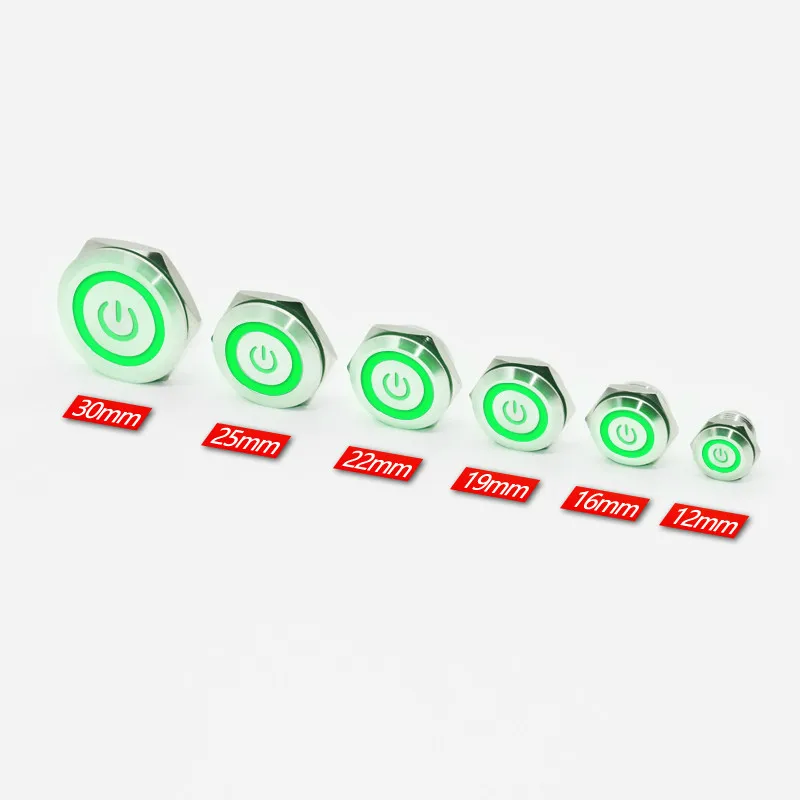

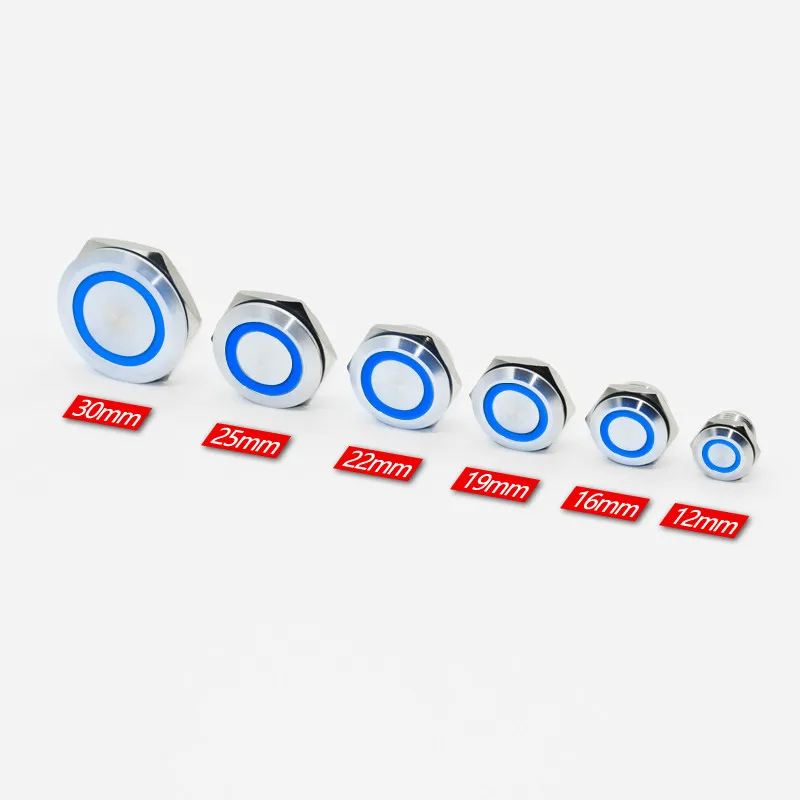

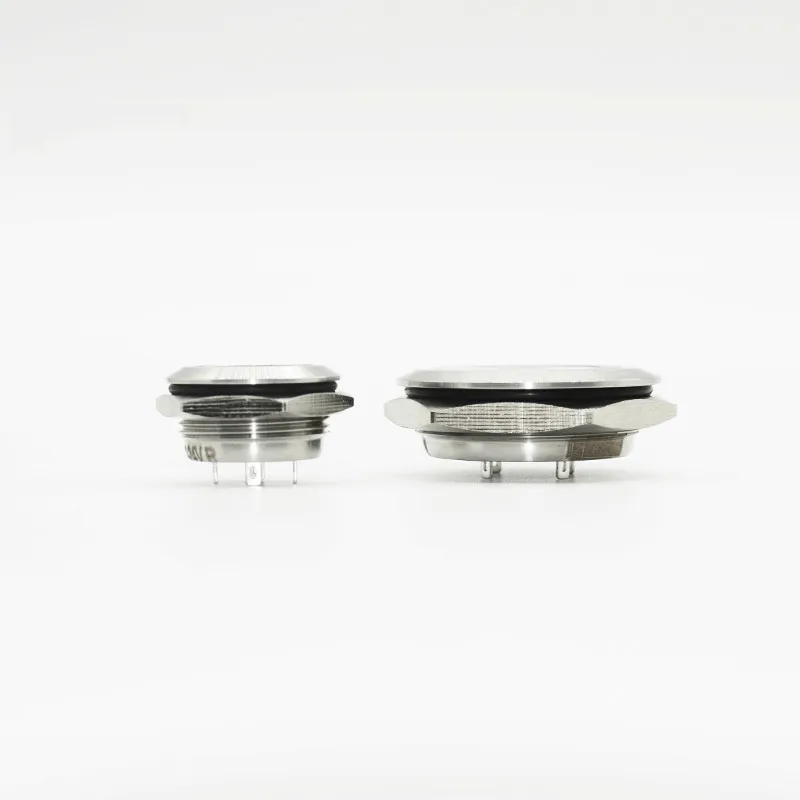

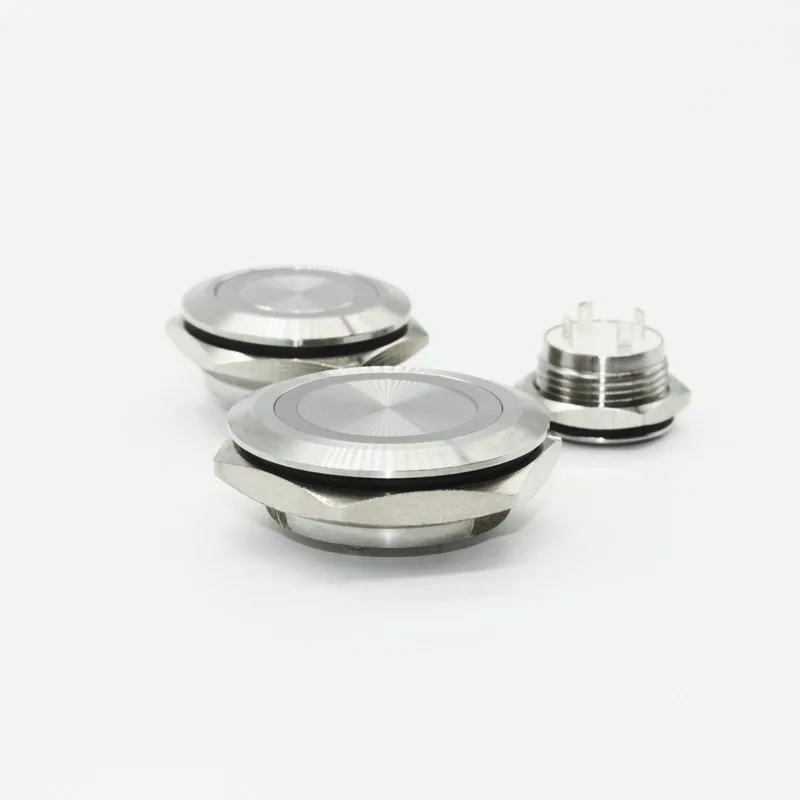

Кнопочный переключатель из нержавеющей стали, светодиодный сенсорный переключатель для подъема, мгновенный запуск, самосброс, 12 мм, 16 мм, 19 мм, 22 мм, 25 мм, 30 мм
- Category: Switches >>>
- Supplier: Yueqing Yarong Electronics Co. Ltd.
Share on (1600469242040):
Product Overview
Description
Product Information
Stainless Steel Push Button Switch Short-Throw Self-Reset Momentary 12mm 16mm 19mm 22mm 25mm 30mm LED Touch Elevator Button
| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | |
| Contact Resistance | ≤50mΩ | Actuating Force | |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | |
| Dielectric Strength | 1000VAC min | Nut torque | |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel |
| Electrical Life |
100000 cycles | Base material |
|
| Mechanical Life | Latching-200,000 cycles Momentary-800,000 cycles | Transmissive cover | |
| Protection Level | IK09 | Pins Contact | |
| Waterproof Level | IP65 | Terminal type | 2 Pin Terminals/4 Pin Terminals |
Product Details
Product classificati
Company Information

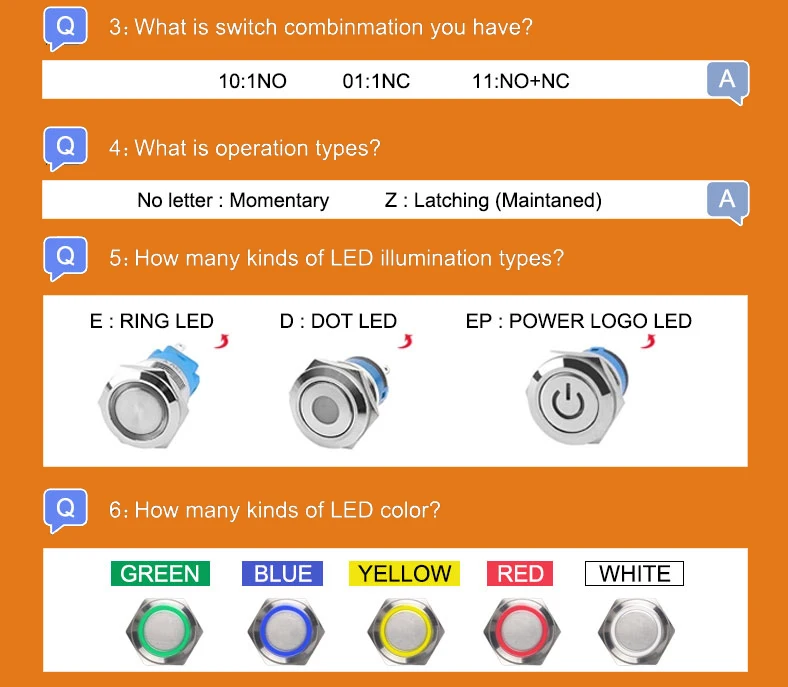

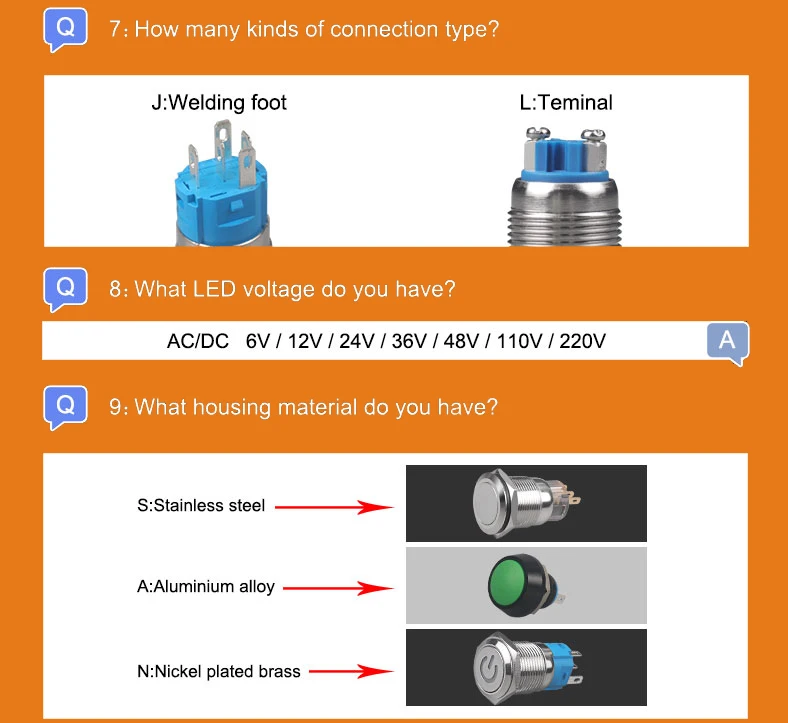

FAQ
