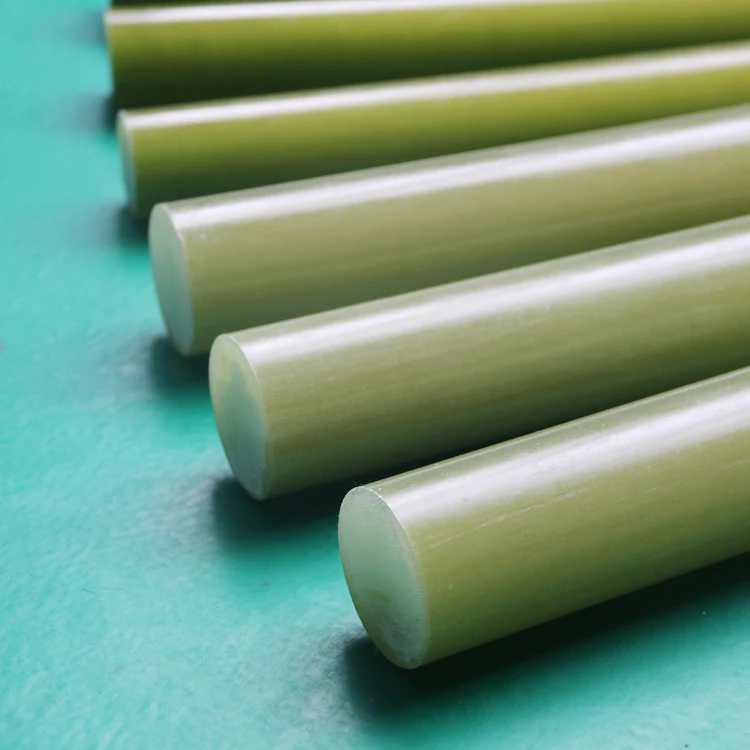

Corrosion Resistance ECR Pultrusion Fiberglass Solid FRP Glass Fiber Rod

Product Overview

Description

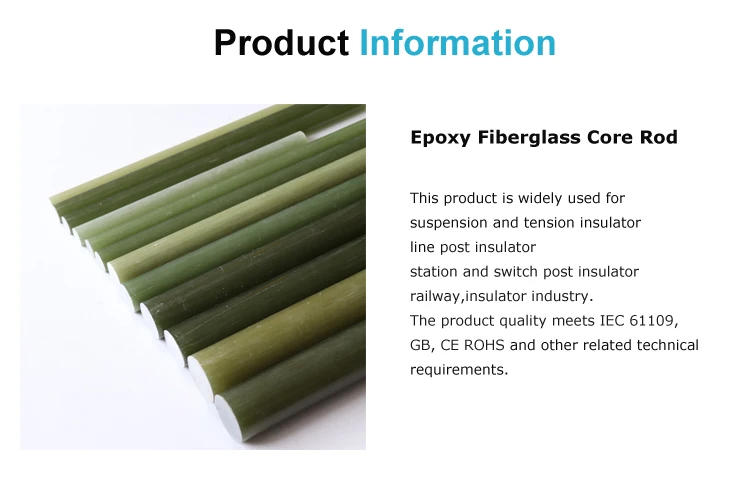

Fiberglass Cord Rod is made through glass fiber yarn soaking in epoxy compound glue,
and passing the vacuum injection, continuous pulling and pressing, and being solidified.
They have good insulation performance and tension strength.

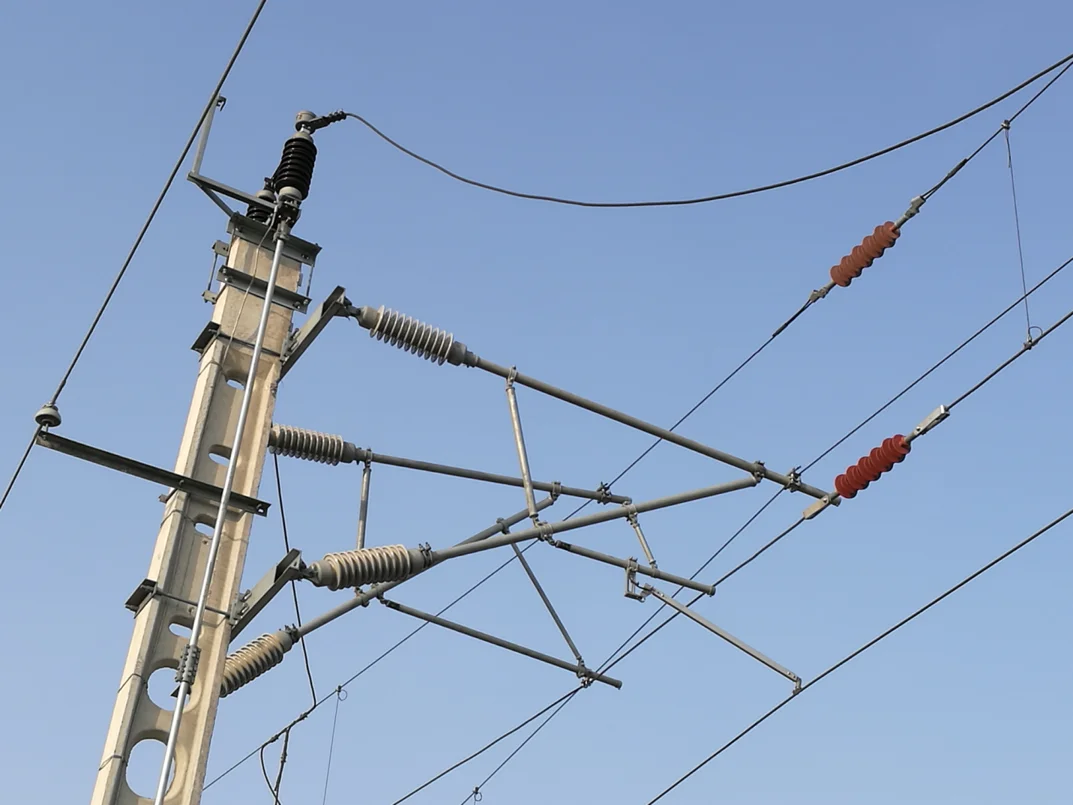

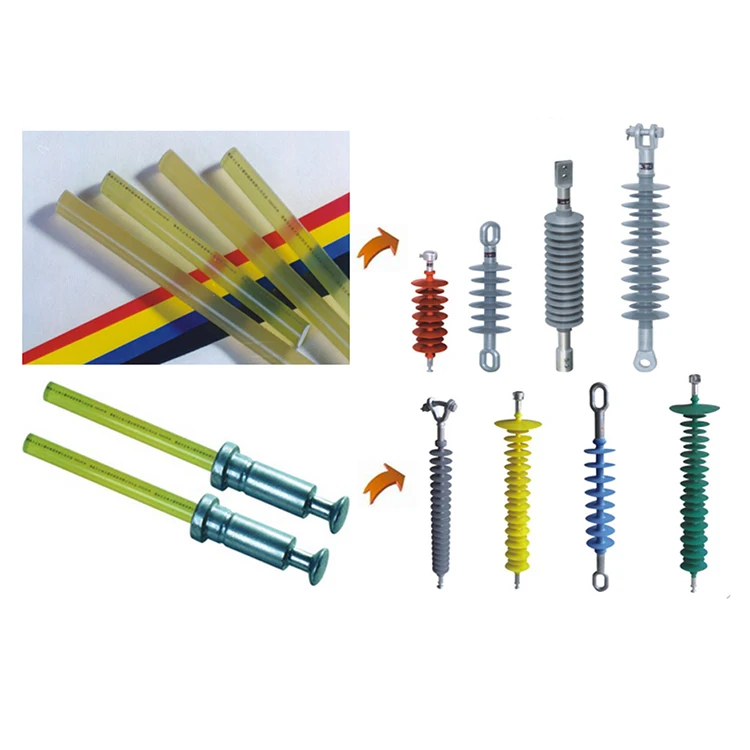

FRP rod are widely used for high voltage line,freeway; tunnel; railway station; underground engineering;
sewage treatment plants etc.

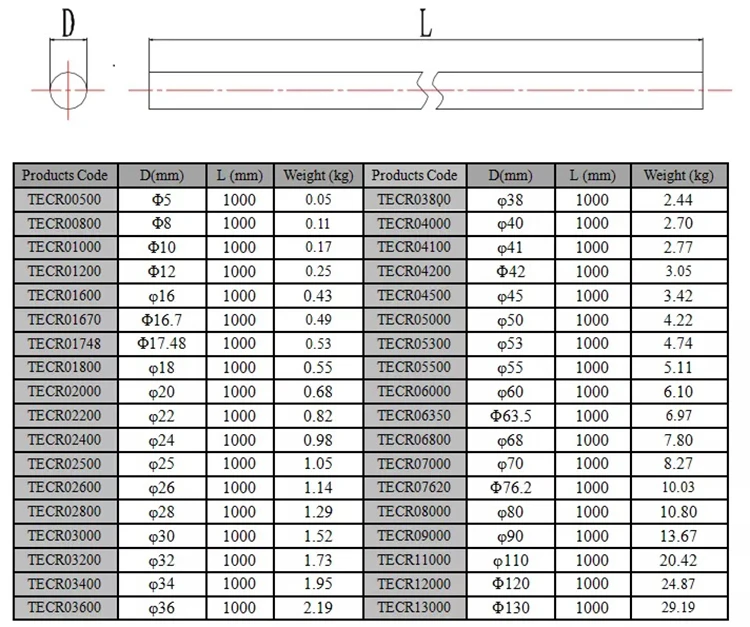

Existing Diamter and Length



Note:

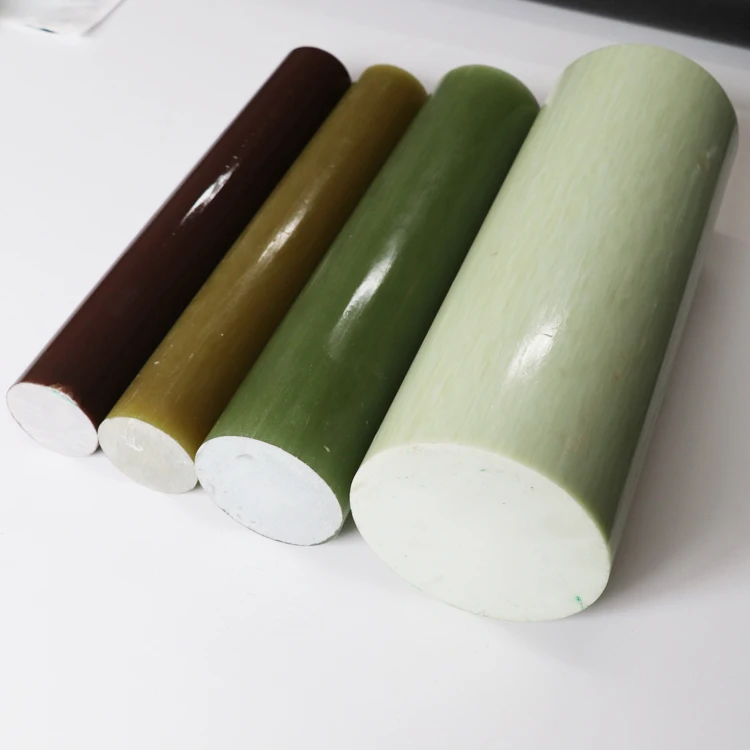

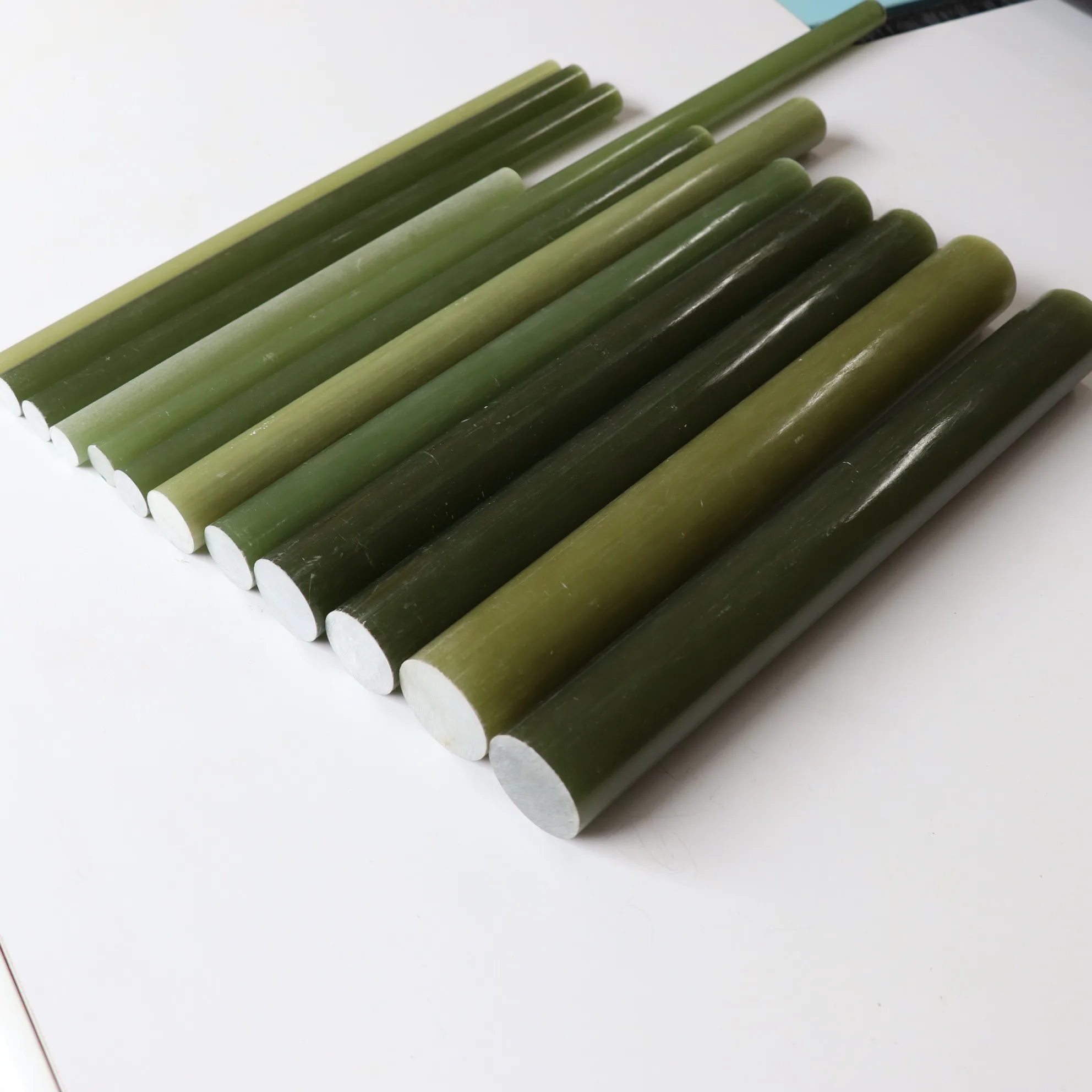

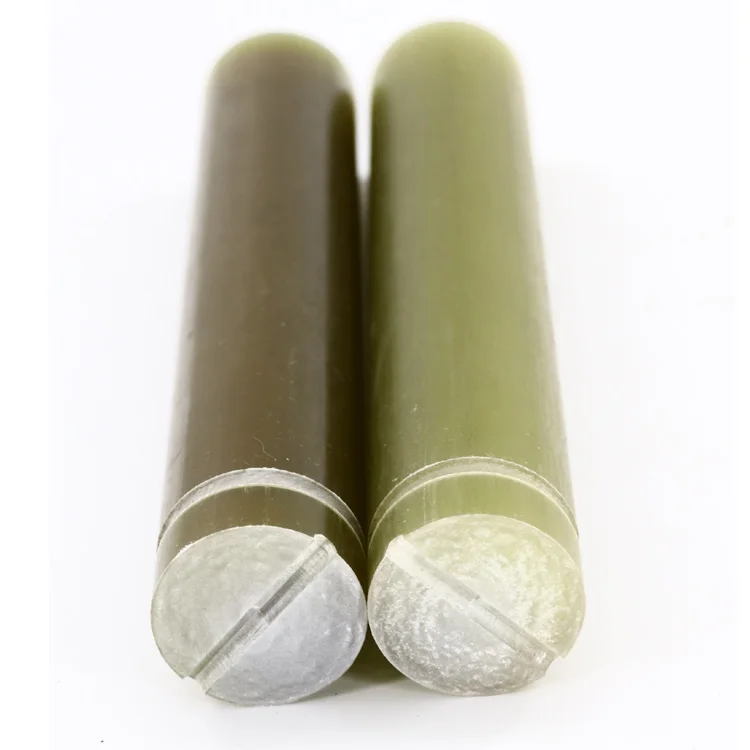

 1. Color: light green or brown.
 2. Length: according to Customer requirement.
 3. We offer customized products,including new size, New surface treatment, Jointing the fitting
 If you can’t find the suitable specification in the form. Please tell us.
 We will manufacture based on your request.

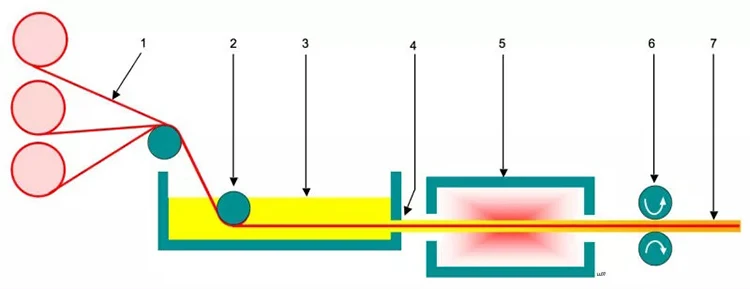

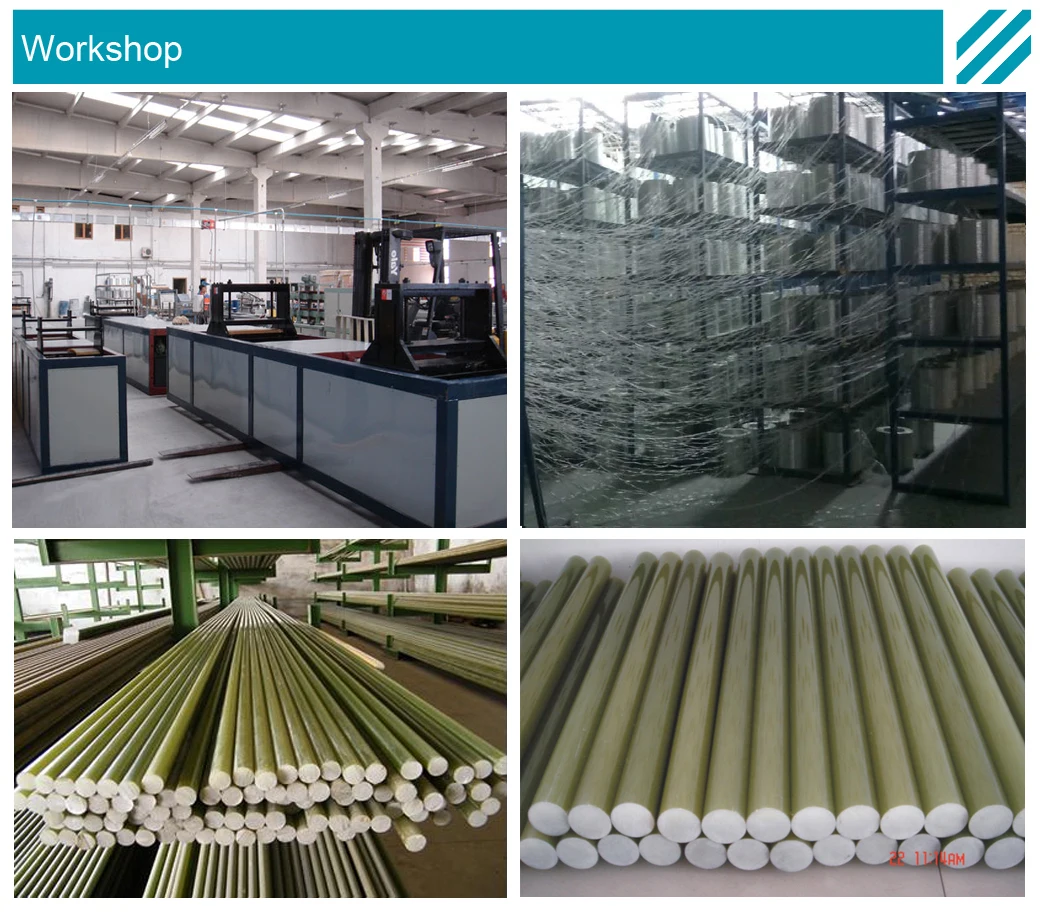

Production Process


   1 - Continuous roll of reinforced fibers/woven fiber mat
   2 - Tension roller
   3 - Resin Impregnator
   4 - Resin soaked fiber
   5 - Die and heat source
   6 - Pull mechanism
   7 - Finished hardened fiber reinforced polymer

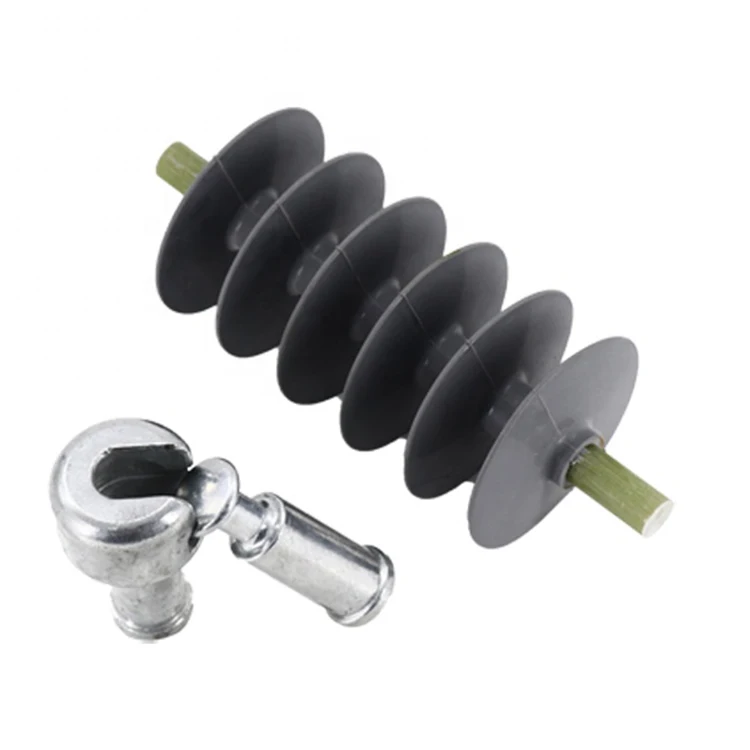

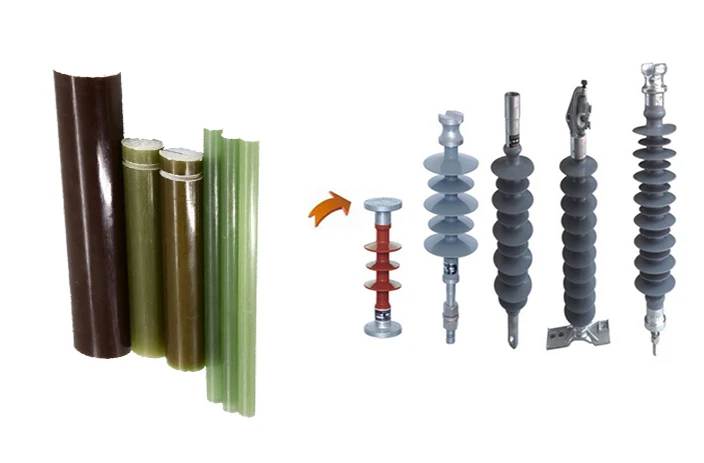

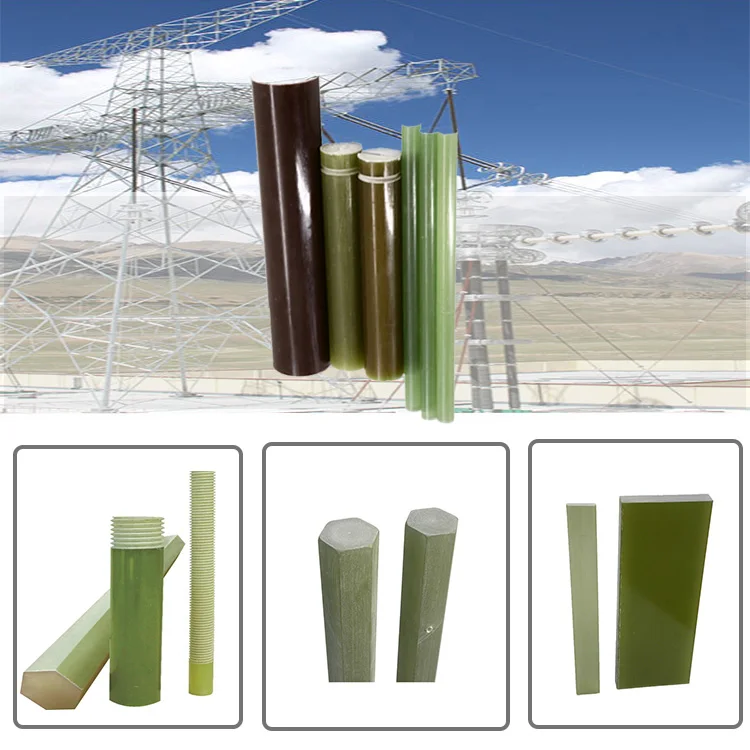

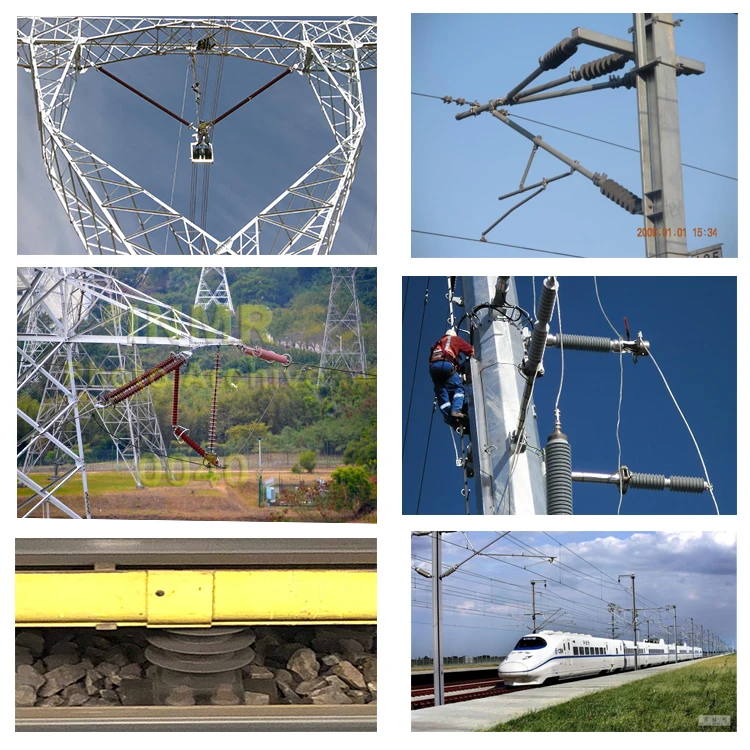

Product Application

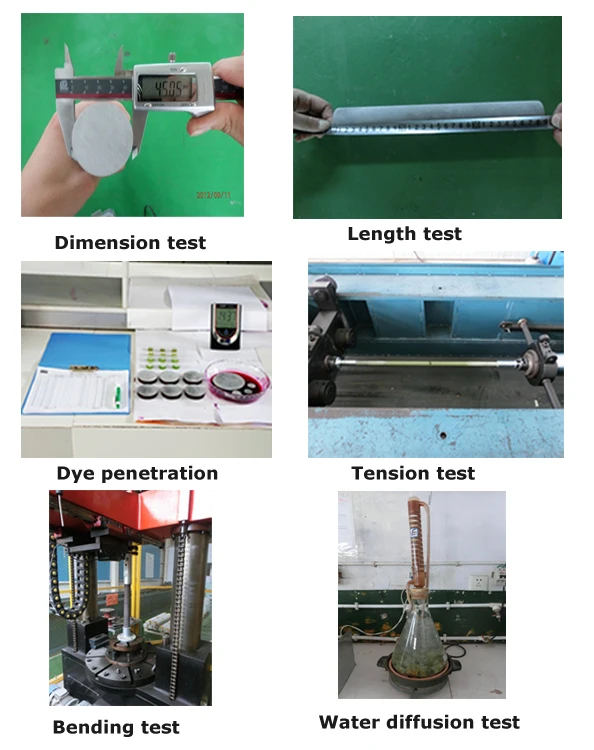

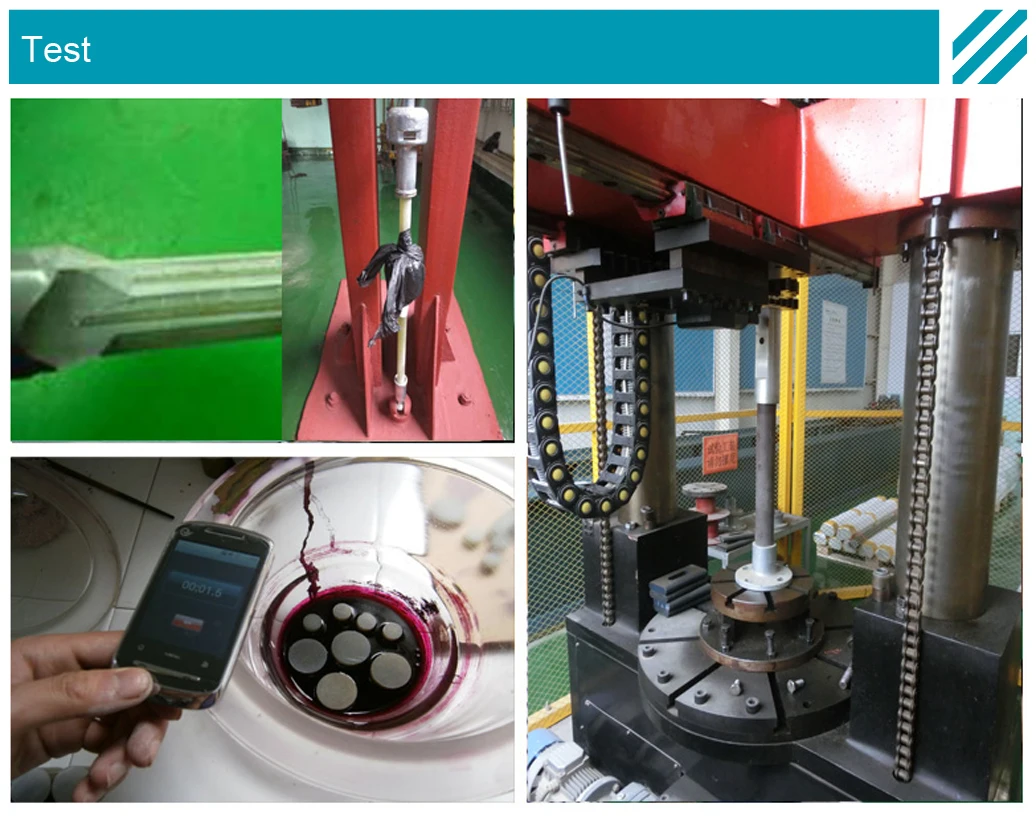

Test Equipment

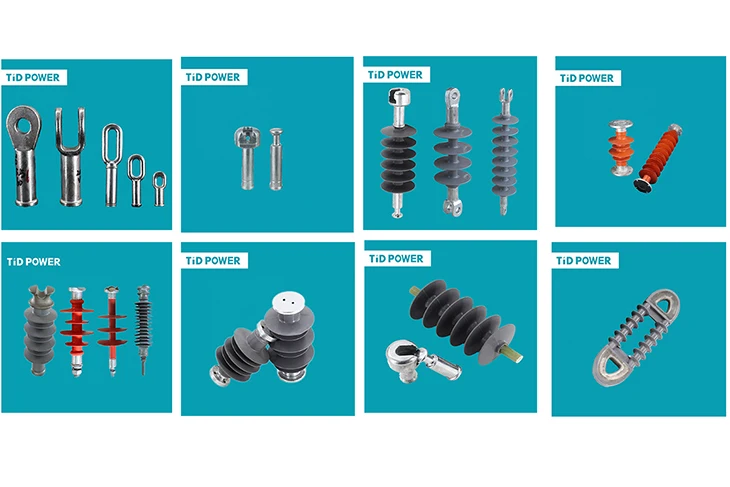

Related cataglories
