4.5mm*100m fiberglass cable duct rodders

Professional 4.5mm fiberglass cable duct rodderS

         Fiberglass cable duct rodder is selected as a special tool for  pulling electric cables and optical fibre cables in telecom, power industries, buildings and many other fields. Applied to all kinds of pipeline traction rope guide deployment,communication cable, power cable, network cable, video cable and so on. It also can measure the length of the pipeline, pipe cleaning, acceptance of pipeline. The operation is simple, smooth surface, reasonable collocation of toughness and strength, is an effective auxiliary tool is essential in pipeline construction.

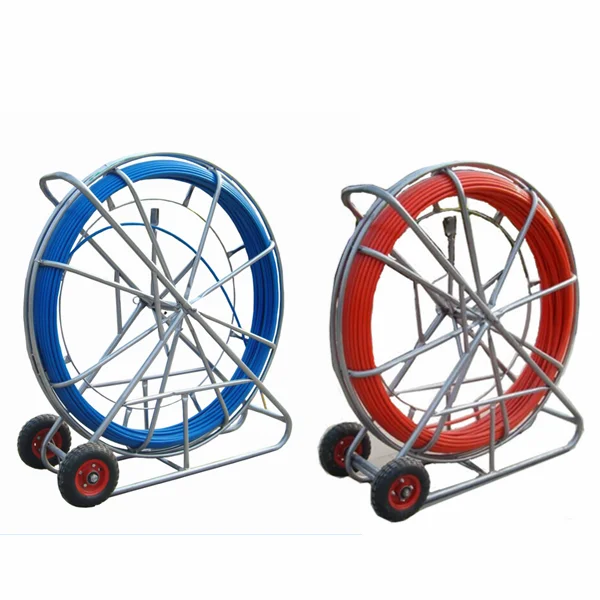

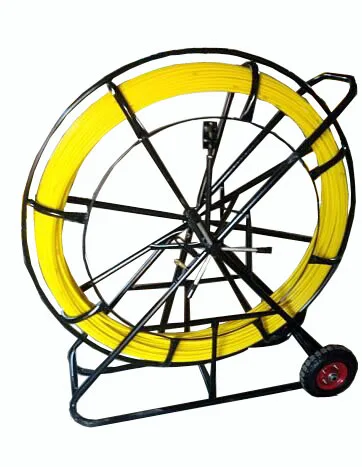

        The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate. The fiberglass duct rodder will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.

Whole set of 4.5mm fiberglass cable duct rodder includes following parts

                               Fiberglass rod+mental drawing head+Frame

• Fiberglass rod: fiberglass core+ABS/High quality composite coated


       1.Fiberglass core

          material:E glass fiber and high quality resin(which is reach the export quality, not the cheap one)

          advantages:ensure the perfect combination of toughness and rigidity of product, more durable

                              not easily broken.

       2.coated surface in any color

          material:ABS coated or high quality composite (the high quality composite is more better)

          advantages:Smooth, strong, corrosion resistant, strong weather resistance

  Note: A.you can choose the copper wire in the fiberglass rod according to your application

            B.meter mark:yes. Clear and accurate, convenient measurement

• Metal drawing head


          material:iron plated copper

          advantages:Corrosion-resistant and better appearance

•  Frame

        1. the use of thicker steel reinforcement steel or steel rod

        2. spraying: fine process, weather resistance.

        3. axis: the use of high-quality axle, to effectively ensure the life of the product.

      Note:the frame for 4.5mm*100m fiberlass duct rodder wothout the wheel. as it is light and small volume.

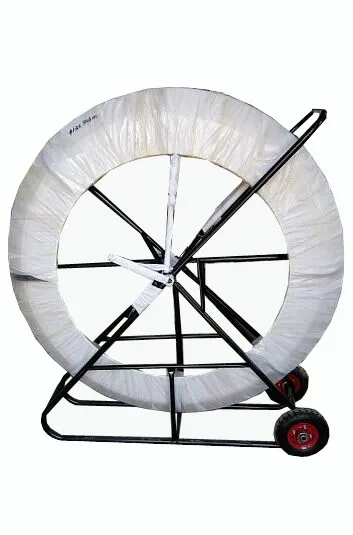

Packaging

Package inside   Packaged with plastic woven strip

Package outside  Carton. then packaged with the pp film. Or as request.

1. Your inquiry related to our products or prices will be replied within 24hours

2. The best prices based on same quality.

3. Guarantee samples quality same as mass production quality.

4. Professional Packing,Avoid damage

5. We can do OEM

Tianjin Talents International Trade Co., Ltd. was registered in Tianjin China in 1995, from then on, we devoted

ourselves to the handlings of the supply to the oversea markets of fiberglass products,especially in fiberglass duct rodder, fiberglass poles and special shaped products.Tianjin Talents is the Gold Supplier in Alibaba,we

can provide.Trade Assurance to ensure the safe of your money.We will provide the customized service

and the professional after-sales service.

Enquiry Note:Please tell me  the diameter and length.so that i give you exact price and products.
