Parallel Twin Screw Granulating Line Twin Screw Pelletizing Line Masterbatch Glass Fibers Recycling Line
- Category: Plastic Raw Material Machinery >>>
- Supplier: Yuyao Wutian Machine Equipment Co. Ltd.
Share on (1600469469082):
Product Overview
Description
PRODUCT DESCRIPTION
This High Torque Twin Screw Extruding Granulating Line is mainly used to:
1. test combination ratios and dosage,
2. matching color,
3. changing properties of different plastic granules
1. test combination ratios and dosage,
2. matching color,
3. changing properties of different plastic granules
This machine is for plastic granules, such as ABS, PC, PA, PP, PE, PPO, PBT, HIPS, PPS, PSU, Masterbatch, flame retardant masterbatch, filler masterbatch and short & long glass fibers.
1.Screw Feeder
2.Main machine (Twin Screw Granulator):
① Feeding and Lateral Feeding
② Vacuum Air Vent
③ Automatic Temperature Control Water Cooling System
④ Screen Changer: Hydraulic Double Screen

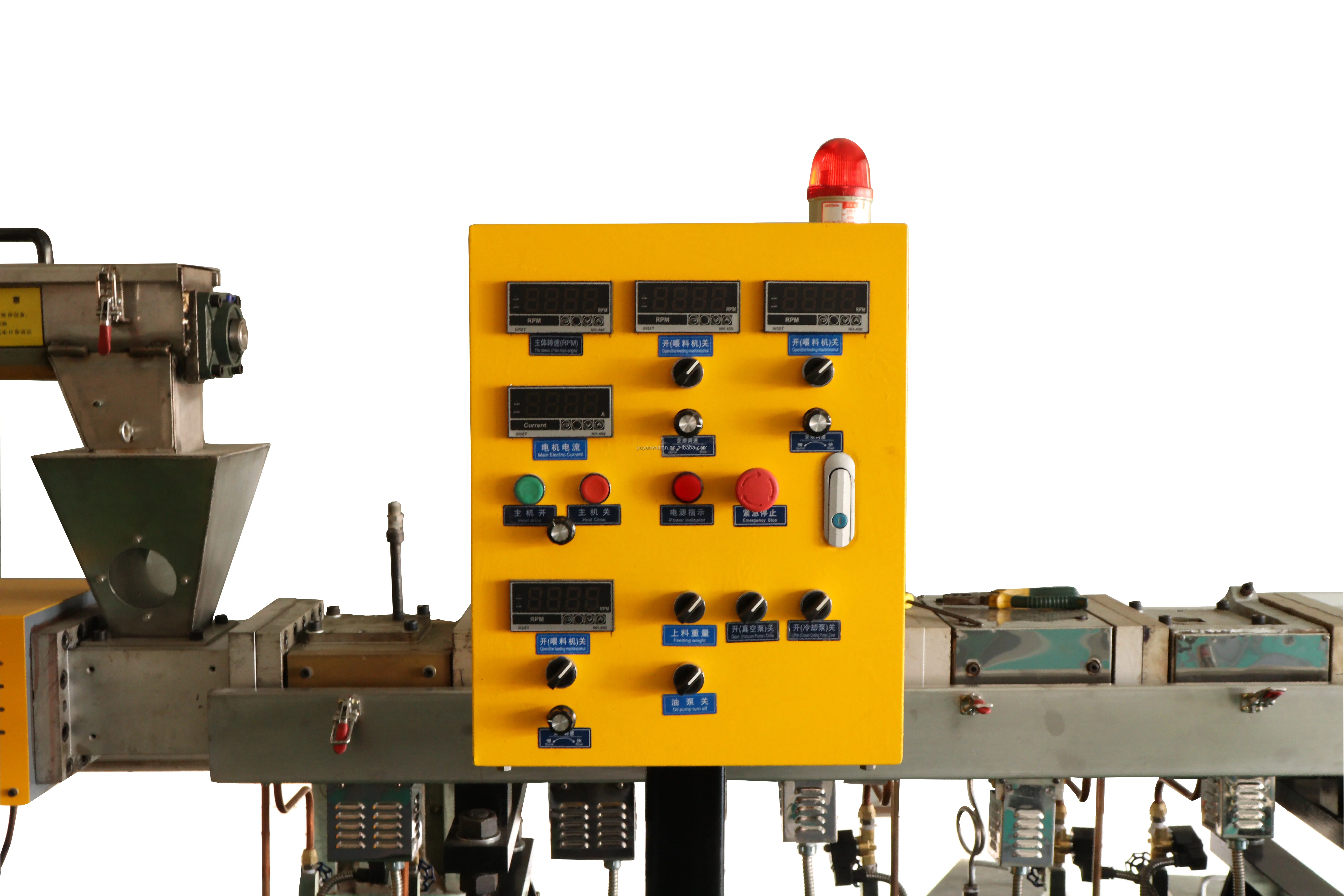

⑤ Electric cabinet
3.Stainless Steel Cooling Trough
4.Suporrting Bracket with Blower
5.Pelletizer: there are a variety of options for customer to choose from
6.Vibration Sieve: Frequency Control
2.Main machine (Twin Screw Granulator):
① Feeding and Lateral Feeding
② Vacuum Air Vent
③ Automatic Temperature Control Water Cooling System
④ Screen Changer: Hydraulic Double Screen
⑤ Electric cabinet
3.Stainless Steel Cooling Trough
4.Suporrting Bracket with Blower
5.Pelletizer: there are a variety of options for customer to choose from
6.Vibration Sieve: Frequency Control

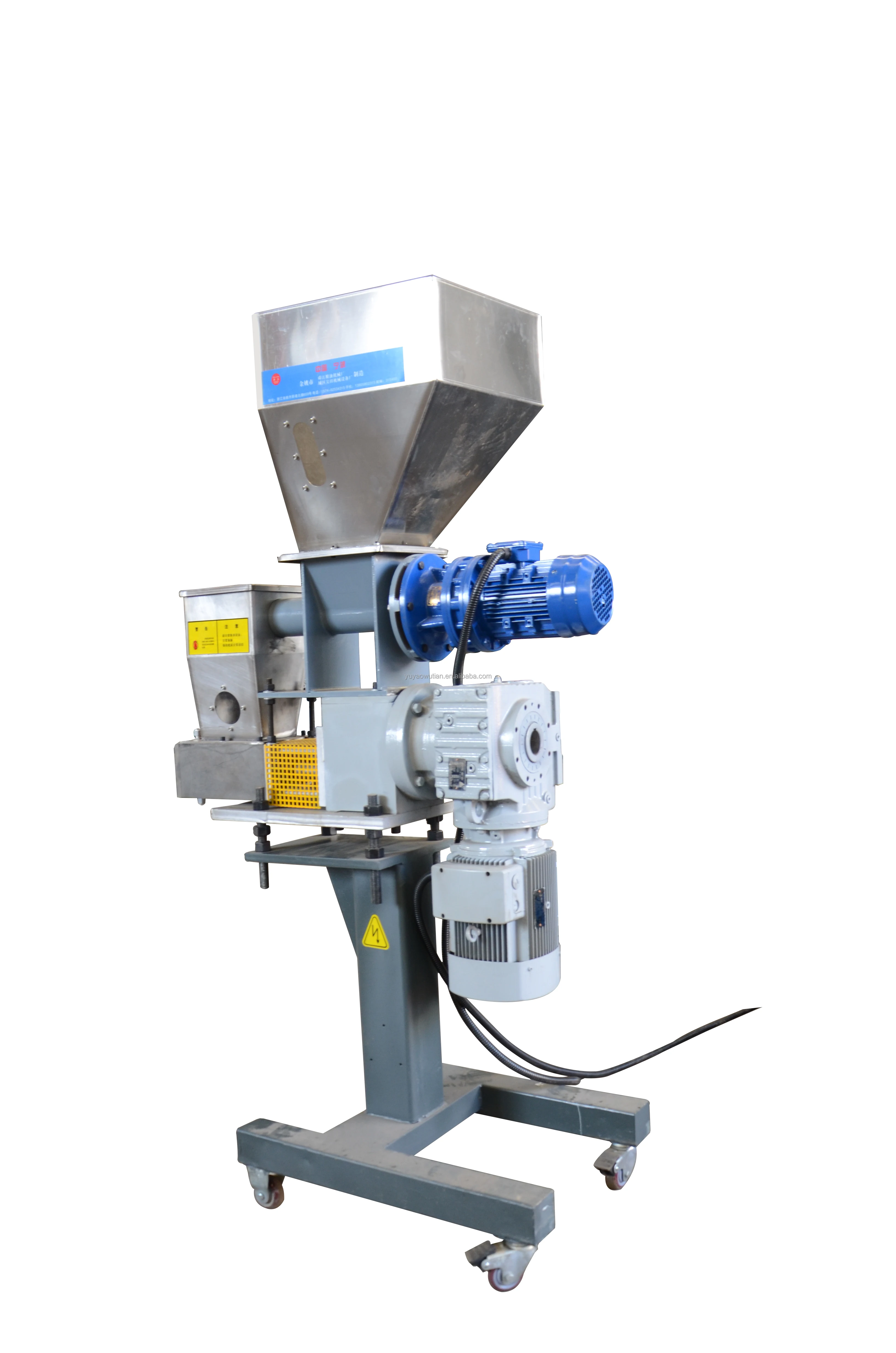

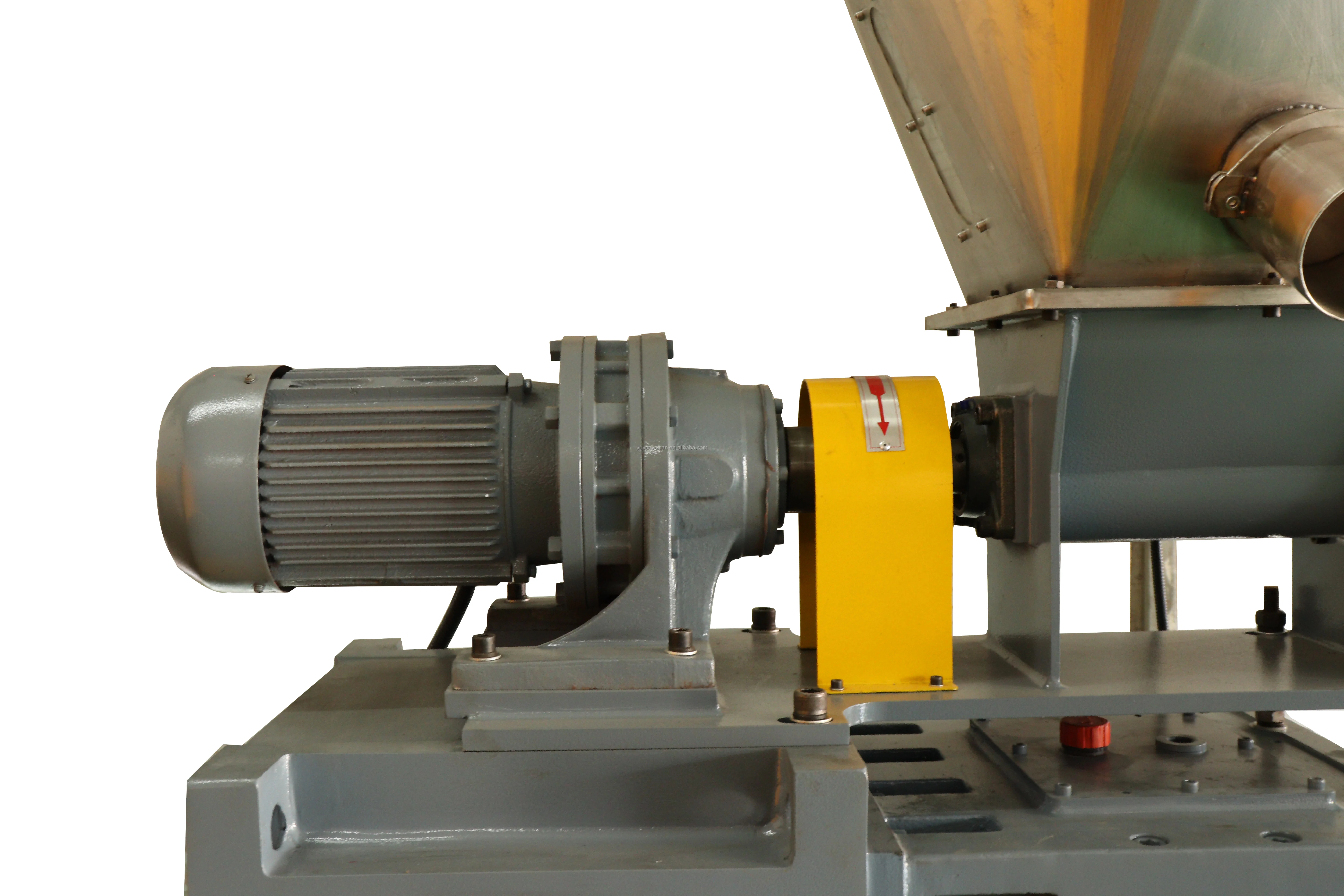

Screw Feeder:
Screw Feeder: Transport raw materials to the granulator. This machine can avoid manual feeding in order to reduce labor intensity, cost savings and to improve work efficiency.

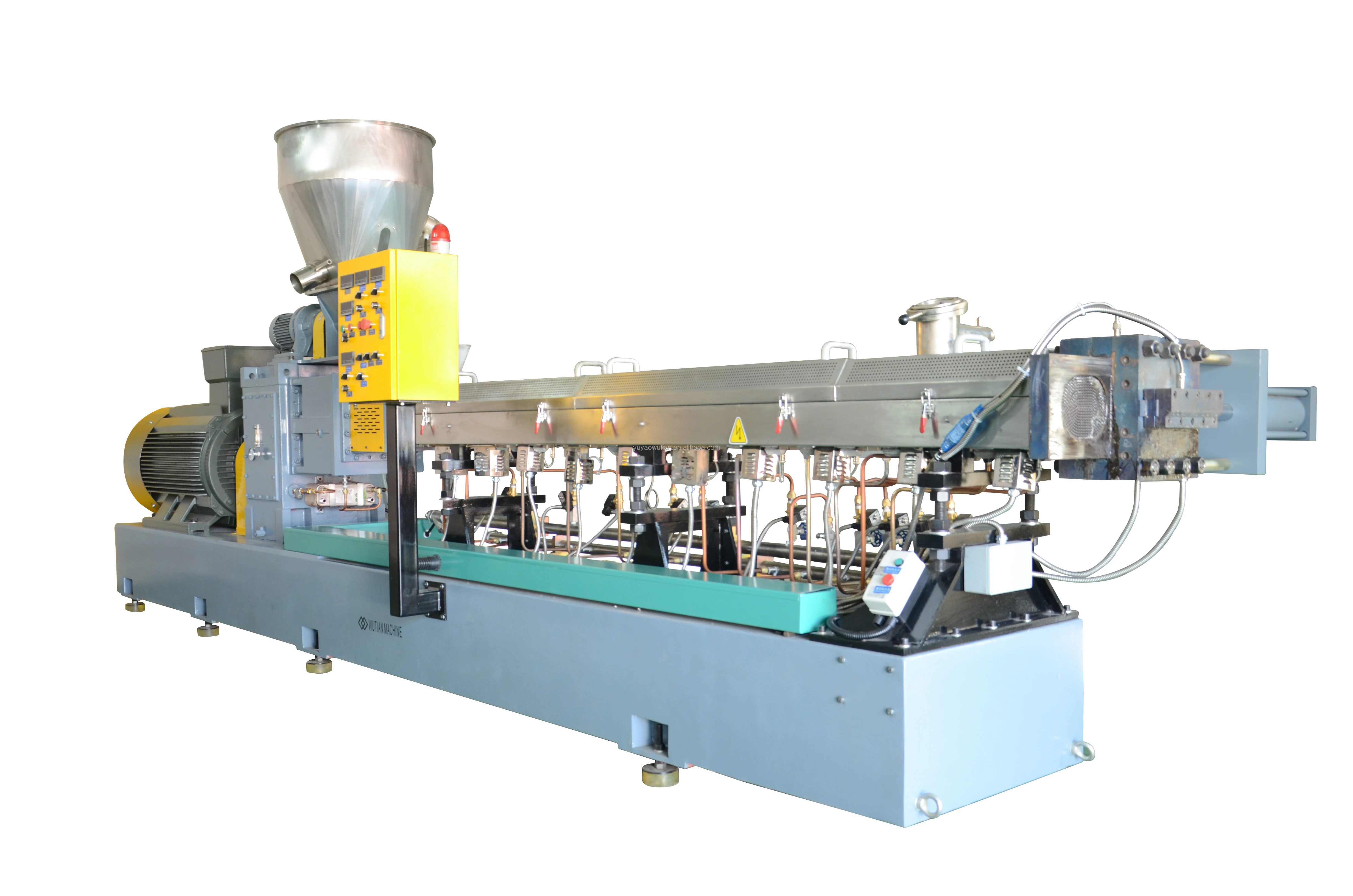

Granulator/Extruder:
1.This parallel twin screw design ensures even mixing and better plasticization.
2.This machine has vacuum system, which can remove water inside the material effectively.
3.This machine uses ceramic heating ring, which is durable and easy to maintain.
4.The automatic temperature control water cooling system uses used water or tap water to cool down the machine, which is water-saving and environmental friendly.
5.Hydraulic double screen changer is installed on the extruder die-head to effectively remove the impurities in the material; different quality of the finished product can be produced through the use of different mesh filters.
6.Barrel and Screw Wear resistant alloy lining
7.Screw Element: Alloy material hardness treatment
2.This machine has vacuum system, which can remove water inside the material effectively.
3.This machine uses ceramic heating ring, which is durable and easy to maintain.
4.The automatic temperature control water cooling system uses used water or tap water to cool down the machine, which is water-saving and environmental friendly.
5.Hydraulic double screen changer is installed on the extruder die-head to effectively remove the impurities in the material; different quality of the finished product can be produced through the use of different mesh filters.
6.Barrel and Screw Wear resistant alloy lining
7.Screw Element: Alloy material hardness treatment
Cooling Trough + Supporting bracket with rack and blower:
Water tank is mainly used to cool down the plastic strips and to maintain its shape. The blowers are used to dehydrate.
Pelletizer: The pelletizer/cutting machine is made of stainless steel. It has frequency control of motor speed.
Air Feeding Blower + Storage Hopper/Tank:
Vibration Sieve: This machine sorts out unqualified products, makes particle size uniform and good looking. The Vibration Sieve has three different sizes of mesh, which can divide particles into three sizes in the same time. This is time-saving and cos-saving.
Product Name | Quantity(set) | Size(mm) | Power(KW) | |||
1. Screw Feeder | 1 | 5.5 | ||||
2. Main Machine (1) Feeder (2) Lateral Feeder (3) Hydraulic DoubleScreen Changer | 1 | 220 | ||||
3. Cooling Trough | 1 | 5000 x 500 x 300 | ||||
4. Supporting bracket with one blower | 1 | 2.2 | ||||
5. Pelletizer (Frequency Control) | 1 | Φ200 x 300 | 15 | |||
6. Vibration Sieve | 1 | 0.15 x 2 | ||||
Size of the complete production line: 2300 x 1500 x 2500 cm | ||||||
Weight: 6500 kg | ||||||
Power: 285KW | ||||||
DETAIL SPECIFICATIONS
OUR SERVICE
COMPANY PROFILE
Why Choose Us
FAQ
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(60.00%),Southeast
Asia(20.00%),Africa(10.00%),Mid East(10.00%).
2. Are we a machinery factory or trading company?
We are a machinery factory with 25-year experience in Ningbo, Zhejiang. We are capable of exporting machines by
ourselves.
3. Which kind of machine do we make?
We mainly produce plastic recycling machines, granulators, pelletizers, vibration sieves and other auxiliary machines.
For different raw material, different output, different voltage requirements, we always have the right machine for you to
choose.
4. How can we guarantee quality?
Always use highest quality equipments.
Always manufacture our products strictly according to national and international standard.
Always do a trail run on every machine as a final inspection before shipment.
5. How about price?
We are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and
absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according
to quantity”.
