SDEKON HVS 30MDX MA Computer Control Automatic Turret Vickers Hardness Tester

Product Overview

Description

SDEKON HVS-30MDX-MA

Computer Control Automatic Turret Vickers Hardness Tester





HVS-30MDX-MA Computer Control Automatic Turret Vickers Hardness Tester

consists of two parts:
(1).HV-30MDX Touch Screen Digital Display Automatic Turret Vickers Hardness Tester
(2).HVS-M-A Automatic (Micro) Vickers Hardness Measurement and Control System



Application:
HV-30MDX Automatic Turret Touch Screen Digital Display Vickers Hardness Tester is electronic loading,

high accuracy sensor, with special closed-loop control system, automatic compensation for each force.

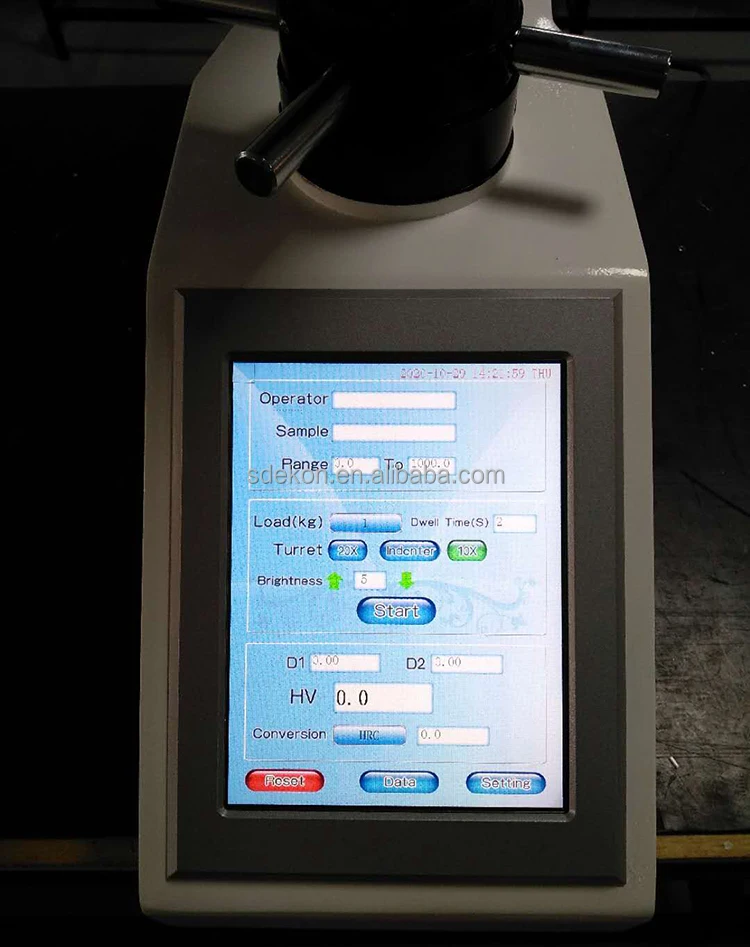

It adopts touch screen digital display large interface, simple operation of menu structure.

With automatic turret structure, the indenter and objective can switch automatically.

Automatic positioning accuracy of the test point, automatic loading and unloading.

All data is saved in the U disk in EXCEL format.



Technical Parameter:

Model	HV-30MDX
Test Force	0.3Kgf (2.94N); 0.5Kgf (4.9N); 1.0Kgf (9.8N); 2.0Kgf (19.6N); 3.0Kgf (29.4N); 5.0Kgf (49.0N); 10Kgf (98.0N); 20Kgf(196.0N); 30Kgf(294.0N)
Hardness Measurement Range	8~2900HV
Measurement Resolution	0.01um
Test Force Loading Method	Automatic (Loading, Dwell, Unloading)
Max. Height Of Sample	180mm
Distance From Indenter To The Wall	160mm
Dwell Time	1~99s
Microscope Magnification	100X, 200X



Software:

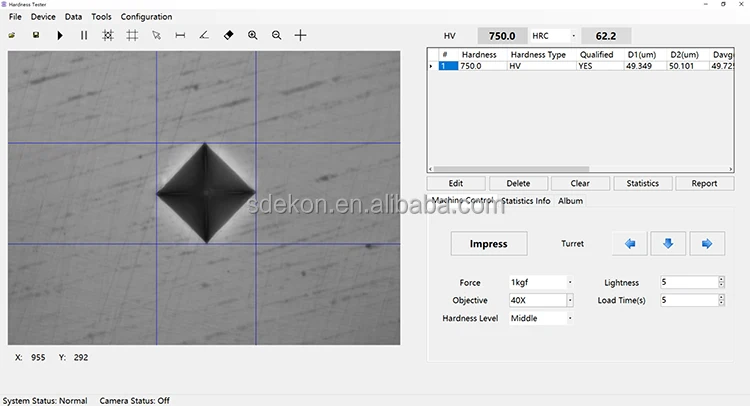

(1).The measuring software can be matched with a variety of vickers hardness tester, upgrading the single

     hardness tester to the computer measuring system.

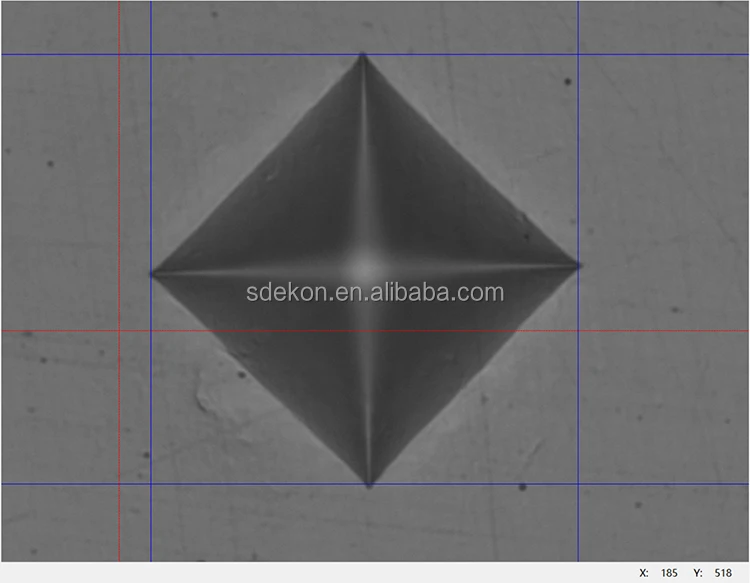

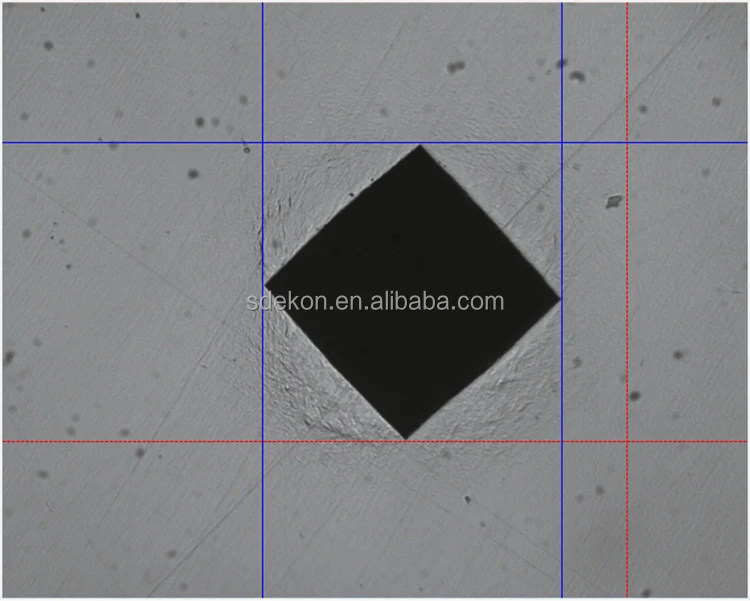

(2).The image is clear and can be measured standard samples automatically.

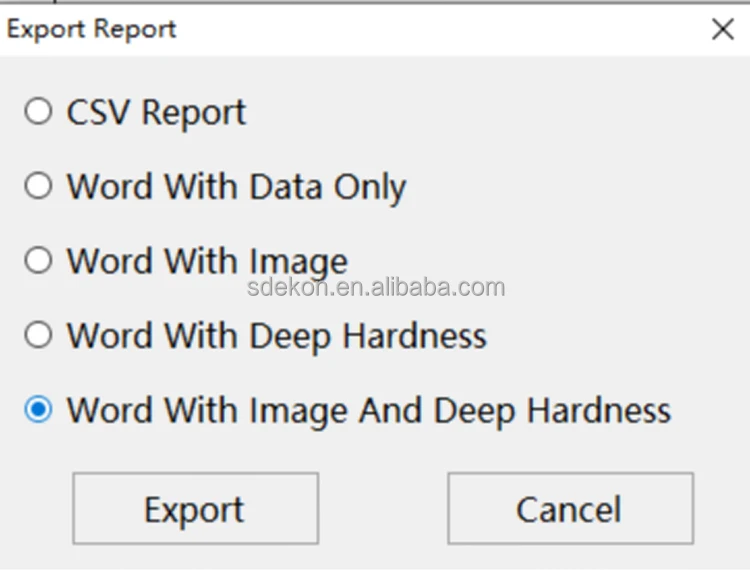

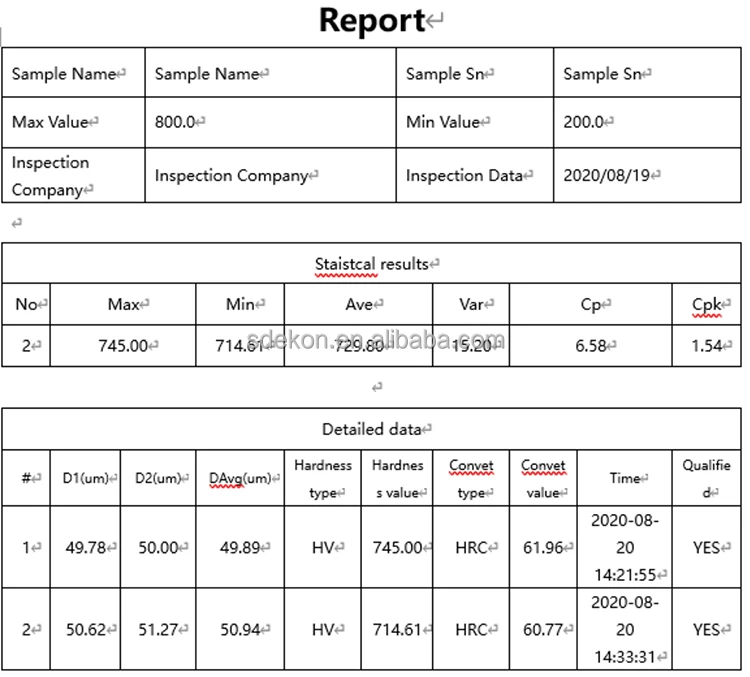

(3).Automatically generate test report, save all test data forever, easy to query history.

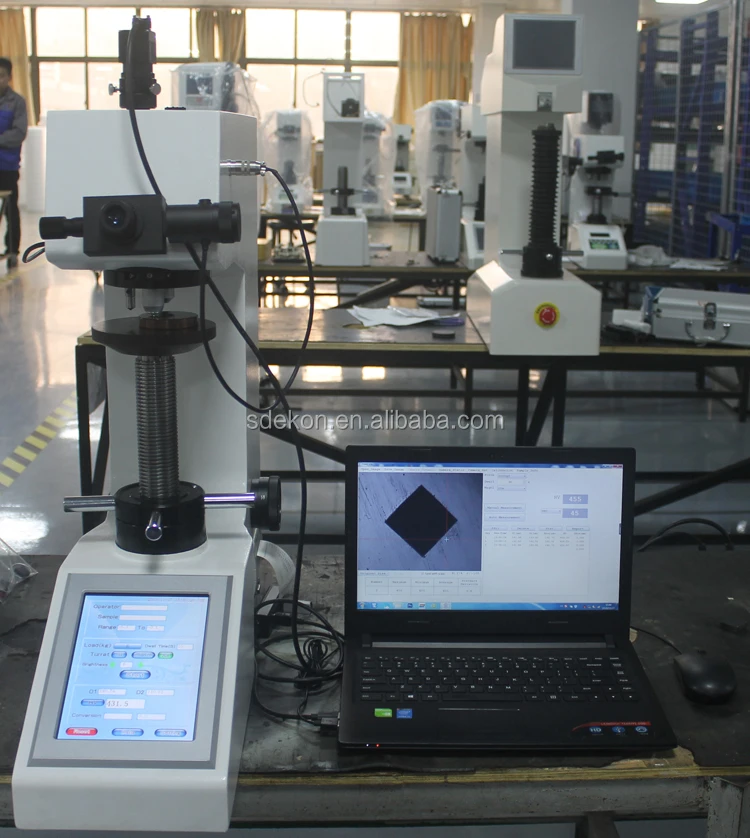

(4).HV-30MDX has the RS232 interface, after install this software, hardness tester and software will blend

      into one. The software can control HV-30MDX directly.

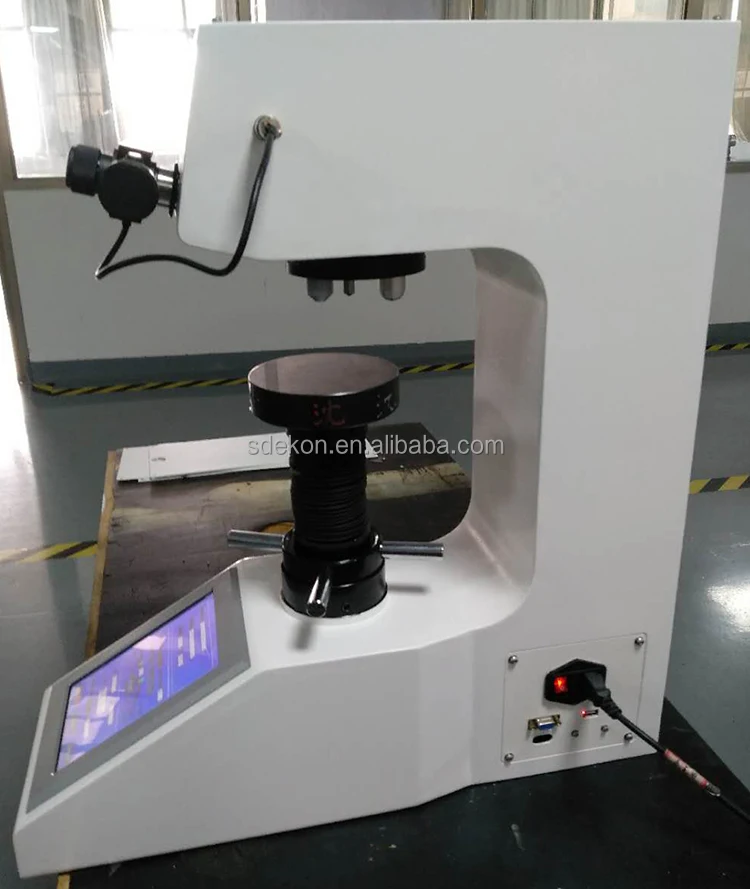

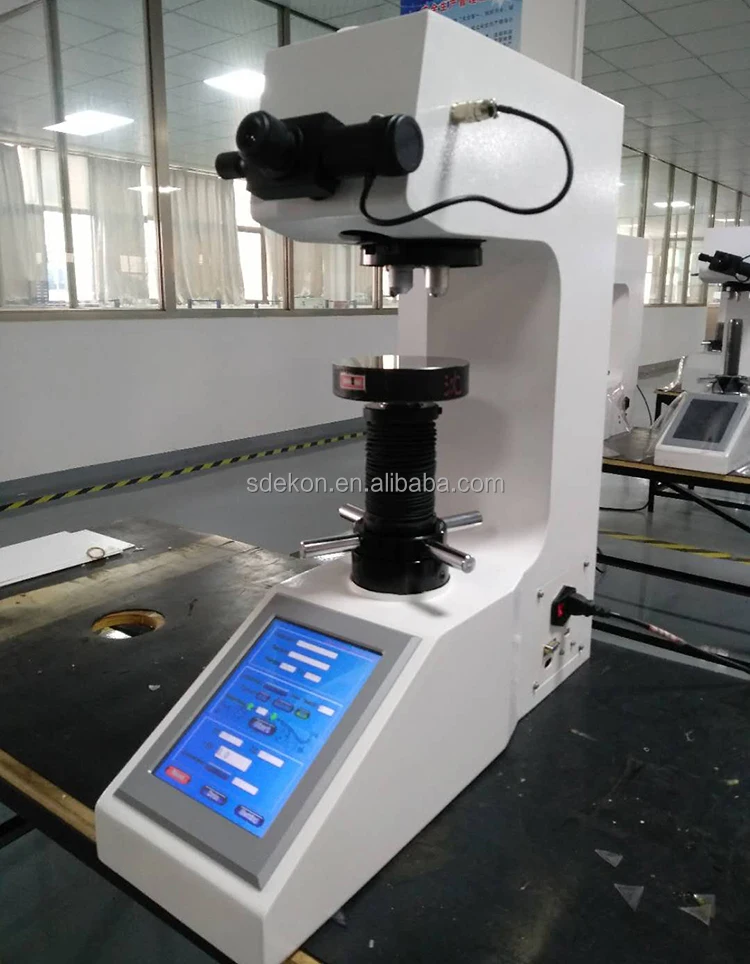

Product Physical Pictures:
