U Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine
U-Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine

U Shape Paper Straw Packing Machine Milk Paper Straw Wrapping Machine

Share on (1600470256501):


Price:$12,000.00 - $13,500.00

Quantity:


Product Overview

Description



Product Description


GD-UP300:

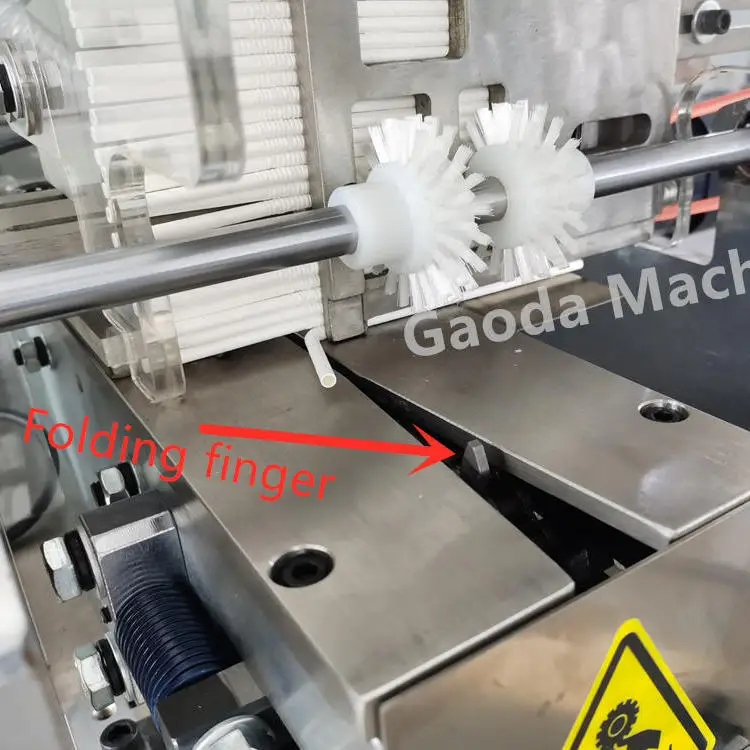

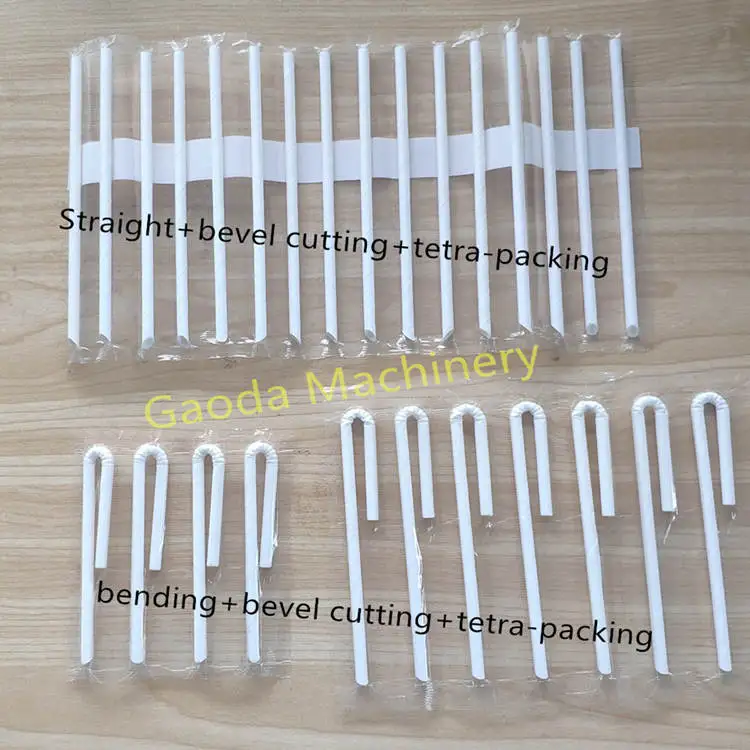

U shape paper straw packing machine, it’s function is to pack U-shape or straight drinking straws in line, which is used for
aseptic-packing beverage like milk and juice. It could finish fold, sharp end cutting and packing at same time.





U type Paper Straw Packing machine, it’s function is to pack U-shape or straight drinking straws in line, which is used for aseptic-packing beverage like milk and juice. It could finish fold, sharp end cutting and packing at same time.
The beverage company will cut straws into individual package, then stick straws on paper carton and box. (This working process is finished at beverage company, not straw making factory).
The produce process is total automatic. Operator just need put paper straws into the hopper, put on packing materials, then start the machine.


Machine Features
1) Whole process automatically, packing speed controllable, auto stop when there’s a fault;
2) High production efficiency, one operator, 250-300 pcs/min;
3) Bevel (sharp end) cutting controlled by servo motor, ensuring all sharp ends are packed in the same direction. Air absorbing
device take waste sharp end materials away
4) Automatic counting for how many pcs of paper straws had finished;
5) Automatic stop when there is a fault.
6) Could use packing material like plastic film, or PLA(other biodegradable adhesive) coated paper.


Specification


Place of Origin
China
Zhejiang
Brand Name
GAODA
Condition
New
Voltage
380V/3 phase/ 50hz
Machine Size(L*W*H)
2000×1750×1600mm
Machine Weight
1000kg
Machine Speed
200-300 pcs/min
Straw Inner Diameter
3.8mm  （Other size are Customization)
Straw Out Diameter
4.5mm  （Other size are Customization)
Length
160-170mm （Other size are Customization)
Packing Method
Four-sides seal
Packing Material
Material which could be hot sealed
Like BOPP plastic film, or biodegradable adhesive coated paper
Packing Material Specification
Packing material shape: roll;
Max roll diameter: 280mm;
Max roll width: 180mm;
Core diameter of roll: 76mm, 3 inches;
Film thickness: like BOPP, 20-30μm ( 1μm=0.001mm)
Packing Unit(Shape)
Pitch: 22mm, width:100-140mm;
Size Of U-Shape Model
Depends on customers design and drawing
Main Motor
2.2 kw/h, brand: SIEMENS BEIDE
control by frequency changer, 2.2Kw/h
Servo Motor
Frequency Charger
Brand: DELTA, servo motor:AC, 0.2Kw
Auxiliary Motor
220V, 50/60Hz, 120W, brand: OTG, Shanghai
Magnetic Powder Brake
10N.m, DC24V,0.6A,
Circuit Breaker Push Button Switch
CHINT
AC Contactor
Schneider
Pneumatic Component
AIRTAC


Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.


Company Profile






Gaoda Paper Tube Machinery Co., Ltd. is located at Wenzhou city of China. We are a leading supplier of paper straw machine and equipment integrating the R&D, manufacture, marketing and service.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine

4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.

5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
