Приподнятая ребристая модульная конвейерная лента
- Category: Transmission Chains >>>
- Supplier: Yangzhou Weldon Transmission Equipment Co. Ltd.
Share on (1600470822841):
Product Overview
Description

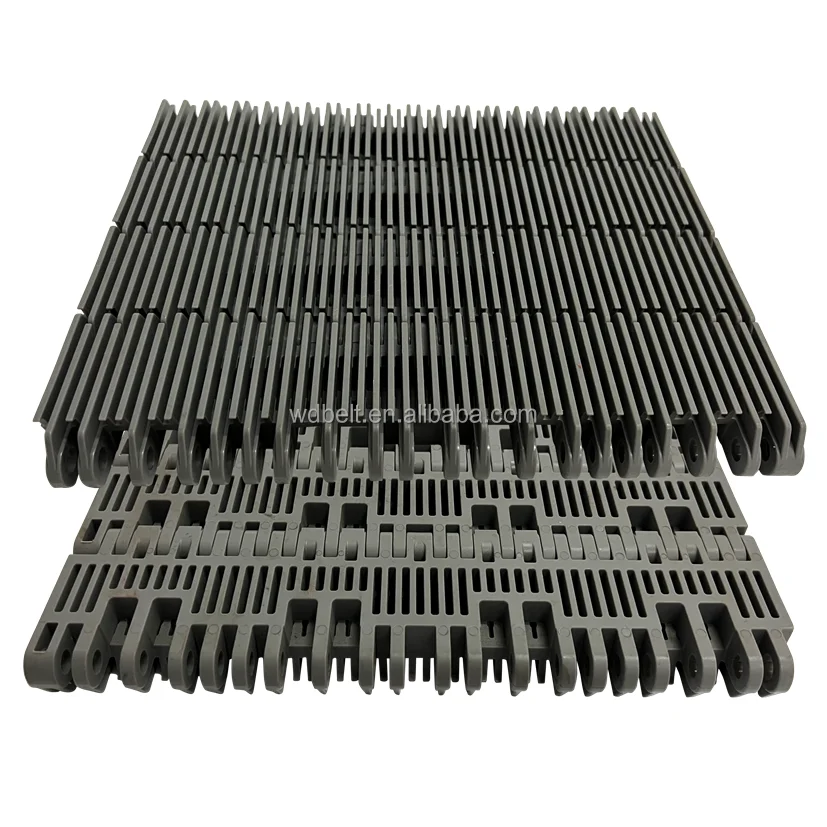

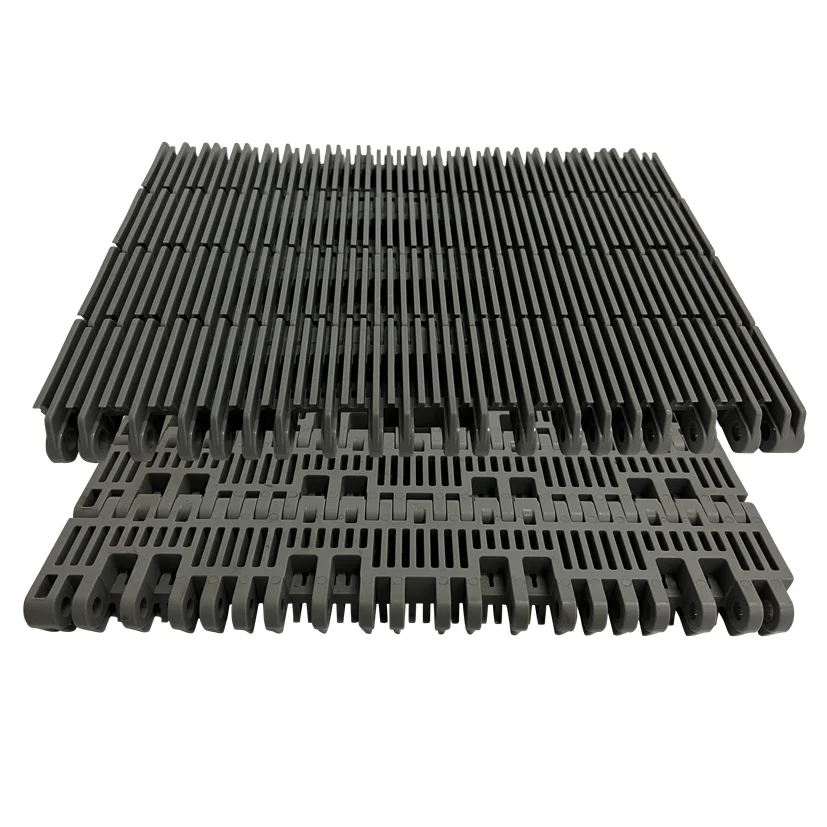

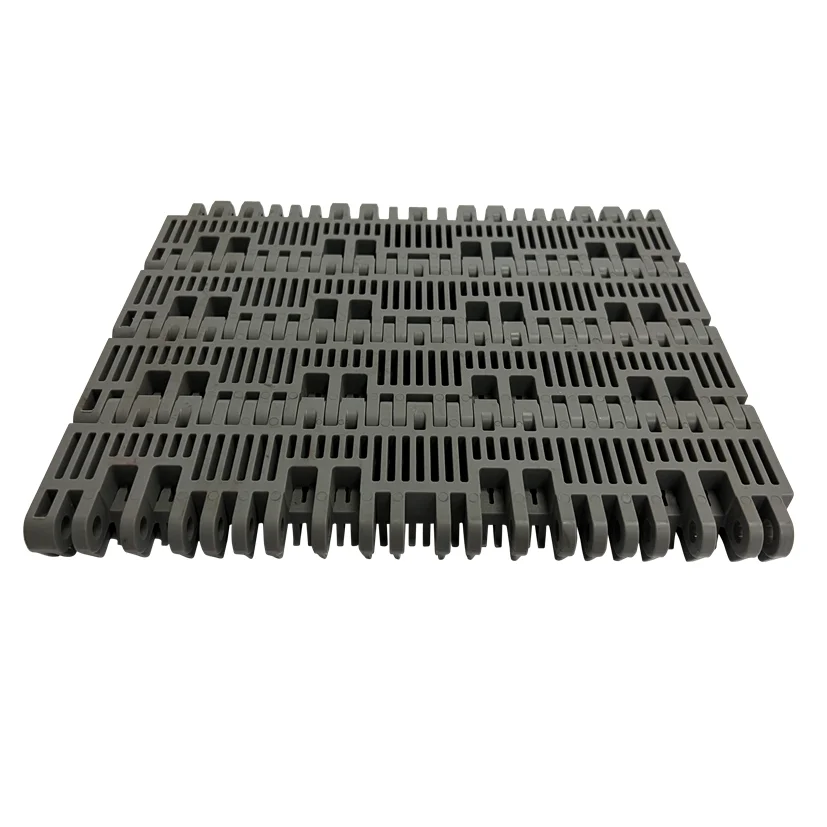

Plastic Raised Rib Modular Conveyor Belt
| Model no. | Width (mm)
| Pitch (mm) | Belt thickness (mm) | Working load (max) N | Weight (kg/sqm.) |
| SR2020-304.8 | 304.8 | 50.8 | 24 | 29500 | 10.6 |
| SR2020-457.2 | 457.2 | ||||
| SR2020-609.6 | 609.6 | ||||
| SR2020-762 | 762 | ||||
| SR2020-914.4 | 914.4 | ||||
| SR2020-1066.8 | 1066.8 | ||||
| SR2020-1219.2 | 1219.2 | ||||
| SR2020-1371.6 | 1371.6 | ||||
| SR2020-1676.4 | 1676.4 |
