06BSS 08BSS 10BSS 12BSS 16BSS 20BSS short pitch Stainless Steel Roller Chain (62380486389)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

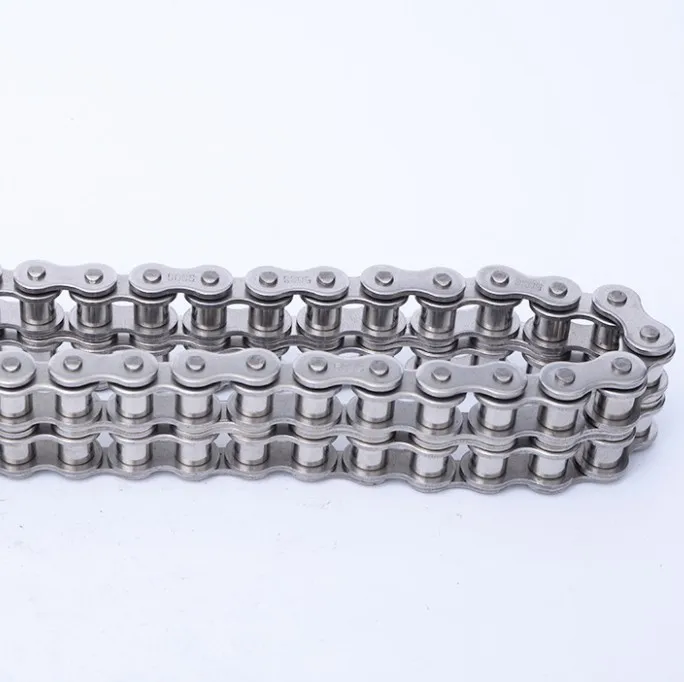

06BSS 08BSS 10BSS 12BSS 16BSS 20BSS short pitch Stainless Steel Roller Chain



Contact inforamtion

Welcome your detail inquiry anytime.

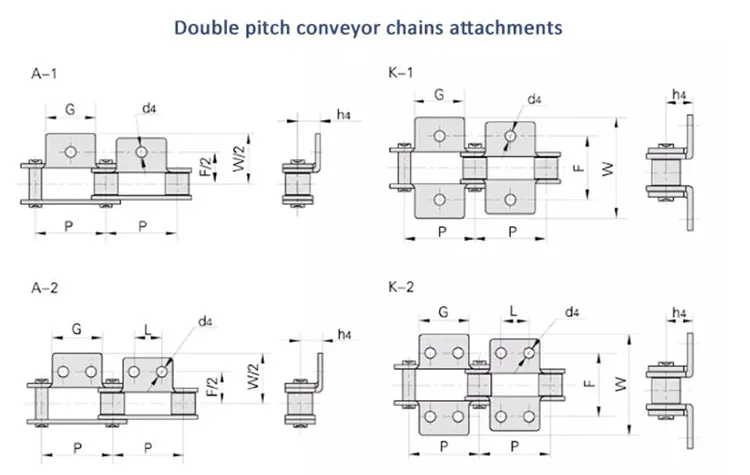

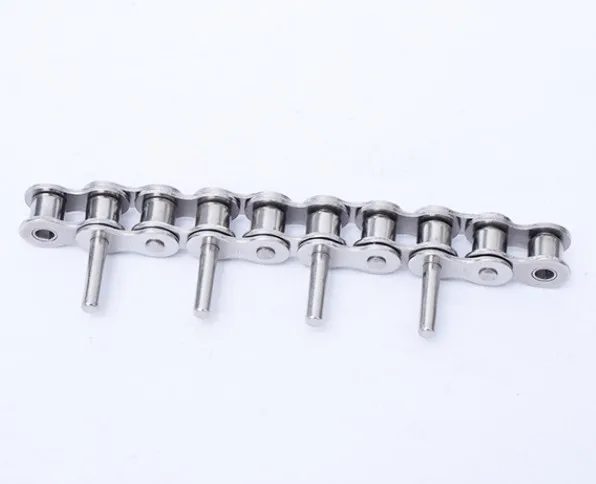

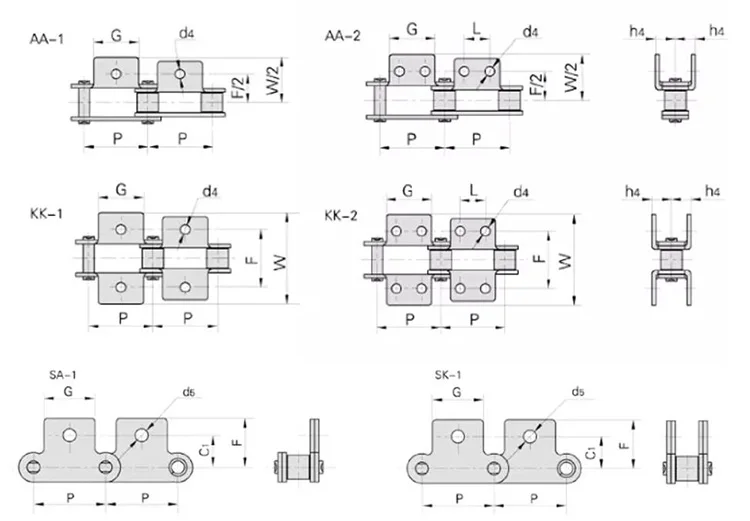

Item NameDouble Pitch Conveyor Chain with AttachmentModelStandard
RowSimplexApplicationMachinery Parts
Surface TreatmentSelf-color/sand-blasted/shot-peeningCertificationISO, ANSI, DIN, BS
PackingPackaged in boxes and wooden cases, or packaged in reels and then on pallets.PortAny sea port or airport in China

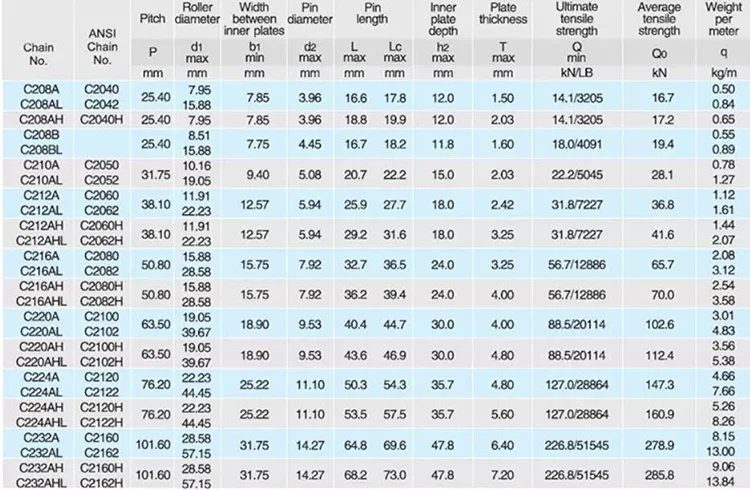

CHAIN NO.PitchWidthRollerPlatePinTransverse
Pitch
Average
 Ultimate
Strength
kgf

Approx Weight
kg/m

P

WDia

Height

Thickness

Dia

Lengths

inchmmmmRH1H2T1T2DFGG1C

25-1

1/4"6.353.18

3.30

5.005.800.750.752.303.804.80------4500.14
25-21/4"6.353.183.305.005.800.750.752.307.038.02---6.409000.26
25-31/4"6.353.183.305.005.800.750.752.3010.2011.20---6.4013500.40
35-13/8"9.5254.765.087.609.001.201.203.595.807.007.60---10500.33
35-23/8"9.5254.765.087.609.001.201.203.5910.8012.0012.7010.1021000.69
35-33/8"9.5254.765.087.609.001.201.203.5915.9017.1017.4010.1031501.05

41

1/2"12.706.357.778.509.701.201.203.586.607.958.50---12000.41

40-1

1/2"12.707.947.9210.2011.801.501.503.968.209.3510.00---18500.63

40-2

1/2"12.707.947.9210.2011.801.501.503.9615.3017.0017.6014.4037001.19

40-3

1/2"12.707.947.9210.2011.801.501.503.9622.6523.8024.5514.4055501.77

50-1

5/8"15.8759.5310.1613.0014.802.002.005.0610.1011.6512.60---31001.01

50-2

5/8"15.8759.5310.1613.0014.802.002.005.0619.2020.7021.1018.1062002.04

50-3

5/8"15.8759.5310.1613.0014.802.002.005.0628.3029.6530.2018.1093003.05

60-1

3/4"19.0512.7011.9115.5017.502.402.405.9512.5014.1515.40---44001.44

60-2

3/4"19.0512.7011.9115.5017.502.402.405.9524.0025.5026.9022.8088003.03

60-3

3/4"19.0512.7011.9115.5017.502.402.405.9535.3536.9537.6522.80132004.50

80-1

1"25.4015.8815.8820.4024.003.103.107.9416.1017.7518.80---78002.40

80-2

1"25.4015.8815.8820.4024.003.103.107.9430.6032.2033.6029.30156005.26

80-3

1"25.4015.8815.8820.4024.003.103.107.9445.3047.0048.0029.30234007.80

100-1

1-1/4"31.7519.0519.0524.8030.103.903.909.5220.10---23.10---118003.74

100-2

1-1/4"31.7519.0519.0524.8030.103.903.909.5238.00---41.0035.80236007.51

100-3

1-1/4"31.7519.0519.0524.8030.103.903.909.5255.90---58.9035.803540011.20

120-1

1-1/2"38.1025.4022.2330.0035.004.704.7011.1025.20---28.60---155006.18

120-2

1-1/2"38.1025.4022.2330.0035.004.704.7011.1047.90---51.3045.403100012.25

120-3

1-1/2"38.1025.4022.2330.0035.004.704.7011.1070.60---74.0045.404650018.30

140-1

1-3/4"44.4525.4025.4036.2042.005.605.6012.7027.30---31.50---215007.49

140-2

1-3/4"44.4525.4025.4036.2042.005.605.6012.7051.75---55.7548.904300014.83

140-3

1-3/4"44.4525.4025.4036.2042.005.605.6012.7076.20---80.4048.906450022.20

160-1

2"50.8031.7528.5841.4048.006.406.4014.2832.55---37.25---2750010.10

160-2

2"50.8031.7528.5841.4048.006.406.4014.2861.80---66.5058.505500020.04

160-3

2"50.8031.7528.5841.4048.006.406.4014.2891.05---95.7558.508250030.02

180-1

2-1/4"57.1535.7135.7146.7054.207.207.2017.4536.50---42.20---3600013.40

180-2

2-1/4"57.1535.7135.7146.7054.207.207.2017.4569.42---75.1265.847200026.20

180-3

2-1/4"57.1535.7135.7146.7054.207.207.2017.45102.34---108.0465.8410800038.10

200-1

2-1/2"63.5038.1039.6851.8060.108.008.0019.8439.75---47.10---4600016.5

200-2

2-1/2"63.5038.1039.6851.8060.108.008.0019.8475.55---82.8571.609200032.7

200-3

2-1/2"63.5038.1039.6851.8060.108.008.0019.84111.35---118.6571.6013800049.05

240-1

3"76.2047.6347.6062.4072.209.509.5023.8047.70---54.80---6850024.2

240-2

3"76.2047.6347.6062.4072.209.509.5023.8091.60---98.7087.8013700047.8

240-3

3"76.2047.6347.6062.4072.209.509.5023.80135.50---142.6087.8020550071.1

Please consult us for any products unlisted here.
