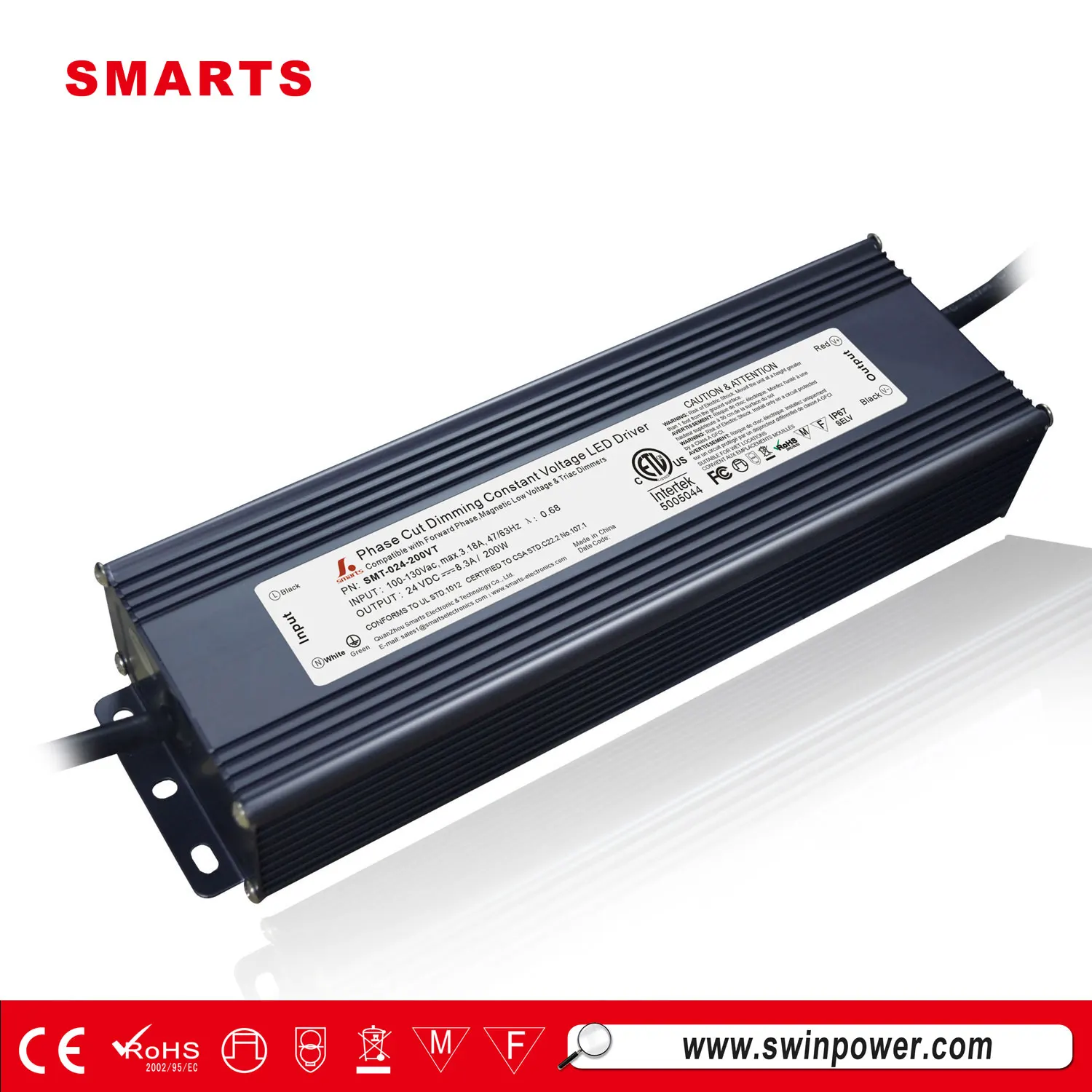

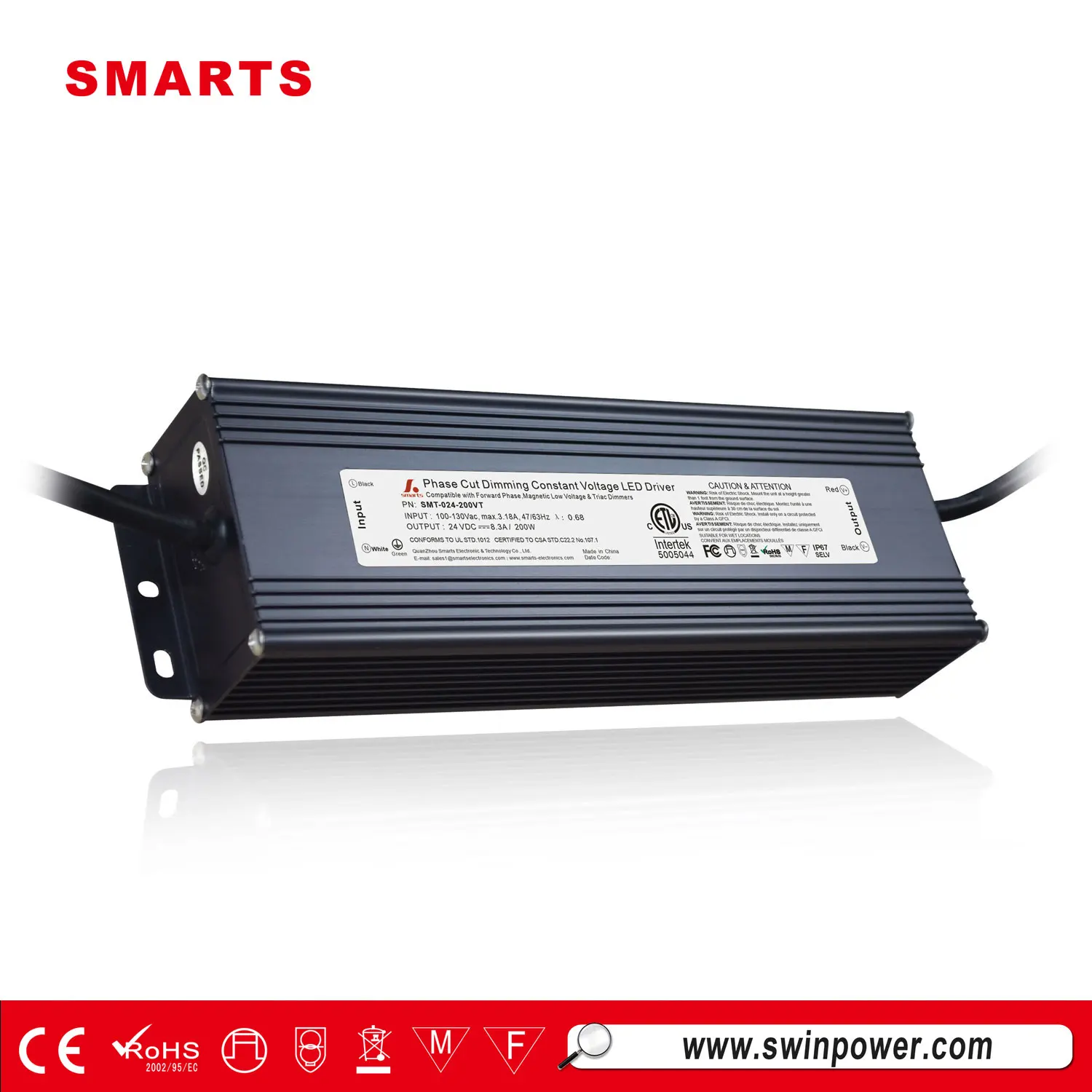

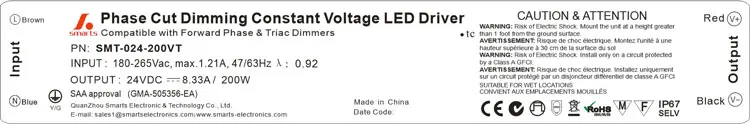

24v 200W waterproof triac dimmable constant voltage dimmable led driver

model		SMT-012-200VT	SMT-024-200VT(class 2)
Output	DC Voltage	12V	24V
	Voltage Accuracy	±0.5V	±0.5V
	Rated current	16.67A	8.33A
	Rated power	200W	200W
Input	Voltage Range	100~130V AC/170~265V AC
	Frequency Range	47~63HZ
	Power Factor ( Typ.)	PF>0.72/110V,PF>0.73/170V,PF>0.74/220V,PF>0.75/265V
	Full Load Efficiency(Typ.)	>83%	>83%
	AC Current(Typ.)	0.61A/110VAC  0.58A/170VAC  0.46A/220VAC  0.41A/265VAC
	Leakage current	<0.25mA/110V/220VAC
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over voltage	<140VAC(90~135V) , <270VAC(170~265V)
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z  axes
Safety&EMC	Safety standards	EN-60950-1, EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance toEN55015,EN61000-3-2 (>50%load)
	EMC IMMUNITY	Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
Others	Weight	1.3Kg
	Size	256*78*47mm(L*W*H)
	packing	329*279*176mm , 10PCS/ctn
Notes	1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted  pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.  Tolerance:includes set us tolerance,line regulation and load regulation .

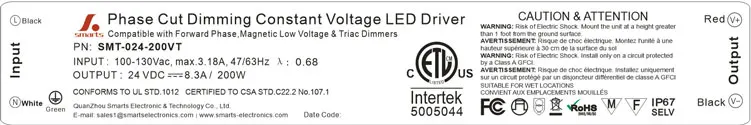

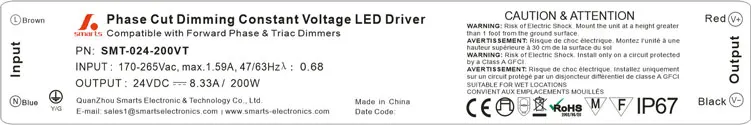

170-265VAC\\CE\\FCC\\IP67
100-130Vac\\ETL\\FCC\\IP67
180-265Vac\\SAA\\C-TICK\\IP67

click for more information

 Feature

• Output constant voltage


• Universal AC input/ : 90~135VAC/ 170-265VAC


• High efficiency : >85%


• Power Factor > 0.7


• Protections:short circuit/over loading/over current


• Full protection aluminum housing/ IP67


• Easy installation


• Cooling by free air convection.


• Work with leading edge and trailing edge triac dim.


• Strong compatibility, flicker-free dimming


• Suitable for LED lighting and moving sign applications


• Compliance to worldwide safety regulations for LEDs

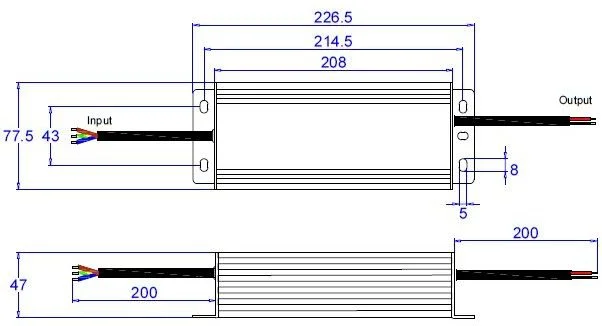

 Mechanical Specification

• Input Brown with AC (L),Blue with AC (N)


• Output Red is(DIM+),Black is(DIM-)


• Note: Any other requests we can customized.

 Dimming Operation

• Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.


• Compatible with Leading edge or tailing edge triac dimmers.


• please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero

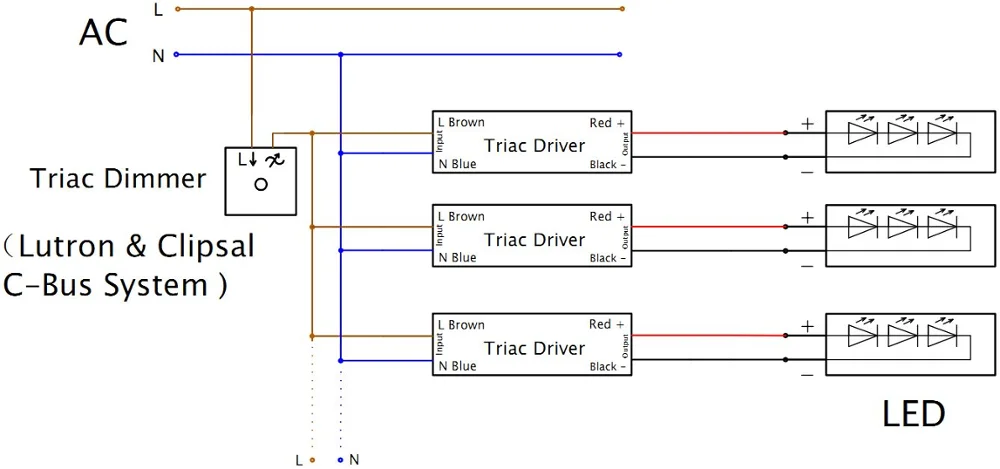

 Connecting Diagram
