Product Overview
Description
Products Description

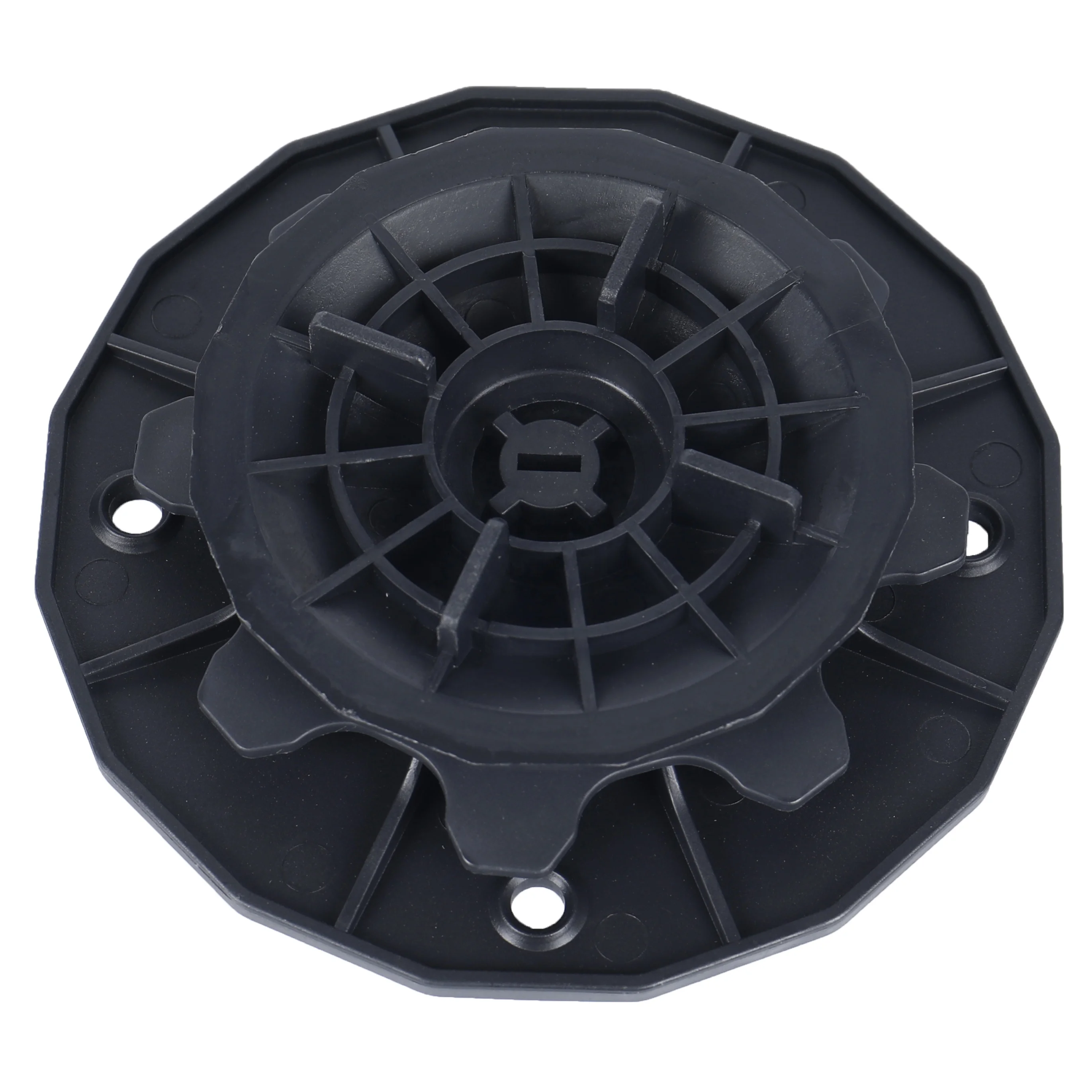

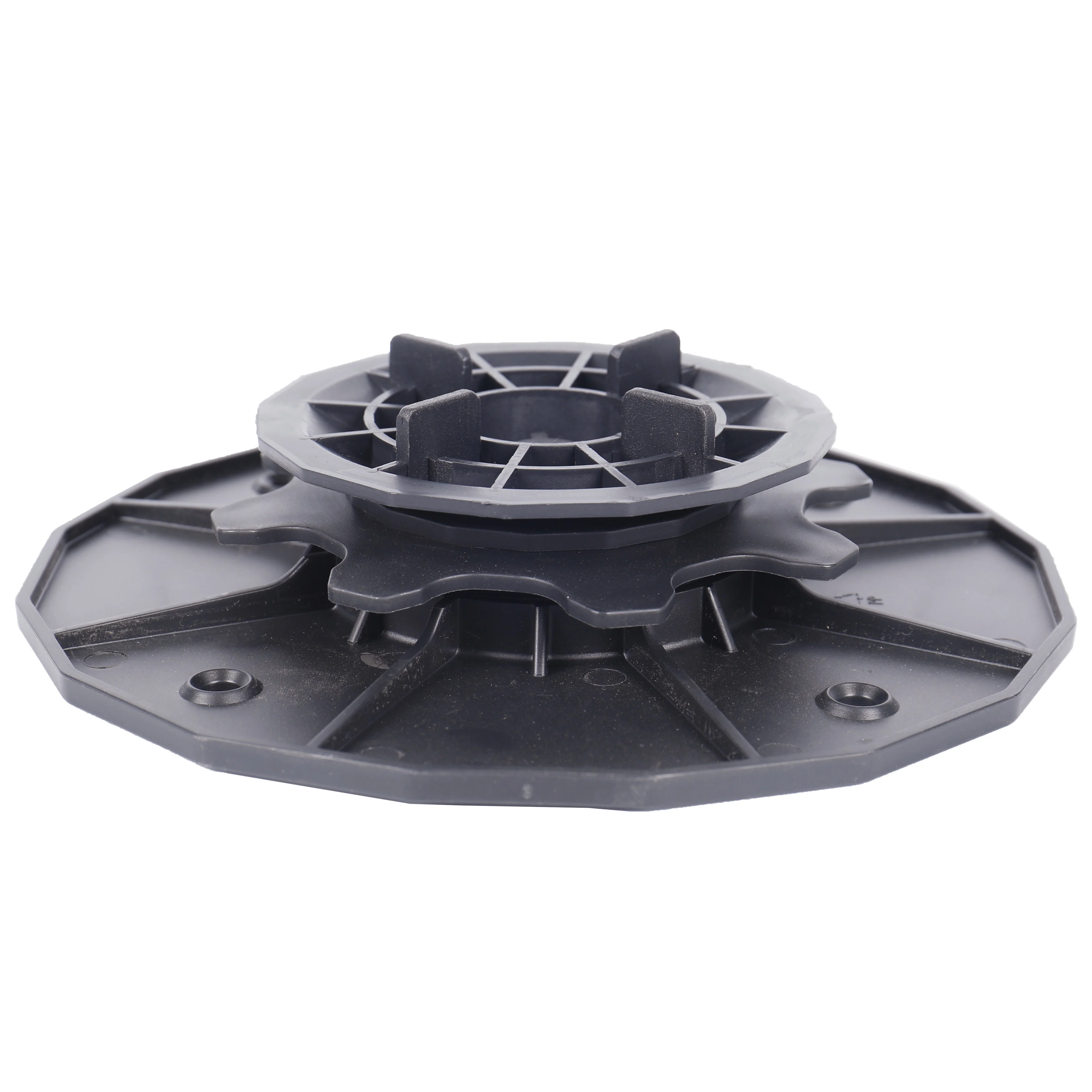

Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
Xinfeng adjustable pedestals offer a wide range of solutions for your leveling and elevation needs, such as to create an elevated platform or to compensate unevenness of the ground.
These pedestals are made of enhanced polypropylene and can hold up to 800 kg of weight.
Come with different head components suitable for traditional joists, tiles and our unique click system.
Come with different head components suitable for traditional joists, tiles and our unique click system.
General Information | ||
Product Name | Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm | |
Material | Polypropylene | |
Color | Black | |
Size | Base diameter: 160 mm | |
Height Range | 30-45 mm | |
Loading Capacity | 500 kg/set (1000 kg/m2) | |
Applicable Temperature | -20℃~60℃ (-4℉~140℉) | |
Warranty | 10 years | |
Certificates | ISO9001, ISO14001, BSCI, CE, REACH, SGS | |
Function | Height and Slope Adjustable; Drainage/Ventilate/ Heat Insulation Convenience | |
Application | Roof, Balconies, Terraces, Fountain, Pathways, Walkways, Illuminated Floor, Temporary Floor.etc. | |
Sample | Free; Parcel freight by customer | |
Lead Time | Sample 3 days; Normal orders 15-25 days | |
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
Products for option:
- B and G series are ideal for traditional decking installation with joists.
- D and C series will make installation and leveling of tiles a easy work.
- E series are designed to achieve fast and tool-less installation with our special designed aluminum joists.
- D and C series will make installation and leveling of tiles a easy work.
- E series are designed to achieve fast and tool-less installation with our special designed aluminum joists.

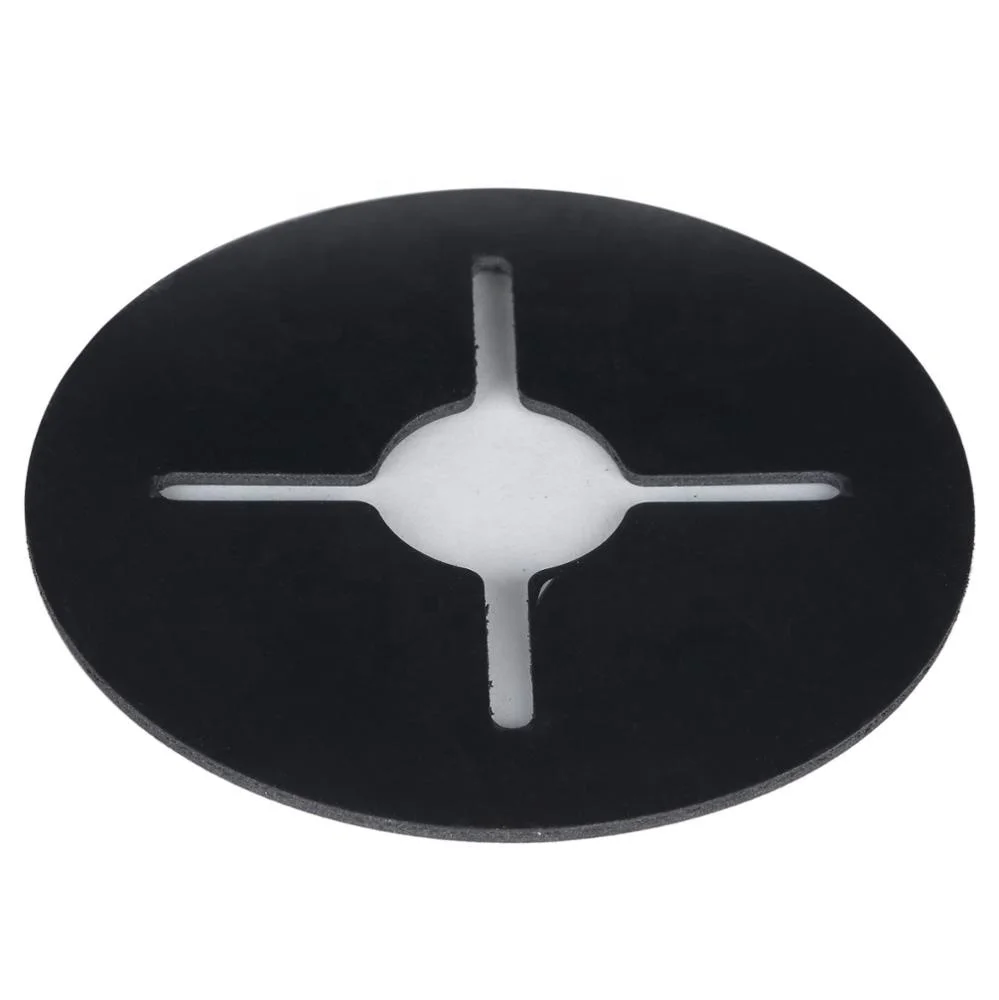

We also supply 4/5/6/7/ mm spacer, rubber shim, plastic slope compensation item, fixed height support and many other items.
[Please don't hesitate to ask us for recommendation of the most suitable products]
[Please don't hesitate to ask us for recommendation of the most suitable products]
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm

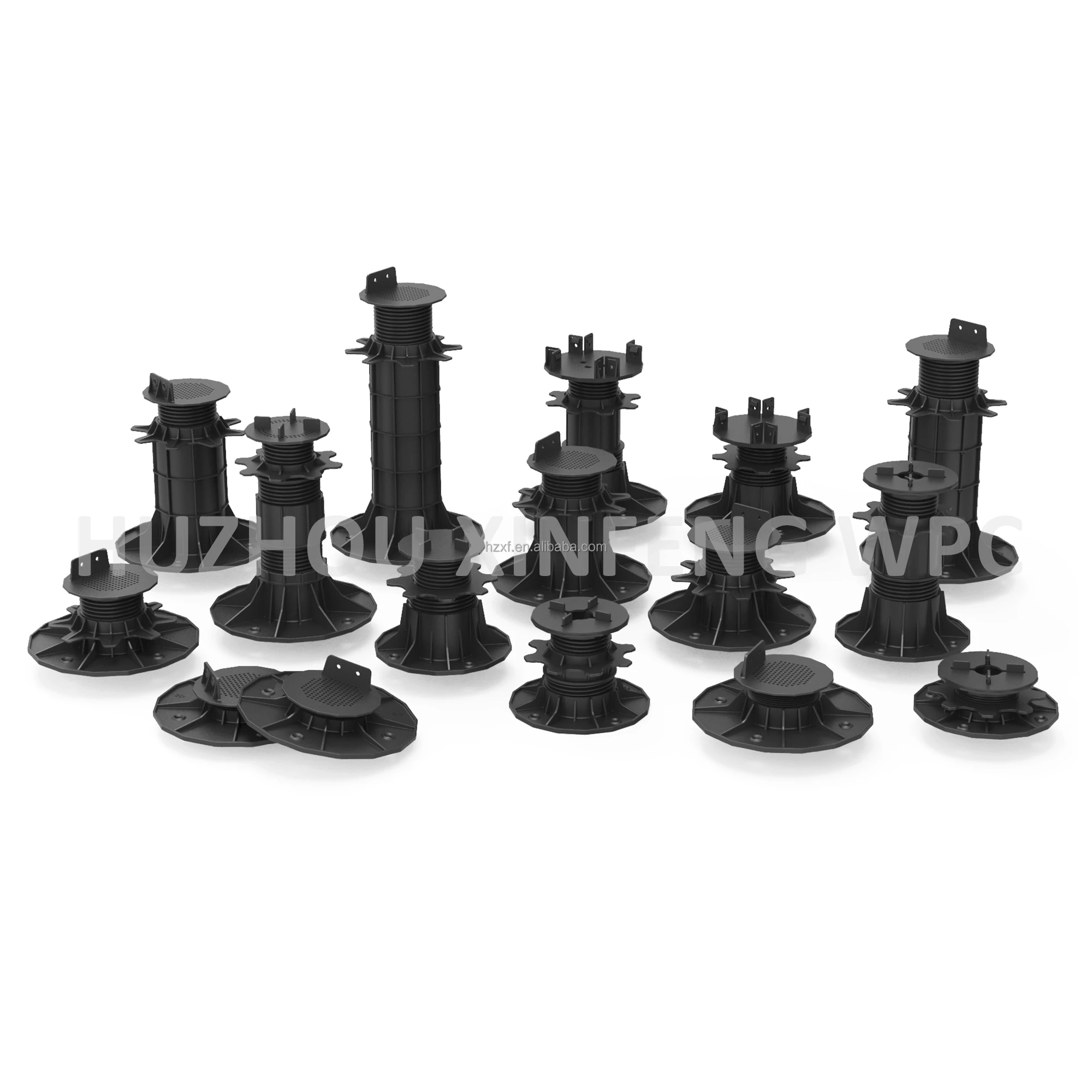

For each series, we have different height range for option.
Here are the images of each item.
Please contact with us for accurate price and more product supply.
XF-T201B | XF-T202B | XF-T204B | XF-T205B |
18-32 mm (0.71"-1.2") | 35-70 mm (1.38"-2.76") | 66-145 mm (2.56"-5.71") | 140-220 mm （5.51"-8.66") |
120 pcs/ Carton | 48 pcs/ Carton | 48 pcs/ Carton | 42 pcs/ Carton |
XF-T201C | XF-T202C | XF-T204C | XF-T205C |
18-32 mm (0.71"-1.2") | 35-70 mm (1.38"-2.76") | 66-145 mm (2.56"-5.71") | 140-220 mm （5.51"-8.66") |
120 pcs/ Carton | 48 pcs/ Carton | 48 pcs/ Carton | 42 pcs/ Carton |
D series pedestals: each comes with 1 plastic shim for noise mute and shock resistance | ||||||
XF-T201D | XF-T202D | XF-T204D | XF-T205D | |||
30-45 mm (1.18"-1.77") | 45-80 mm （1.77"-3.15"） | 76-155 mm （2.95"-6.1"） | 150-230 mm (5.91"-9.06") | |||
90 pcs/ Carton | 72 pcs/ Carton | 54 pcs/ Carton | 42 pcs/ Carton | |||
Packing and Shipping
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
1. For Small Order Pedestals less than 200 pcs, we suggest Parcel by Air, carton packing only;
2. For Big order Pedestals, we can pack according your needs.
3. Sea Freight: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15-25 days after confirm the order.
6. Shipping Date: usually 30 days.
3. Sea Freight: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15-25 days after confirm the order.
6. Shipping Date: usually 30 days.
Installation Instructions
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
1. Clean the ground and lay out the pedestals according to your design.
2. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
4. To adjust height, rotate the top cap of the pedestals.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
4. To adjust height, rotate the top cap of the pedestals.
For WPC/Metal Joists | 11 pcs/ square meter |
For Tiles/Pavers | |
600*600mm (24") | 3 pcs/ square meter |
500*500mm (20") | 4 pcs/ square meter |
400*400mm (16") | 7 pcs/ suqare meter |
300*300mm (12") | 11 pcs/ square meter |

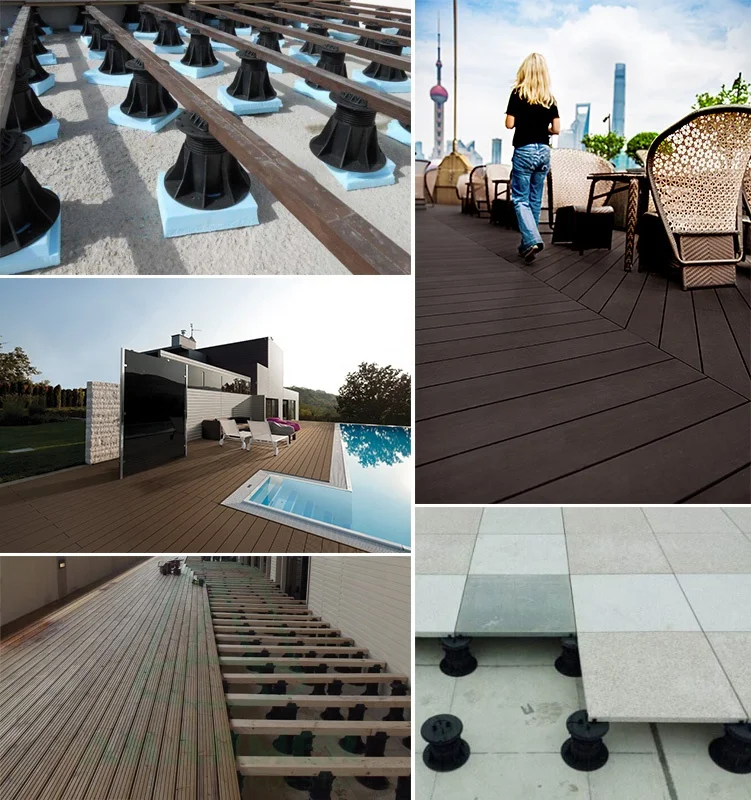

Project Showcases
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
Plastic Pedestals are the ideal choice for supporting flooring, decking boards, joists, beams, bearer, tiles, slabs, grates,
granite tile, marbles, precast concrete paver or any other pavement flooring. Such as balcony, patio, terrace, swimming pool
surrounds, roof, garden, fountain, park, square, plaza, outdoor walkways, pathways, pedestrians, platforms, illuminated floors,
temporary floors, podium, landscapes, verandas, etc.
[Please don't hesitate to ask us for recommendation of the most suitable products]
granite tile, marbles, precast concrete paver or any other pavement flooring. Such as balcony, patio, terrace, swimming pool
surrounds, roof, garden, fountain, park, square, plaza, outdoor walkways, pathways, pedestrians, platforms, illuminated floors,
temporary floors, podium, landscapes, verandas, etc.
[Please don't hesitate to ask us for recommendation of the most suitable products]
Company Profile
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
1. Factory located in Deqing county, Huzhou City, Zhejiang province, 65,000 square meters area;
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
2. Over 30 years of plastic products manufacturing experience;
3. Automated production lines with skilled workers;
4. A wide range products for option;
5. Xinfeng products warmly welcomed by customers on Exhibitions;
6. Professional Teams with passion.
Certificates
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
1. Xinfeng factory qualified by ISO9001, ISO14001, audited by BSCI;
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
2. Xinfeng products labeled China Environmental mark, certificated by CE and REACH;
3. Xinfeng has got over 60 patents in China and abroad.
FAQ
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm
Q: What is the material of your pedestal product?
A: 98%PP and 2% additives, such as anti-UV etc. We have 30 years injection products experience.
Q: How much weight can your pedestals support?
A: Due to its high-density material and weight-bearing structure, our pedestal can support up to 1000kg/m2(Supported by Intertek
and SGS reports)
Q: How do you develop and improve your production techniques?
A: Our Plastic Pedestals Products all designed and manufactured in Xinfeng.
It has been continuously improved through close cooperation with several university labs and experts in the field of polymer structure.
Q: How long does it last?
A: Our products are expected to last 50 years
Q: What temperature can it endure?
A: -20℃--- +60℃
A: 98%PP and 2% additives, such as anti-UV etc. We have 30 years injection products experience.
Q: How much weight can your pedestals support?
A: Due to its high-density material and weight-bearing structure, our pedestal can support up to 1000kg/m2(Supported by Intertek
and SGS reports)
Q: How do you develop and improve your production techniques?
A: Our Plastic Pedestals Products all designed and manufactured in Xinfeng.
It has been continuously improved through close cooperation with several university labs and experts in the field of polymer structure.
Q: How long does it last?
A: Our products are expected to last 50 years
Q: What temperature can it endure?
A: -20℃--- +60℃
Tile Support Plastic Adjustable Pedestal Self Leveling Paver System XF-T201D 30-45 mm |
WHY XINFENG PEDESTALS |
1000 kg/m2 loading capacity |
Tested by Intertek and SGS |
10 Years Warranty |
Anti-UV, none poisonous and harmful materials |
Free Samples |
OEM ODM & LOGO customizing service |
30 years of manufacturing Experience FACTORY |
13 years of wpc products manufacturing experience |
