20 to 85 tons /24 hrs palm dates washing drying machine for industrial dates washing sorting drying production

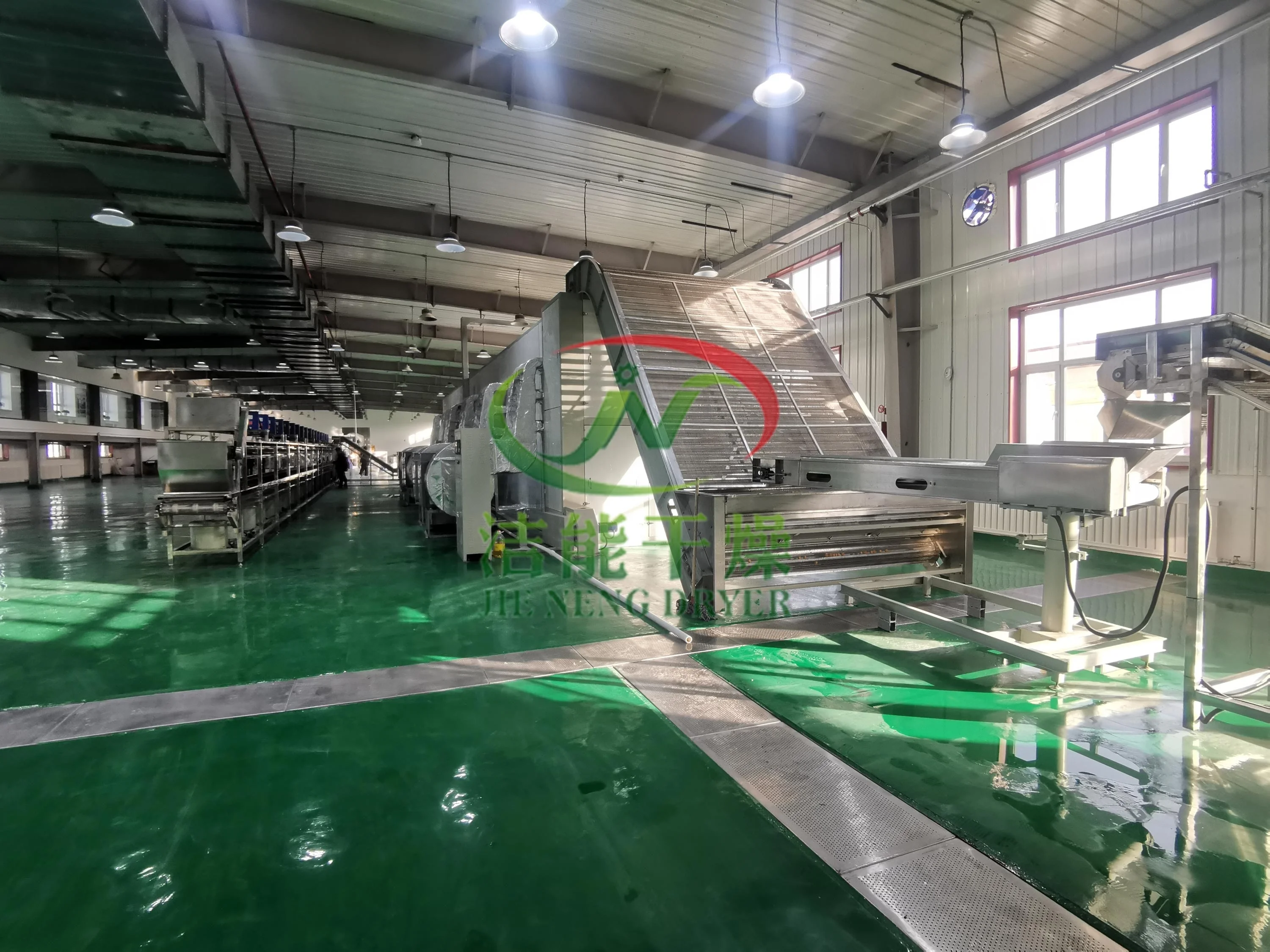

_20191105212525


1_05

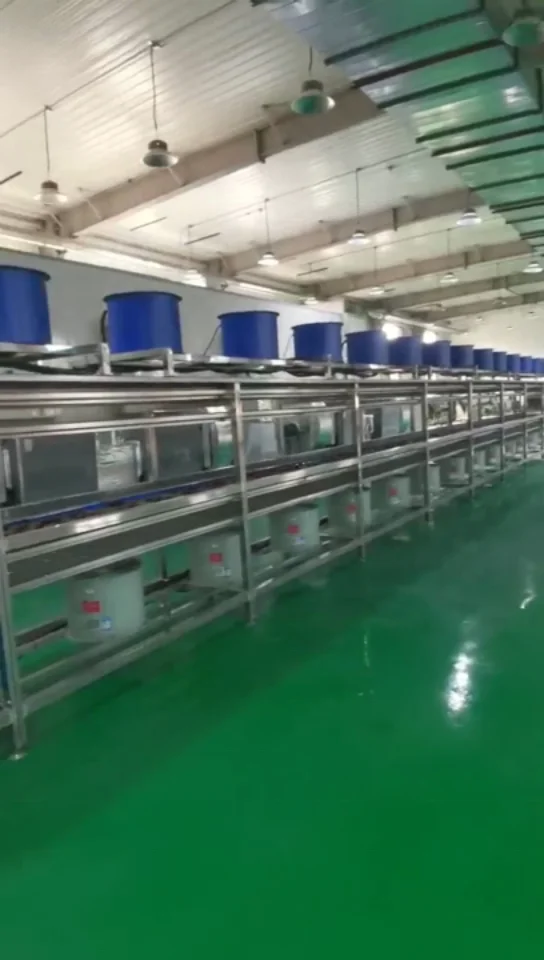

Jieneng’s vegetable & fruit drying line is a fully


automated multi-layer mesh belt drying machine,


powered by the combination of static hot air and


automatic hot air drying technique. The process


includes reheating, uniform drying and


decelerated drying, achieving bright color


and preserving its natural flavor and its


properties.

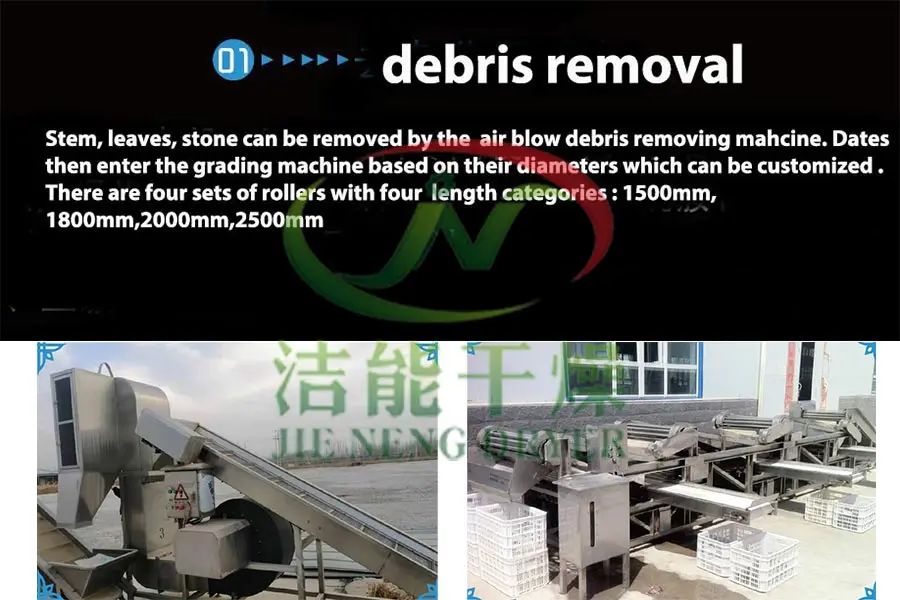

 debris-removal-system-1

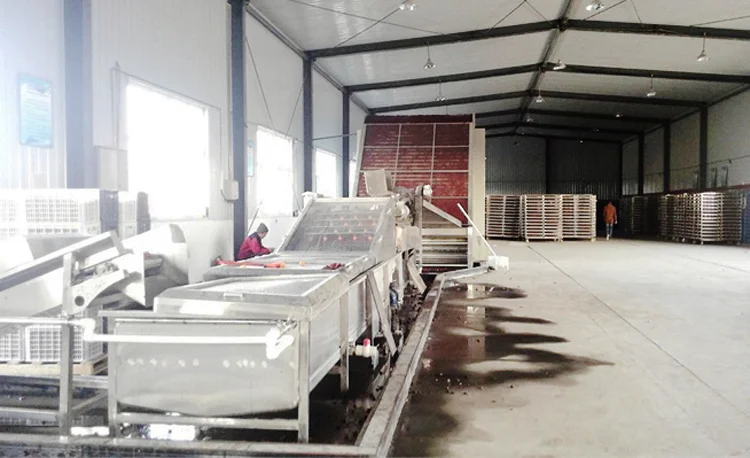

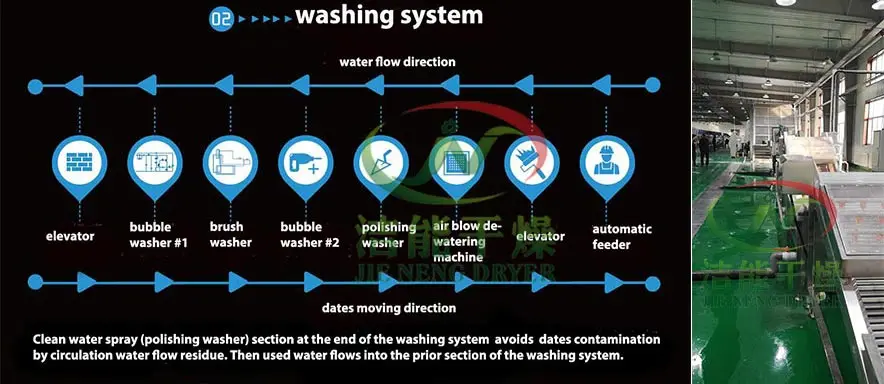

date-washing-processing

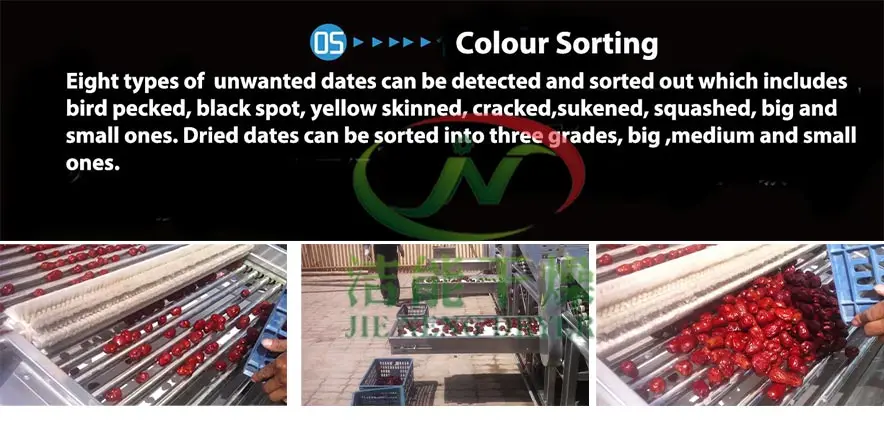

Untitled-2

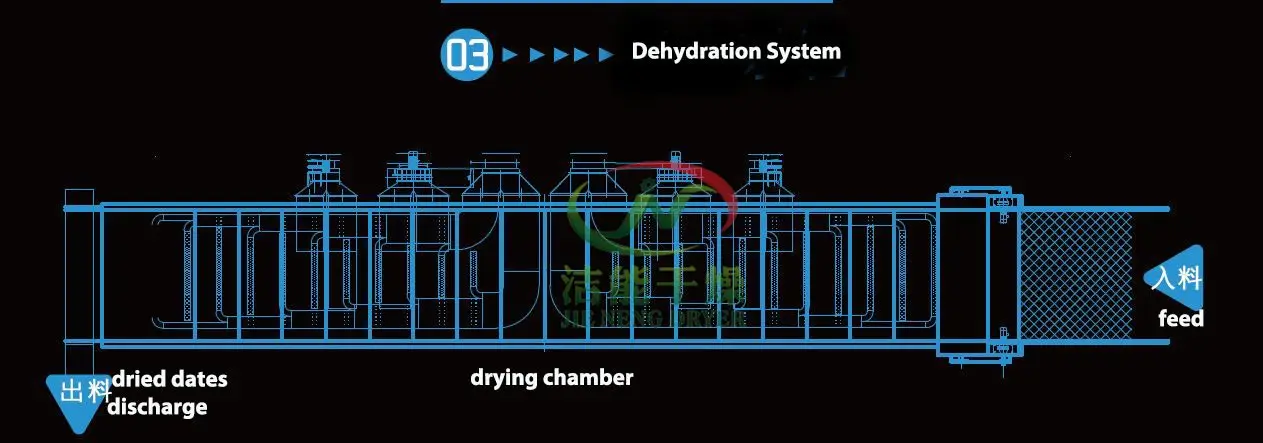

drying-system








4_07


4_09


parameters_14


parameters_16


 parameters_17





parameters_18


parameters_11

























































Capacity /24 Hrs



35T



     60T



   85T



Drying ratio



1.11:1



Mesh belt layers



Five/ width 2.76m



Drying  period



3.5-6 Hours



Drying chamber dimension



10.1m*5m*2.8m



16m*5m*2.8m



21.9m*5m*2.8m






Overall dimension with heat pump



15.5m*5m*2.8m



21.4m*5m*2.8m



27.3m*5m*2.8m






Overall dimension with gas blast



15.5m*9m*2.8m






21.4m*9m*2.8m






27.3m*9m*2.8m






Insulation board



 fire-proof A level sandwich panel board,50mm



Material



Frame,carbon steel/ food contacted  area SUS304



Operation



PLC + touch screen
