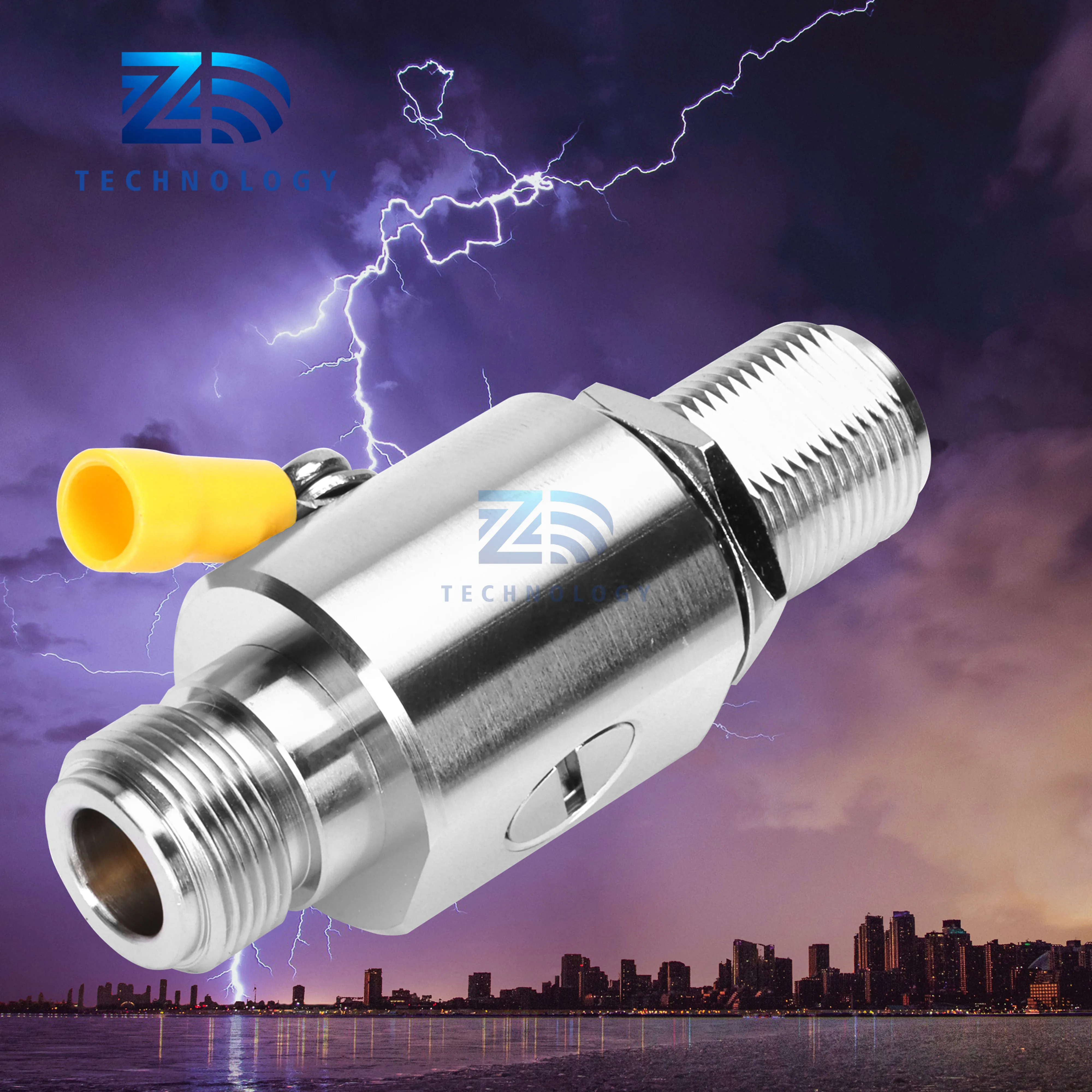

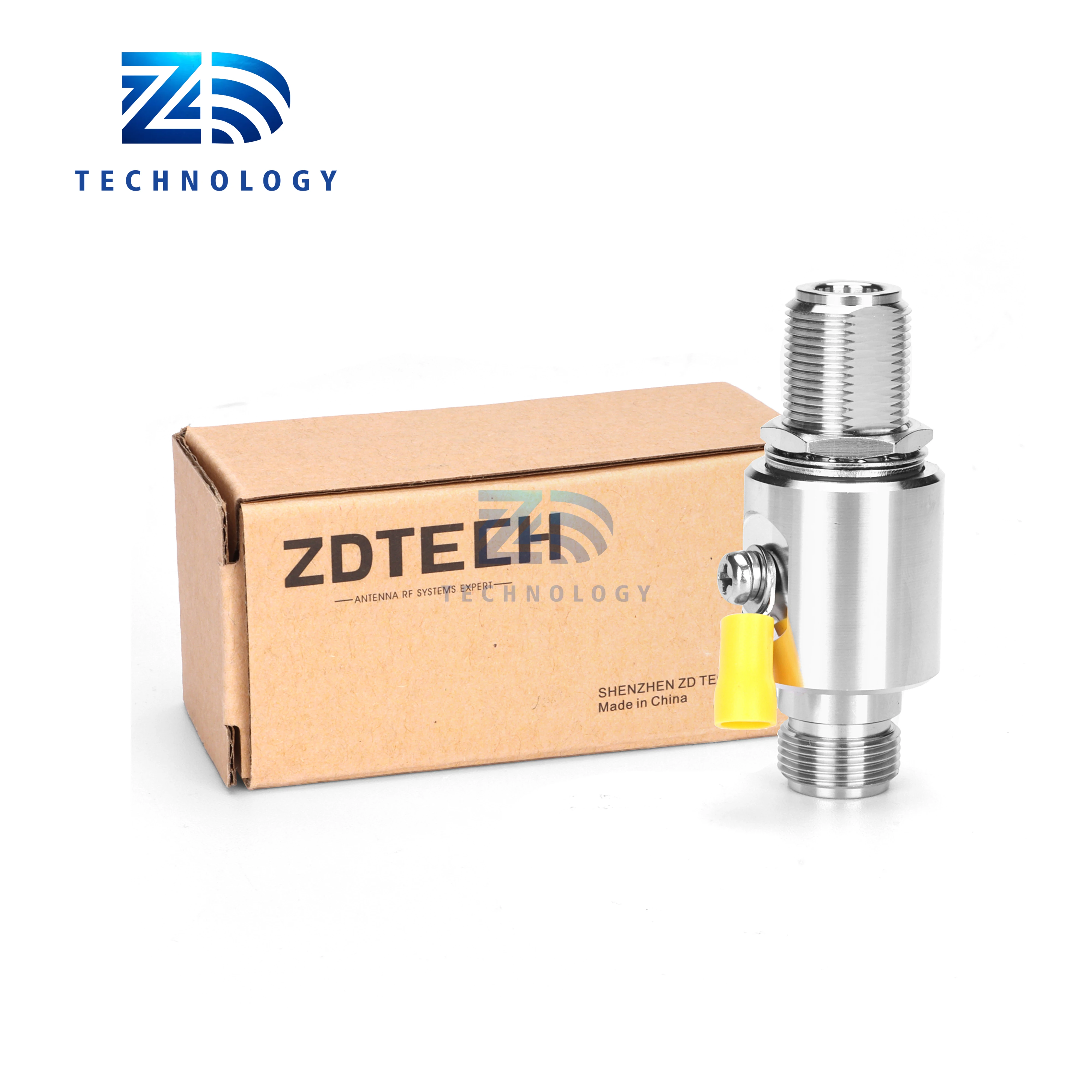

DC 3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection
DC-3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection

DC 3G Lightning Arrestor N female to N Female Coaxial Lightning Surge Protector Protection

Share on (1600475356840):


Price:$8.00 - $9.00

Quantity:


Product Overview

Description







0-3Ghz N Type Female to Male RF Surge
Model:ZD-LA-3G-NM/NF
Characteristic Impedance
50Ω
Frequency range
0-3GHz
Dielectric Withstanding Voltage

≥4000VRMS,50Hz,at sea level or other
VSWR
≤ 1.2
Return loss
≤ -26.4 dB
Insulation resistance
≥5000MΩ
Piece part
Material                    plating
Body
Brass                         Nickel plated
Insulation Resistance
Phosphor bronze    Gole or silver plated
O-ring sealing
6146 silastic
Insulator
PTFE
PTFE
Temperature Range
-40°C~+85°C
Connector type
Port 1: N female
Port2: N female
Max Surge Current
At least 10 times , Lighting Surge current 20kA, Lighting Surge Current Waveform 8/20 waveform
