China Manufacturer with Laminating Machine Strap window lamination

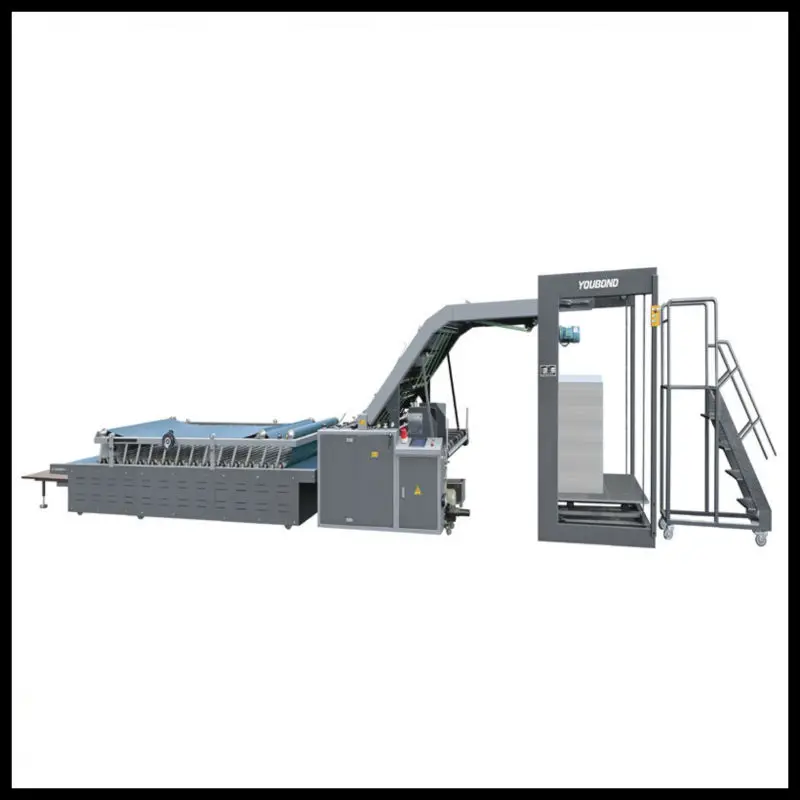

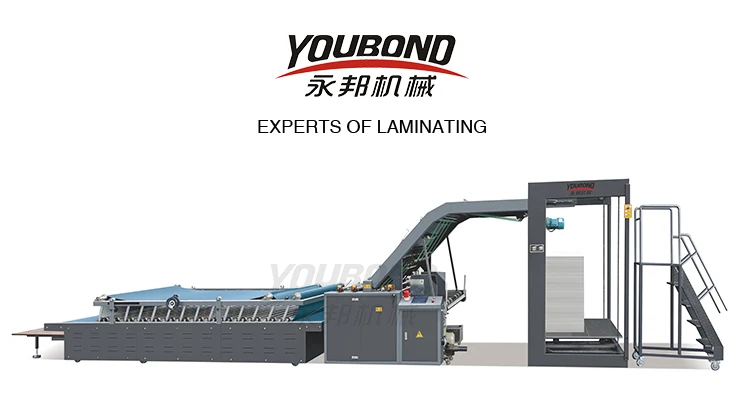

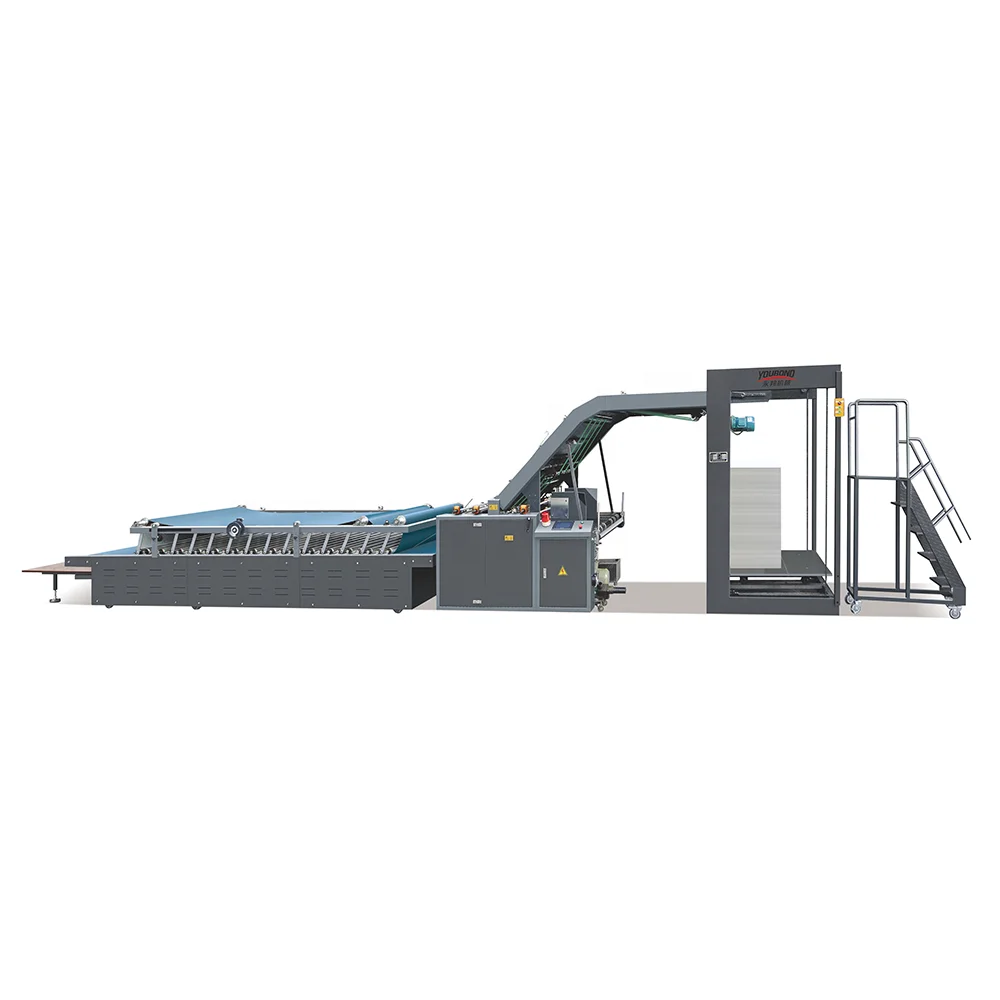

Semi Automatic Flute laminating machine

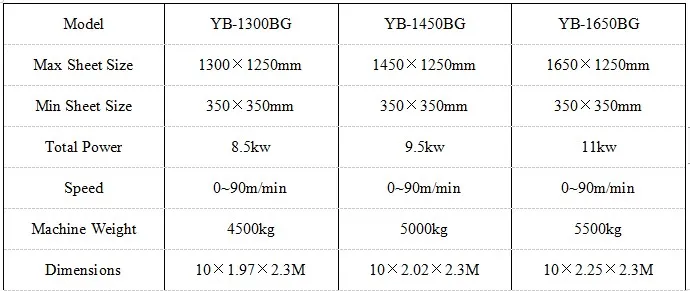

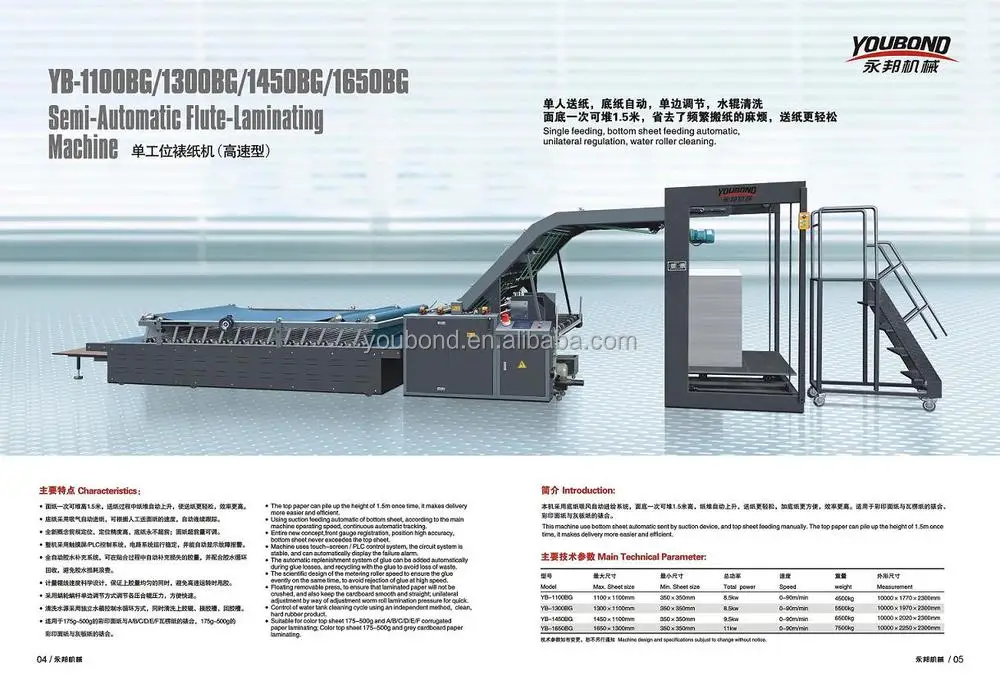

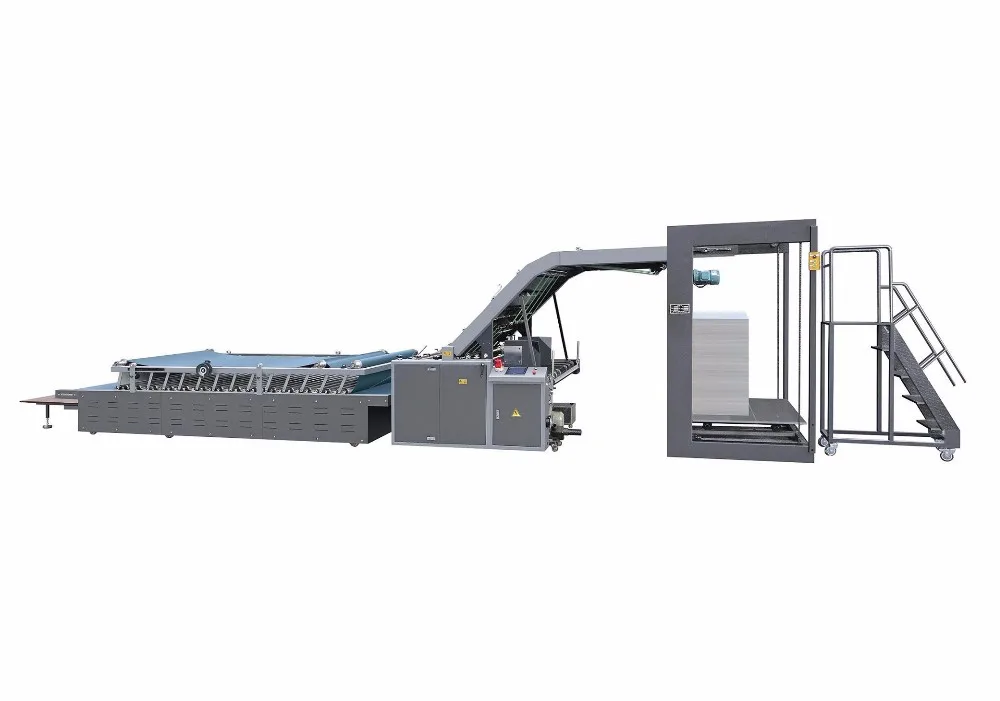

Specification of the YB-1300BG.1450BG.1650BG semi automatic Flute laminating machine

INTRODUCTION

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. The top paper can pile up the height of 1.5m once time, it makes makes delivery more easier and efficient

Single feeding, bottom sheet feeding automatic, unilateral regulation, water roller cleaning

Top Sheet 1.5m height pile,easy stack and feeding

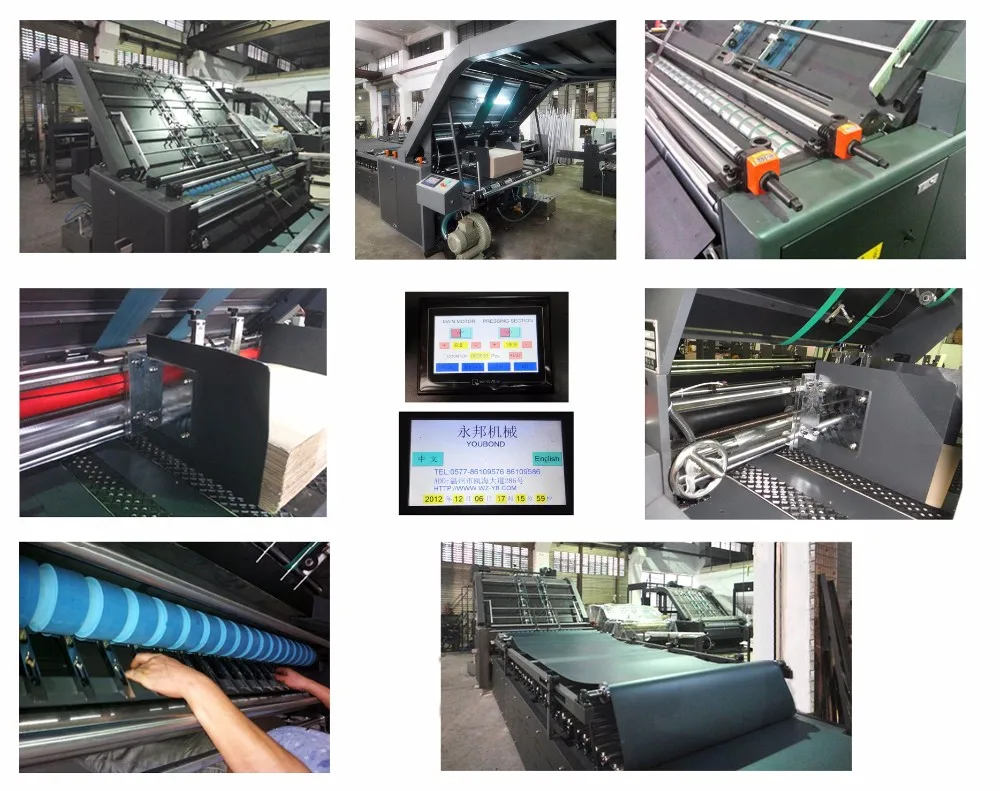

CHARACTERISTICS

The top paper can pile up the height of 1.5m once time , it makes delivery more easier and efficient..

Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.

Machine uses touch-screen/PLC control system, the circuit system is stable,and can automatically display the failure alarm.

The automatic replenishment system of glue can be added automatically during glue losses,and recycling with the glue to avoid loss of waste.

The scientific design of the metering roller speed to ensure the glue vently on the same time , to avoid rejection of glue at high speed.

Single side adjustment of the pressure roller, and equipped with a ressure gauge, with the record of the data , easy adjust ment when hange the size of bottom paper.

Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank t the same time.

Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and grey cardboard paper laminating.

When machine arrives at the customers factory, we could dispatch the engineer to the customers factory for the installation and trainning, meanwhile, when customer has the questions, customer could contact us online, our service team will always there for customers service.

                 We have professional sales and well educated after-sales service team.

       If you have any inquiry, please feel free to contact us, it would be our pleasure to           help you and make your task a lot easier!
