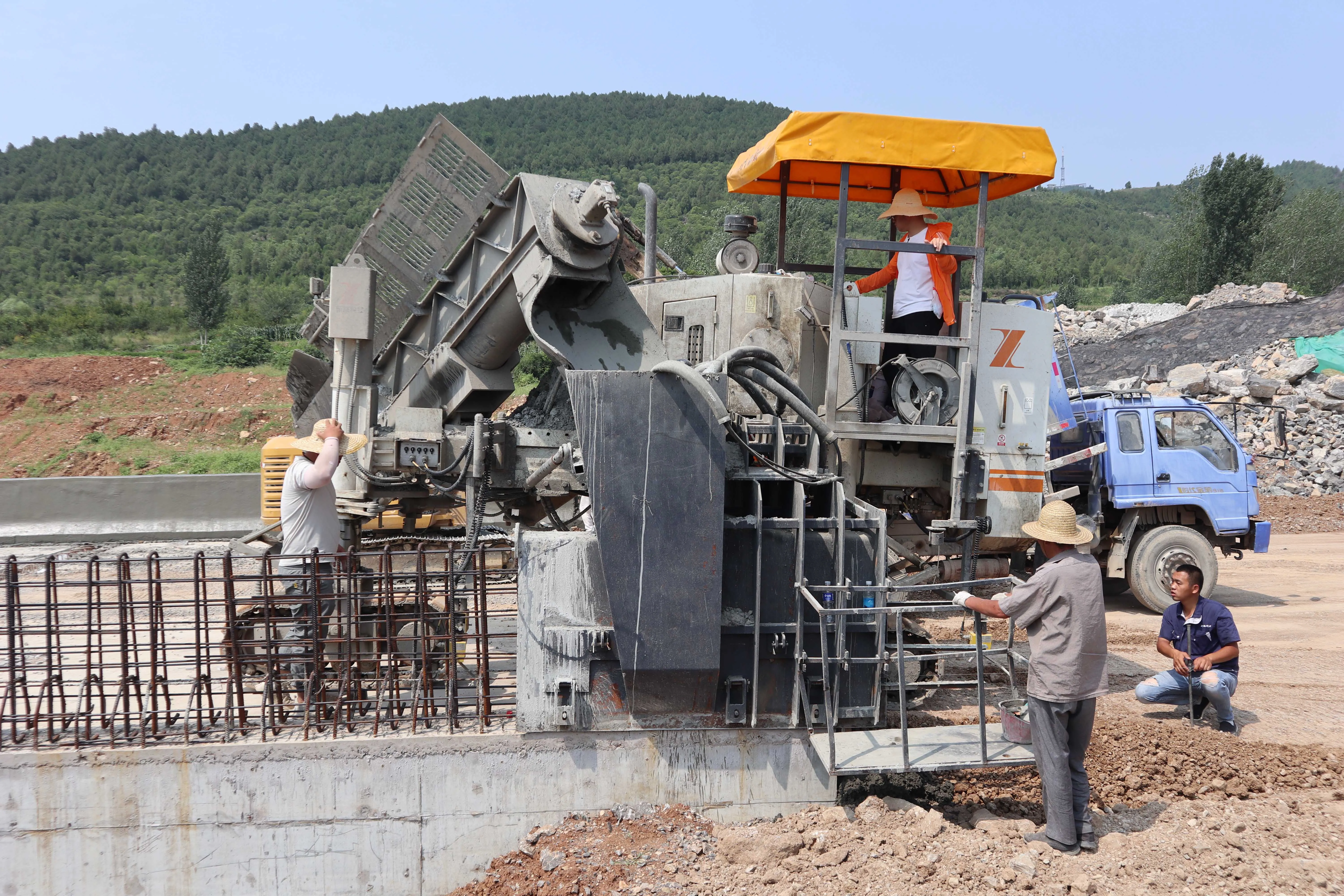

ROAD kerb ditch shoulder High Quality Releasing Forms Paving Concrete Slip Form Pavers Curbing Machine
- Category: >>>
- Supplier: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Share on (1600475443470):
Product Overview
Description
Products Description

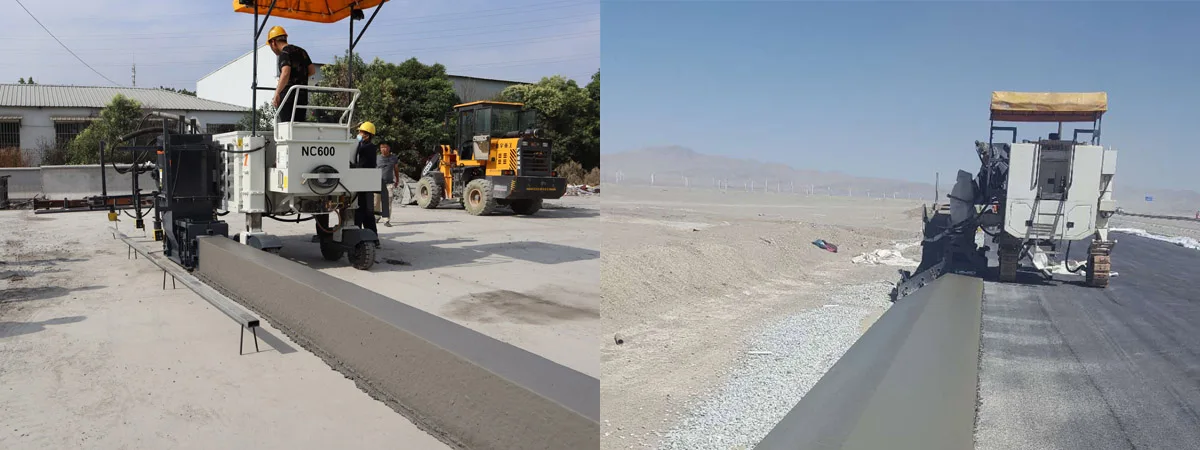

NC600 is a multi-functional concrete slip-form paver independently developed and produced by Xuzhou Hengxing Jinqiao Machinery Technology Co.,Ltd., it can realize the configuration of side mold. It is widely used in small kerb, small ditch, small shoulder and other construction fields, replacing the traditional technology to greatly improve the construction quality and speed of the above cement and concrete structures.The machine has large power reserve, full electronic control, full hydraulic drive, the front track drive to walk, the back four rubber wheels driven, flexible and light. Equipped with automatic steering and automatic leveling control system, the machine can complete technological procedures of concrete structures by one time like vibration, paving, forming etc.
Product Introduction
Product Introduction
1. The sliding construction has characteristics such as high construction speed, high degree of mechanization, continuity and
beautiful and straight linear, compared with the manual mode and the traditional process of precast after installation, using
NC600 kerbstone slip form paver has more advantages in reduction of labor intensity and material loss, quality control and
improve the efficiency of construction, after construction the overall stability is much stronger.
2. With the amplification of market demand, the good and bad slip form paver mixed together, the low-end products caused irreparable damage to the industry, even resulting in partial regional market government issued a document banning the use of
sliding mode process. In order to promote the healthy development of the industry, improve the influence of sliding form construction, EVERSTAR optimizes the product and specially enters into the small sliding form paver market, for kerb stone,
low wall, sink, shoulder and other small structures construction, we make the ordinary labor team with a 50 loader capital into the sliding form construction industry. We can improve the construction precision and efficiency of mini slipform paver,
make the labor team accumulation wealth fast and the machine is known as the “money grab”.
beautiful and straight linear, compared with the manual mode and the traditional process of precast after installation, using
NC600 kerbstone slip form paver has more advantages in reduction of labor intensity and material loss, quality control and
improve the efficiency of construction, after construction the overall stability is much stronger.
2. With the amplification of market demand, the good and bad slip form paver mixed together, the low-end products caused irreparable damage to the industry, even resulting in partial regional market government issued a document banning the use of
sliding mode process. In order to promote the healthy development of the industry, improve the influence of sliding form construction, EVERSTAR optimizes the product and specially enters into the small sliding form paver market, for kerb stone,
low wall, sink, shoulder and other small structures construction, we make the ordinary labor team with a 50 loader capital into the sliding form construction industry. We can improve the construction precision and efficiency of mini slipform paver,
make the labor team accumulation wealth fast and the machine is known as the “money grab”.

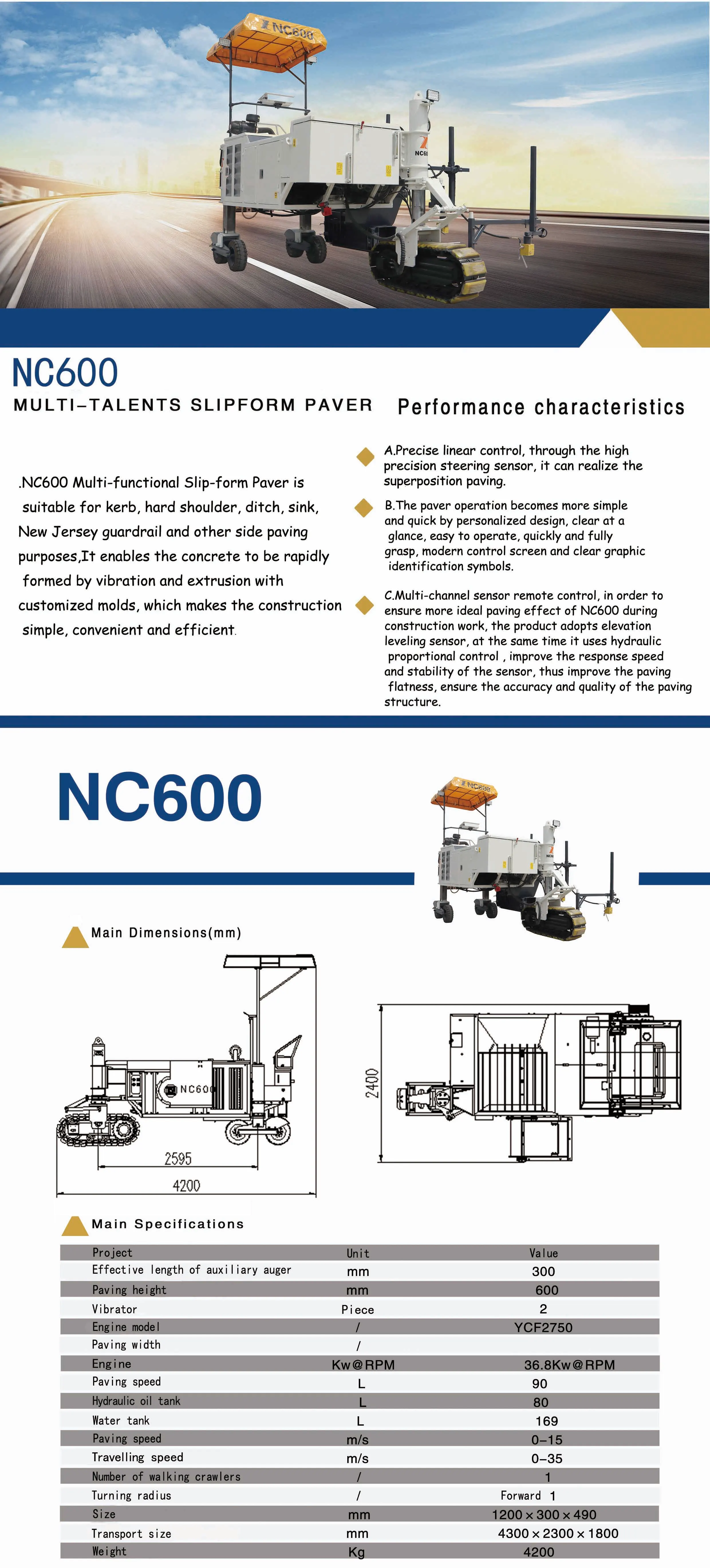

General parameters of host machine
1.Basic parameters:
Paving speed 0~15m/min
Travelling speed 0~30m/min
Maximum climbing ability ≥20%
2.Engine:
Model Yuchai 30D2G0-1000000WA
Power 36.8kW/2400rpm
Type Naturally aspirated
Diesel tank capacity 90L
3.Hydraulic system:
Hydraulic pump: DANFOSS imported brand
Hydraulic oil cooling: large size radiator, forced air cooling
Hydraulic oil filter: equipped with brand filter, the maximum filtration accuracy up to 10μm
Hydraulic tank capacity: 110L
4.Electric control system:
The color graphic display of the operation table, with the functions of state display, warning and alarm, system voltage is 12V.
Electronic automatic control of steering, longitudinal and transverse slopes, our machine equipped with two longitudinal slope
sensors, one transverse slope sensor and one steering sensor.
5.Vibration compaction system:
Type: US imported, square head housing, hydraulic drive
Frequency: 0~167Hz stepless adjustable
Quantity: standard configuration two vibrating oil lines and two hydraulic vibrators
6.Flush system
Type: High pressure flushing machine with flushing nozzle,
the flushing pressure can reach 5MPa
Water tank capacity: 158L
7.Walking device
It is composed of variable pump, hydraulic valve, hydraulic motor, reducer, crawler and control system.
Type: walking by single track drive,walking speed stepless adjustable
Track size: 134cm length, 30cm width and 51cm height
Side mold parameters
1.Basic parameters:
Maximum paving width 60cm
Maximum paving height 60cm
2.Dimensions and weight:
Total length 420cm
Total width 240cm
Total height 310cm(Transport:200cm)
Weight 4000kg
3.Feeding system:
Drive: Direct drive by hydraulic motor for higher torque, speed,and reliability
Specifications: Length 160cm, diameter 30cm
Driving wheel speed: 0~100rpm
4.Mold:
Customize all kinds of molds to meet different project requirements.
Note: Our company reserves the right to adjust the parameters mentioned above.
Characteristic:
1.Energy conservation and environmental protection:
* Engine: Yucai 30D2G0-1000000WA,high pressure common rail fuel injection control, conforms to the national Ⅲstage emission
standard, the power is large and the fuel consumption is low. Comprehensive fuel consumption 18.8L /h, full load fuel
consumption 30.3L/h;
* Hydraulic system: load sensitive variable control, oil supply according to the actual load and speed, which is energy saving.
2.Electrical control system:
The operation table adopts friendly wide-screen LCD display, the working state of the whole machine is clear, the operation
platform can be rotated and disassembled, easy to operate during construction.
3. Full hydraulic drive system:
Imported brand load sensitive variable pump, energy saving, reduce the temperature rise of the hydraulic system;
Hydraulic valve selection of imported brands, superior and reliable performance;
Valve block structure is compact and easy for maintenance;
The hydraulic vibrator is imported from WYCO, the performance is stable and reliable.
1.Energy conservation and environmental protection:
* Engine: Yucai 30D2G0-1000000WA,high pressure common rail fuel injection control, conforms to the national Ⅲstage emission
standard, the power is large and the fuel consumption is low. Comprehensive fuel consumption 18.8L /h, full load fuel
consumption 30.3L/h;
* Hydraulic system: load sensitive variable control, oil supply according to the actual load and speed, which is energy saving.
2.Electrical control system:
The operation table adopts friendly wide-screen LCD display, the working state of the whole machine is clear, the operation
platform can be rotated and disassembled, easy to operate during construction.
3. Full hydraulic drive system:
Imported brand load sensitive variable pump, energy saving, reduce the temperature rise of the hydraulic system;
Hydraulic valve selection of imported brands, superior and reliable performance;
Valve block structure is compact and easy for maintenance;
The hydraulic vibrator is imported from WYCO, the performance is stable and reliable.
