EDUP AX1800 High speed WiFi 6 WiFi Adapter BT5.2 MT7921 PCI E Network Interface Card
- Category: Network Cards >>>
- Supplier: Shenzhen EDUP Electronics Technology Co. Ltd.
Share on (1600475494355):
Product Overview
Description
EDUP AX1800 High speed WiFi 6 WiFi Adapter BT5.2 MT7921 PCI-E Network Interface Card
Product Description
The EP-9655GS is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE802.11ax and IEEE802.11a/b/g/n/ac standards. Wireless transmission rates can reach up to 1800Mbps. Using the EP-9655GS Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode. This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi . the Wi-Fi 6 MTK MT7921 can provide Gigabit wireless speed and dramatically improve your connected experience at home, work, or on the go.
Product Description
Features
Ø Complies with IEEE 802.11a/b/g/n/ac/ax WiFi and BT5.2 HS (WiFi: PCI-E, BT: USB)
Ø Supports PCI-E-X1/X4/X8/X16
Ø 2.4G/5G dual frequency optional, 5GHz band rate up to 1200Mbps, 2.4GHz band rate up to 574Mbps
Ø Supports Cisco CCX
Ø Supports multiple BSSID
Ø The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps
Specifications
Model | EP-9655GS |
Chipset | MTK MT7921 |
Standards | IEEE 802.11a/b/g/n/ac WiFi and BT5.2 +HS (WiFi: PCI-E, BT: USB) |
PCI Bus | PCI-E-X1/X4/X8/X16 |
Frequency Range | WiFi: 2.4GHz, 5.8GHz BT: 2402MHz~2483MHz |
Antenna | 2*5 dBi |
Transmission Rate | 2.4G up to 574Mbps, 5.8G up to 1200Mbps |
Operating System | Microsoft Windows* 10, Linux*, Chrome OS* |
Dimensions (H x W x D) | M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)] M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
|
Weight | M.2 2230: 2.83 +/– 0.3 g |
Radio ON/OFF Control | Supported |
Connector Interface | M.2: PCIe, USB |
Operating Temperature (Adapter Shield) | 0°C to +80°C |
Humidity Non-Operating | 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) |
Wi-Fi Alliance8 | Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast* , Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi- Fi TimeSync* |
IEEE WLAN Standard | IEEE 802.11-2016 and select amendments (selected feature coverage) |
| BT version | BT5.2 |
Security Methods | WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support) |

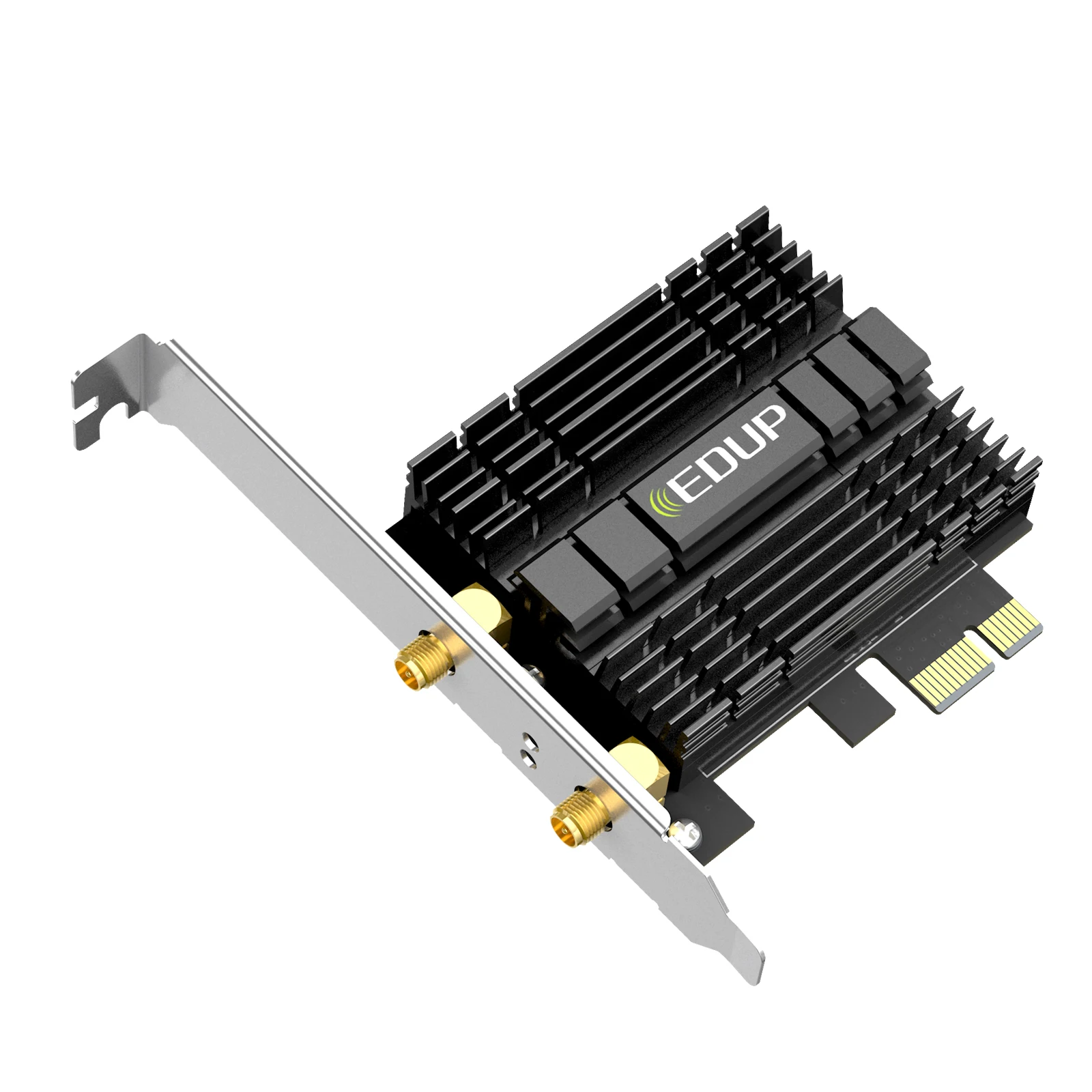

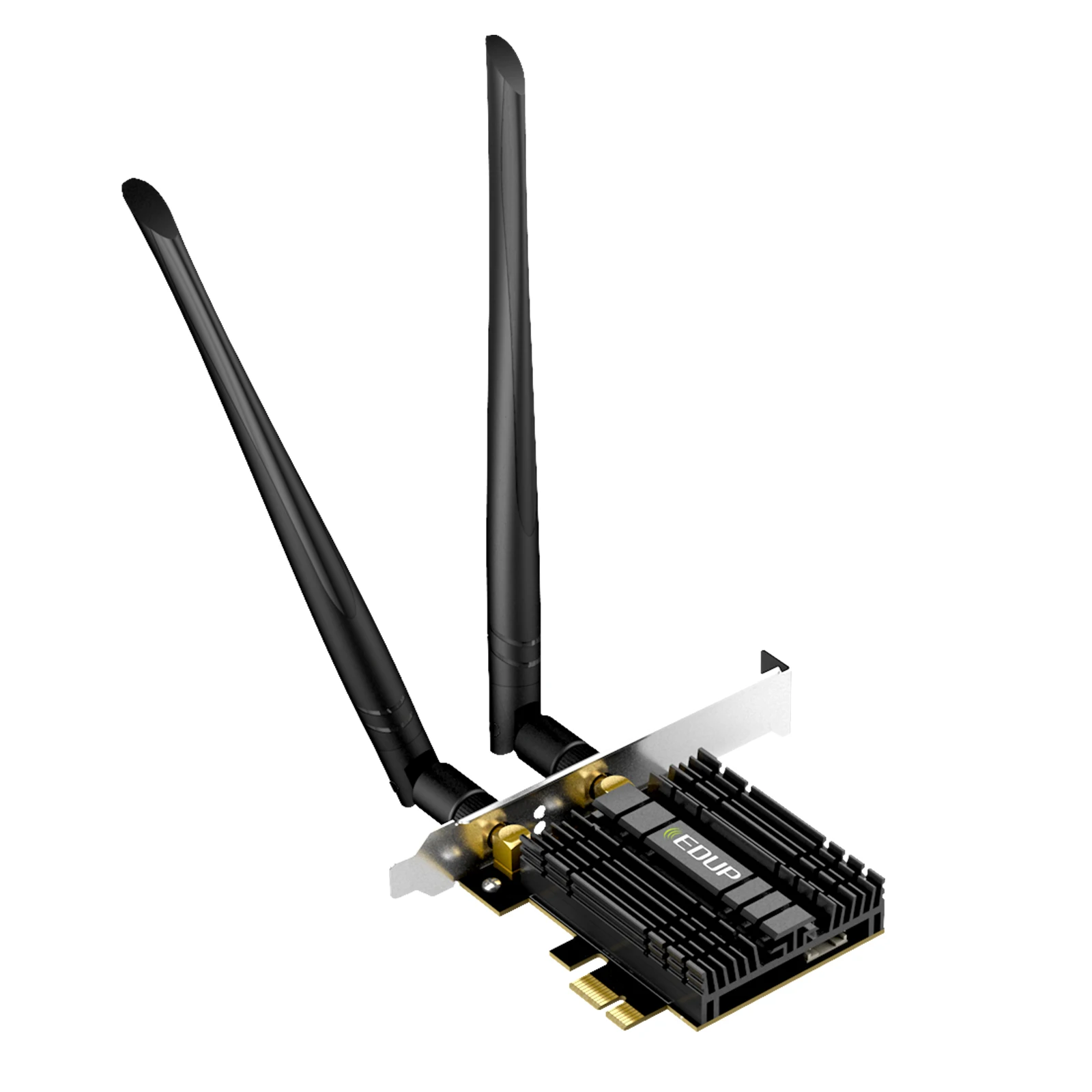

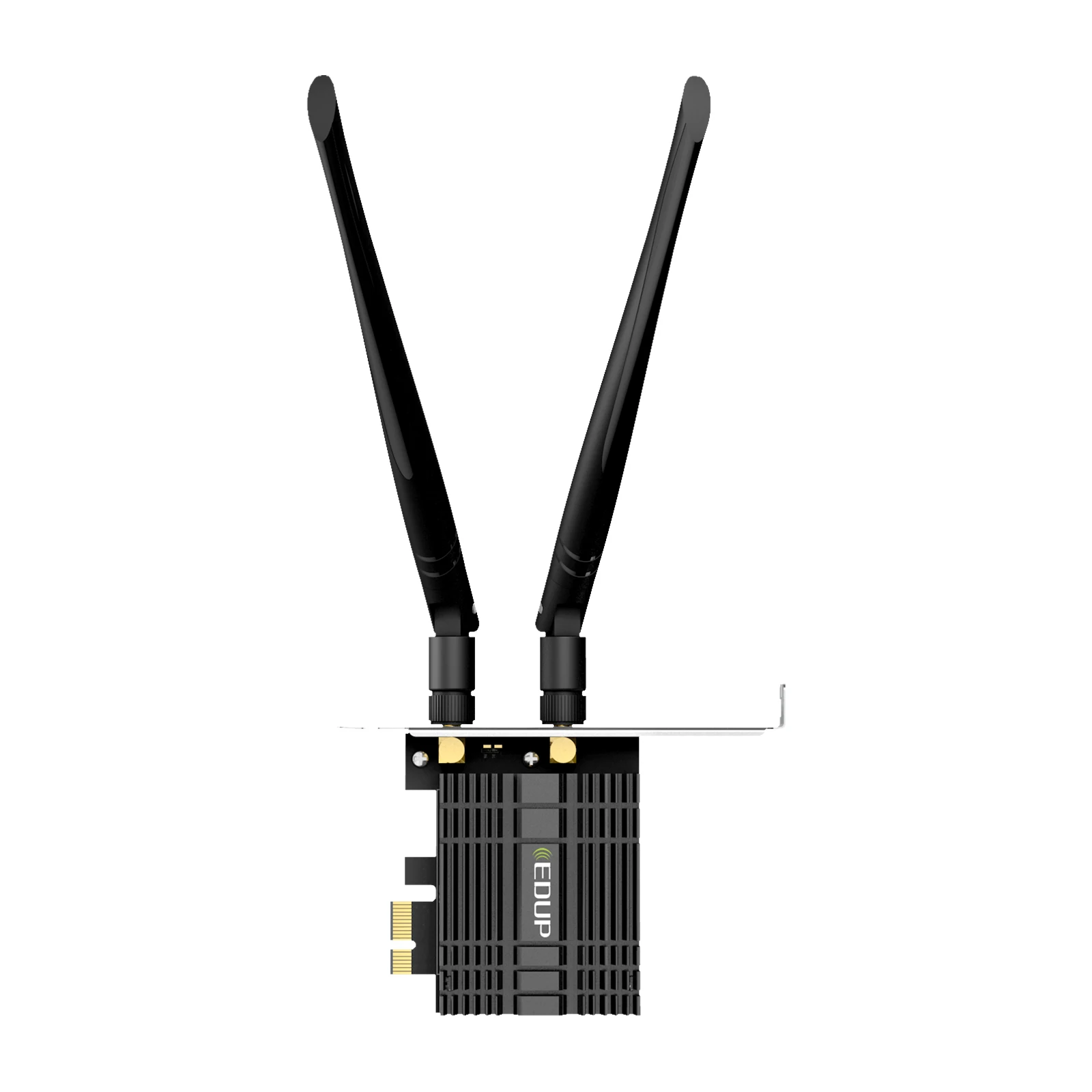

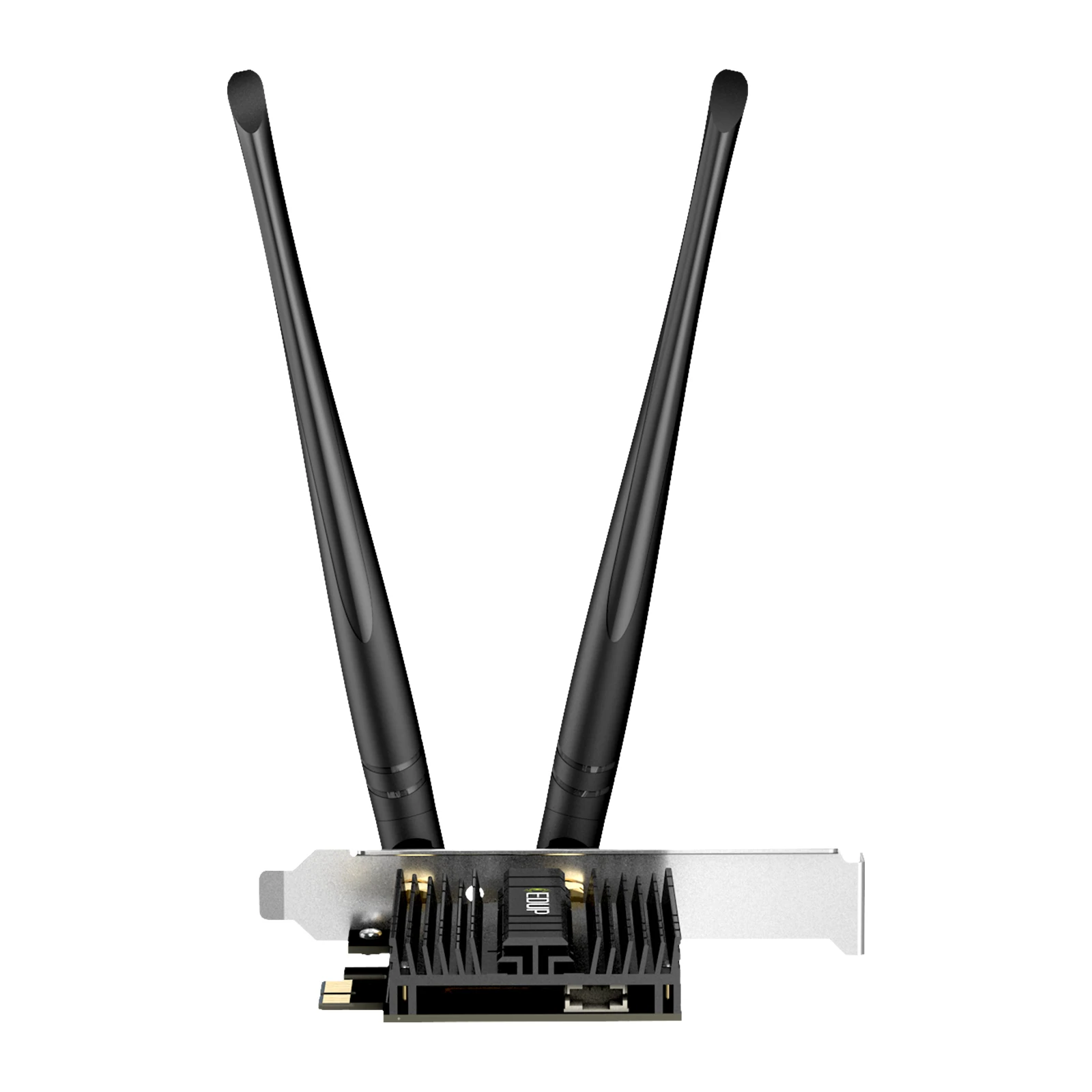

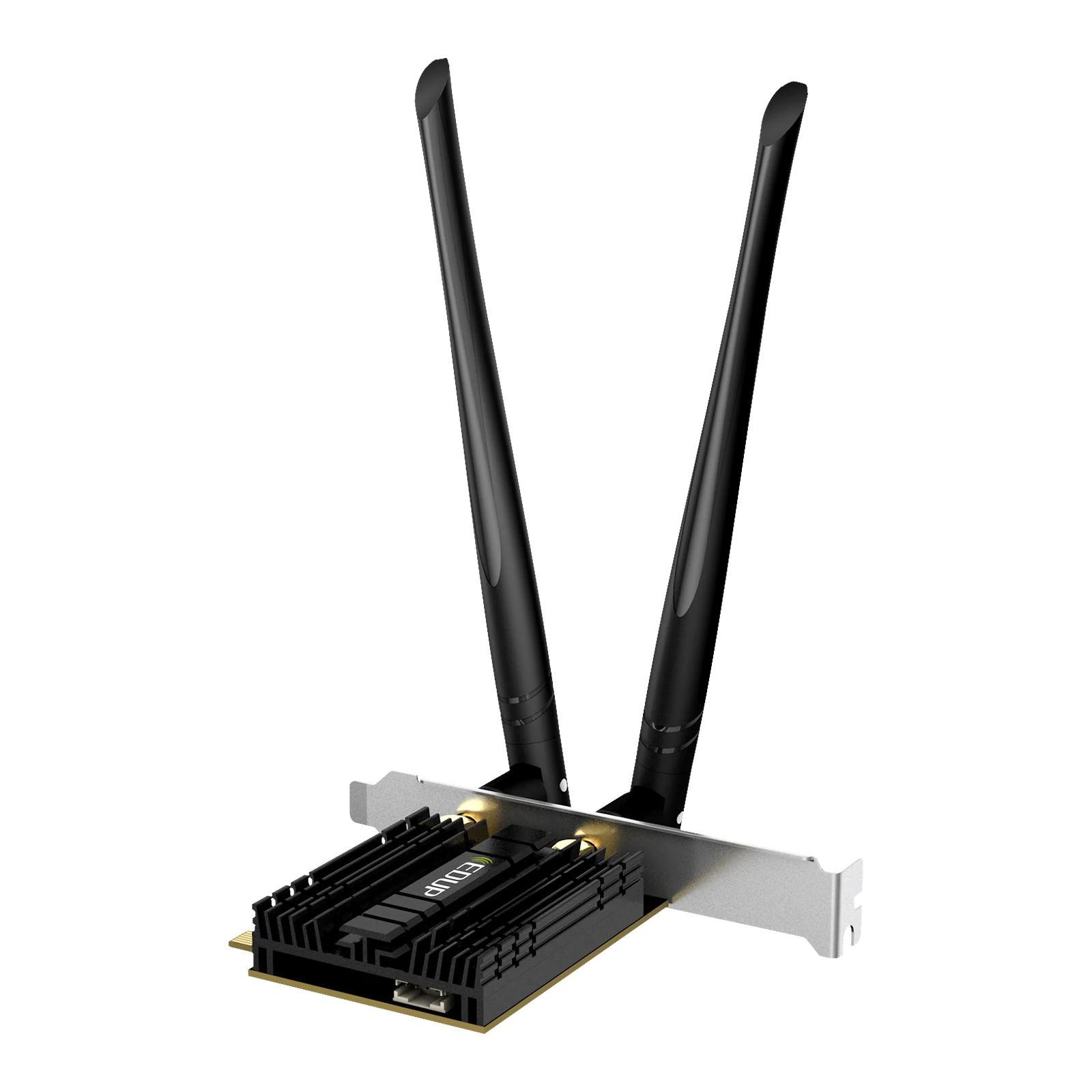

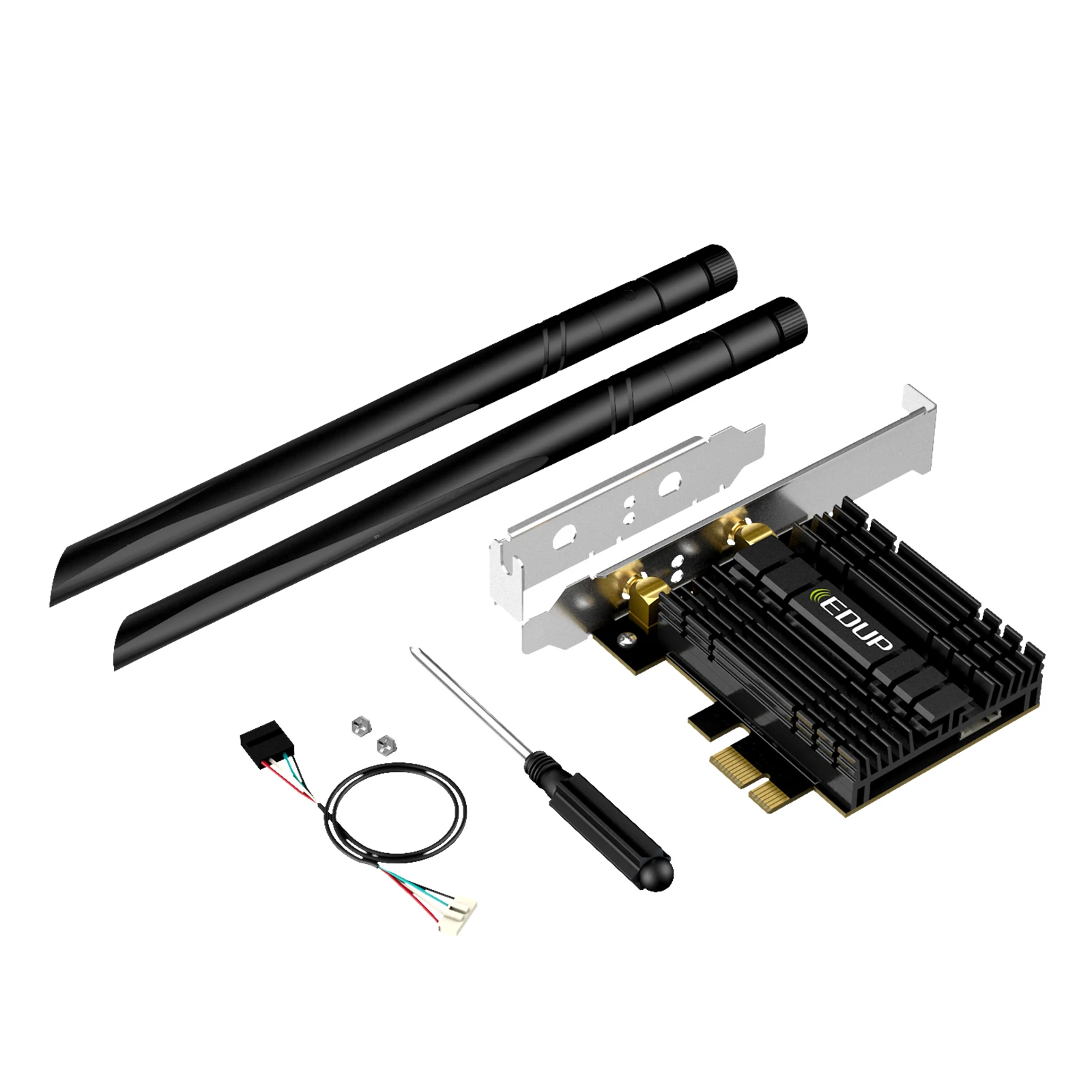

Product Pictures
Our Services
What are the payment terms ?
We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.
Over 1000pcs,we can do OEM and accept 30% deposit in advance .
What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Company Information
Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.
