2 Axle Car Hauler transport Vehicle Trailer for Sale in Ghana Tema
2 Axle Car Hauler transport Vehicle Trailer for Sale in Ghana Tema

2 Axle Car Hauler transport Vehicle Trailer for Sale in Ghana Tema

Share on (1600475505799):


Price:$15,000.00 - $28,000.00

Quantity:


Product Overview

Description


2 Axle Car Hauler transport Vehicle Trailer for Sale in Ghana Tema





   We are the top one and professional semi-trailer supplier.
  We can give you better product and favorable price.
  TITAN Vehicle has successfully entered into over 50 countries around the world.






Product Description


2 Axle car hauler transport vehicle trailer is the leading product developed by TITAN. It adopts a unique hydraulic lifting system. The key parts of the car transport trailer for sale are high quality brands at domestic and world wide. It is safe and reliable.





It has strong loading capacity and light weight. It can load 5-10 cars of different size. It has been used to load Honda, Audi, Hyundai, Toyota, Jeep and so on.

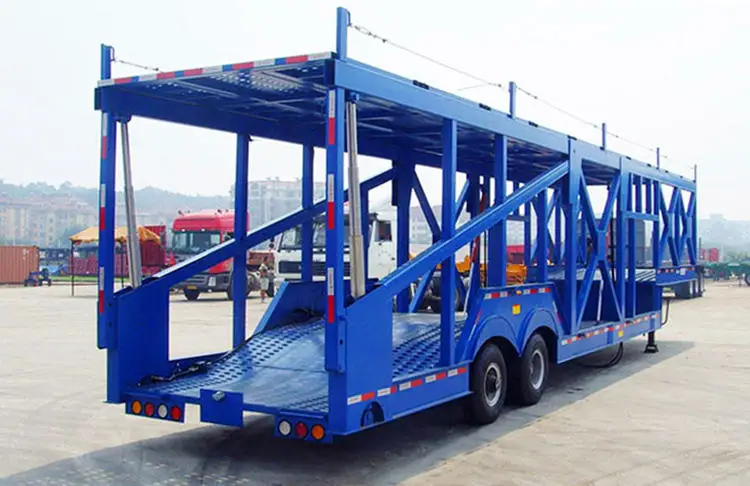

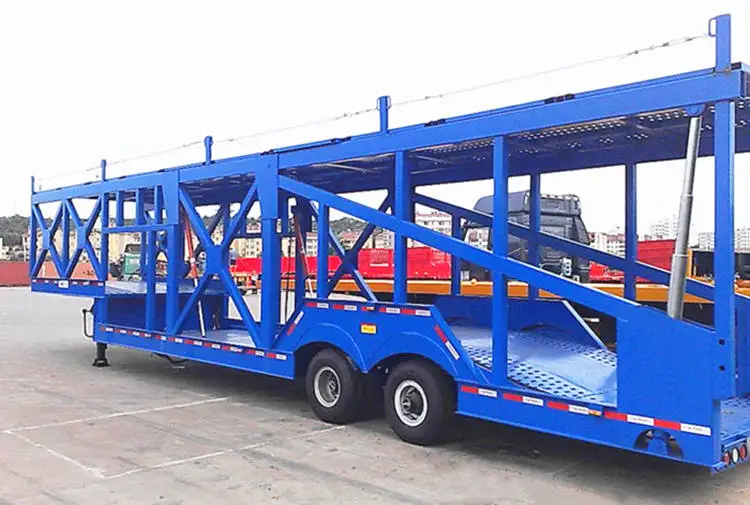

 car hauler trailer1.jpgcar hauler trailer2.jpg


















Specification



















































































 Name


Car Transpor Semi Trailer


Size


22000mm(L)*2700mm(w)*4220mm(H) or customer's optional


Tare Weight


15000kg


Main Beam Spec.


T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm


Tire


11.00R20 12PR,12R22.5 12PR


Side Frame


Channel Steel


Cross Brace


Channel Steel/Bending Steel


Leaf Spring


10-layers leaf spring(90mm*13mm*10pcs)


Axle Spec.


13T/16T/20T BPW or FUWA brand


King Pin


2"(50mm)or3.5"(90mm) JOST Brand


Brake Chamber


6sets


Landing Gear


 28T*2, JOST brand


Accessories


1 Standard Tool Box


Electric System


24V, One Set 6-core Standard Cable


Light


Tail lamp with turn signal,brake light & reflector,side lamp etc


Painting


 Sand balsting,prime coating, surface painting,color opitional, wax polishing


Ladder


Spring or Hydraulic


Packing


FCL Container, Ro-ro Shipment, Framework or Optional









Product Process


TITAN can customize a suitable semi-trailer according to customer requirements, so this is why our customers find us.This customer is operating a transportation company, and as the company expands, so does the customer's needs. So the customer asked us about the semi-trailer.


The model of car carrier semi trailer is the leading product developed by TITAN. It has strong loading capacity and light weight. It can load 5-10 cars of different size.


The model of car carrier semi trailer is the leading product developed by TITAN. It adopts a unique hydraulic lifting system. The key parts of the car transport trailer are high quality brands at domestic and world wide. It is safe and reliable. It has strong loading capacity and light weight. It can load 5-10 cars of different size. It has been used to load Honda, Audi, Hyundai, Toyota, Jeep and so on.

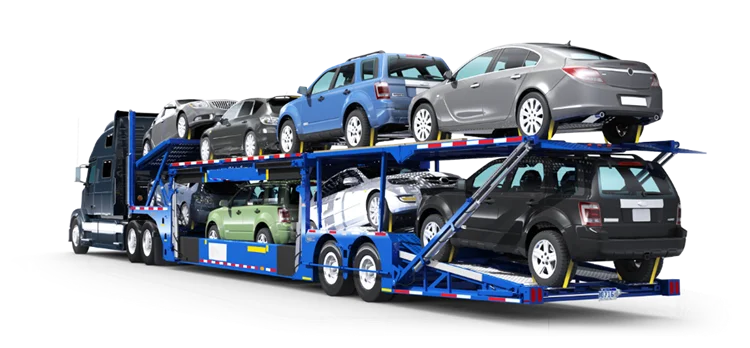

car hauler trailer.png














Packaging & Shipping


The typical car carrier is usually a two story unit with several ramps controlled by hydraulics. These ramps can be adjusted in many different angles to accommodate vehicles if different lengths and heights. The hydraulics also allow for the top level to be lowered so vehicles can be driven up to the top of the carrier.


Once the top level is filled it is raised and adjusted to make room for the vehicles to be loaded on the bottom of the carrier. Some carriers have what is called a headrack, which is an additional placement of a platform on over the cab of the truck to add another vehicle. The normal maximum for a trailer is 10, including the headrack.The controllers for the ramps are located on the side of the trailer


Car carrier trailer use container shipment.





.jpg





Welcome to leave your inquiry! Thank you!



We will meet the acme of perfection to serve and provide more details, price, catalog, drawing, videos for you!
