SML Customization Face Polished Tungsten Carbide Seal Rings for Mechanical Sealing
- Category: Cemented Carbide >>>
- Supplier: Wuhan SML Tools Limited
Share on (1600475535731):
Product Overview
Description
Product Description

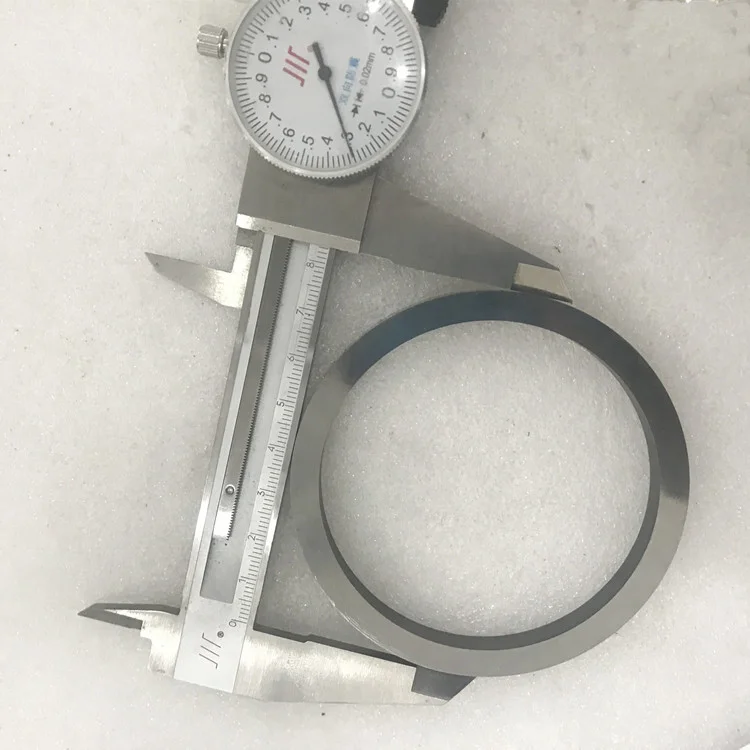

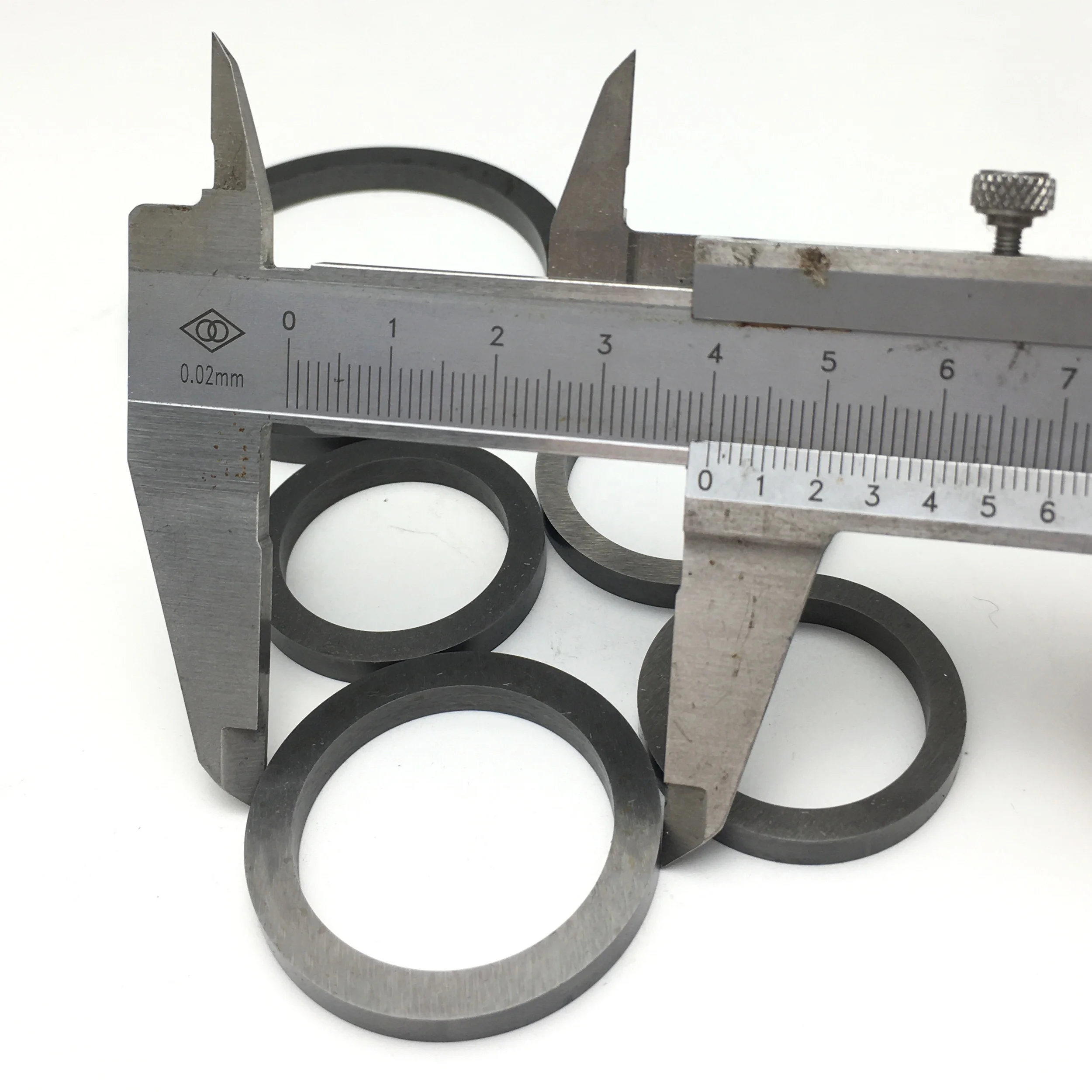

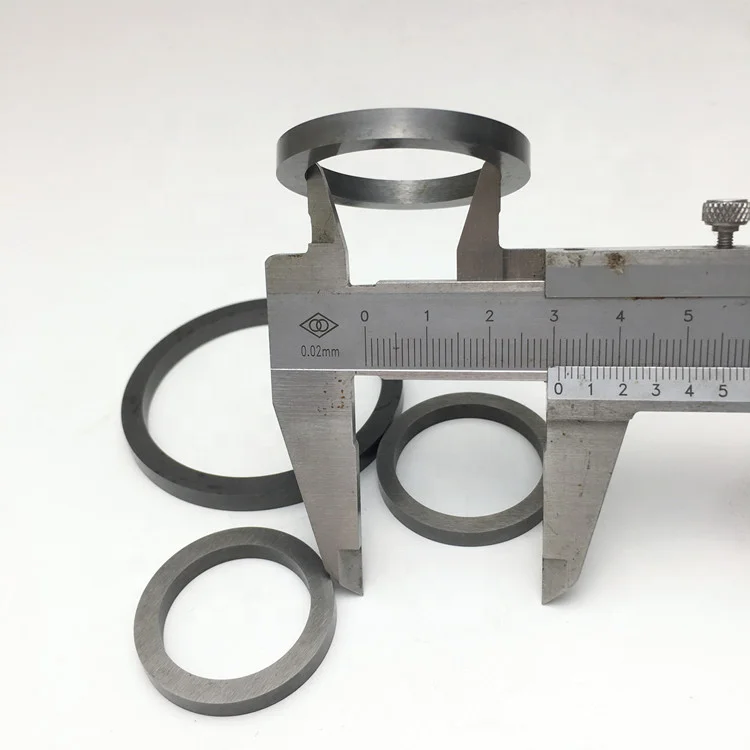

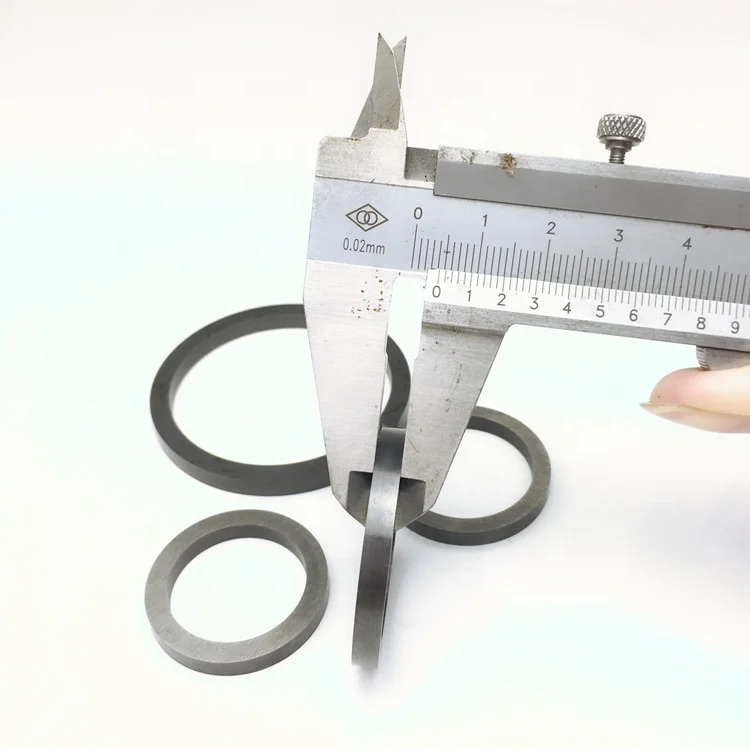

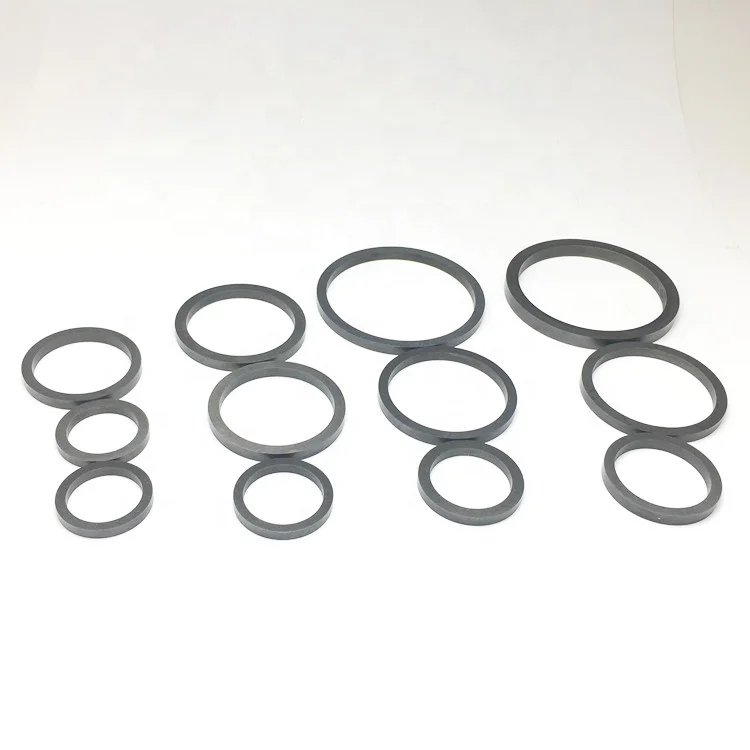

SML Customization Face Polished Tungsten Carbide Seal Rings for Mechanical Sealing
Tungsten carbide seal ring face is a very versatile seal face used for mechanical sealing. It is a circle where rotary and stationary seal ring contacts, so that liquid won't leak out through. It widely used for Pumps, Compressors, Agitators, Oil Refineries, Petrochemical plants, Fertilizer Plants, and Medical Industries.
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.
Advantages of tungsten carbide seal rings :
1. Excellent abrasion resistance
2. High wear resistance
3. High fractural strength
4. High thermal conductivity
5. Small heat expansion co-efficient
Other types of the tungsten carbide seal rings:
Flat face, with grooves, with slots and with holes etc
Properties of grades
Grade | Density (g/cm3) | Hardness (HRA) | TRS (MPa) |
YG8 | 14.80 | 89.5 | 2200 |
YG8C | 14.80 | 88.5 | 2400 |
YG11C | 14.40 | 87.0 | 2850 |
YK05 | 14.95 | 90.5 | 2500 |
YK15 | 14.60 | 87.6 | 2700 |
YK20 | 14.52 | 87.3 | 2650 |
YK25 | 14.40 | 87.2 | 2550 |
Application
Grade | Applications recommended |
YG8 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
YG8C | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YG11C | Suitable for embedding rotary percussive drill bits of heavy rock drilling machines for drilling hard formations of class f=18 or above Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YK05 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
|
YK15 | Suitable for embedding rotary percussive drill bits of light rock drilling machines for drilling medium rock formations of class f=14-15 |
YK20 | Suitable for embedding rotary percussive drill bits of medium rock drilling machine for drilling hard rock formations of class f=18 or above. |
YK25 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations |
